MACHINES FOR CREEP FEED GRINDING OF HARD-TO-MACHINE MATERIALS

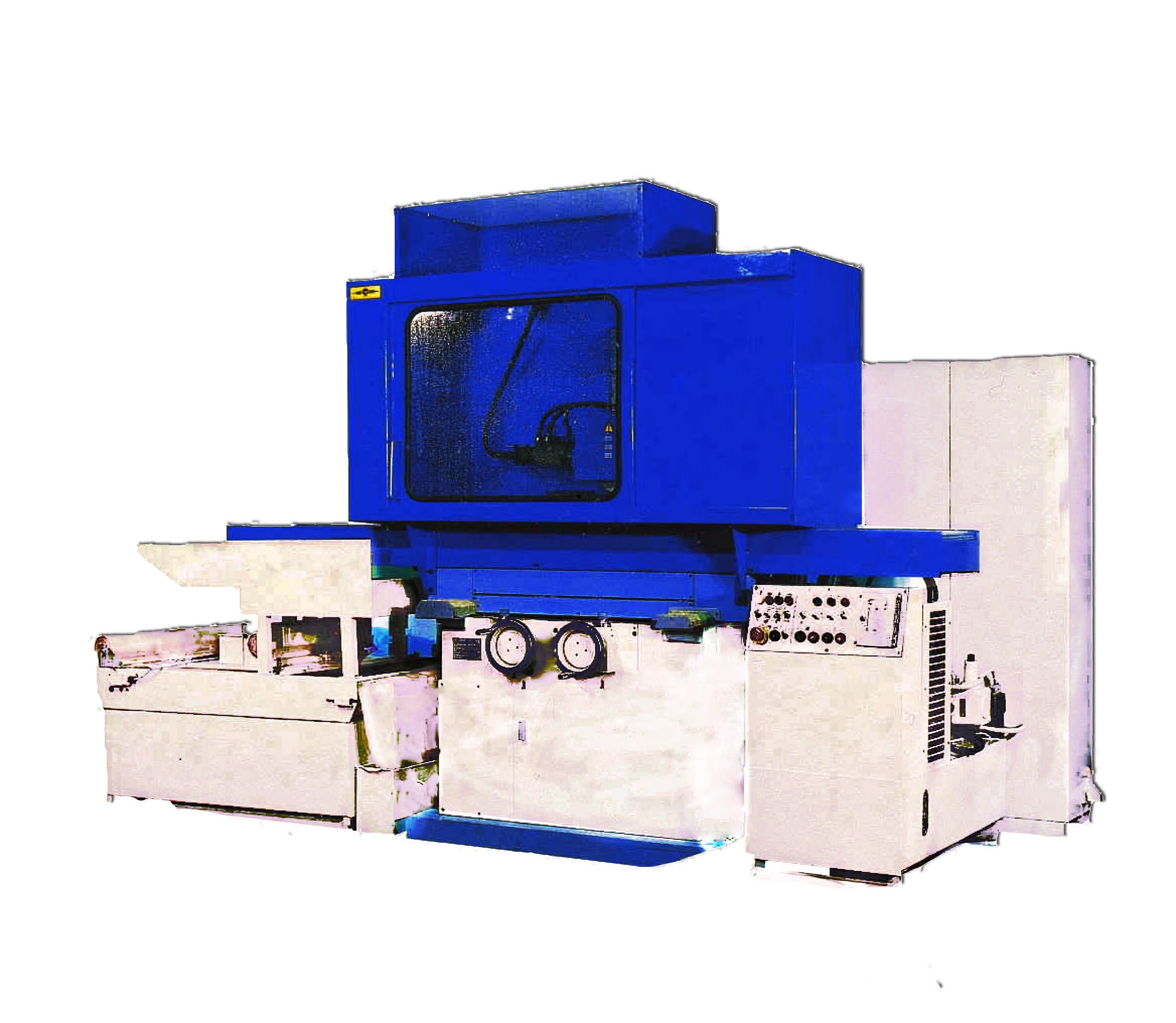

MACHINE FOR CREEP FEED SINGLE-PASS GRINDING WITH CNC OSH-466

The OSH-466 machine are quite simple in design and easy to use. They provide efficient processing of pre-milled grooves and spikes in parts made of various structural materials using the single-pass creep feed grinding method. Solid material processing is possible. The volume of the removed allowance is 100 ... 200 mm/s.

  • Maximum dimensions of installed workpiece (L x B x H) - 840 x 395 x 500 mm
  • Table mirror width - 395 mm
  • Table mirror length - 630 mm

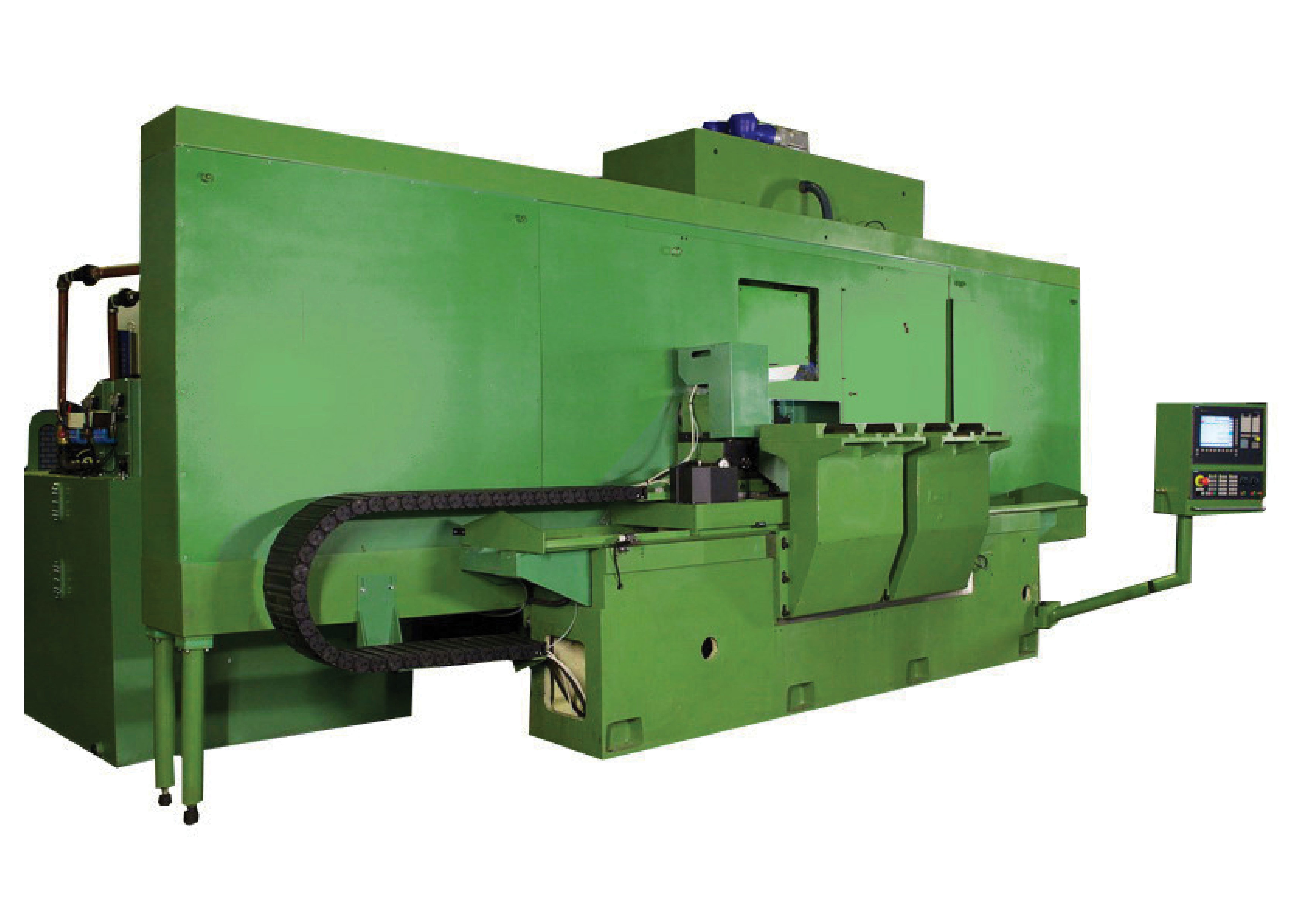

2-SPINDLE SURFACE & PROFILE GRINDING MACHINE WITH CNC OSH-233

The machine is designed for two-sided processing by deep grinding of precision profile surfaces of the shank blades of gas turbine engines.

  • Table mirror width - 395 mm
  • Table mirror length - 1800 mm
  • Main drive power - upper & lower motion 2x28 kW
MACHINE FOR CREEP FEED SINGLE-PASS GRINDING WITH CNC OSH-465

The OSH-465 machine are quite simple in design and easy to use. They provide efficient processing of pre-milled grooves and spikes in parts made of various structural materials using the single-pass creep feed grinding method. Solid material processing is possible. The volume of the removed allowance is 100 ... 200 mm/s.

  • Maximum dimensions of installed workpiece (L x B x H) - 840 x 290 x 400 mm
  • Table mirror width - 290 mm
  • Table mirror length - 620 mm

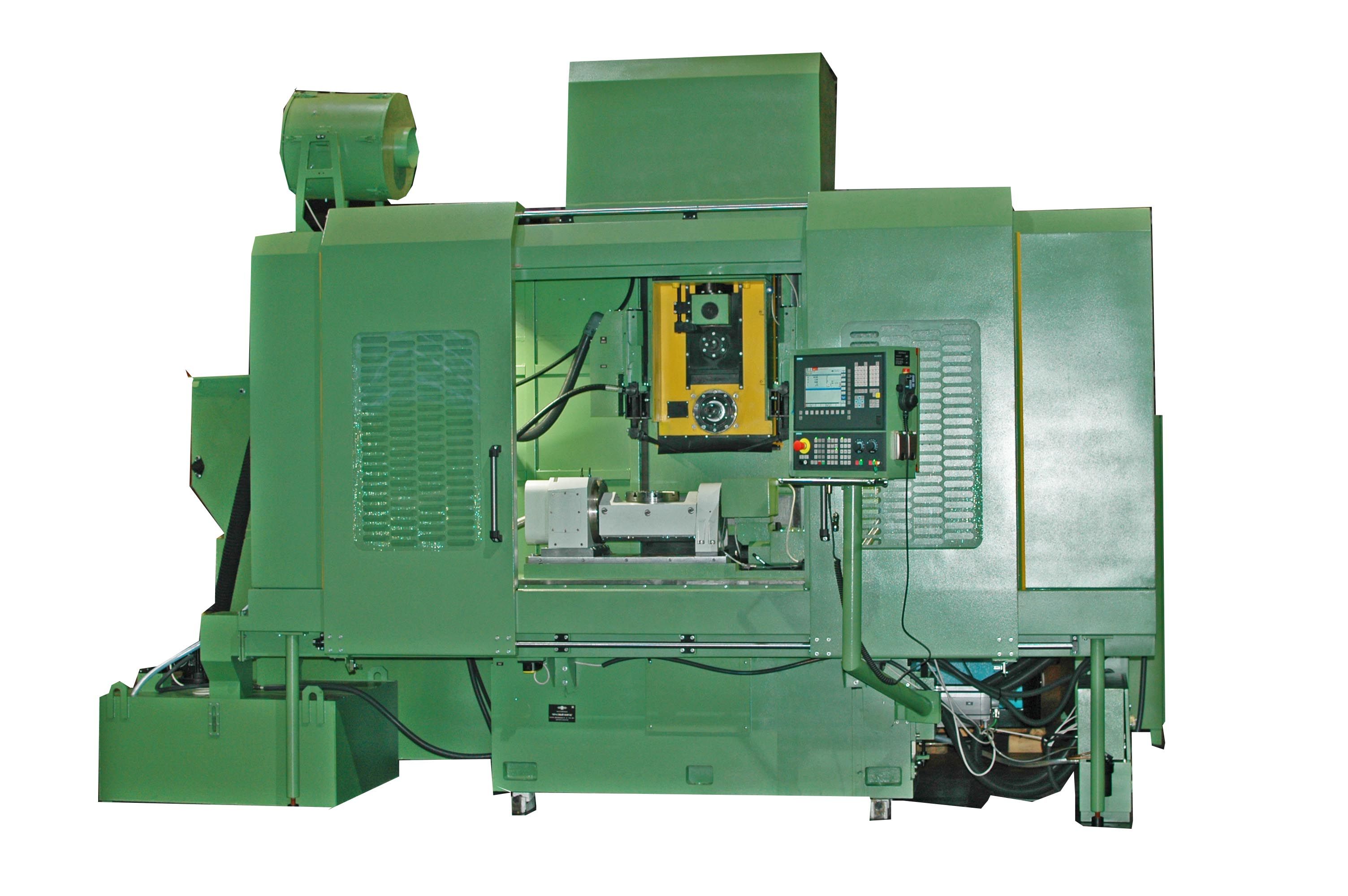

SEMIAUTOMATIC CREEP FEED SURFACE PROFILE GRINDING MACHINE WITH CNC OSH-221F3 VERSION 04

Semiautomatic creep feed surface-profile grinding machine with CNC model OSH-221F3 version 04 is designed for creep feed grinding of profile surfaces and deep slots of parts made of heat-resistant and other hard-to machine materials by abrasive grinding wheels. Machine has eight programmable coordinates.


  • Maximum dimensions of installed workpiece (L x B x H) - 800 x 400 x 500mm
  • Main drive power - 28 kW

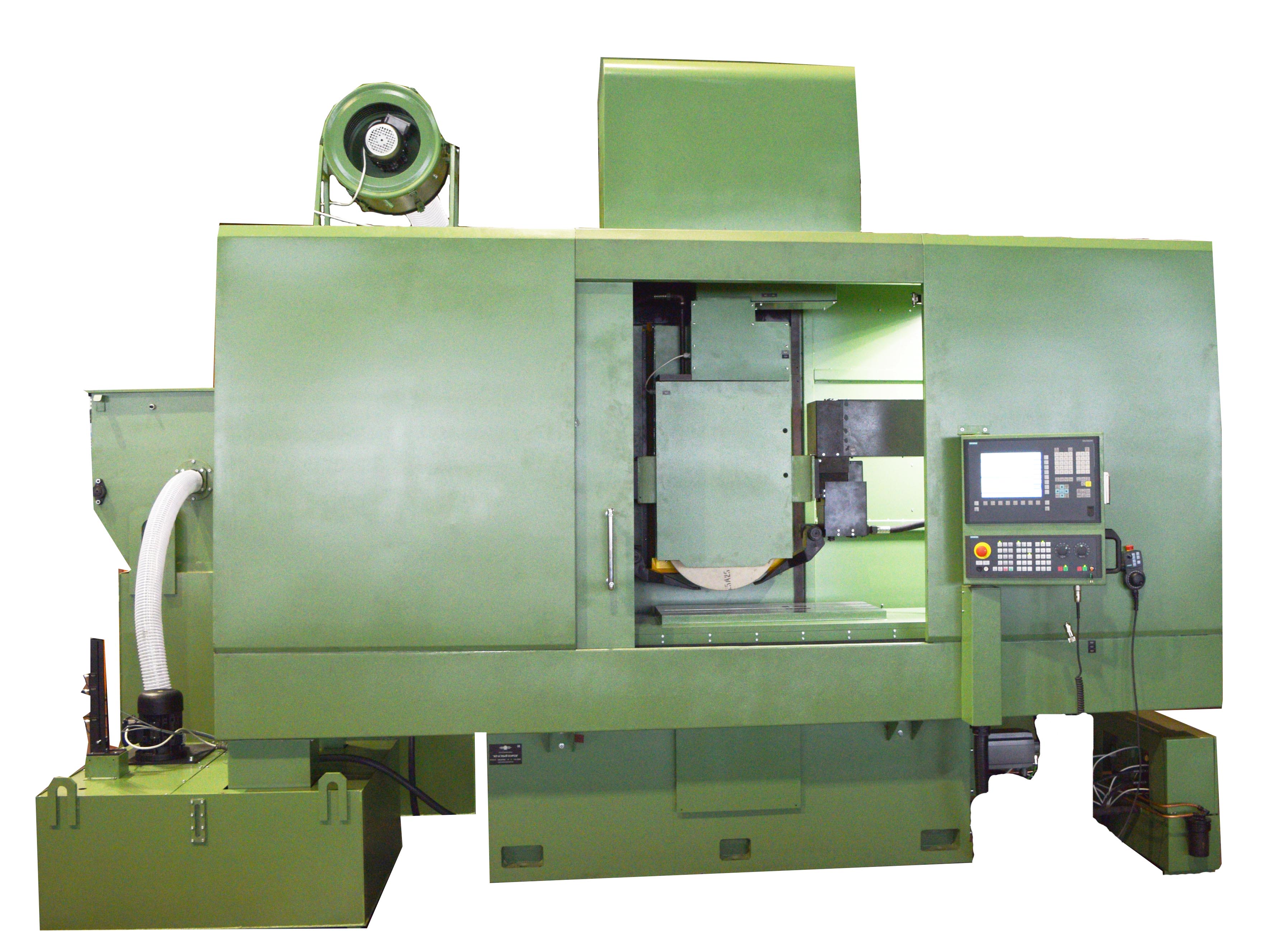

SEMIAUTOMATIC CREEP FEED SURFACE PROFILE GRINDING MACHINE WITH CNC OSH-221F3

Semiautomatic creep feed surface-profile grinding machine with CNC model OSH-221F3 is designed for creep feed grinding of profile surfaces and deep slots of parts made of heat-resistant and other hard-to machine materials by abrasive grinding wheels. Machine has eight programmable coordinates.


  • Maximum dimensions of installed workpiece (L x B x H) - 800 x 400 x 500mm
  • Main drive power - 28 kW

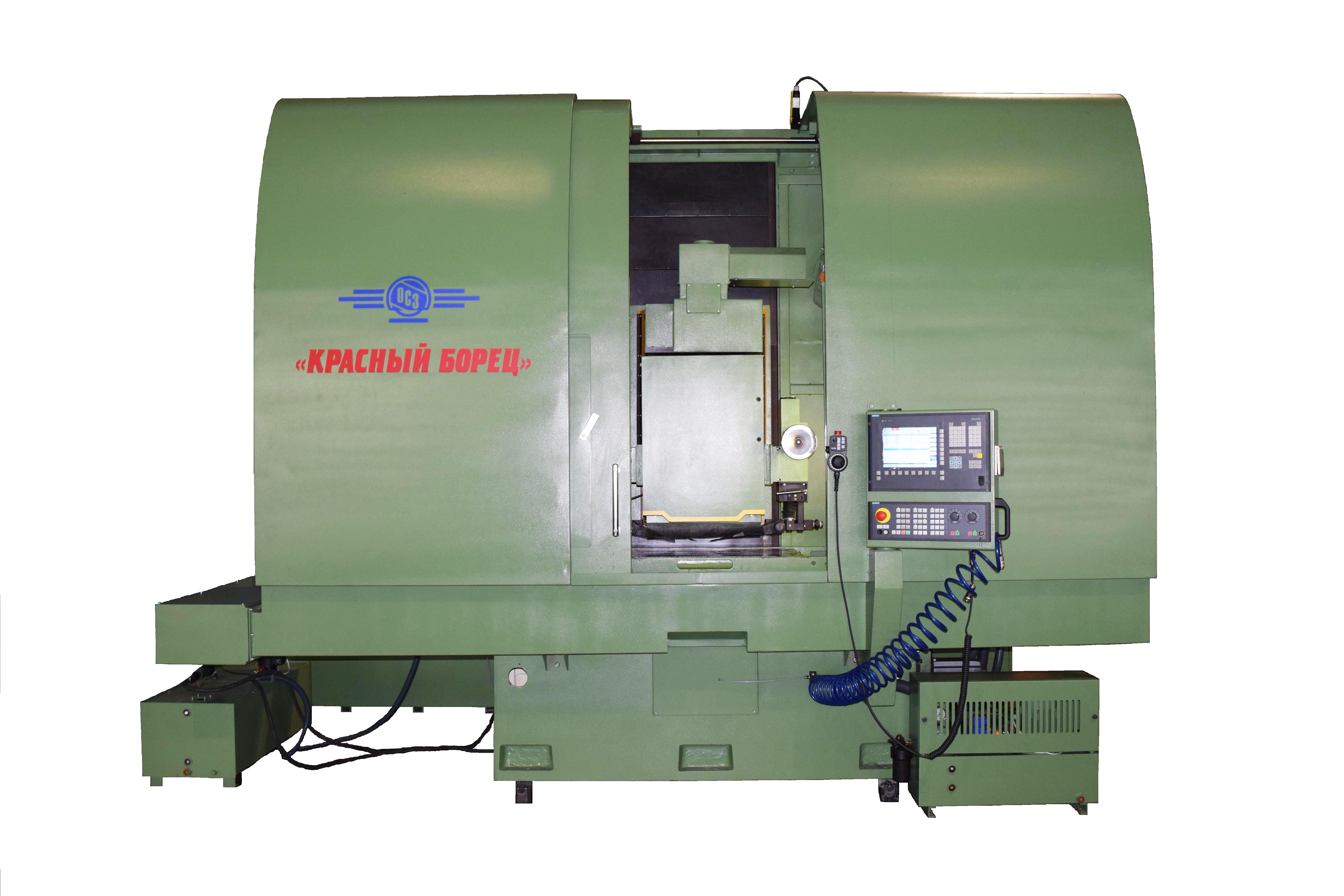

CREEP FEED SURFACE PROFILE GRINDING MACHINE WITH CNC OSH-220

Creep feed surface-profile grinding machine with CNC model OSH-220F3 is designed for creep feed grinding of profile surfaces and deep slots of parts made from heatproof and other hard-to-machine materials by abrasive grinding wheels.

  • Maximum dimensions of installed workpiece (L x B x H) - 800 x 400 x 480mm
  • Main drive power - 28 kW

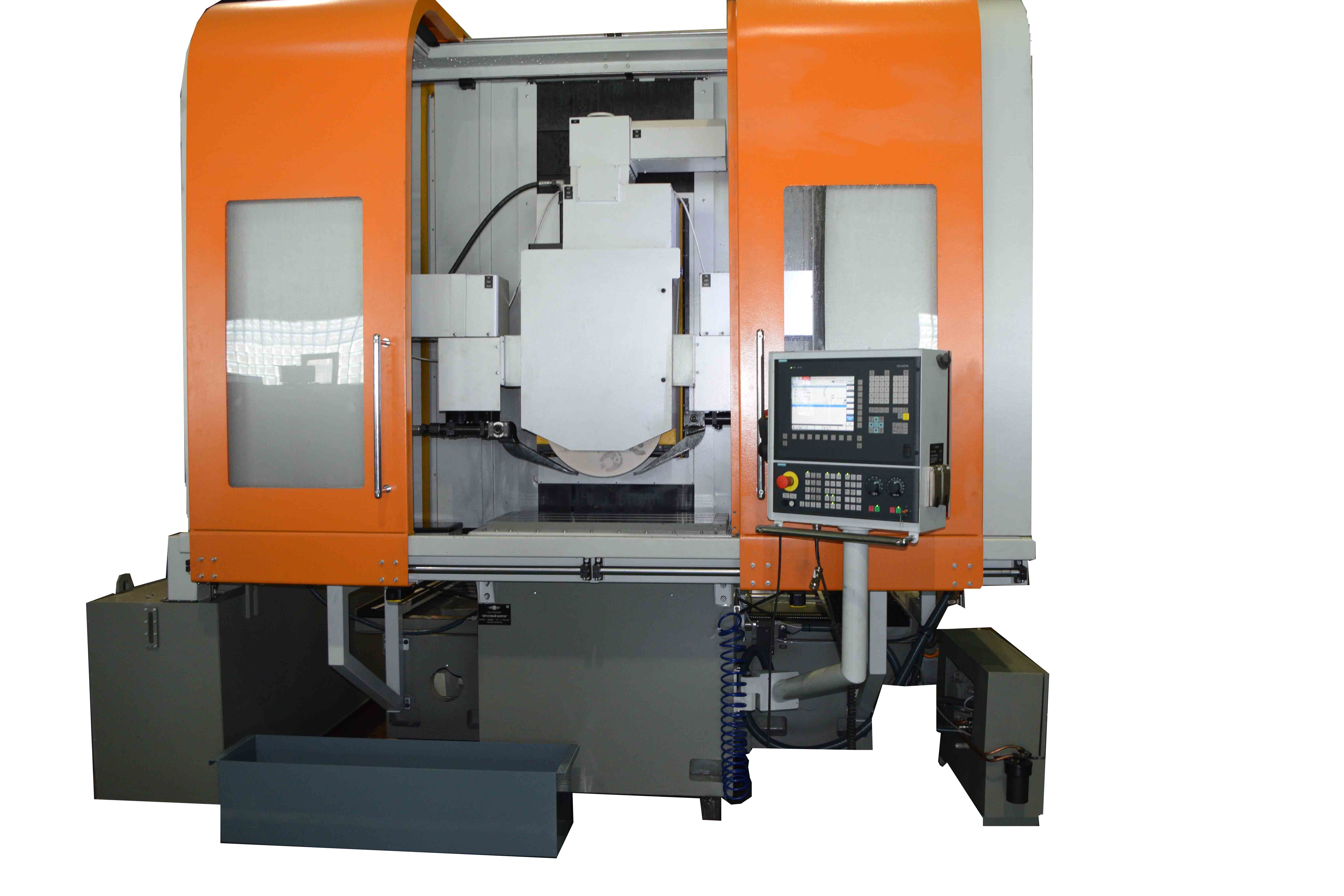

SPECIAL MACHINE WITH CNC FOR CREEP FEED PROFILE GRINDING OSH-680F3

Special machine for creep feed profile grinding with CNC OSH-680 is designed for creep feed grinding of profile precision surfaces of gas turbine engines blades made from heatproof and other hard-to-machine materials by abrasive grinding wheels.

  • Maximum dimensions of installed workpiece (L x B x H) - 800 х 500 х 400 mm
  • Table mirror width - 500 mm
  • Table mirror length - 650 mm
  • Main drive power - 28 kw

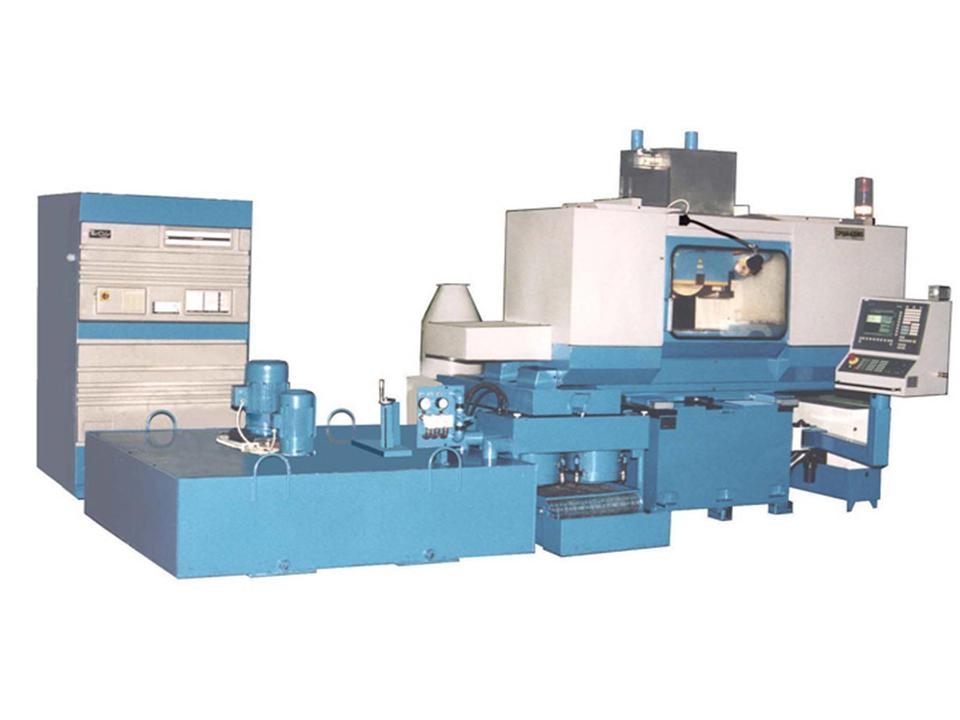

SEMI-AUTOMATIC MACHINE OF CREEP FEED SURFACE PROFILE GRINDING  WITH CNC ORSHA-630F3

Semi-automatic Orsha-630F3 is designed for high-performance and high-precision abrasive processing of flat surfaces (spikes, grooves) by the method of deep grinding of various products from hard-to-work and heat-resistant materials. Due to the CNC system, it is possible to process difficult-to-profile surfaces.

  • Maximum dimensions of installed workpiece (L x B x H) - 630 x 320 x 300 mm
  • Table mirror width - 320 mm
  • Table mirror length - 630 mm
  • Main drive power - 20 kw

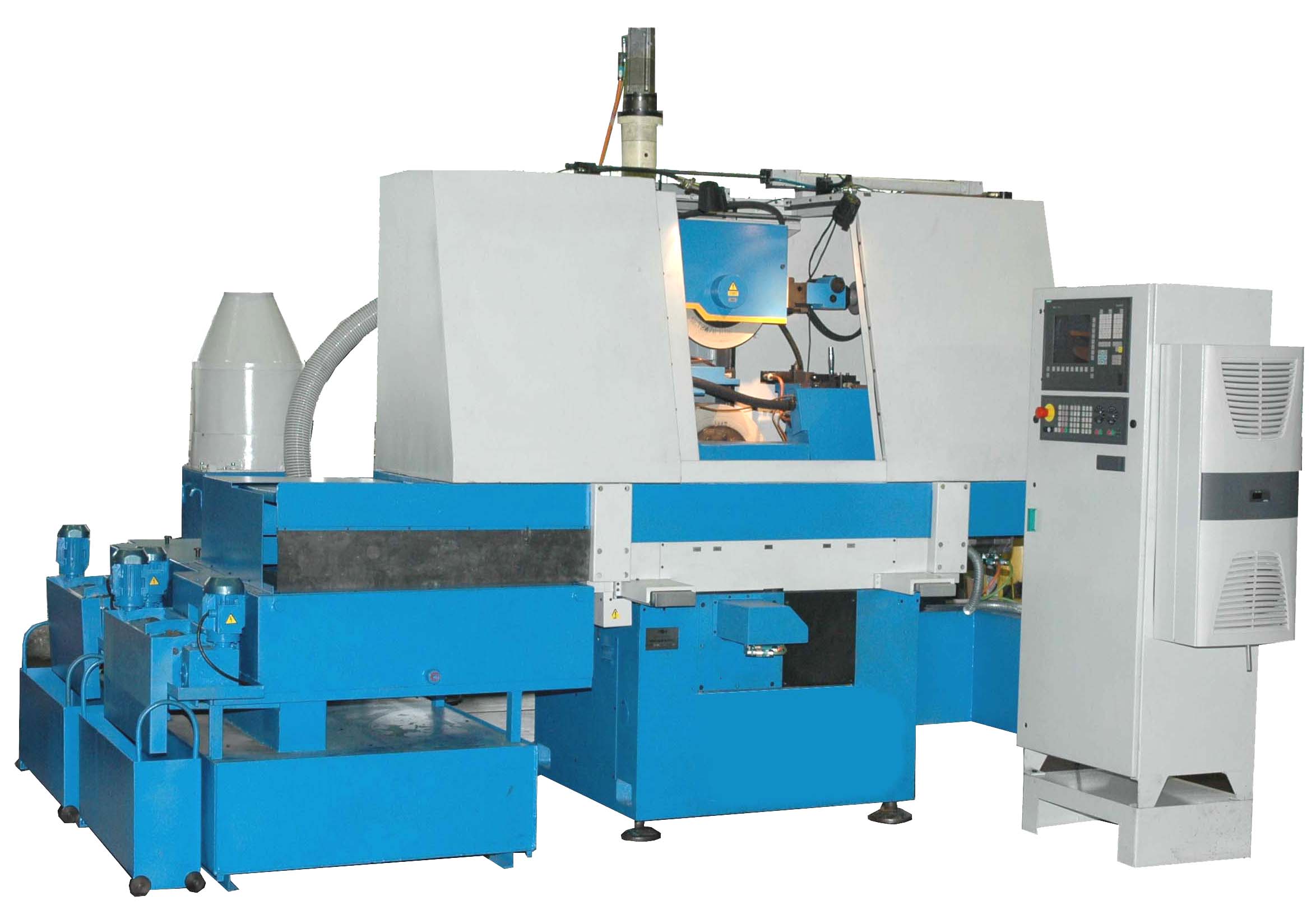

SEMIAUTOMATIC SPECIAL DOUBLE SPINDLE GROOVE GRINDING MACHINE WITH CNC OSH-627F3

SEMIAUTOMATIC SPECIAL DOUBLE SPINDLE< GROOVE GRINDING MACHINE WITH CNC OSH-627F3. The machine is designed for single- pass creep feed grinding of two sides of the part of blade locking piece type and two-sided slots on the whole.

  • Length of machined workpiece - 232 mm
  • Diameter of machined workpiece - 40...150 mm
  • Main drive power - 5,5 (7,5) kW
