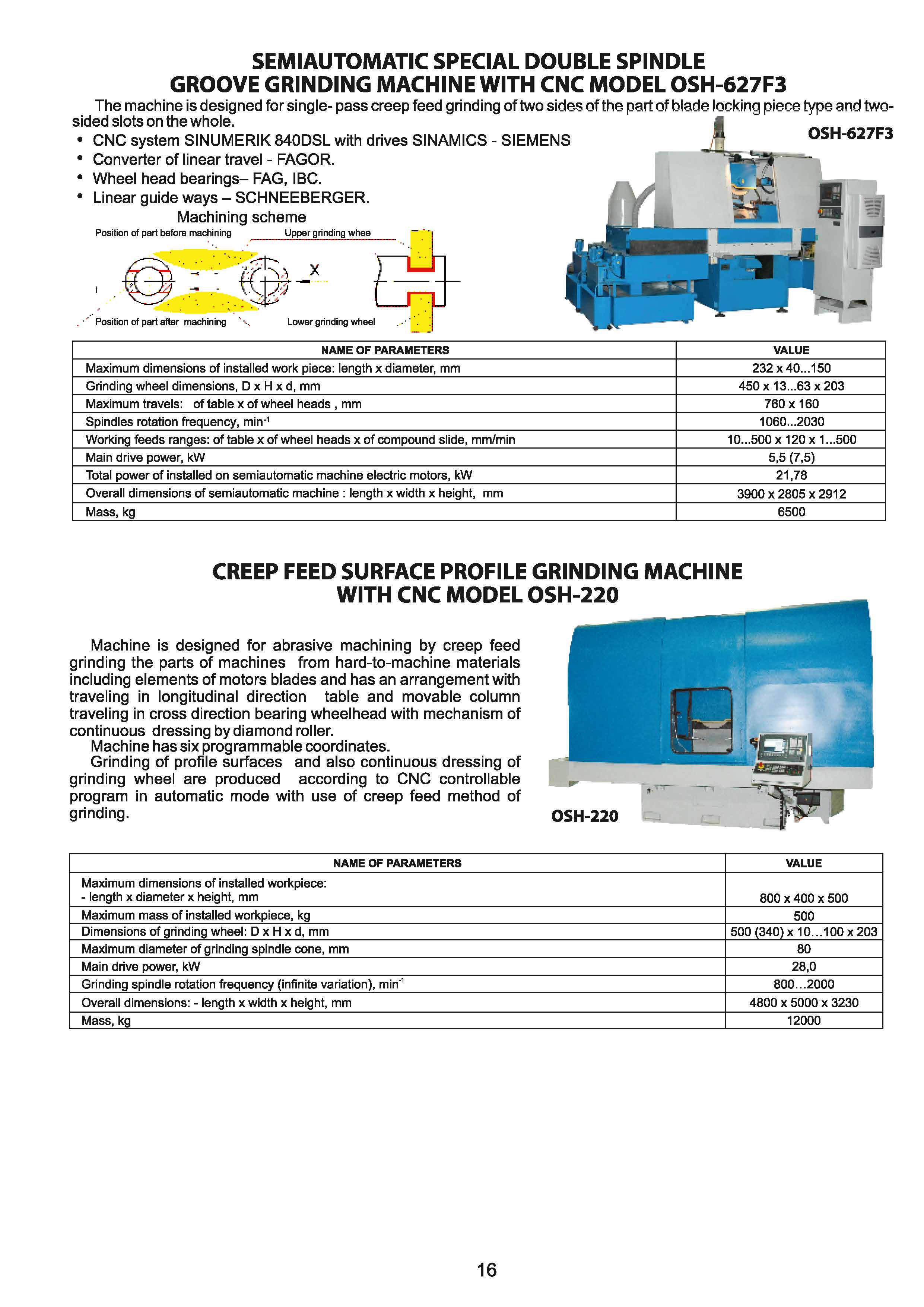

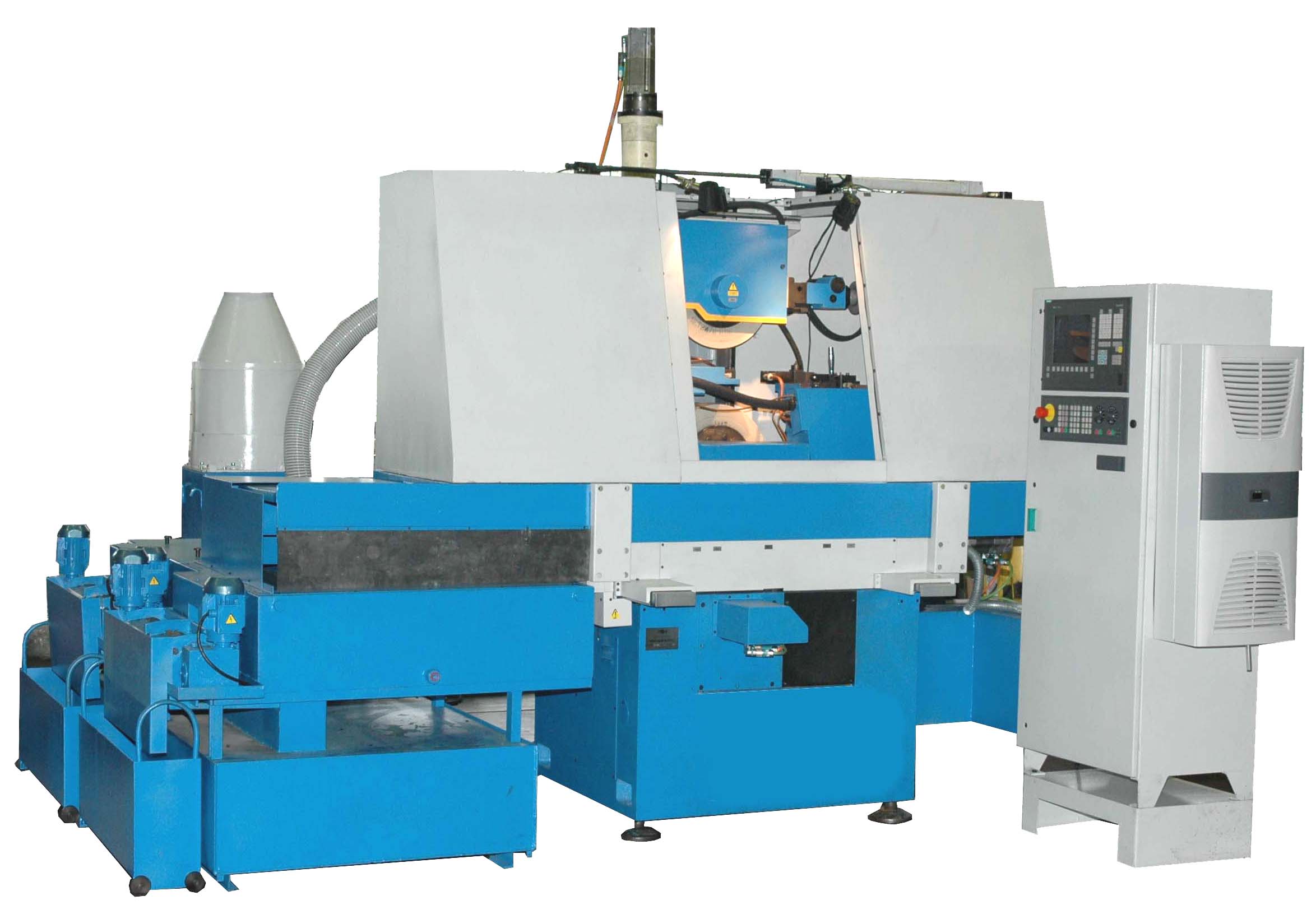

SEMIAUTOMATIC SPECIAL DOUBLE SPINDLE GROOVE GRINDING MACHINE WITH CNC OSH-627F3

DESCRIPTION

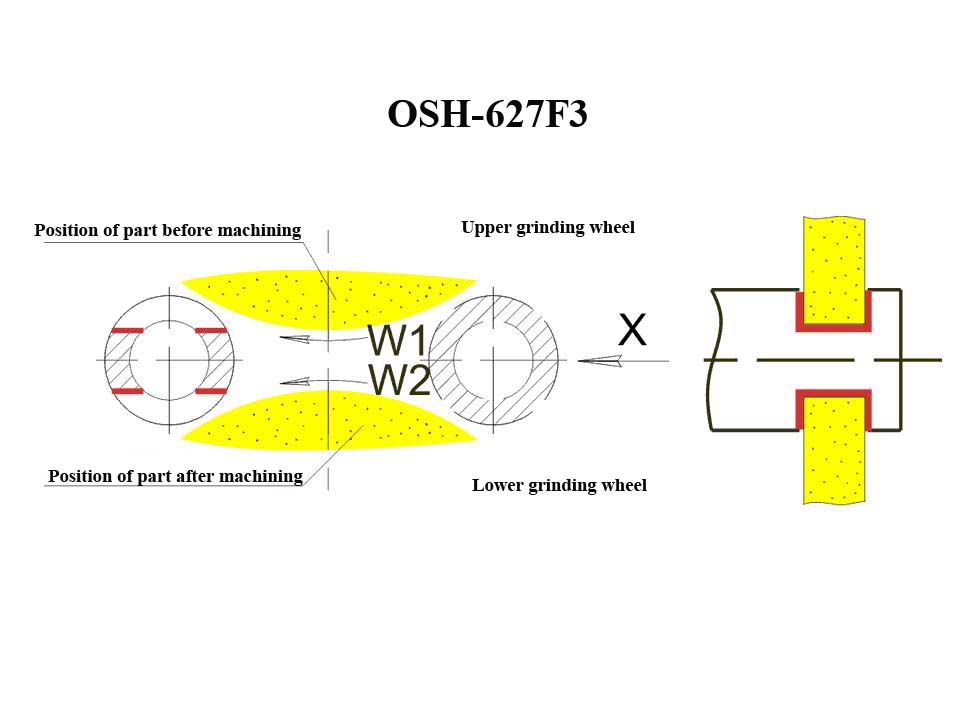

SEMIAUTOMATIC SPECIAL DOUBLE SPINDLE GROOVE GRINDING MACHINE WITH CNC OSH-627F3. The machine is designed for single- pass creep feed grinding of two sides of the part of blade locking piece type and two-sided slots on the whole.

Send a request Download

DESIGN ADVANTAGES

  • CNC system SINUMERIK 840D SL with drives SINAMICS – SIEMENS.
  • Converter of linear travel - FAGOR.
  • Wheel head bearings– FAG, IBC.
  • Linear guide ways – SCHNEEBERGER.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Length of machined workpiece
    232 mm
  • Diameter of machined workpiece
    40...150 mm
  • Grinding wheel diameter
    450 mm
  • Grinding wheel height
    13...63 mm
  • Grinding wheel bore diameter
    203 mm
  • Main drive power
    5,5 (7,5) kW
  • Grinding spindle rotation frequency
    1060...2030 Rpm
  • Maximum travels of table х of wheel heads
    760 x 160 mm
  • Working feeds ranges of table х of wheel heads х of compound slide
    10...500 x 120 x 1...500 mm/min
  • Total power of installed on semiautomatic machine electric motors
    21,78 kw
  • Overall dimensions (length x width x height)
    3900 x 2805 x 2912 mm
  • Mass
    6500 kg
