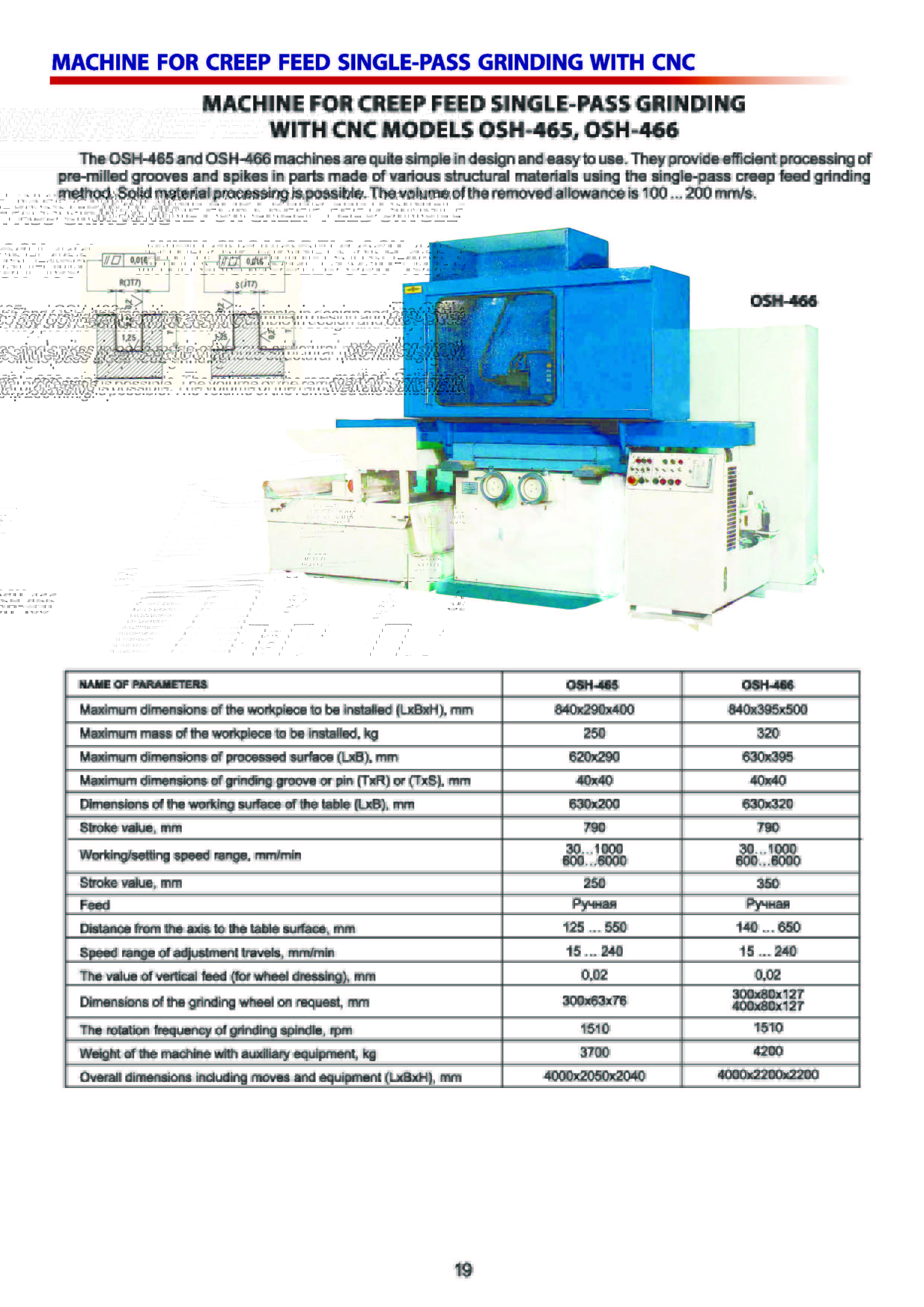

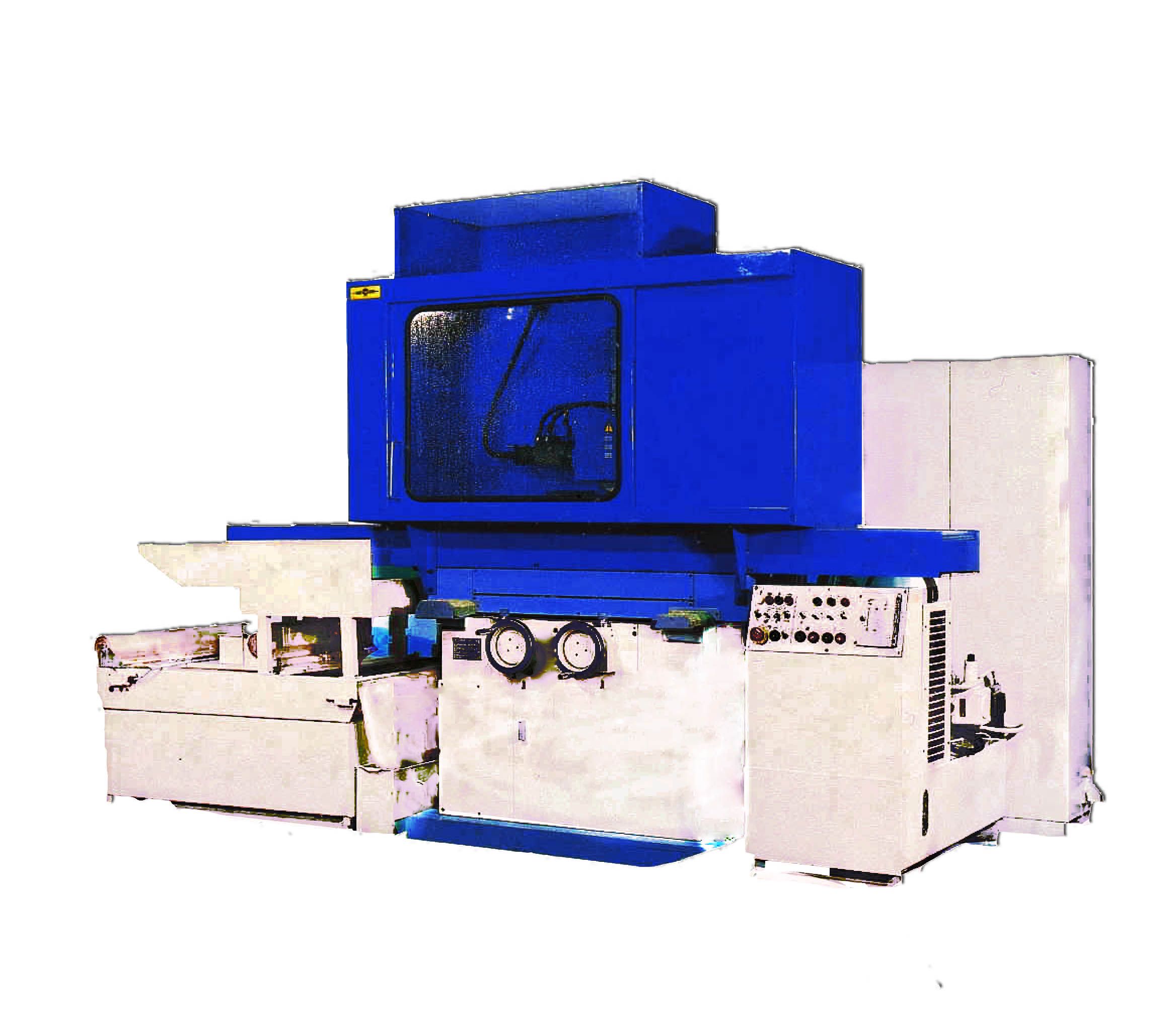

MACHINE FOR CREEP FEED SINGLE-PASS GRINDING WITH CNC OSH-465
DESCRIPTION
The OSH-465 machine are quite simple in design and easy to use. They provide efficient processing of pre-milled grooves and spikes in parts made of various structural materials using the single-pass creep feed grinding method. Solid material processing is possible. The volume of the removed allowance is 100 ... 200 mm/s.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Maximum dimensions of installed workpiece (L x B x H)
840 x 290 x 400 mm
-
Table mirror width
290 mm
-
Table mirror length
620 mm
-
Maximum distance between table mirror and spindle axis
125...550 mm
-
Grinding spindle rotation frequency
1510 rpm
-
Maximum mass of the workpiece to be installed
250 kg
-
Weight of the machine with auxiliary equipment
3700 kg
-
Grinding wheel dimensions (D x h x d)
300 x 63 x 76 mm
-
Overall dimensions of the machine with auxiliary equipment (length x width x height)
4000 x 2050 x 2040mm
-

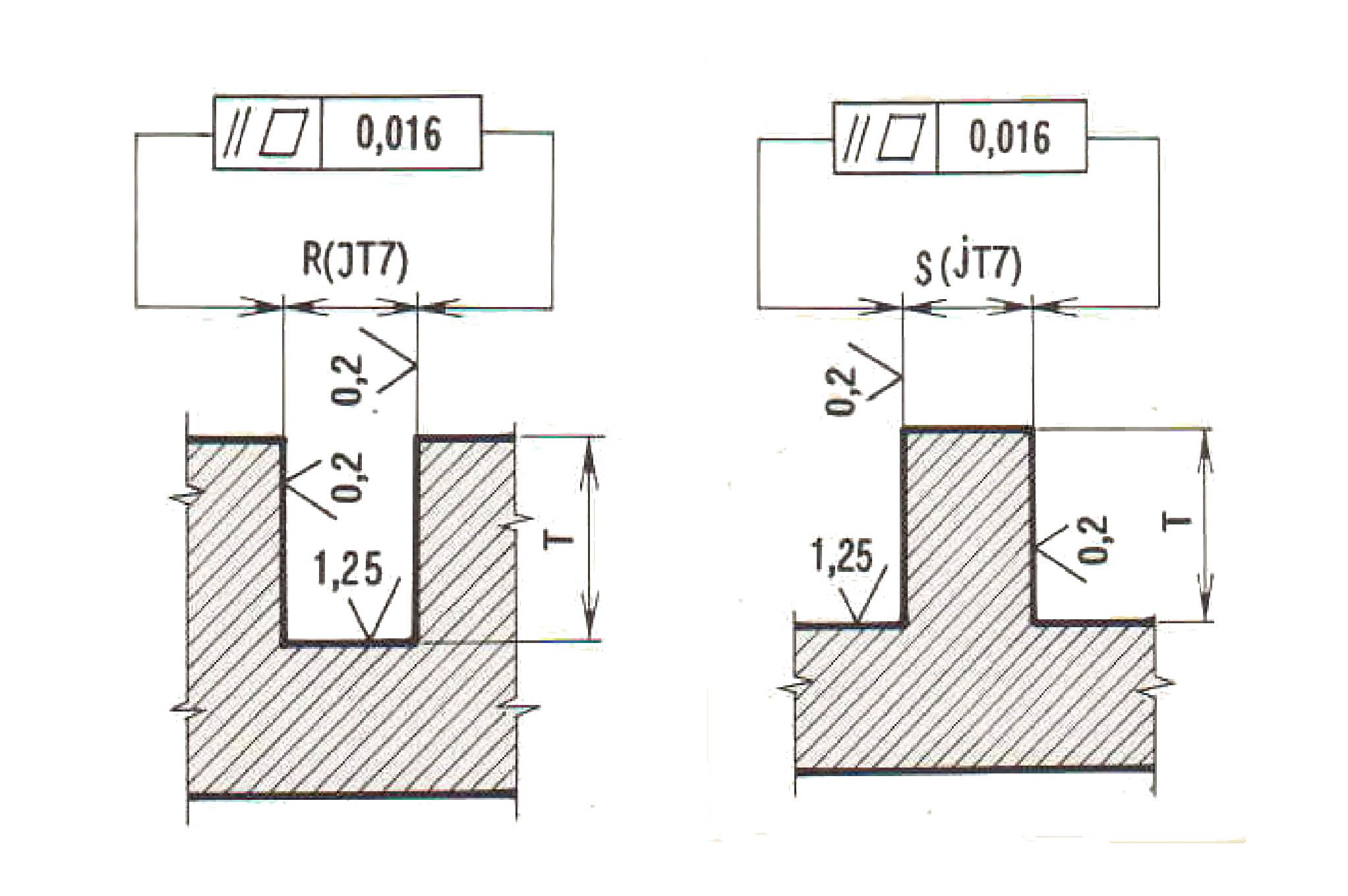

Maximum dimensions of grinding groove or pin (TxR) or (TхS)
40 х 40mm
-
Stroke value
790mm
-
Working/setting speed range
30...1000/600...6000
-
Stroke value
250mm
-
Feed
manual
-
Speed range of adjustment travels
15...240mm
-
The value of vertical feed (for wheel dressing)
0,02mm
