SPECIAL PURPOSE MACHINES

MACHINE FOR ABRASIVE GRINDING WHEELS PROFILING WITH CNC MODEL OSH-614

Machine is designed for performing of periphery profiling (shaping of geometrical profile) of abrasive grinding wheels.

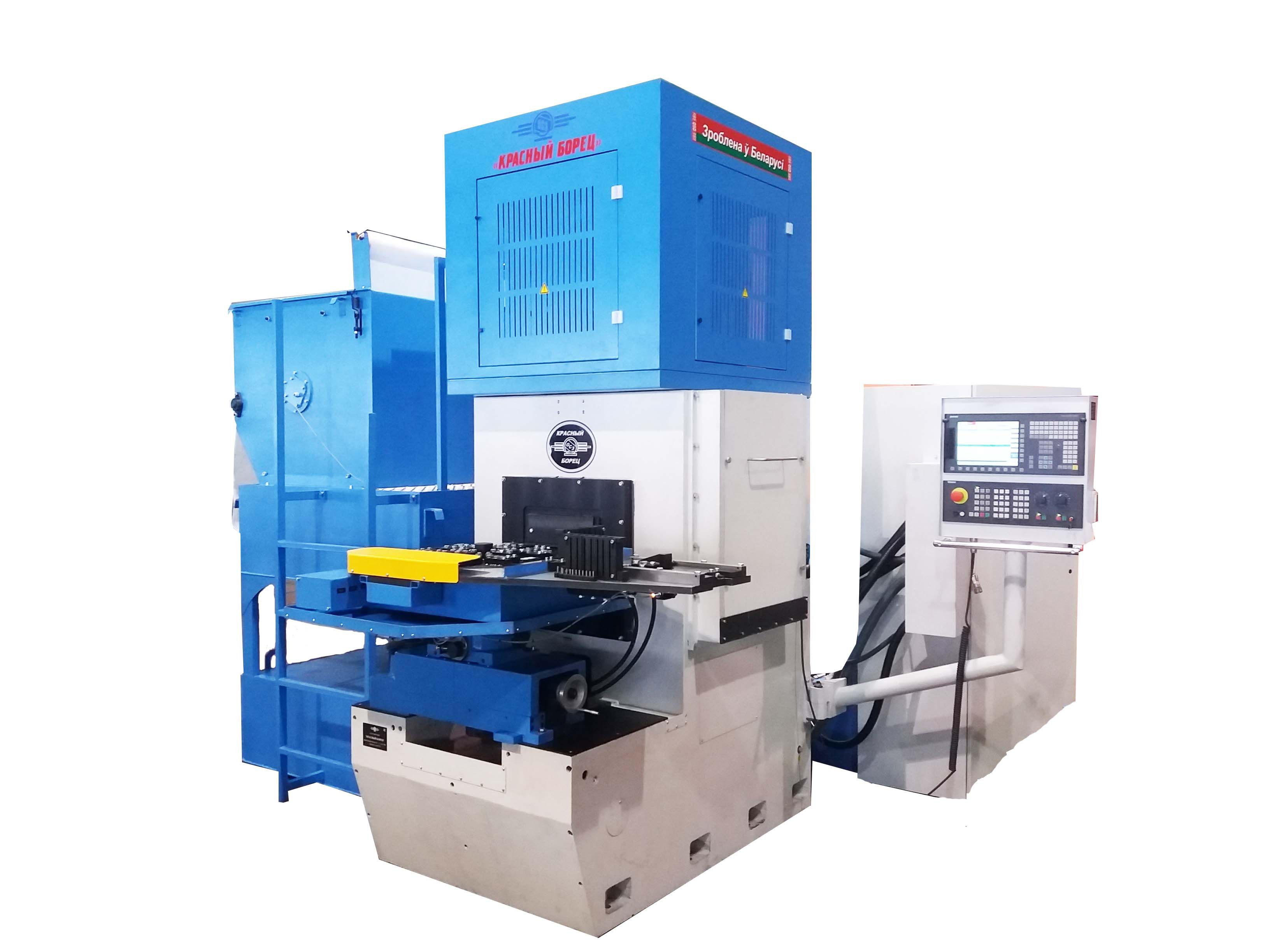

SPECIAL SURFACE GRINDING AUTOMATIC MACHINE WITH CNC MODEL OSH-622.3F3 VERSION 01

Automatic surface grinding machine with CNC model OSH-622.3.FЗ version 01 is designed for finishing for double-sided grinding of ceramic parts ' planes (Ø12 mm, h=3mm.)
The scope of application of the machine is large-scale and mass production enterprises.

Dimensions of el`bor borazon material or diamond grinding wheels : (D x H x d) - 500 x 5 x 30 mm
Wheel heads spindles drive power - 22 kW

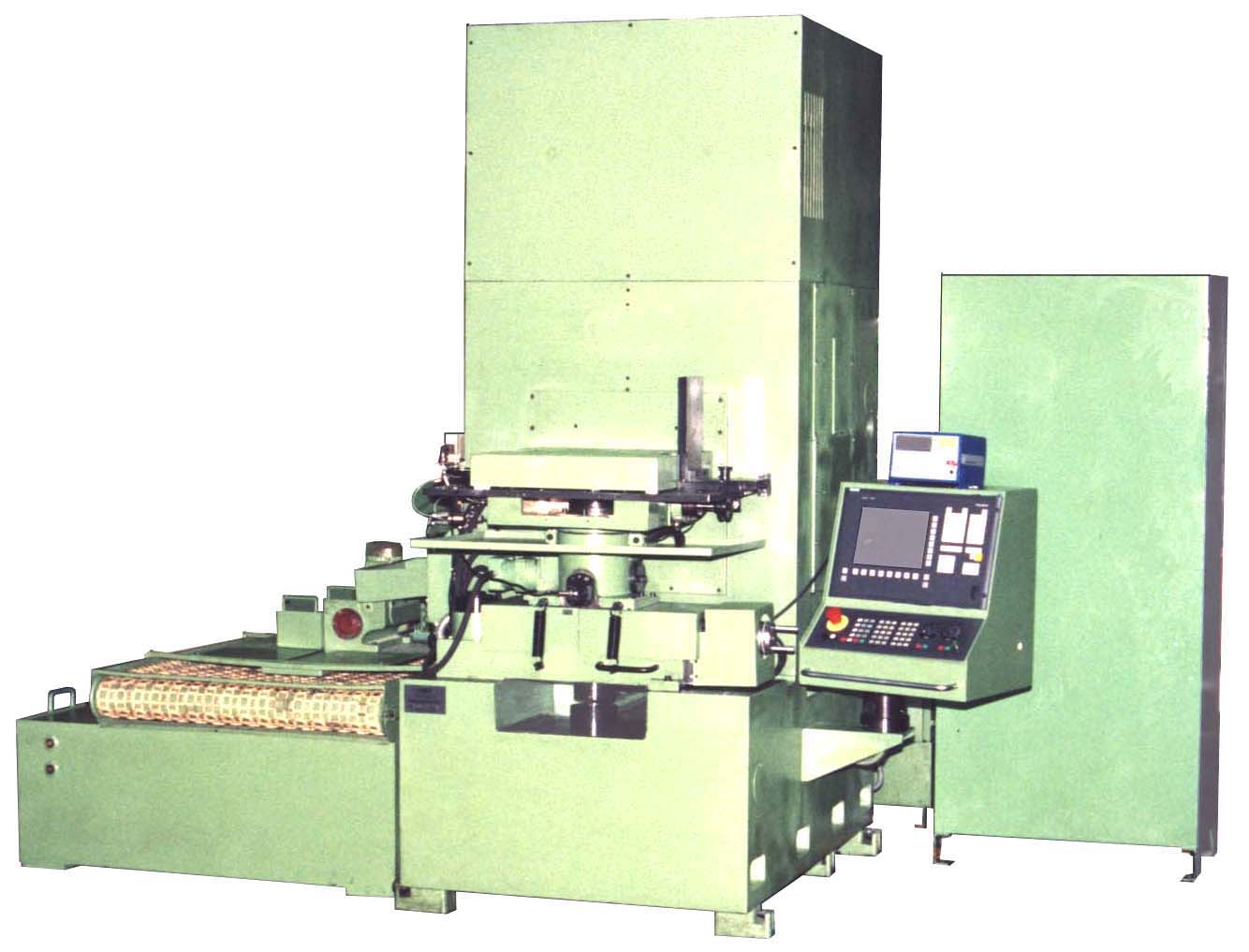

SPECIAL SURFACE GRINDING AUTOMATIC MACHINE WITH CNC MODEL OSH-622F3

SPECIAL SURFACE GRINDING AUTOMATIC MACHINE WITH CNC MODEL OSH-622F3 is designed for double-sided grinding of surfaces of parts made from steel, hard alloy and ceramics.

Dimensions of el`bor borazon material or diamond grinding wheels : (D x H x d) - 400 x 45 x 120 mm
Wheel heads spindles drive power - 7,5; 11,0; 15,0 kW

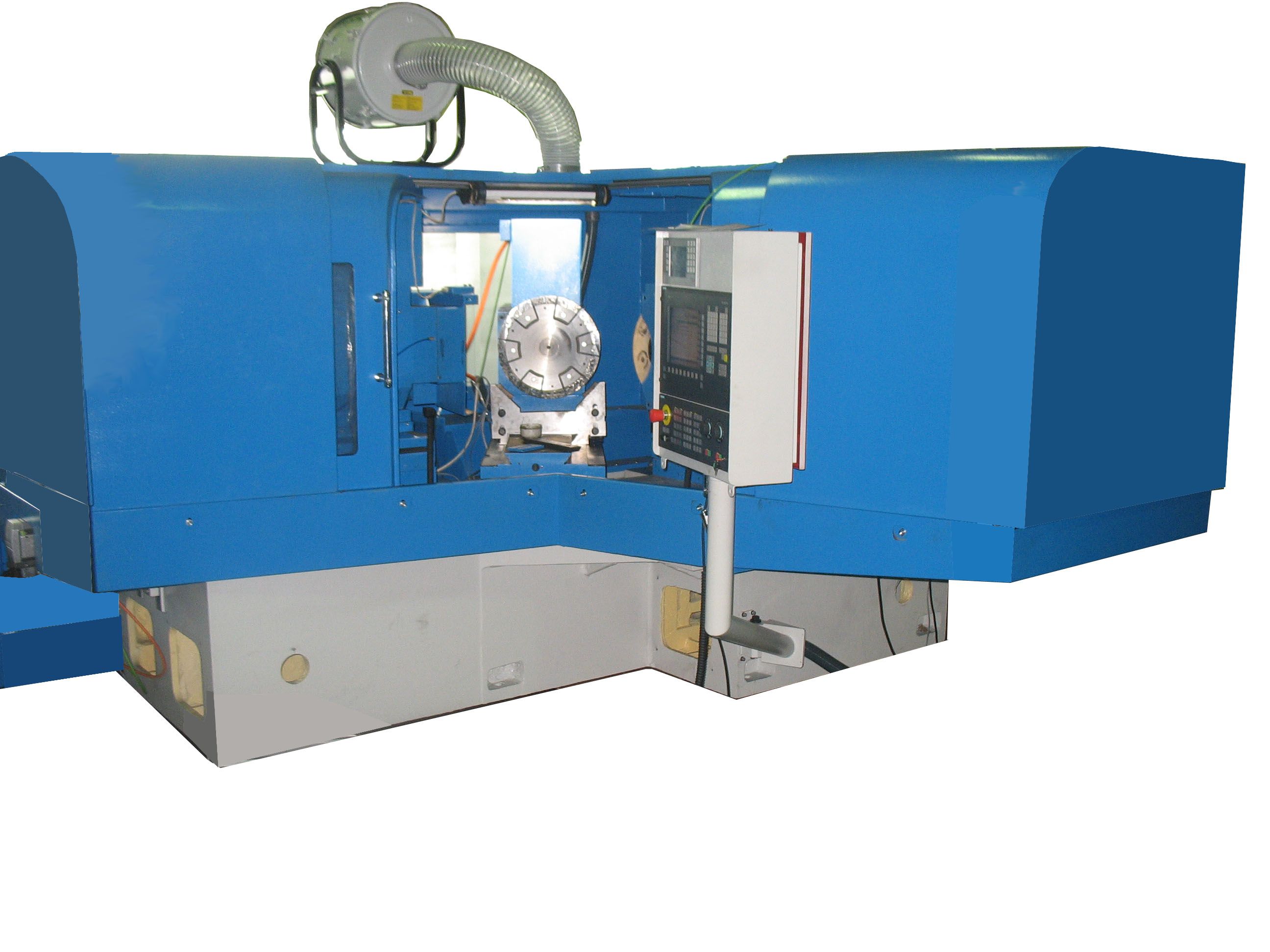

MACHINE FOR GRINDING THE FACES OF MIDDLE SUPPORTING SKIRTING OR EXTREME SKIRTINGS OF ROLLER-SPHERICAL BEARINGS INWARD RING WITH CNC OSHP-8

Machine for grinding the faces of middle supporting skirting or extreme skirting of roller-spherical bearings inward ring with CNC

Maximum outward diameter of middle skirting of installed work piece - 350...570 mm
Maximum outward diameter of extreme skirting of installed work piece - 360...540 mm
Maximum rings width of installed work piece - 150...245 mm
Main drive power - 5,5 KW

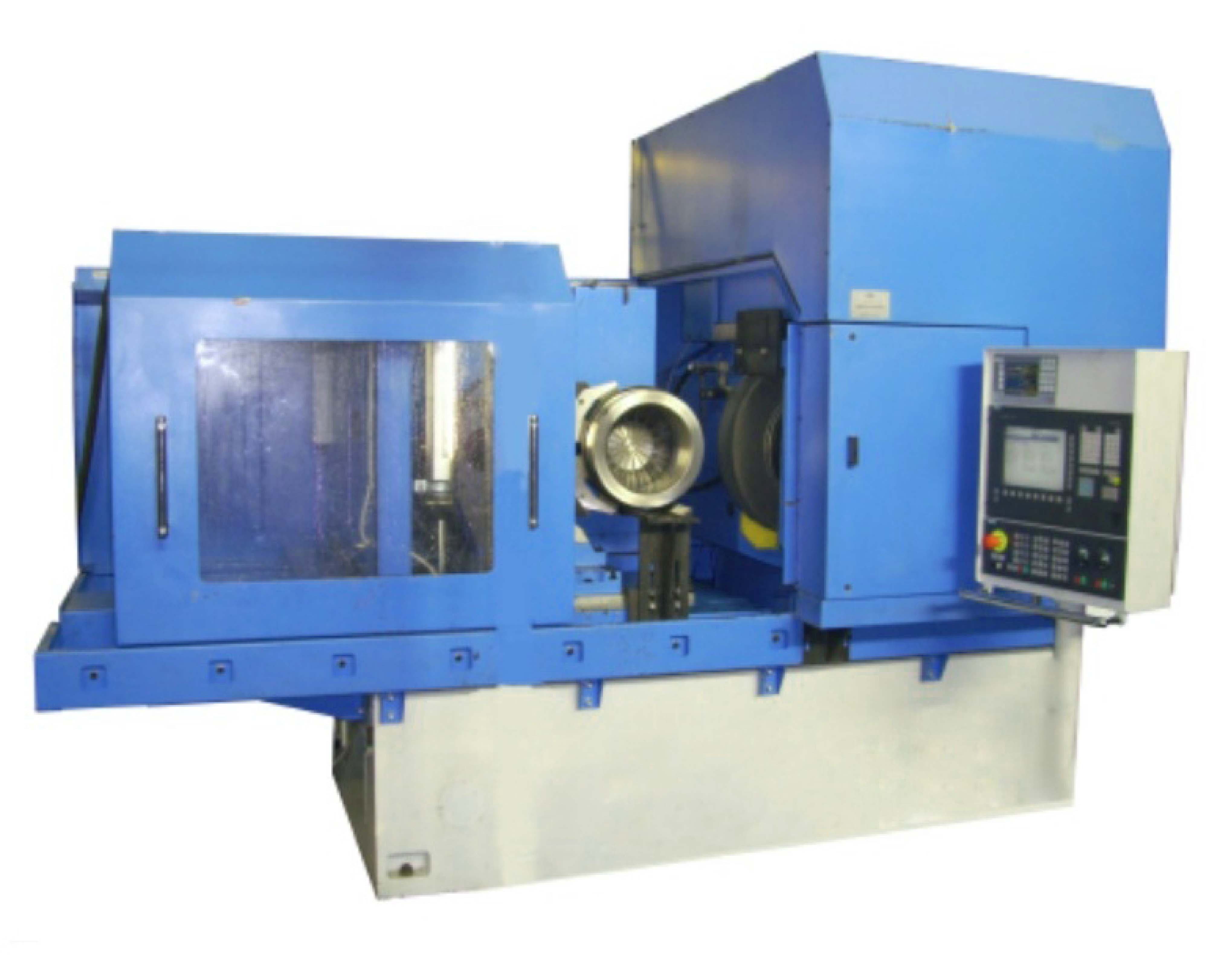

MACHINE FOR GRINDING THE ROLLER – SPHERICAL BEARINGS INWARD RING ROLLING TRACKS WITH CNC OSHP-226

Machine for grinding the faces of middle supporting skirting or extreme skirting of roller-spherical bearings inward ring with CNC

Maximum outward diameter of middle skirting of installed work piece - 350...570 mm
Maximum rings width of installed work piece - 130...245 mm
Maximum rolling track radius of installed work piece - 200...370 mm
Main drive power - 30 KW

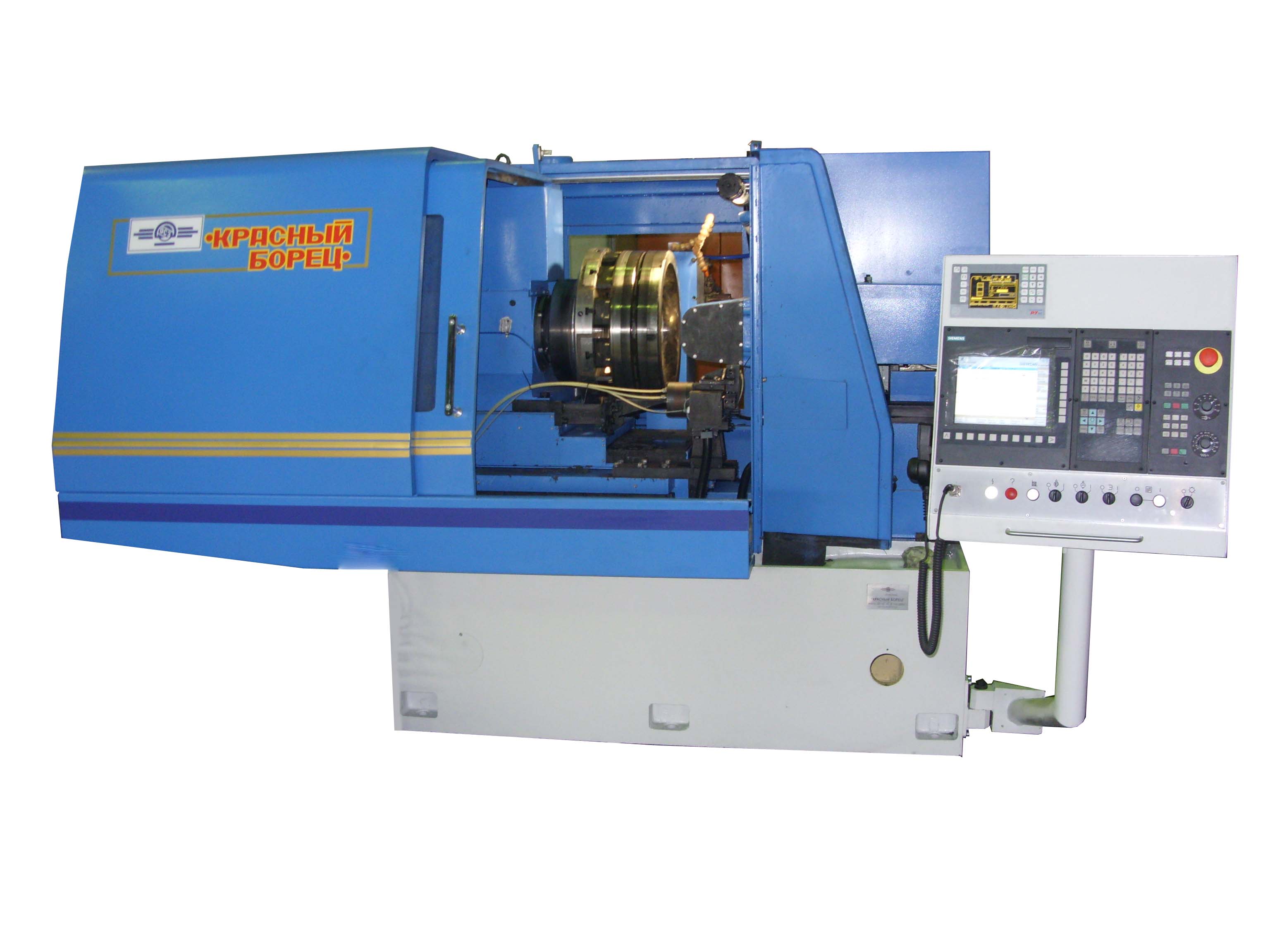

MACHINE FOR GRINDING THE ROLLER – SPHERICAL BEARINGS OUTWARD RING ROLLING TRACK SPHERE OSHP-259

Machine for grinding the roller – spherical bearings outward ring rolling track sphere OSHP-259 is designed for grinding of surfaces of rolling tracks of outward rings of roller radial spherical bearings by the method of crisscross axes.

Maximum rings width of installed work piece - 120...210 mm
Main drive power - 20 KW
