MACHINE FOR ABRASIVE GRINDING WHEELS PROFILING WITH CNC MODEL OSH-614

DESCRIPTION

  Machine is designed for performing of periphery profiling (shaping of geometrical profile) of abrasive grinding wheels.

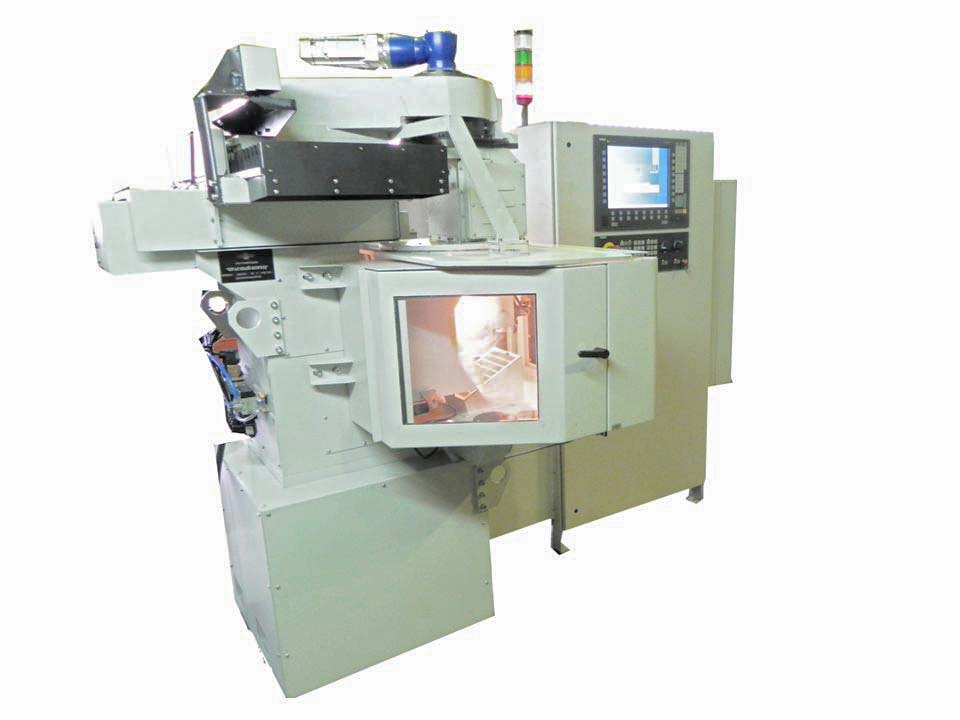

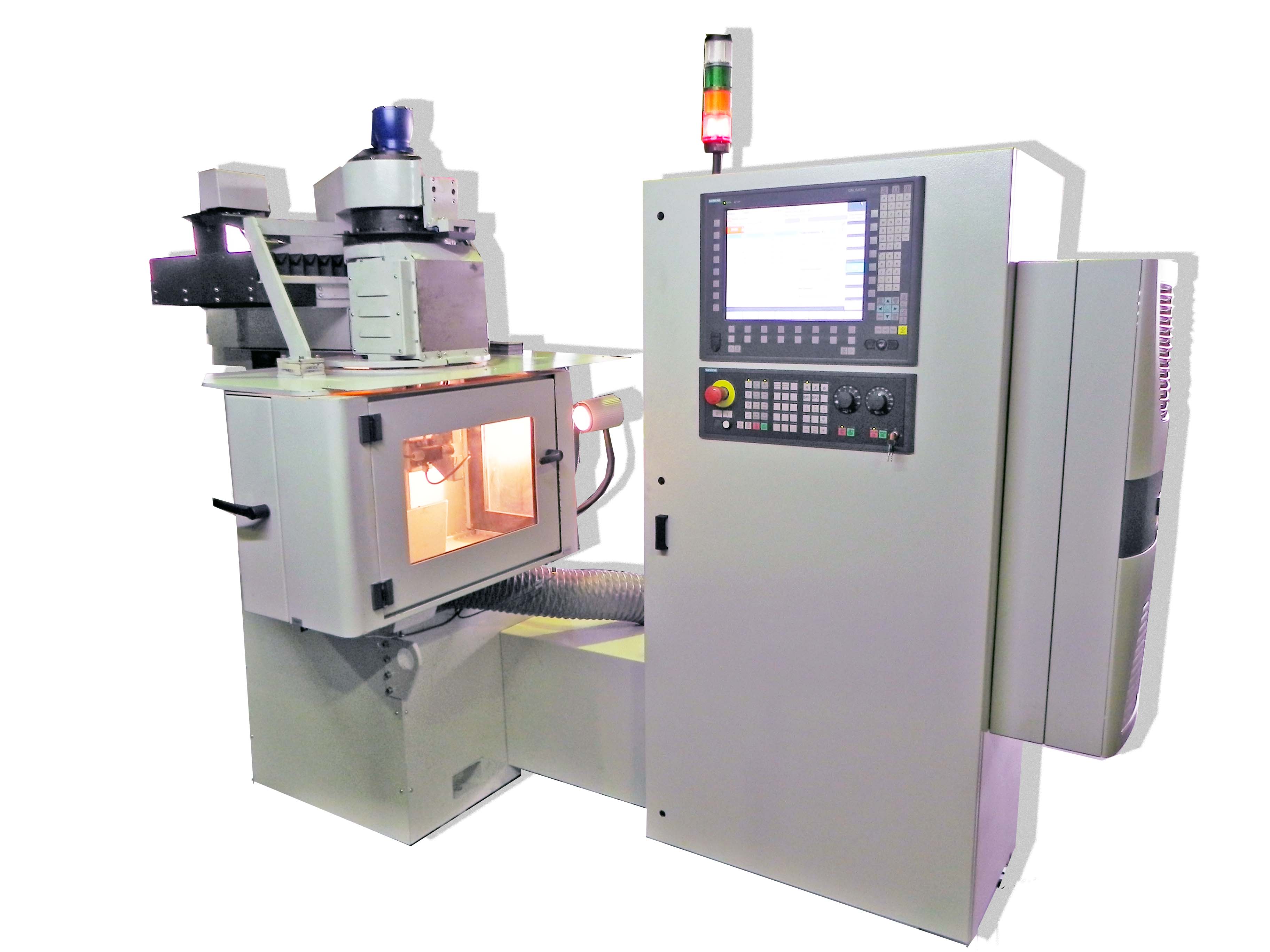

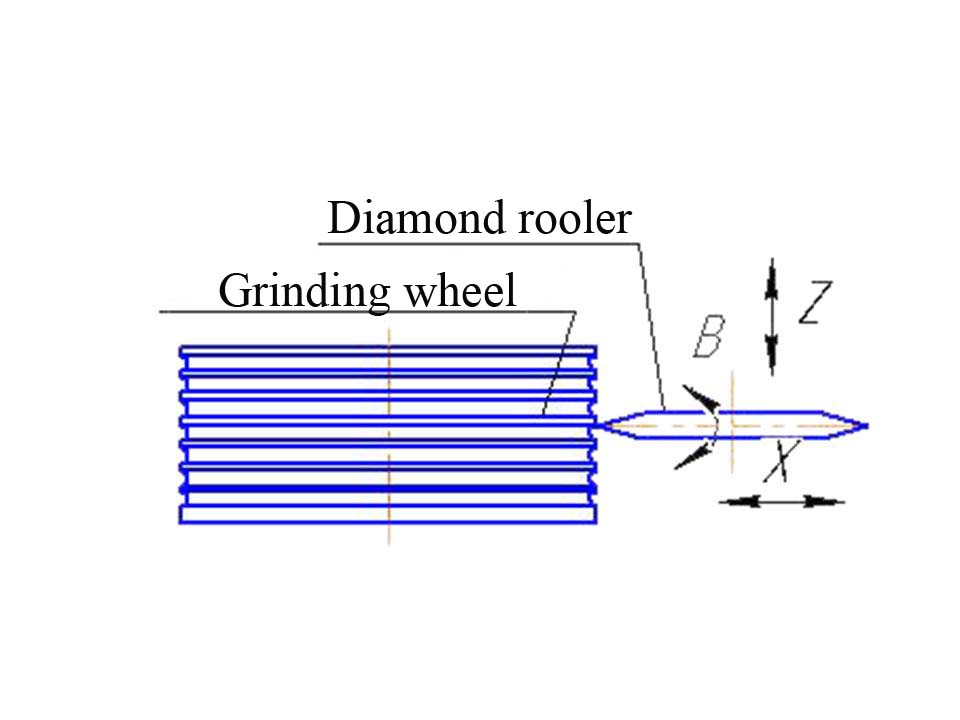

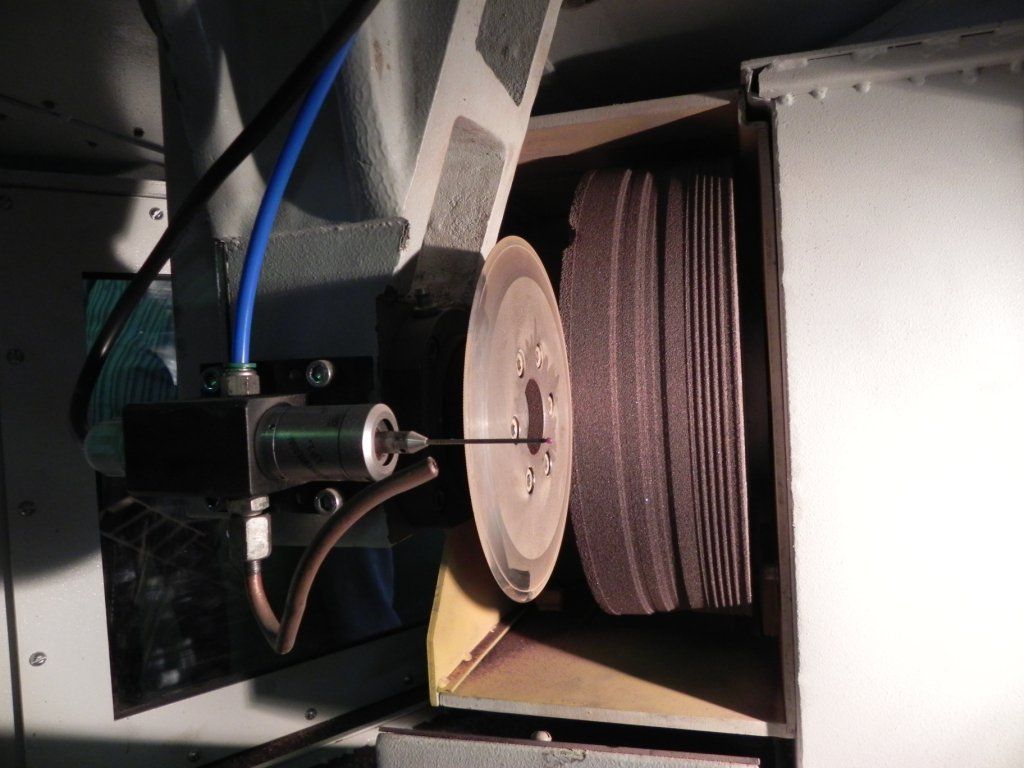

 Machine has the arrangement with dressing mechanism traveling in longitudinal and cross directions relative to motionlessly rotating grinding wheel. Dressing is produced by a special rotating diamond roller which has the opportunity of turn to the left and right sides relative to the top of radius (R=0.2 mm) of diamond roller.

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews

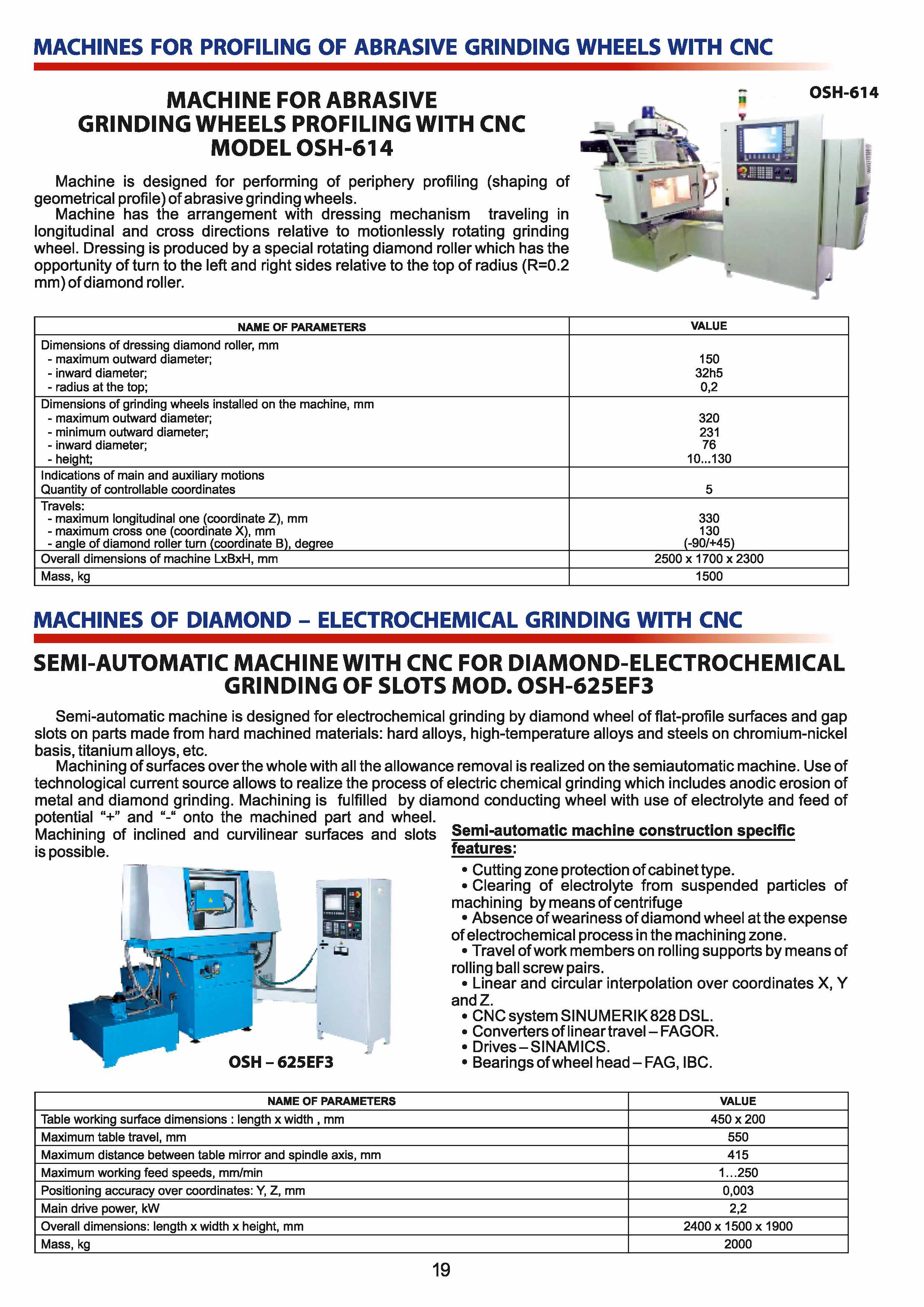

  • Grinding wheel diameter
    231...320 mm
  • Grinding wheel height
    10...130 mm
  • Grinding wheel bore diameter
    76 mm
  • External diameter of installed diamond roller
    150 mm
  • Internal diameter of installed diamond roller
    32h5
  • Radius at the top of installed diamond roller
    0,2 mm
  • Maximum longitudinal travel (coordinate Z)
    330 mm
  • Maximum cross travel (coordinate X)
    130 mm
  • Angle of diamond roller turn (coordinate В)
    -90/+45 degree
  • Overall dimensions (length x width x height)
    2500 x 1700 x 2300 mm
  • Mass
    1500 kg
