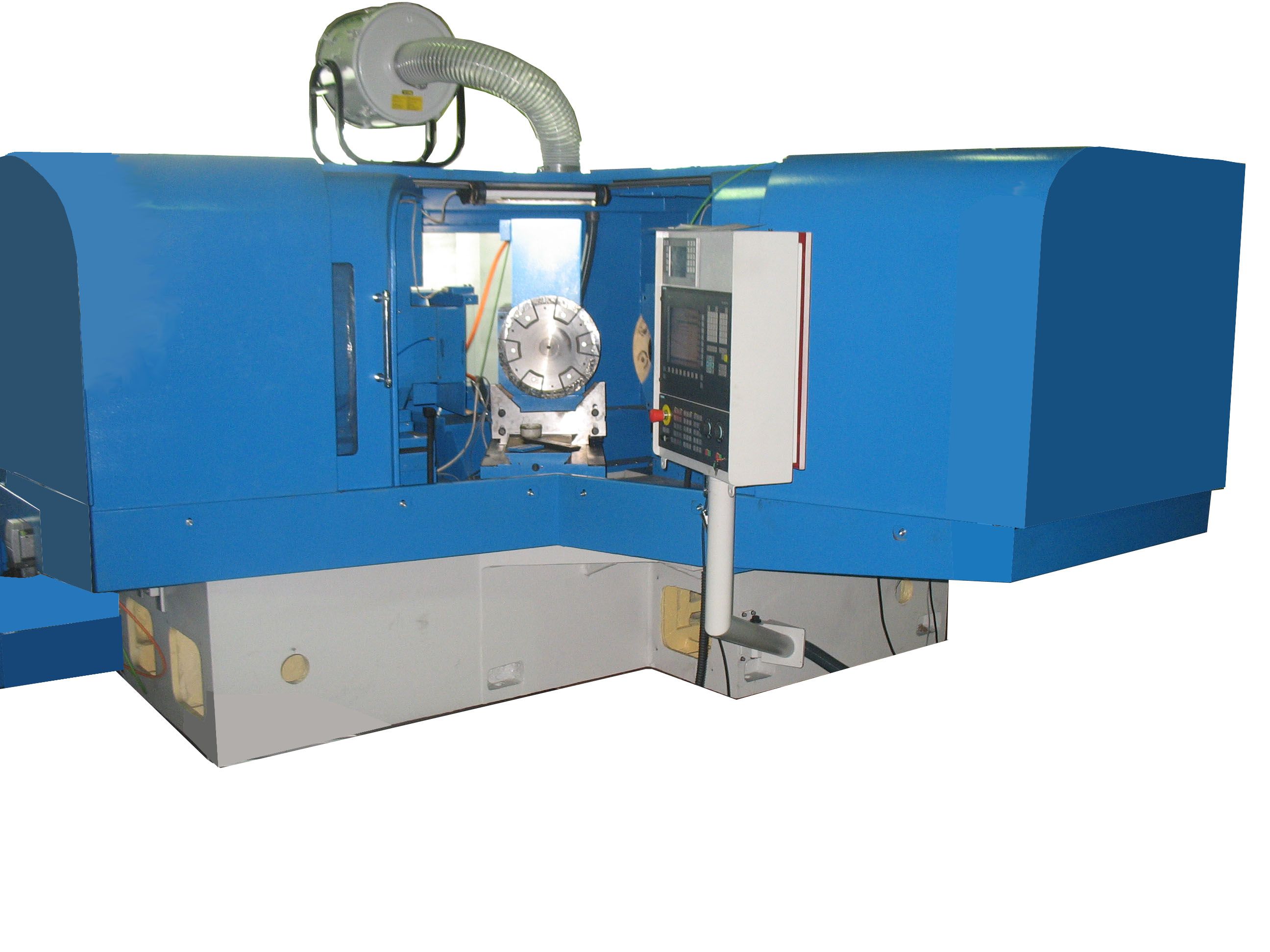

MACHINE FOR GRINDING THE FACES OF MIDDLE SUPPORTING SKIRTING OR EXTREME SKIRTINGS OF ROLLER-SPHERICAL BEARINGS INWARD RING WITH CNC OSHP-8

DESCRIPTION

Machine for grinding the faces of middle supporting skirting or extreme skirting of roller-spherical bearings inward ring with CNC

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Maximum outward diameter of middle skirting of installed work piece
    350...570 mm
  • Maximum outward diameter of extreme skirting of installed work piece
    360...540 mm
  • Maximum rings width of installed work piece
    150...245 mm
  • Grinding wheel diameter
    400 mm
  • Grinding wheel height
    127 mm
  • Grinding wheel bore diameter
    10 mm
  • Main drive power
    5,5 KW
  • Number of controlled coordinates
    8
  • Discreteness over coordinates
    0,001 mm
  • Overall dimensions (length x width x height)
    3950 х 3900 х 1970 mm
  • Mass
    8500 kg
