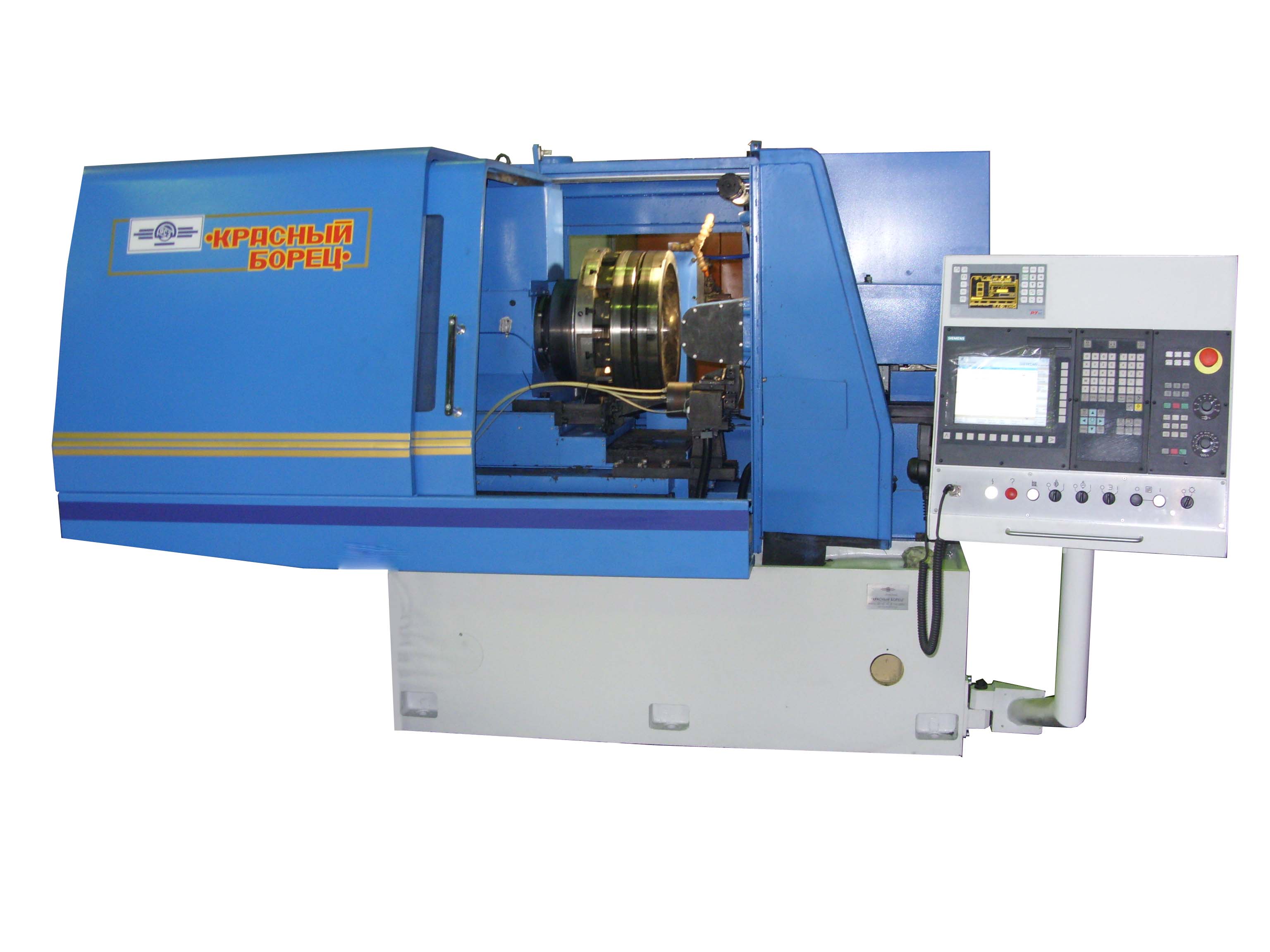

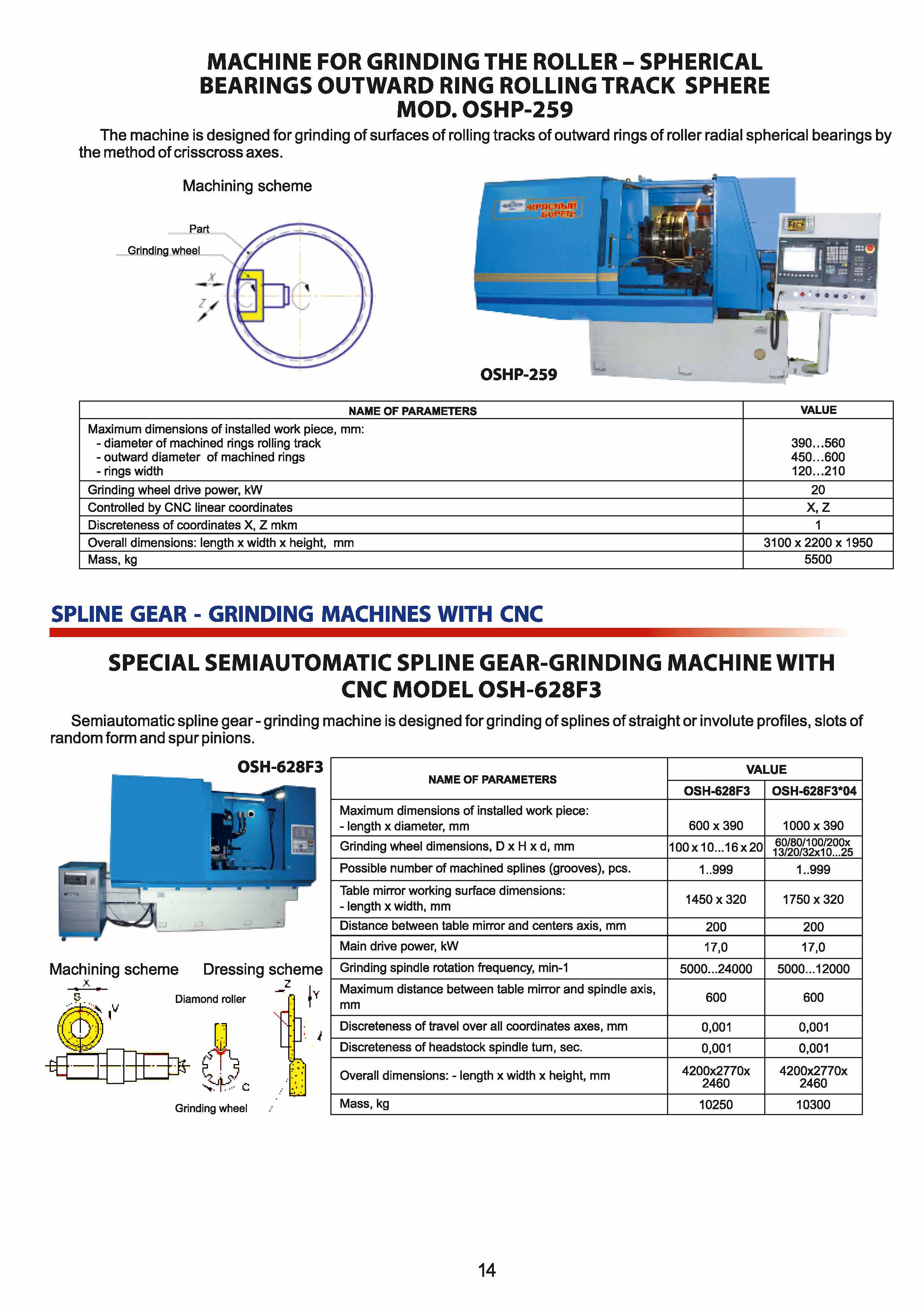

MACHINE FOR GRINDING THE ROLLER – SPHERICAL BEARINGS OUTWARD RING ROLLING TRACK SPHERE OSHP-259

DESCRIPTION

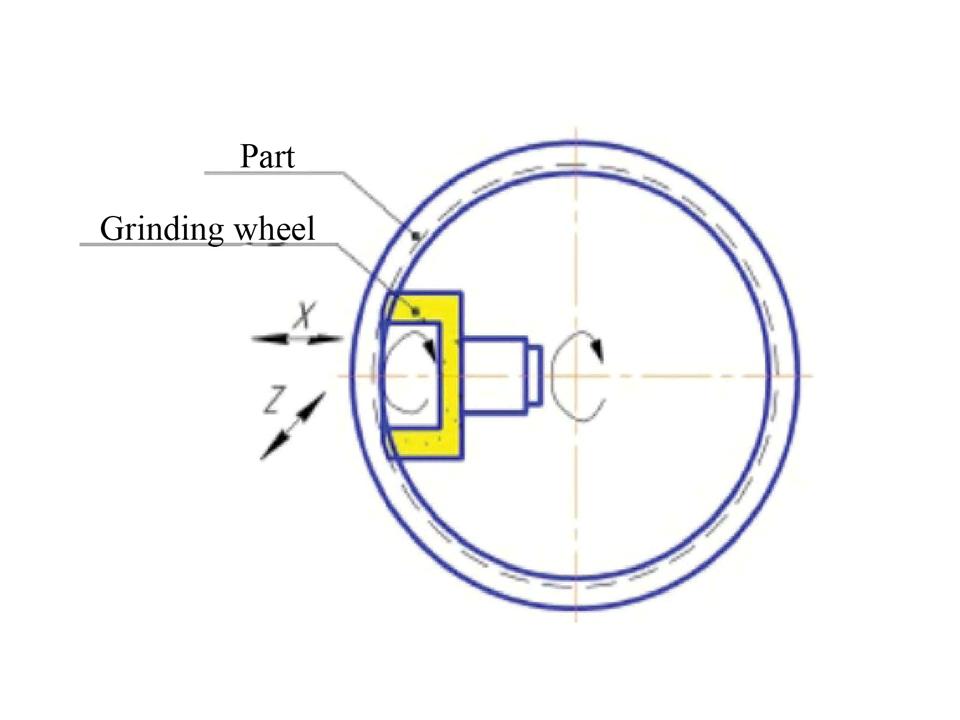

Machine for grinding the roller – spherical bearings outward ring rolling track sphere OSHP-259 is designed for grinding of surfaces of rolling tracks of outward rings of roller radial spherical bearings by the method of crisscross axes.

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Maximum rings width of installed work piece
    120...210 mm
  • Maximum diameter of machined rings rolling track of installed work piece
    390...560 mm
  • Maximum outward diameter of machined rings of installed work piece
    450...600 mm
  • Main drive power
    20 KW
  • Discreteness over coordinates
    1 mkm
  • Controlled by CNC linear coordinates
    X,Z
  • Overall dimensions (length x width x height)
    3100 х 2200 х 1950 mm
  • Mass
    5500 kg
