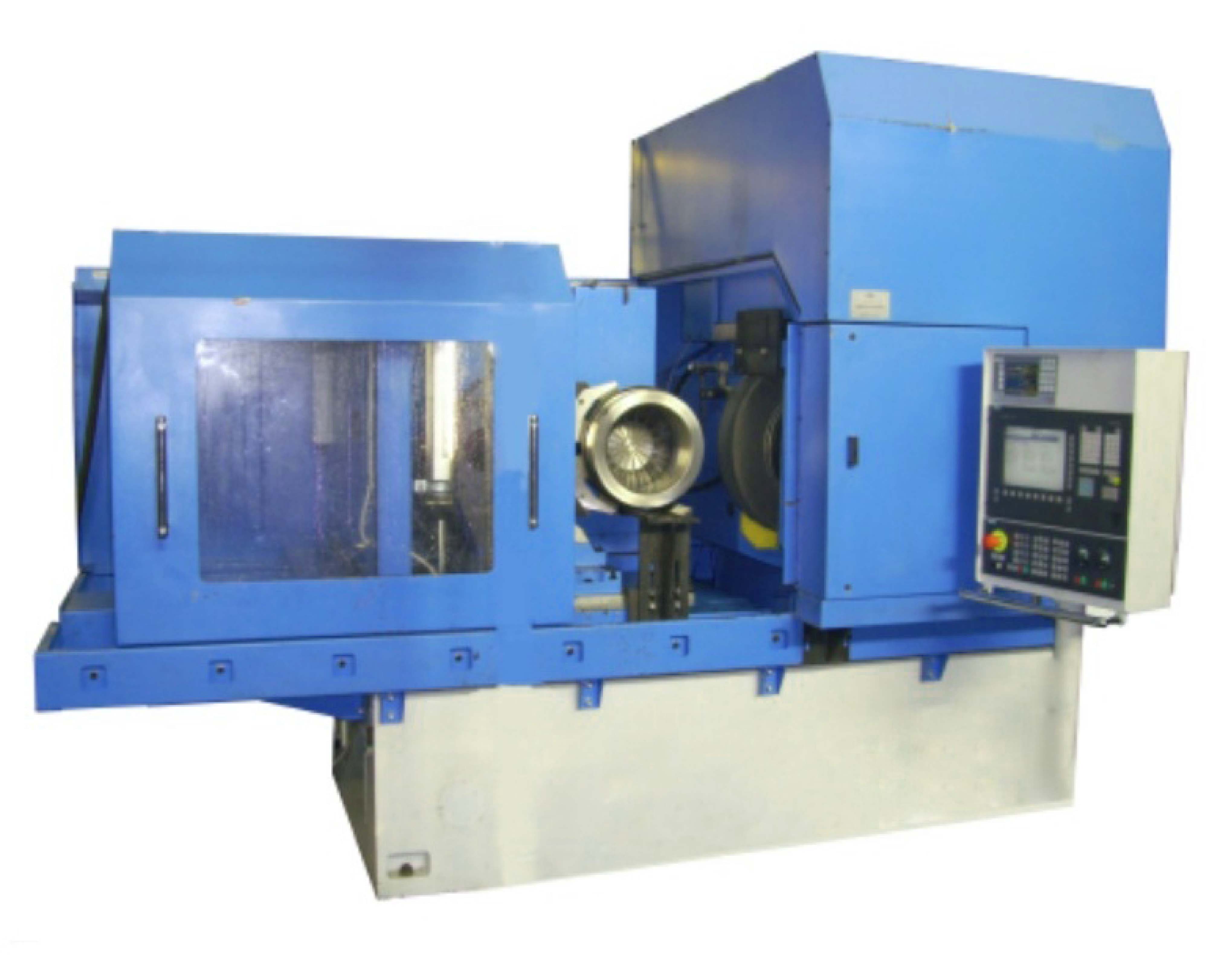

MACHINE FOR GRINDING THE ROLLER – SPHERICAL BEARINGS INWARD RING ROLLING TRACKS WITH CNC OSHP-226

DESCRIPTION

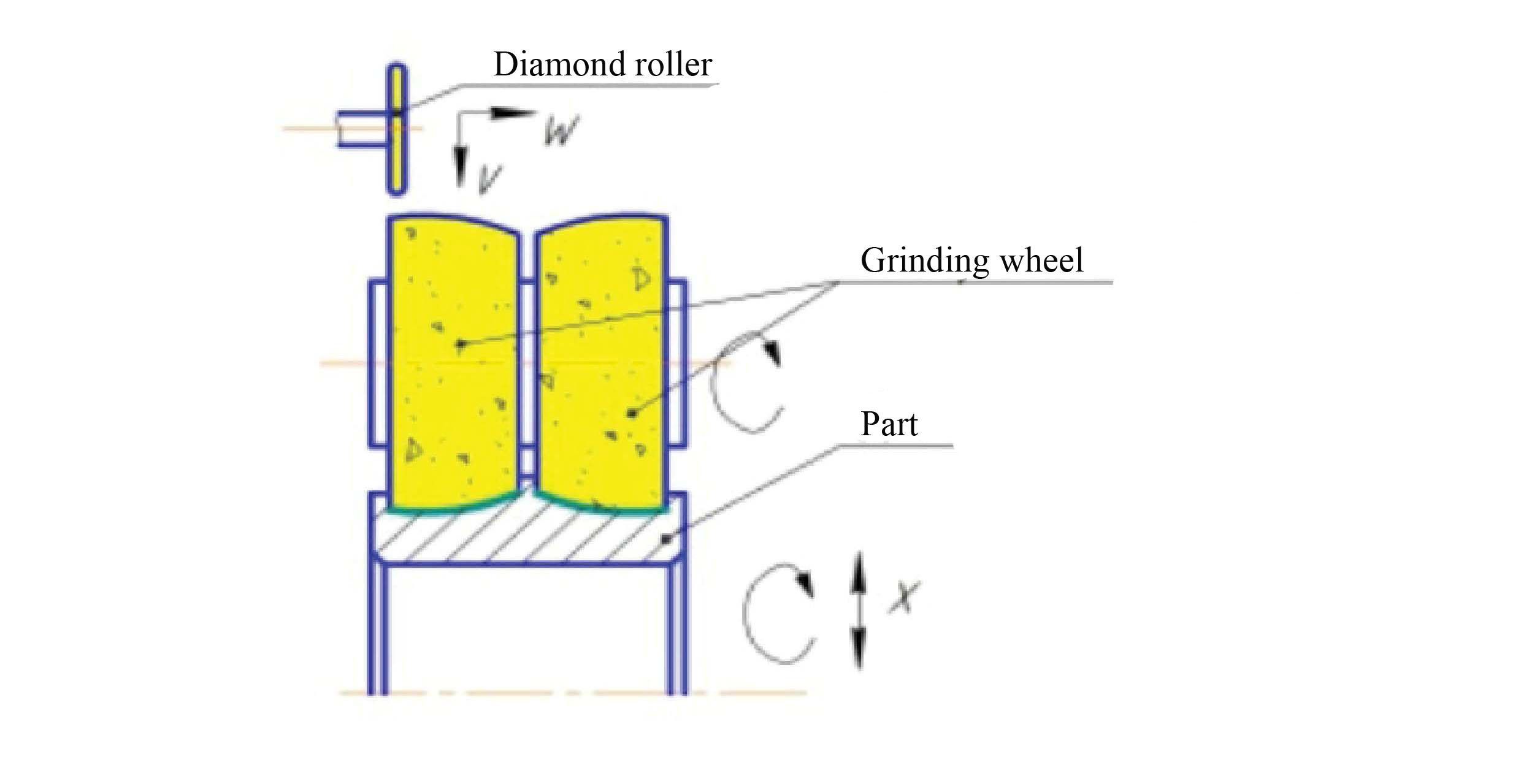

Machine for grinding the roller – spherical bearings inward ring rolling tracks with OSHP-226.  Machine is designed for simultaneous grinding both roller-spherical bearings inward ring rolling tracks by two grinding wheels. The machined part is installed in a special electromagnetic chuck with support on two shoes. Profiling of grinding wheels is realized by rotating diamond roller.


Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Maximum outward diameter of middle skirting of installed work piece
    350...570 mm
  • Maximum rings width of installed work piece
    130...245 mm
  • Maximum rolling track radius of installed work piece
    200...370 mm
  • Machining parameters rolling tracks diameter
    320...520 mm
  • Machining parameters stock removal
    1,25...2,3 mm
  • Main drive power
    30 KW
  • Discreteness over coordinates
    0,001 mm
  • Controlled by CNC linear coordinates
    X,W,V
  • Overall dimensions (length x width x height)
    3500 х 3500 х 2200 mm
  • Mass
    7000 kg
