CIRCULAR GRINDING MACHINES, FACE CIRCULAR GRINDING MACHINES

CIRCULAR GRINDING SEMIAUTOMATIC MACHINE WITH CNC OSH-660F3 version 15

Circular grinding semiautomatic machine with CNC model OSH-660F3 version 15 is designed for external grinding of smooth and discrete cylindrical and conical surfaces in bodies of rotation (parts such as shafts, axis, rods, mandrels, etc.).

  • Grinding length - 2400 mm
  • Centres height - 285 mm
  • Weight - 15000 kg
  • Overall dimensions (length x width x height) - 8240 x 4200 x 2150 mm

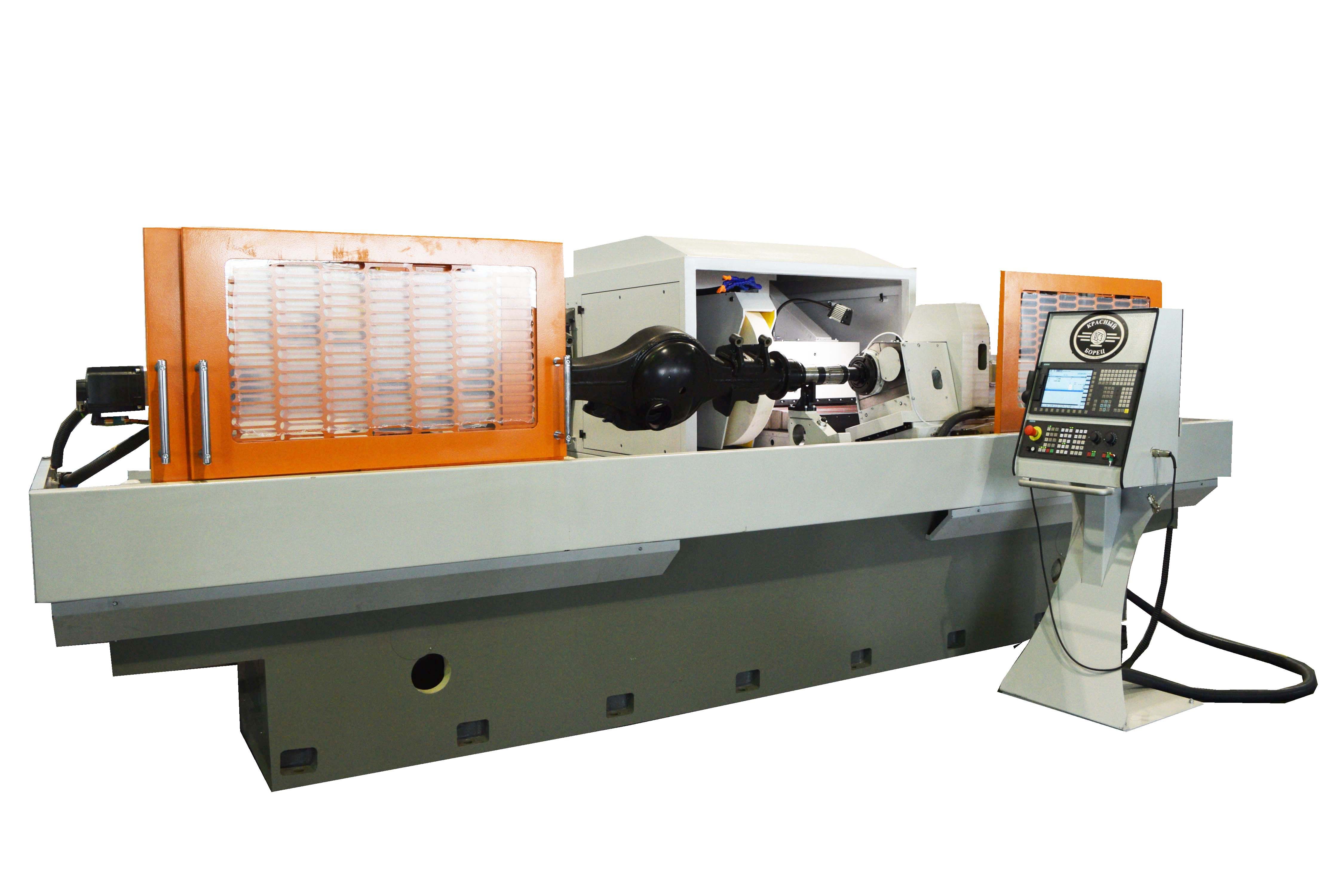

SEMI-AUTOMATIC CIRCULAR GRINDING MACHINE WITH CNC OSH-660F3 VERSION 28

Semi-automatic circular grinding machine with CNC mod. OSH-660F3 version 28 is designed for outward grinding of smooth cylindrical and conical surfaces type of rotation body.

  • Length of the workpiece to be installed - 2800 mm
  • Outer diameter of the workpiece to be installed - 50...560mm
  • Main drive power - 18,5 kW
CIRCULAR GRINDING SEMIAUTOMATIC MACHINE WITH CNC OSH-660F3 version 00

Circular grinding semiautomatic machine with CNC model OSH-660F3 is designed for external grinding of smooth and discrete cylindrical and conical surfaces in bodies of rotation (parts such as shafts, axis, rods, mandrels, etc.).

  • Grinding length - 1000 mm
  • Centres height - 180 mm
  • Weight - 10500 kg
  • Overall dimensions (length x width x height) - 4300 x 4170 x 2370 mm
CIRCULAR GRINDING SEMIAUTOMATIC MACHINE WITH CNC OSH-660F3 version 17(20)

Circular grinding semiautomatic machine with CNC model OSH-660F3 version 17(20) is designed for external grinding of smooth and discrete cylindrical and conical surfaces in bodies of rotation (parts such as shafts, axis, rods, mandrels, etc.).

  • Grinding length - 2000 mm
  • Centres height - 285 mm
  • Weight - 14000 kg
  • Overall dimensions (length x width x height) - 7230 x 4200 x 2480 mm

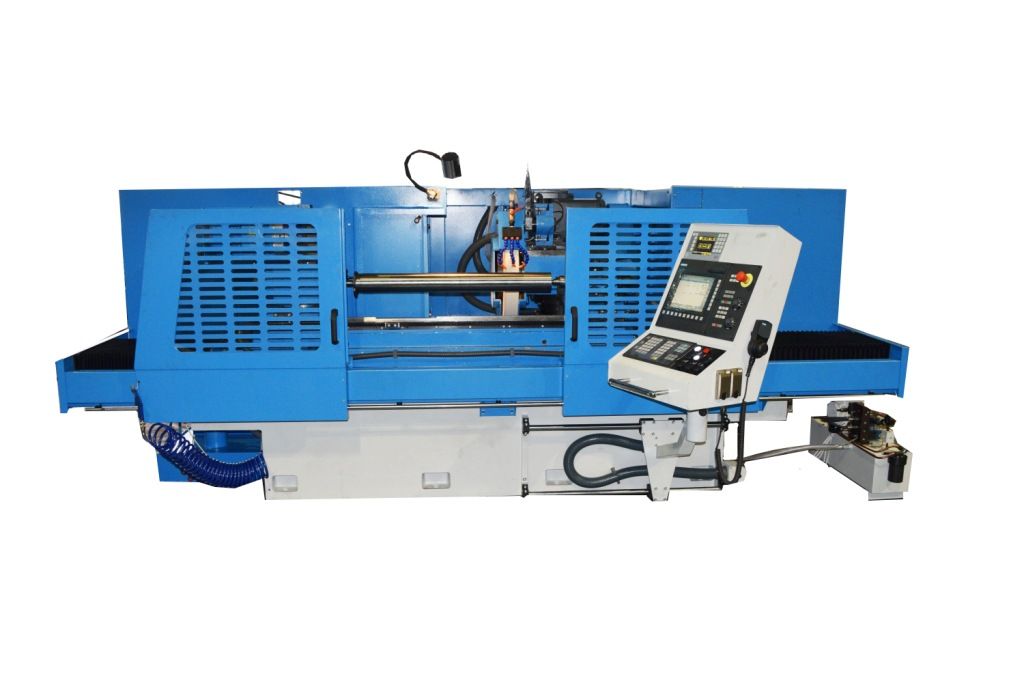

CIRCULAR GRINDING SEMIAUTOMATIC MACHINE WITH CNC OSH-660F3 version 30

Circular grinding semiautomatic machine with CNC model OSH-660F3 version 30 is designed for external grinding of smooth and discrete cylindrical and conical surfaces in bodies of rotation (parts such as shafts, axis, rods, mandrels, etc.).

  • Grinding length - 3000 mm
  • Centres height - 285 mm
  • Weight - 16000 kg
  • Overall dimensions (length x width x height) - 7900 x 4200 x 2480 mm
SEMIAUTOMATIC CIRCULAR GRINDING MACHINE WITN CNC OSH-651.2.F3

Special circular grinding semiautomatic machine with CNC model OSH-651.2.F3 is designed for external grinding of cylindrical necks and wheel seats and faces of wheel seats of car axles in automatic line.

  • Length of the workpiece to be installed - 2250 mm
  • Outer diameter of the workpiece to be installed - 210 mm
  • Main drive power - 30 kW
SEMI-AUTOMATIC FACE-CIRCULAR GRINDING MACHINE WITH CNC OSH-650F3

Semi-automatic face-grinding machine with CNC model OSH-650F3 is designed for outward grinding of cylindrical, conical and face surfaces of parts type of shaft from cast iron, steel and their alloys.

  • Length, min/max of the workpiece to be installed - 1000 mm
  • Outer diameter, min/max of the workpiece to be installed - 300/200 mm
  • Main drive power - 20 kW

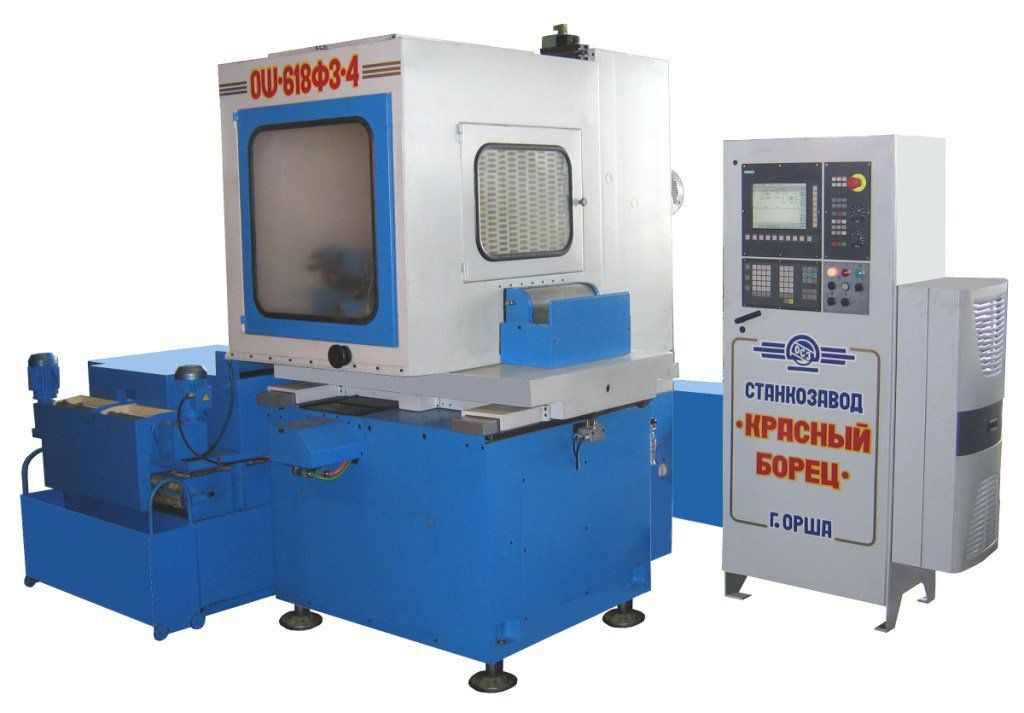

SEMIAUTOMATIC SPECIAL CIRCULAR GRINDING MACHINE WITH CNC  OSH-618F3

Special circular semiautomatic machines model OSH-618F3 are designed for grinding external cylindrical surfaces, grooves, chamfers, profile surfaces in parts type bodies of revolution from different steels and alloys.
Field of use is enterprises with large-scale manufacture and mass production.

  • Length of machined workpiece - 250 mm
  • Diameter of machined workpiece - 300 mm
  • Main drive power - 5,5 kw
