THREAD GRINDING MACHINES WITH CNC

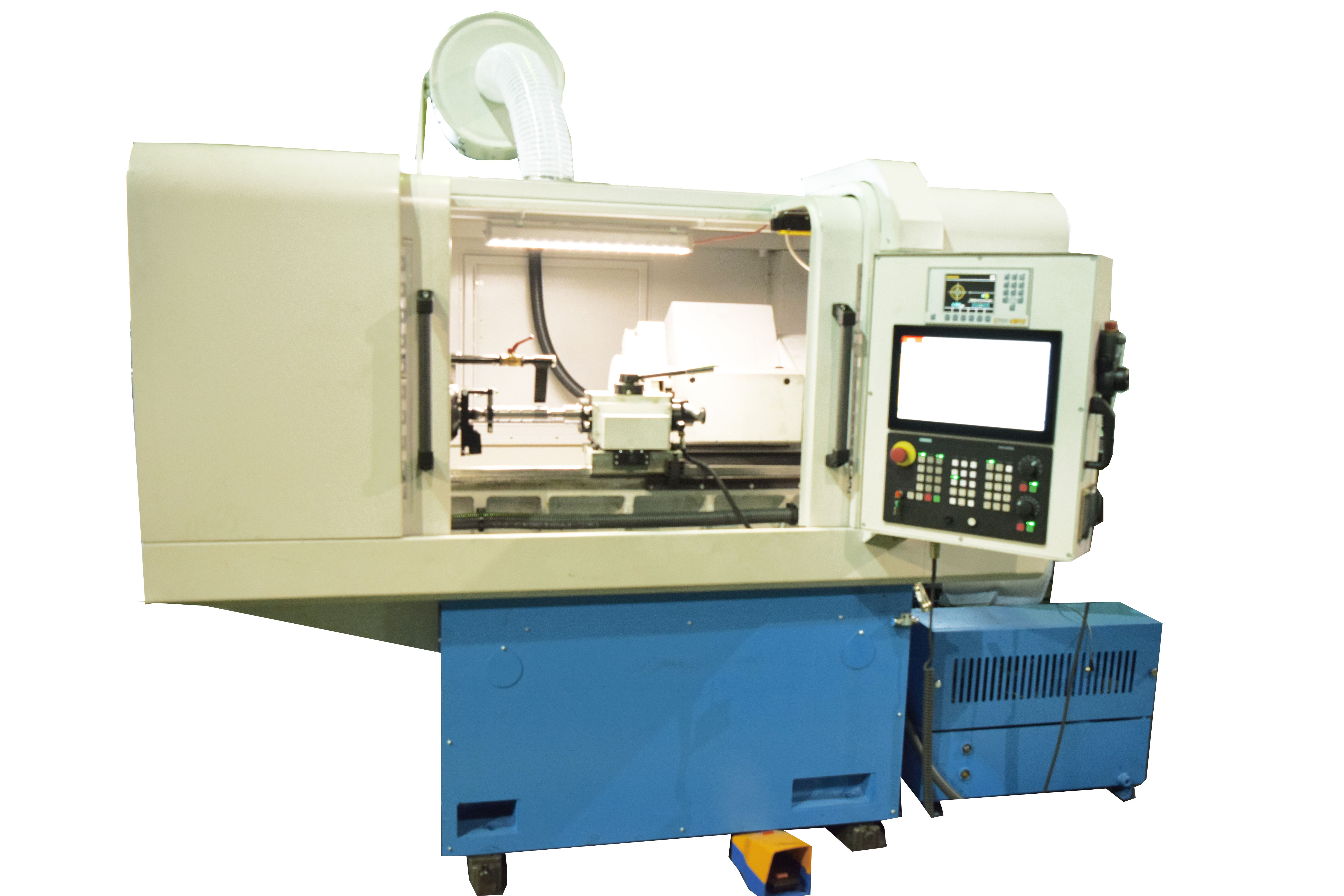

SEMIAUTOMATIC THREAD GRINDING MACHINE WITH CNC OSH-533F3

The semiautomatic machine is designed for plunge-cut grinding of metric threaded surfaces of "Shaft" and "Shaft-gear" type parts with a multirib abrasive grinding wheel.

  • Length of the workpiece to be installed - 570 mm
  • Outer diameter of the workpiece to be installed - 280 mm
  • Main drive power - 4,0 kw
THREAD GRINDING SEMIAUTOMATIC MACHINE WITH CNC OSH-633F3 VERSION 06

    Semiautomatic machine is designed for external grinding of outward, cylindrical and conic left and right, single - and multistart threads of different profile.
   Semiautomatic machine has an arrangement with traveling in longitudinal and cross directions wheel head relative to motionless rotating part.
    Wheel head has possibility of turning to the left and to the right relative to the axis of machined part in vertical plane on the helical groove angle of ascent.

  • Machined work piece length - 530 mm
  • Machined work piece diameter - 150 mm
  • Main drive power - 7,0 kw

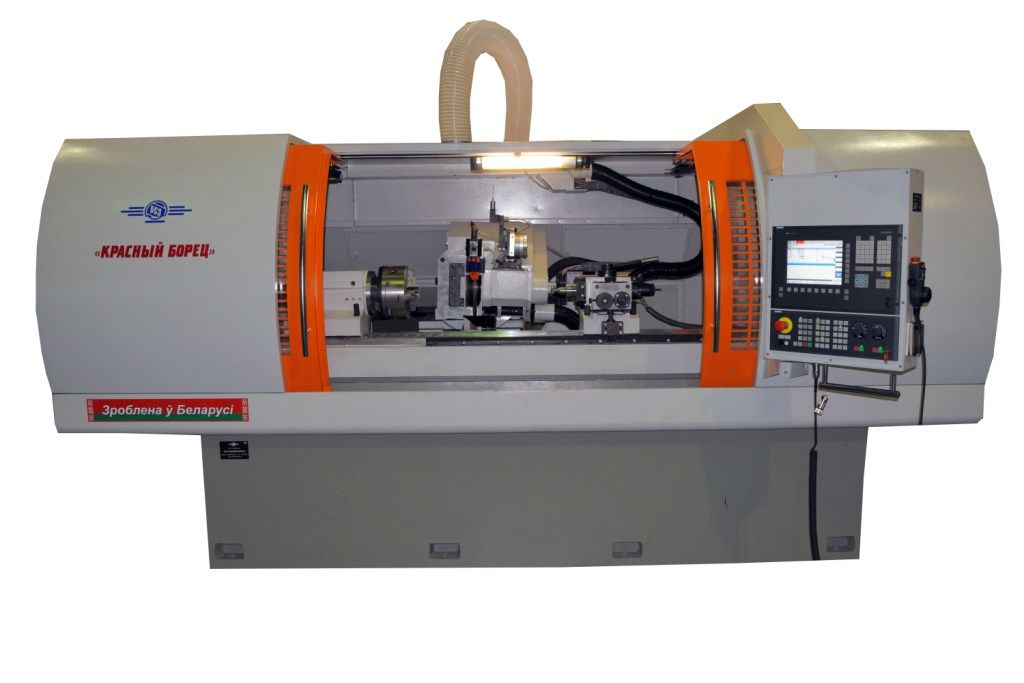

THREAD GRINDING SEMIAUTOMATIC MACHINE WITH CNC OSH-633F3  VERSION 04

    Semiautomatic machine is designed for external grinding of outward, cylindrical and conic left and right, single - and multistart threads of different profile.
   Semiautomatic machine has an arrangement with traveling in longitudinal and cross directions wheel head relative to motionless rotating part.
    Wheel head has possibility of turning to the left and to the right relative to the axis of machined part in vertical plane on the helical groove angle of ascent.

  • Length of machined workpiece - 1450 mm
  • Diameter of machined workpiece - 250 mm
  • Main drive power - 7,5 kw

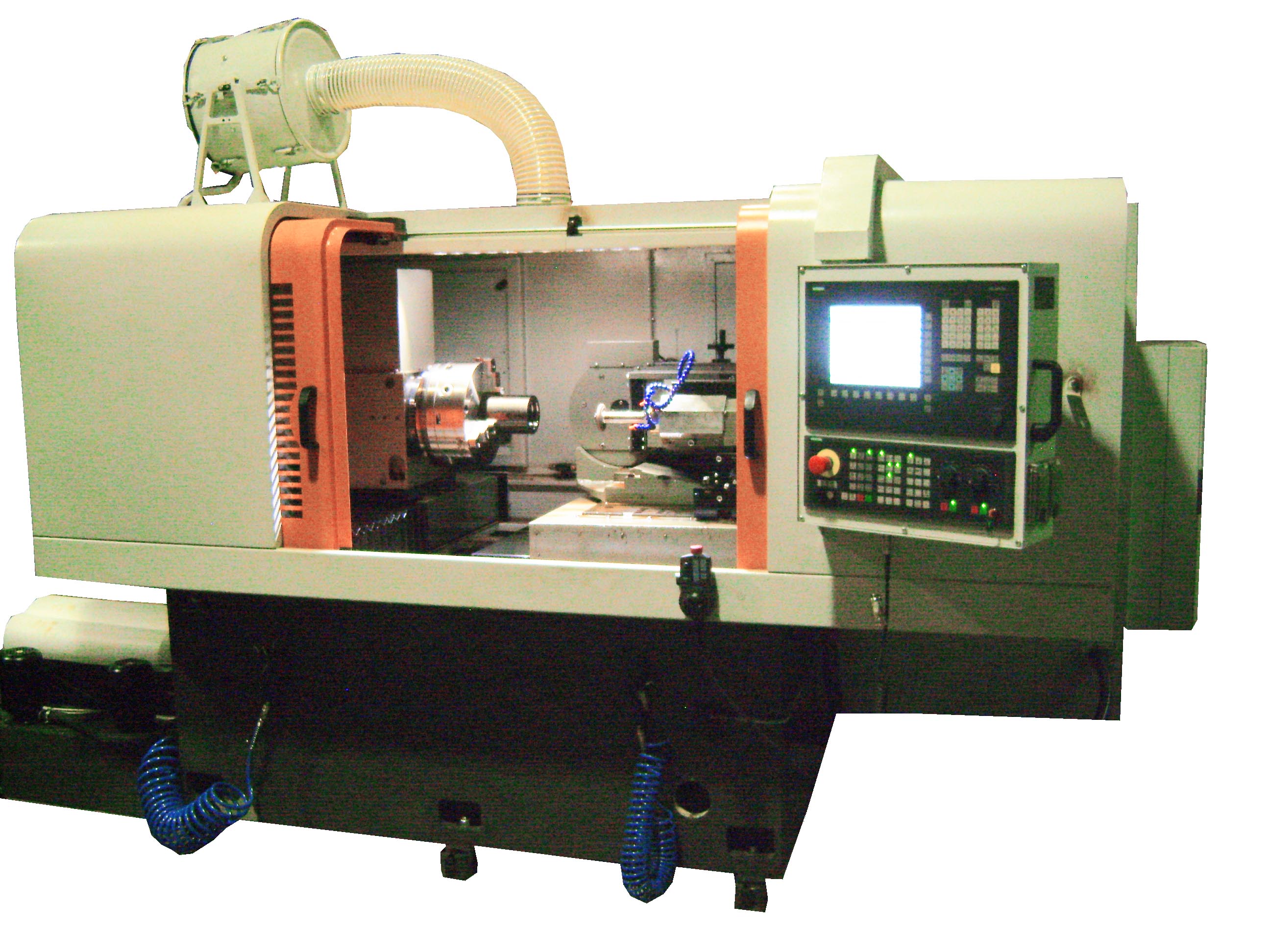

INTERNAL THREAD GRINDING MACHINE WITH CNC OSH-635.1.FЗ

Internal thread grinding machine with CNC model OSH-635FЗ is designed for grinding the internal thread of nuts and ball-screw pair beckets and has the traveling in cross direction slides (coordinate X) and in longitudinal direction  table with work head  (coordinate Z), wheel head is rotary, travels vertically (coordinate Y). The machine is equipped with CNC system, electric spindle, touch sensor for detection of part location on machine, diamond roller for grinding wheel profile dressing.

  • Length of machined workpiece - 300 mm
  • Diameter of machined workpiece - 330 mm
  • Machined work piece diameter - 300 mm
