SURFACE GRINDING MACHINES

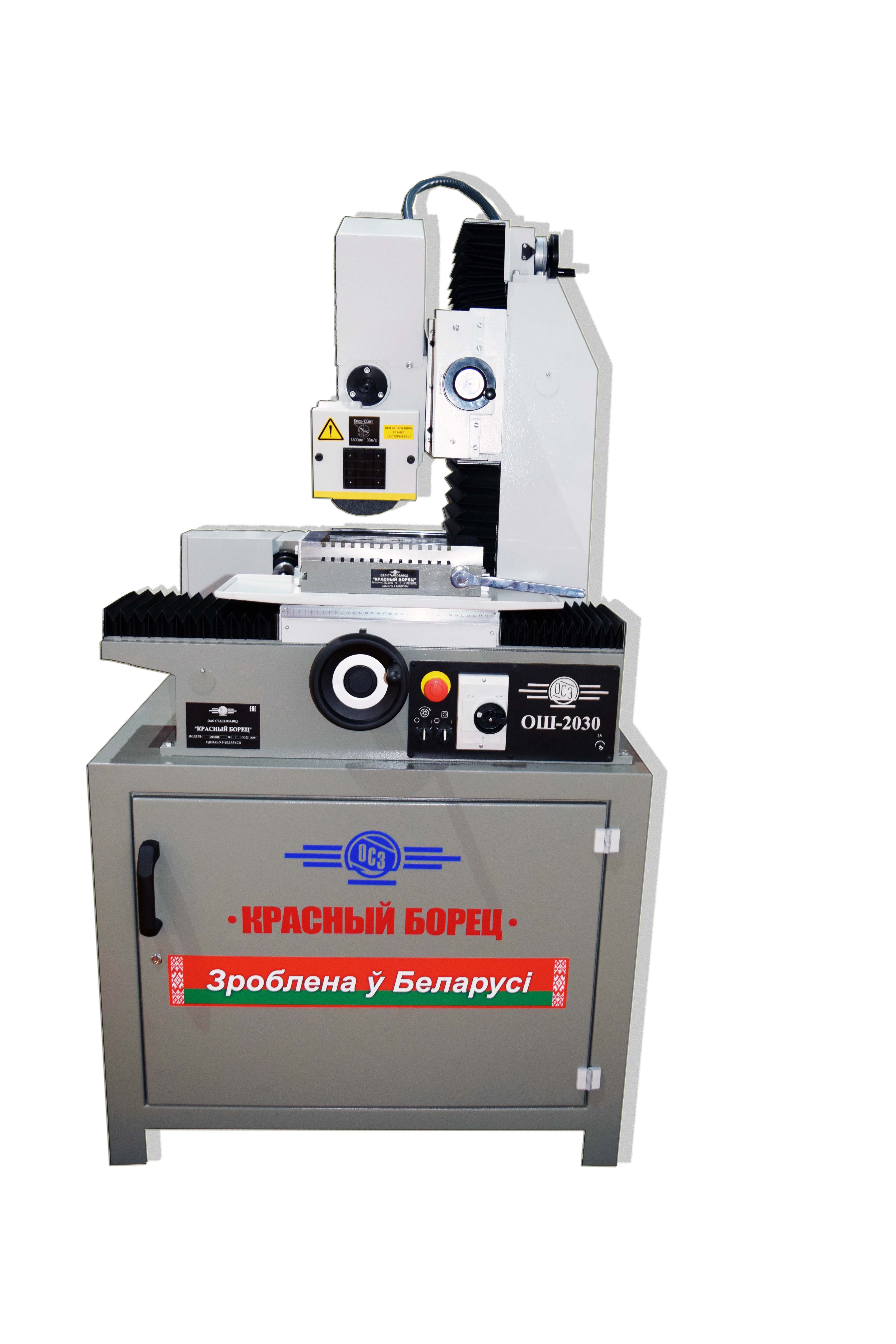

SURFACE GRINDING MACHINE WITH MANUAL CONTROL MODEL OSH-2030

Machine is designed for grinding the flat and profile surfaces (slots, shoulders, etc.) and also grinding by wheel face with vertical feed.
When attachment for circular grinding is installed, external circular grinding of cylindrical, corbelled parts and faces is possible.
Field of machine use is single and small branch production.
Machine has manual control over three axes by means of handwheels (longitudinal – Х, cross - Z and vertical - Y).

Table mirror width - 200 mm
Table mirror length - 300 mm
Main drive power - 1,1 kw

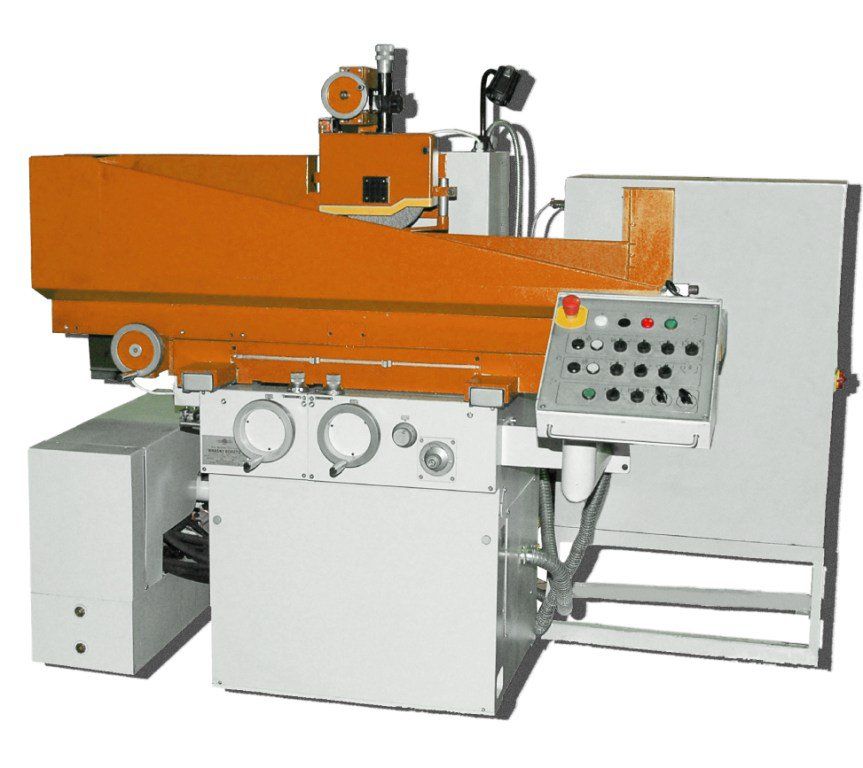

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE 3D711AF10-1 (ORSHA-2045)

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 200 mm
Table mirror length - 450 mm
Main drive power - 2,2 kW

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE OSH-450 (3D711VF11)

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 200 mm
Table mirror length - 630 mm
Main drive power - 4,0 kW

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE OSH-550 VERSION 36

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 320 mm
Table mirror length - 630 mm
Main drive power - 7,5 kW

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE OSH-400 (ORSHA -4080)

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 400 mm
Table mirror length - 800 mm
Main drive power - 7,5 kW

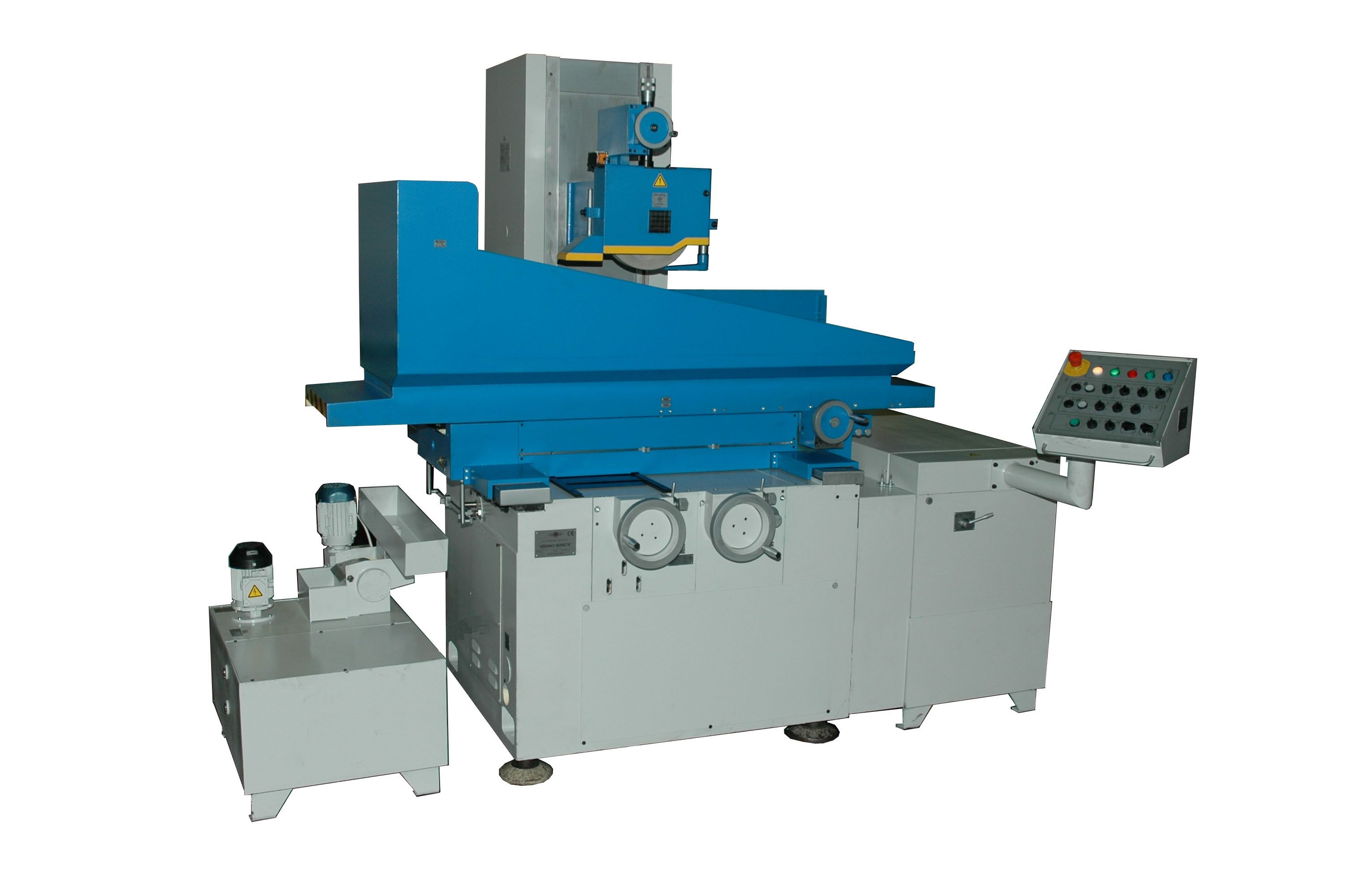

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE OSH-400 (ORSHA -40110)

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 400 mm
Table mirror length - 1100 mm
Main drive power - 7,5 kW

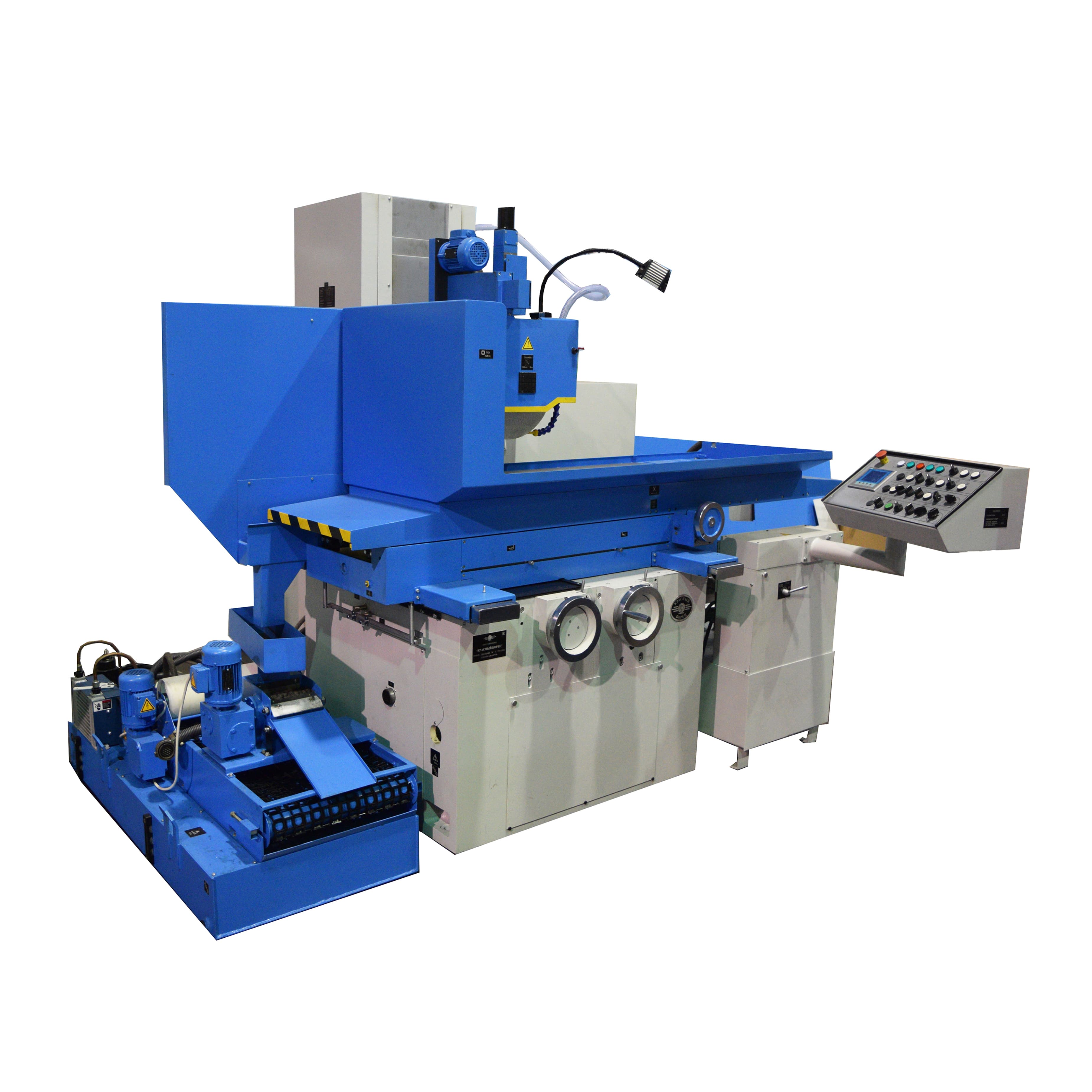

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE OSH-400AF2

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 400 mm
Table mirror length - 800 mm
Main drive power - 7,5 kW

HORIZONTAL SPINDLE COMPOUND TABLE SURFACE GRINDING MACHINE OSH-40110AF2

Surface grinding machines are designed for high precision processing of flat surfaces of different items from ferrous and non-ferrous metals and also grinding by wheel face with vertical feed of wheel within limits permissible by grinding wheel housing under conditions of mass, serial and single-piece production.

Table mirror width - 400 mm
Table mirror length - 1100 mm
Main drive power - 7,5 kW
