MACHINES FOR GRINDING OF CAMSHAFTS CAMS WITH CNC

SEMIAUTOMATIC SPECIAL CIRCULAR GRINDING MACHINE WITH CNC FOR GRINDING OF CAMSHAFTS CAMS OSH-600 F3

Semiautomatic machine is designed for rough and finish grinding of camshafts cams with convex profile and also for machining of parts of the similar type with fixing in centres or chuck and for grinding of outer cylindrical and conic surfaces of flat and stepped workpieces.

Length of machined workpiece - 870 mm
Diameter of machined workpiece - 10...300 mm
Main drive power - 15 kW

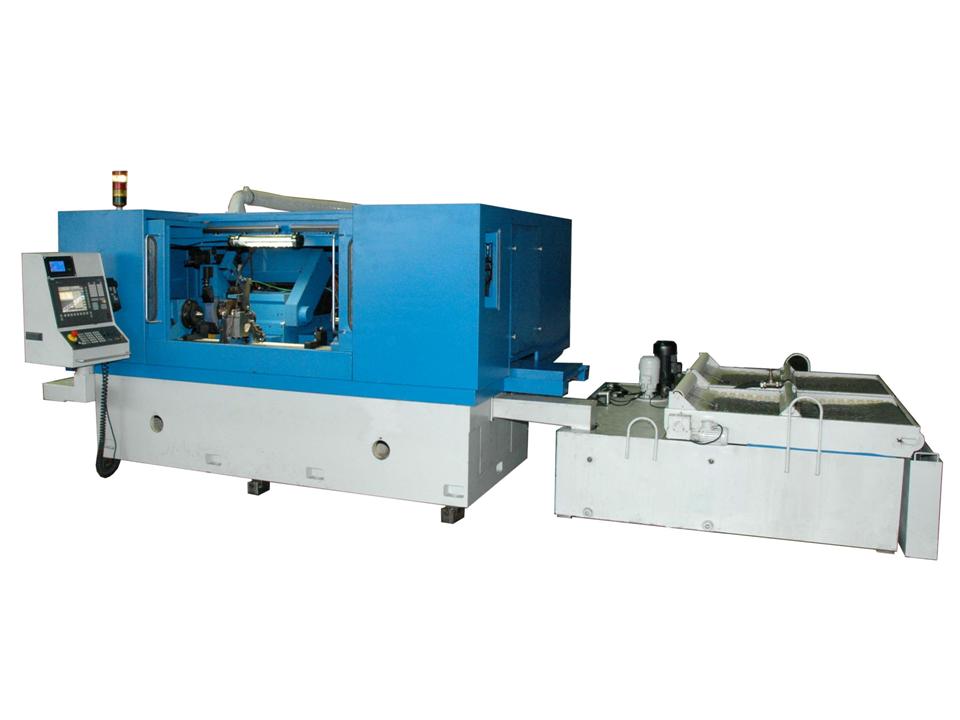

SEMIAUTOMATIC SPECIAL CIRCULAR GRINDING MACHINE WITH CNC FOR GRINDING OF CAMSHAFTS CAMS OSH-600 F3.1

Semiautomatic machine is designed for rough and finish grinding of camshafts cams with convex profile and also for machining of parts of the similar type with fixing in centres or chuck and for grinding of outer cylindrical and conic surfaces of flat and stepped workpieces.

Length of machined workpiece - 1450 mm
Diameter of machined workpiece - 10...330 mm
Main drive power - 15 kW

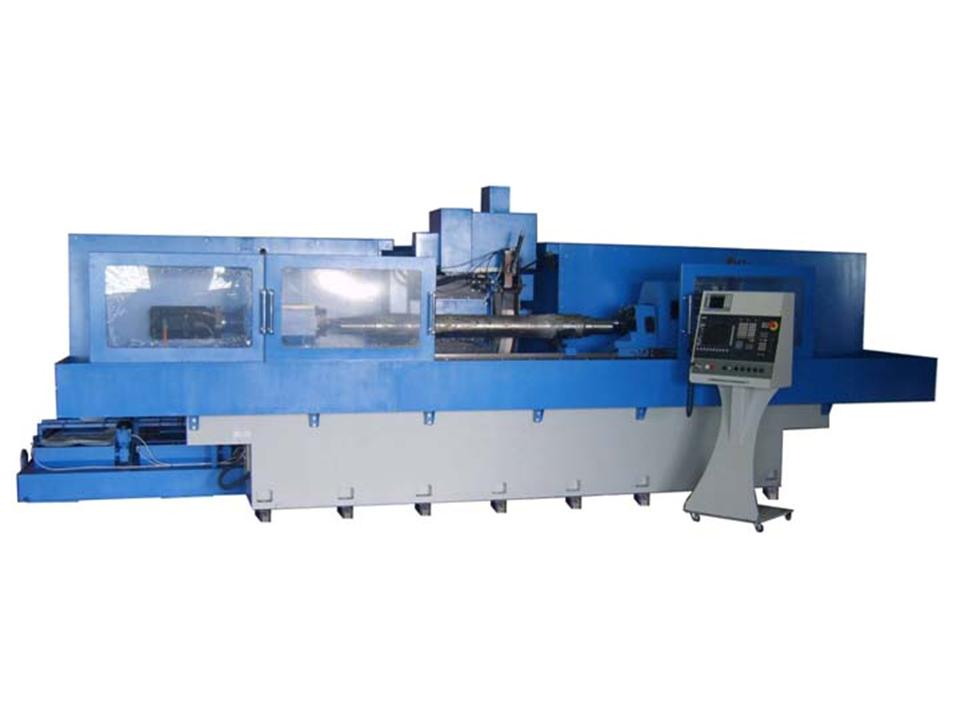

SEMIAUTOMATIC SPECIAL CIRCULAR GRINDING MACHINE WITH CNC FOR GRINDING OF MAIN AND ROD JOURNALS OF CRANKSHAFTS OSH-654 F3

Semiautomatic circular grinding machine model OSH-654F3 with CNC is designed for external grinding rod and main journals of crankshafts.

Length of machined workpiece - 2000 mm
Diameter of machined workpiece - 580 mm
Main drive power - 20 kW
