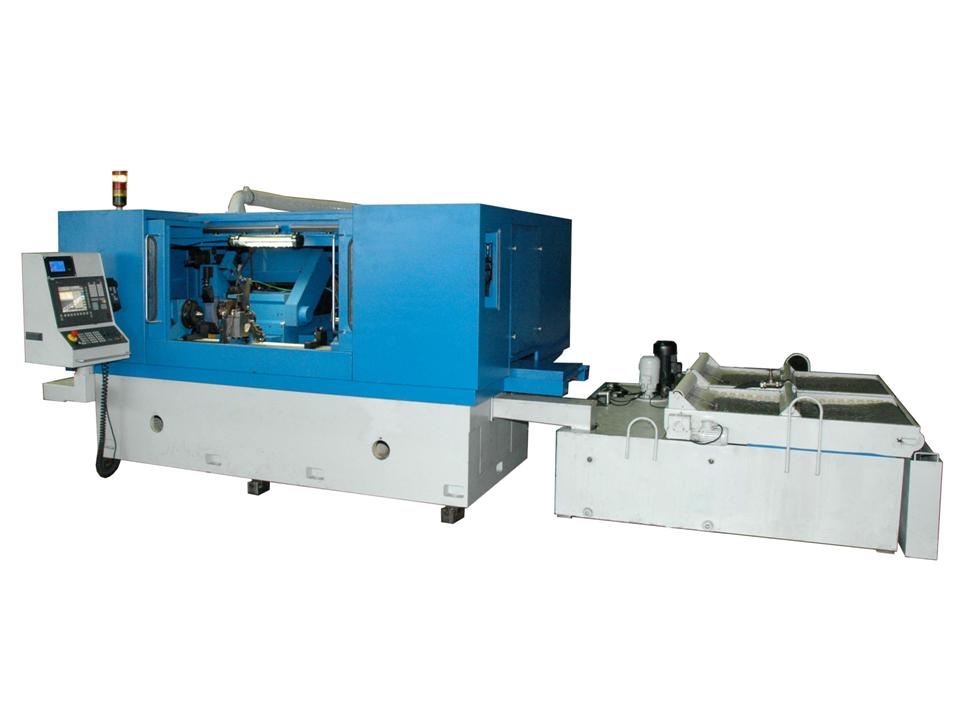

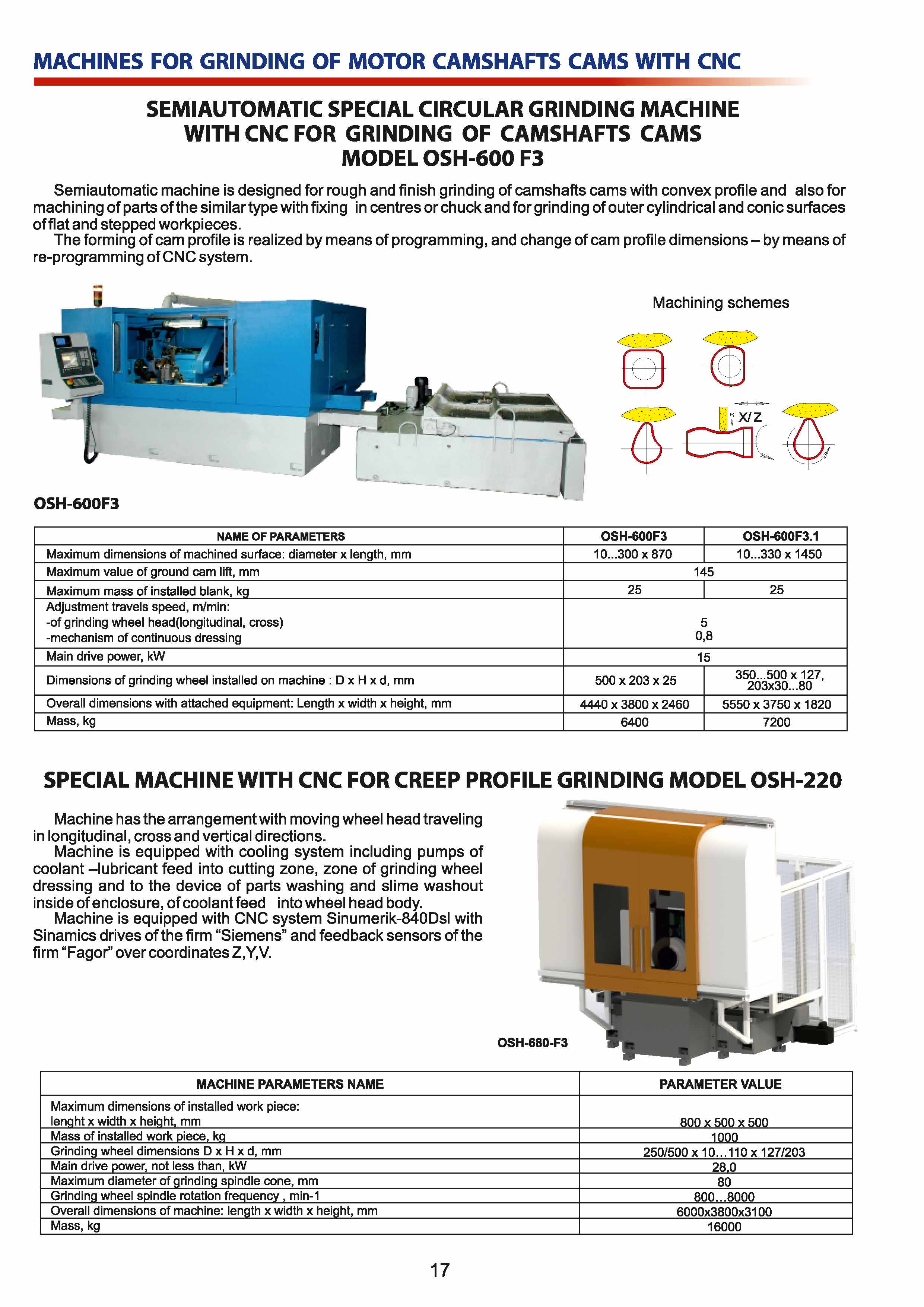

SEMIAUTOMATIC SPECIAL CIRCULAR GRINDING MACHINE WITH CNC FOR GRINDING OF CAMSHAFTS CAMS OSH-600 F3.1

DESCRIPTION

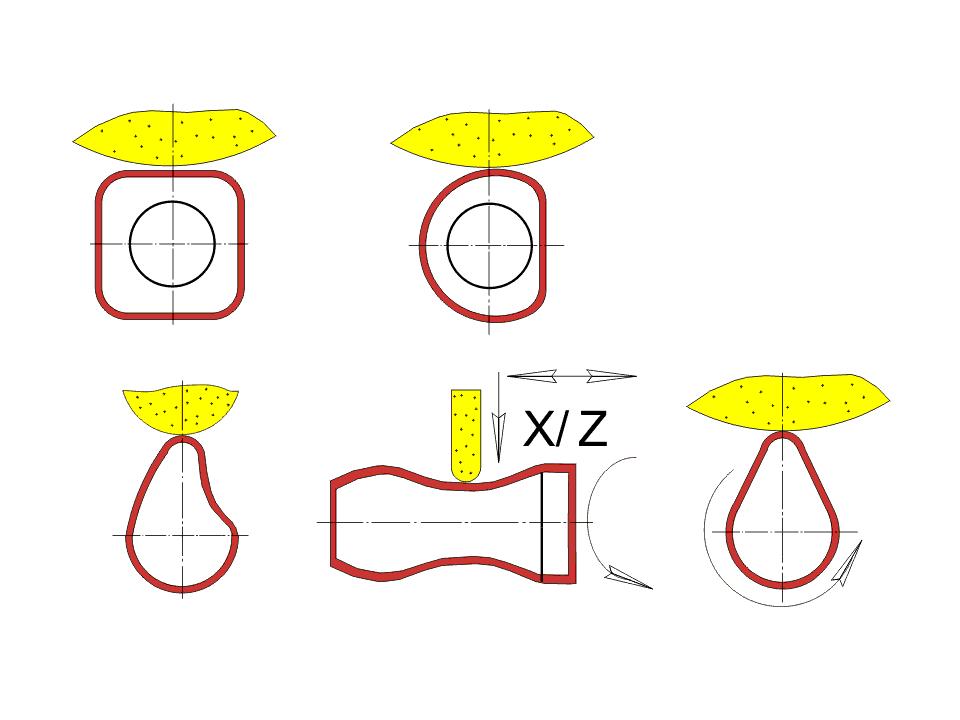

     Semiautomatic machine is designed for rough and finish grinding of camshafts cams with convex profile and also for machining of parts of the similar type with fixing in centres or chuck and for grinding of outer cylindrical and conic surfaces of flat and stepped workpieces.
    The forming of cam profile is realized by means of programming, and change of cam profile dimensions – by means of re-programming of CNC system.

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Length of machined workpiece
    1450 mm
  • Diameter of machined workpiece
    10...330 mm
  • Grinding wheel diameter
    350...500 mm
  • Grinding wheel height
    127,203 mm
  • Grinding wheel bore diameter
    30...80 mm
  • Main drive power
    15 kW
  • Mass of installed blank
    25 kg
  • Maximum value of ground cam lift action
    145 mm
  • Speed of adjustment travels of wheel head (longitudinal, cross)
    5 m/min
  • Speed of adjustment travels of continuous dressing mechanism
    0,8 m/min
  • Overall dimensions (length x width x height)
    5550 x 3750 x 1820 mm
  • Mass
    7200 kg
