SEMIAUTOMATIC SPECIAL CIRCULAR GRINDING MACHINE WITH CNC FOR GRINDING OF MAIN AND ROD JOURNALS OF CRANKSHAFTS OSH-654 F3

DESCRIPTION

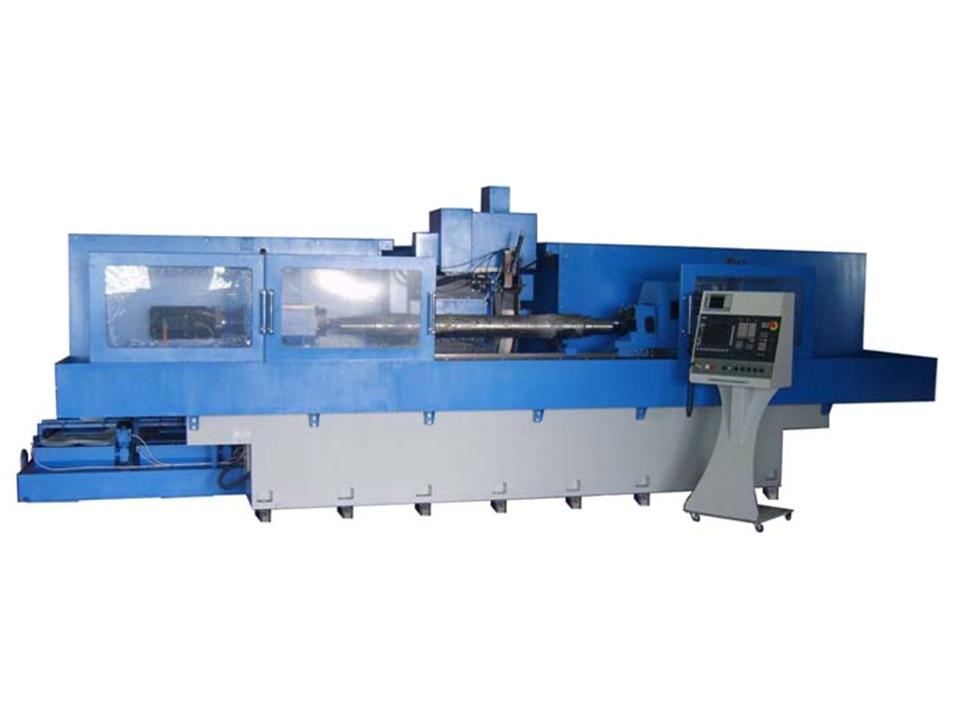

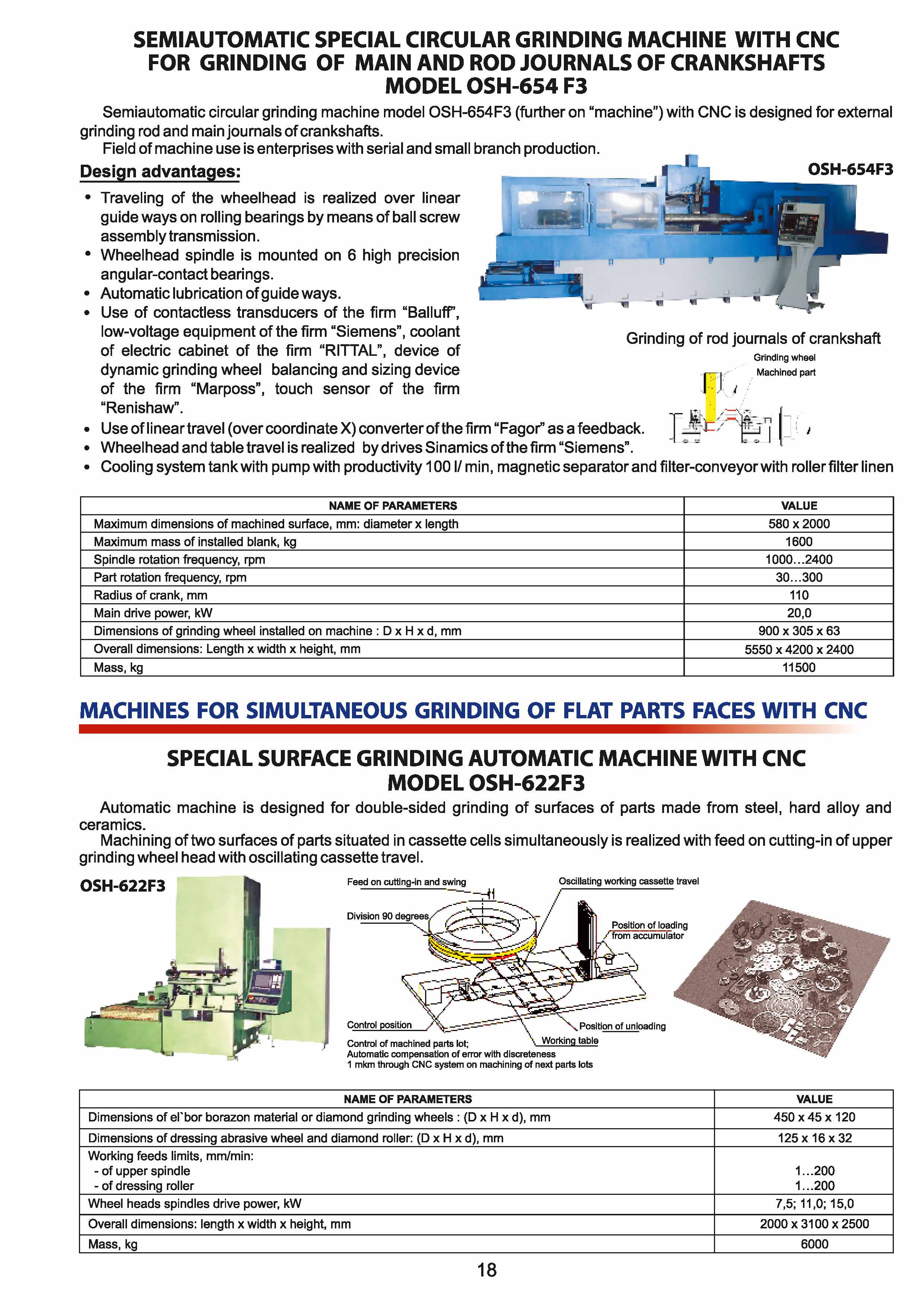

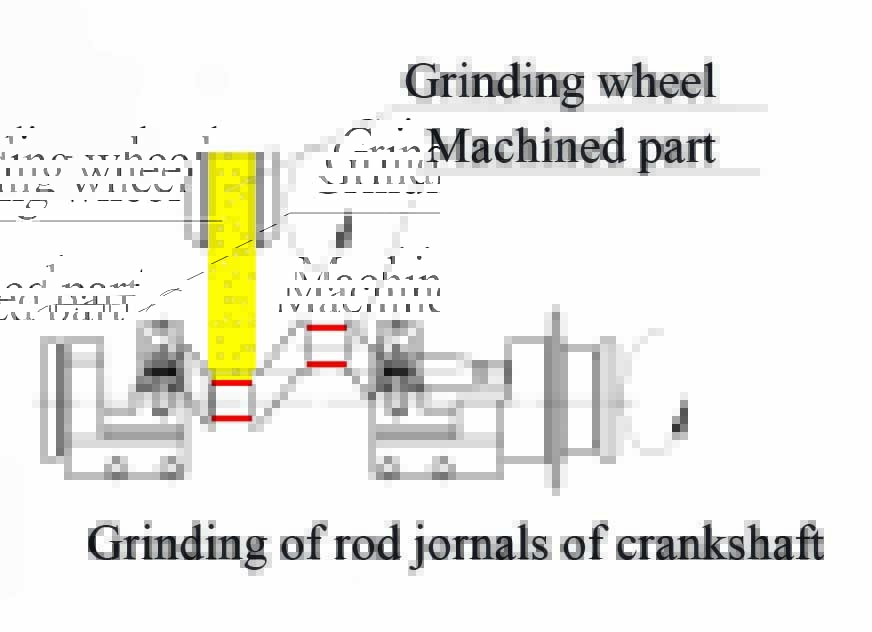

     Semiautomatic circular grinding machine model OSH-654F3 with CNC is designed for external grinding rod and main journals of crankshafts.
       Field of machine use is enterprises with serial and small branch production.

Send a request Download

DESIGN ADVANTAGES

  • Traveling of the wheelhead is realized over linear guide ways on rolling bearings by means of ball screw assembly transmission.
  • Wheelhead spindle is mounted on 6 high precision angular-contact bearings.
  • Automatic lubrication of guide ways.
  • Use of contactless transducers of the firm “Balluff”, low-voltage equipment of the firm “Siemens”, coolant of electric cabinet of the firm “RITTAL”, device of dynamic grinding wheel balancing and sizing device of the firm “Marposs”, touch sensor of the firm “Renishaw”.
  • Use of linear travel (over coordinate X) converter of the firm “Fagor” as a feedback.
  • Wheelhead and table travel is realized by drives Sinamics of the firm “Siemens”.
  • Cooling system tank with pump with productivity 100 l/ min, magnetic separator and filter-conveyor with roller filter linen.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Length of machined workpiece
    2000 mm
  • Diameter of machined workpiece
    580 mm
  • Grinding wheel diameter
    900 mm
  • Grinding wheel height
    305 mm
  • Grinding wheel bore diameter
    63 mm
  • Main drive power
    20 kW
  • Grinding spindle rotation frequency
    1000...2400 rpm
  • Mass of installed blank
    1600 kg
  • Part rotation frequency
    30...300 rpm
  • Radius of crank
    110 mm
  • Overall dimensions (length x width x height)
    5550 x 4200 x 2400 mm
  • Mass
    11500 kg
