INTERNAL PROFILE GRINDING MACHINES

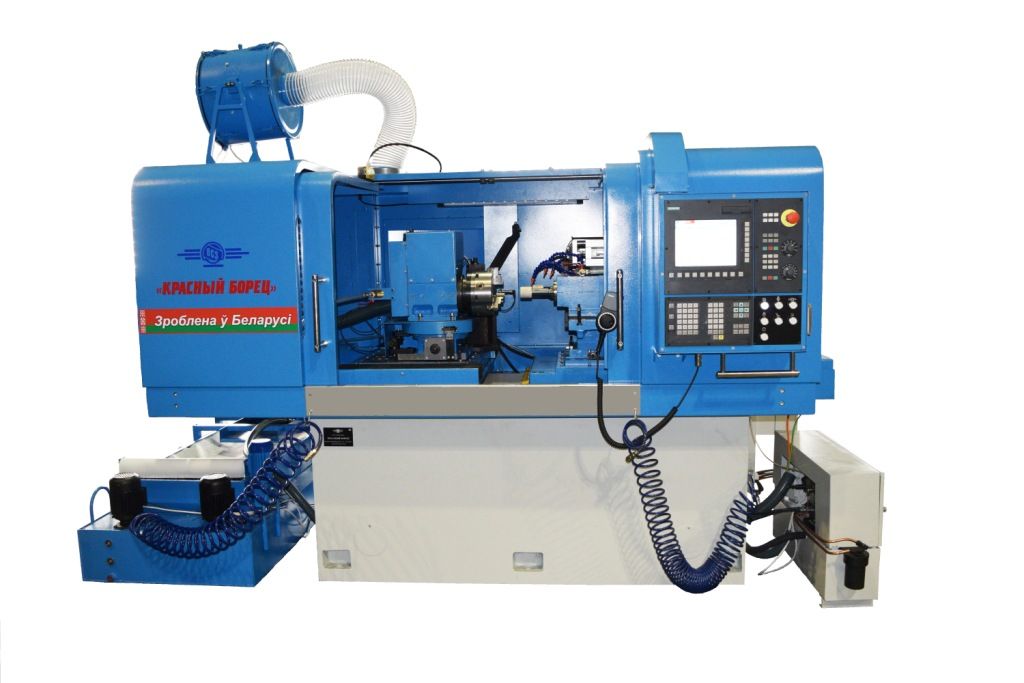

Internal grinding machine model OSH-636F3 is designed for grinding cylindrical and conical through and blind holes with abrasive or CBN wheels.

Length of machined surfaces - 150 mm
Internal diameter of machined surfaces - 200 mm
External diameter of machined surfaces - 180 mm
External diameter of grinding wheel installed on semiautomatic machine - 10...63 mm

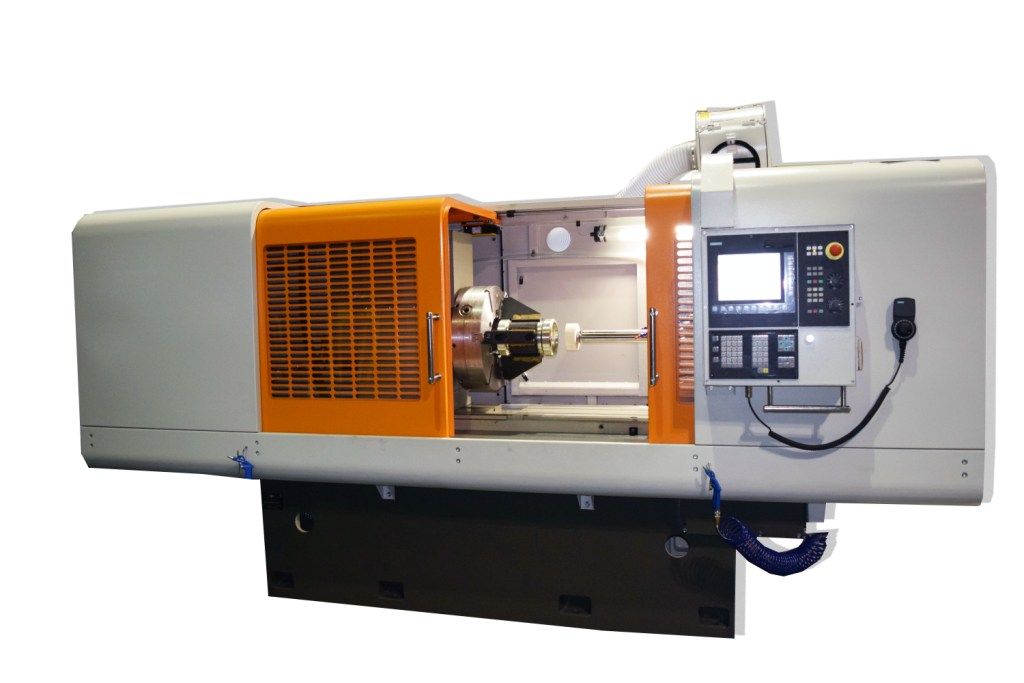

Internal grinding machine with CNC model OSH-686.5F3 is designed for grinding internal cylindrical and conical surfaces.

Length of machined surfaces - 650 mm
Internal diameter of machined surfaces - 600 mm
External diameter of machined surfaces - 600 mm
External diameter of grinding wheel installed on semiautomatic machine - 50...125 mm

Internal grinding machine with CNC model OSH-686F3 is designed for grinding internal cylindrical and conical surfaces.

Length of machined surfaces - 150 mm
Internal diameter of machined surfaces - 200 mm
External diameter of machined surfaces - 180 mm
External diameter of grinding wheel installed on semiautomatic machine - 10...63 mm
