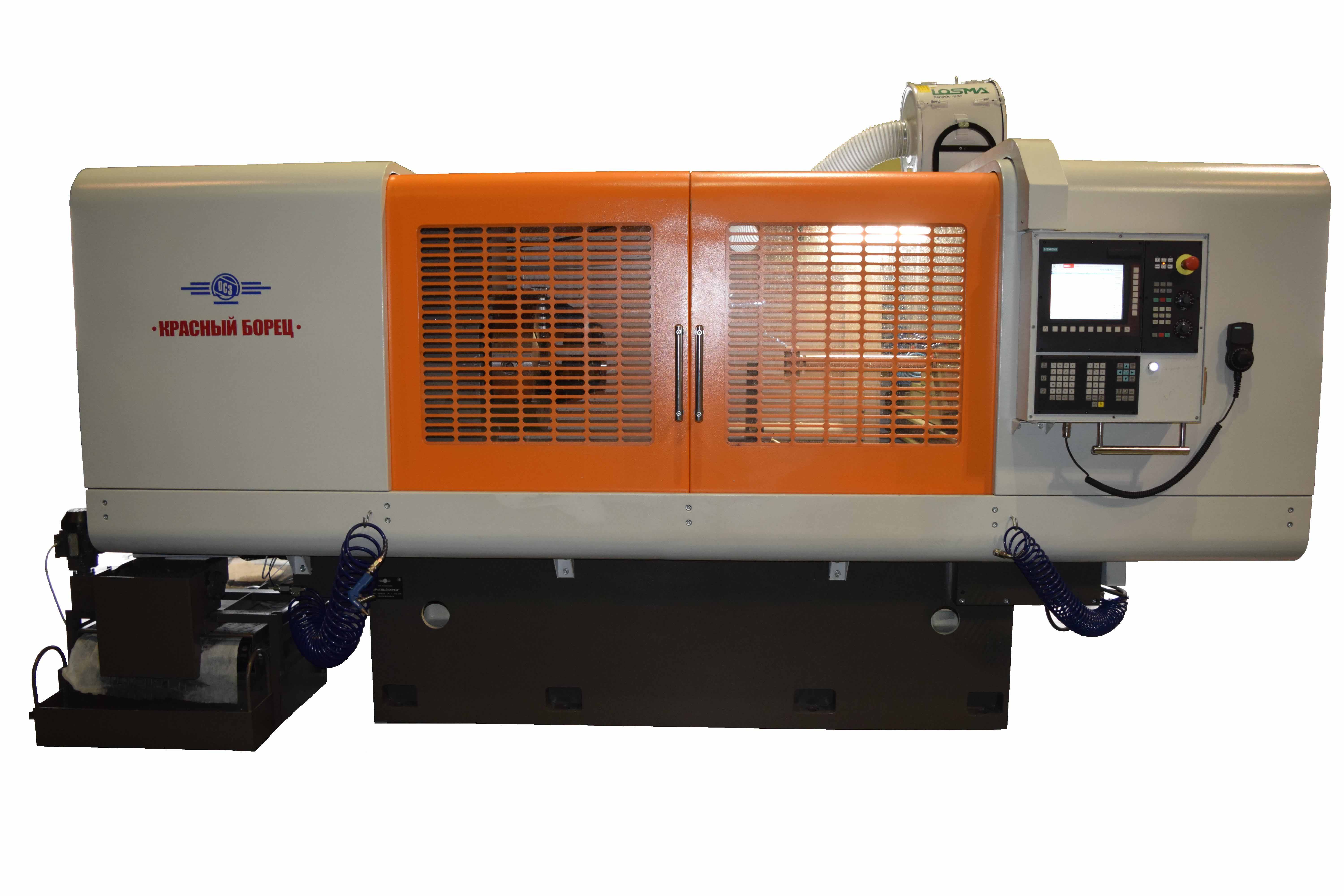

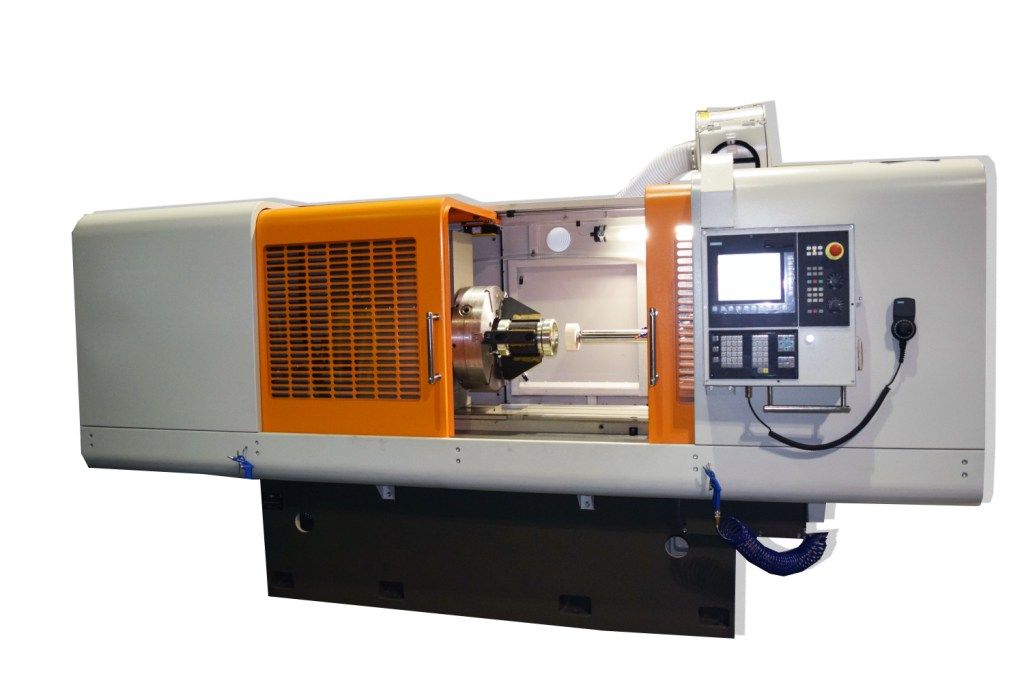

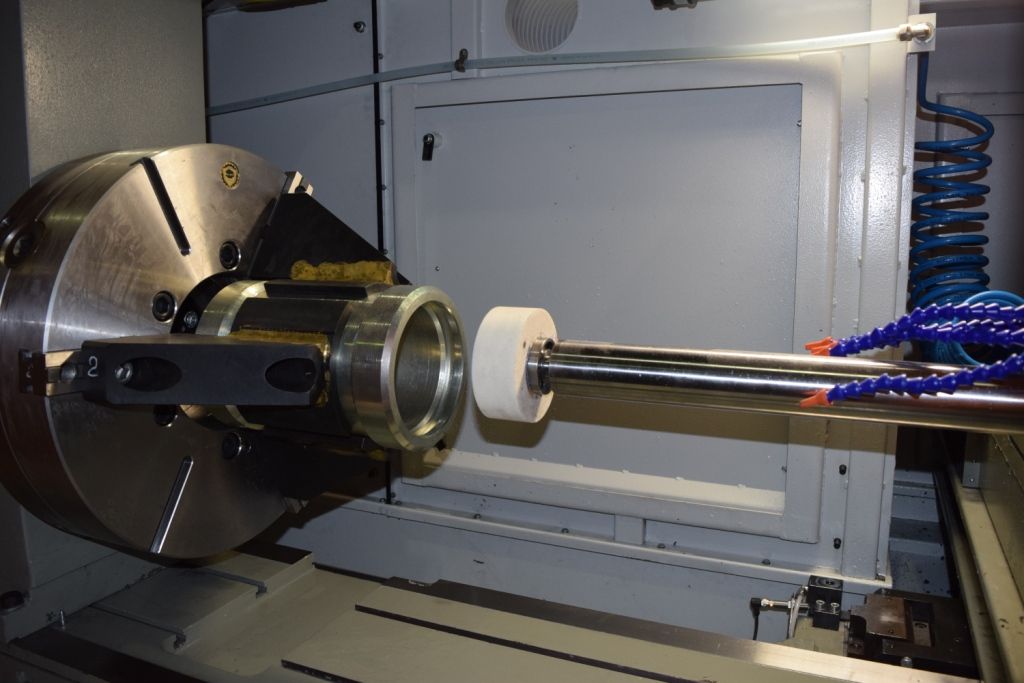

SEMI-AUTOMATIC INTERNAL GRINDING MACHINE WITH CNC OSH-686.5F3

DESCRIPTION

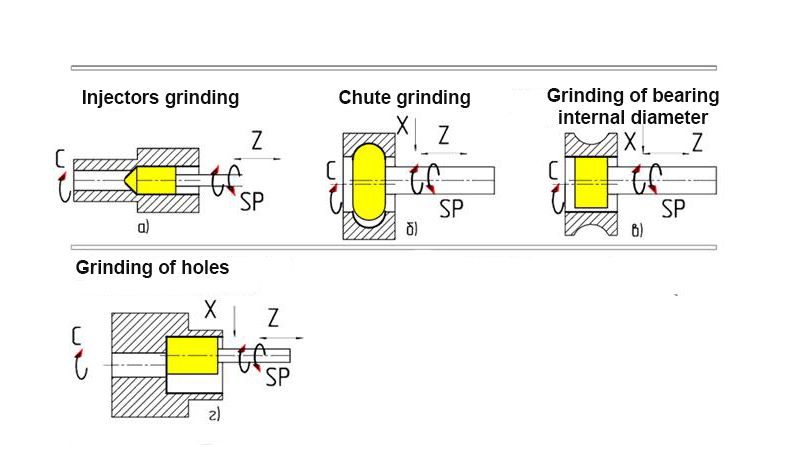

Internal grinding machine with CNC model OSH-686.5F3 is designed for grinding internal cylindrical and conical surfaces.The scope of the machine is small - scale production. The kinematic scheme of the machine must provide:                  - transverse movement of the wheel head (X coordinate);           - longitudinal movement of the work head (Z coordinate);          - rotation of the work head spindle (coordinate Sp1);
 - rotation of the grinding wheel (coordinate Sp2);
  - movement of the dressing mechanism to the processing area;


Send a request Download

DESIGN ADVANTAGES

  • System of CNC Sinumerik 802Dsl of the firm "Siemens" with servo drives Sinamics.
  • Portable control panel with electronic flywheel.
  • FAGOR feedback sensor for the X-coordinate (transverse movement of the grinding wheel)
  • Internal grinding spindle of the firm FISCHER – 30 000 rpm
  • Refrigerating unit of electric cabinet of the firm “Rittal”.
  • High precision gapless ball-screw transmissions of the firm “Mikron” in the feed drives mechanisms.
  • High precision angular contact ball bearings of the company "IBC" for the work head spindle
  • Dressing mechanism assembled with dresser diamond.
  • Coolant cleaning device using a magnetic separator and paper filter conveyor.
  • The cabinet-type protection of work area.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews

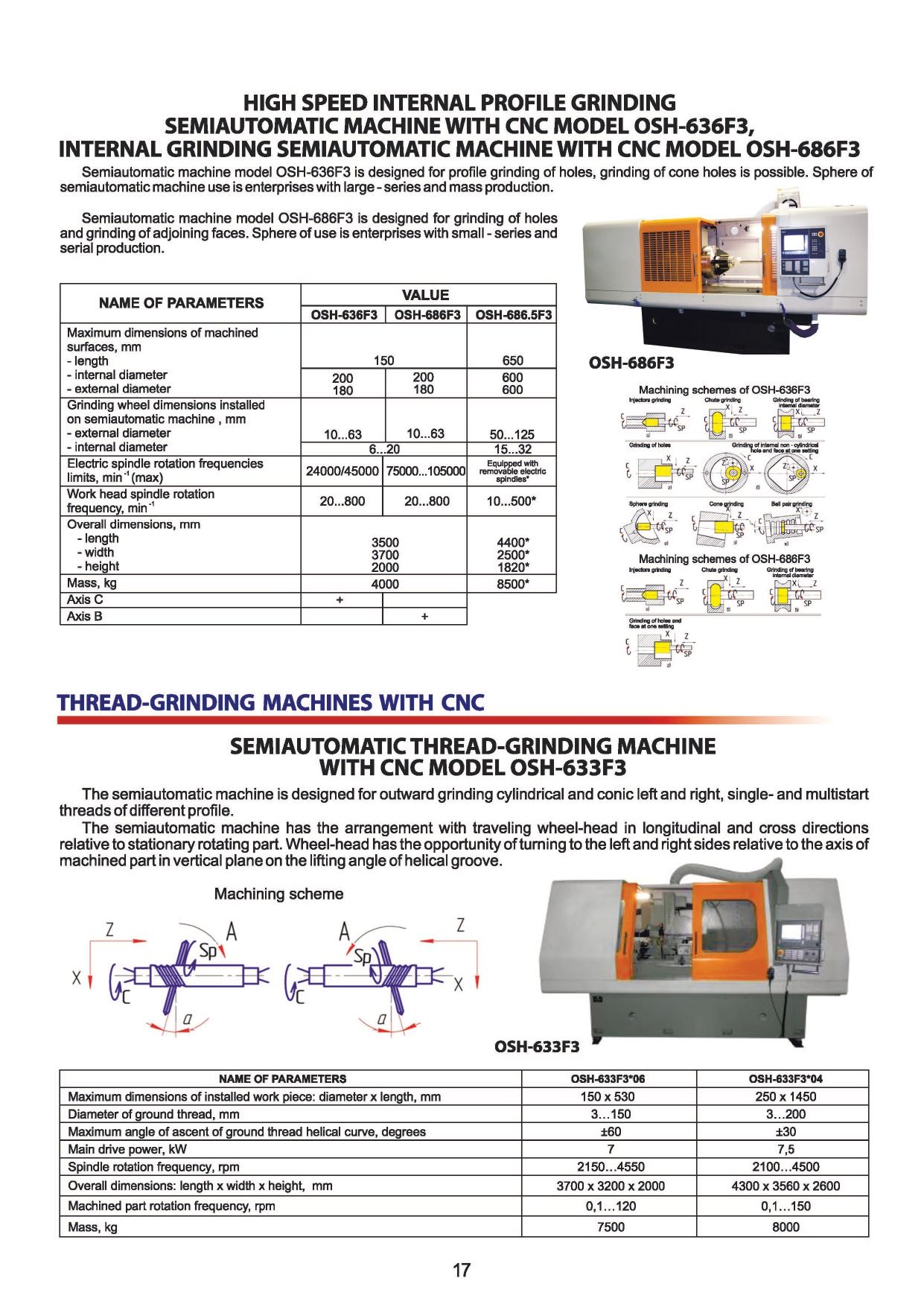

  • Length of machined surfaces
    650 mm
  • Internal diameter of machined surfaces
    600 mm
  • External diameter of machined surfaces
    600 mm
  • External diameter of grinding wheel installed on semiautomatic machine
    50...125 mm
  • Internal diameter of grinding wheel installed on semiautomatic machine
    13...32 mm
  • Electric spindle rotation frequencies limits
    Equipped with removable electric spindles
  • Work head spindle rotation frequency
    10...500 min-1
  • Axis
    -
  • Overall dimensions (length x width x height)
    4400 х 2500 х 1820 mm
  • Mass
    8500 kg

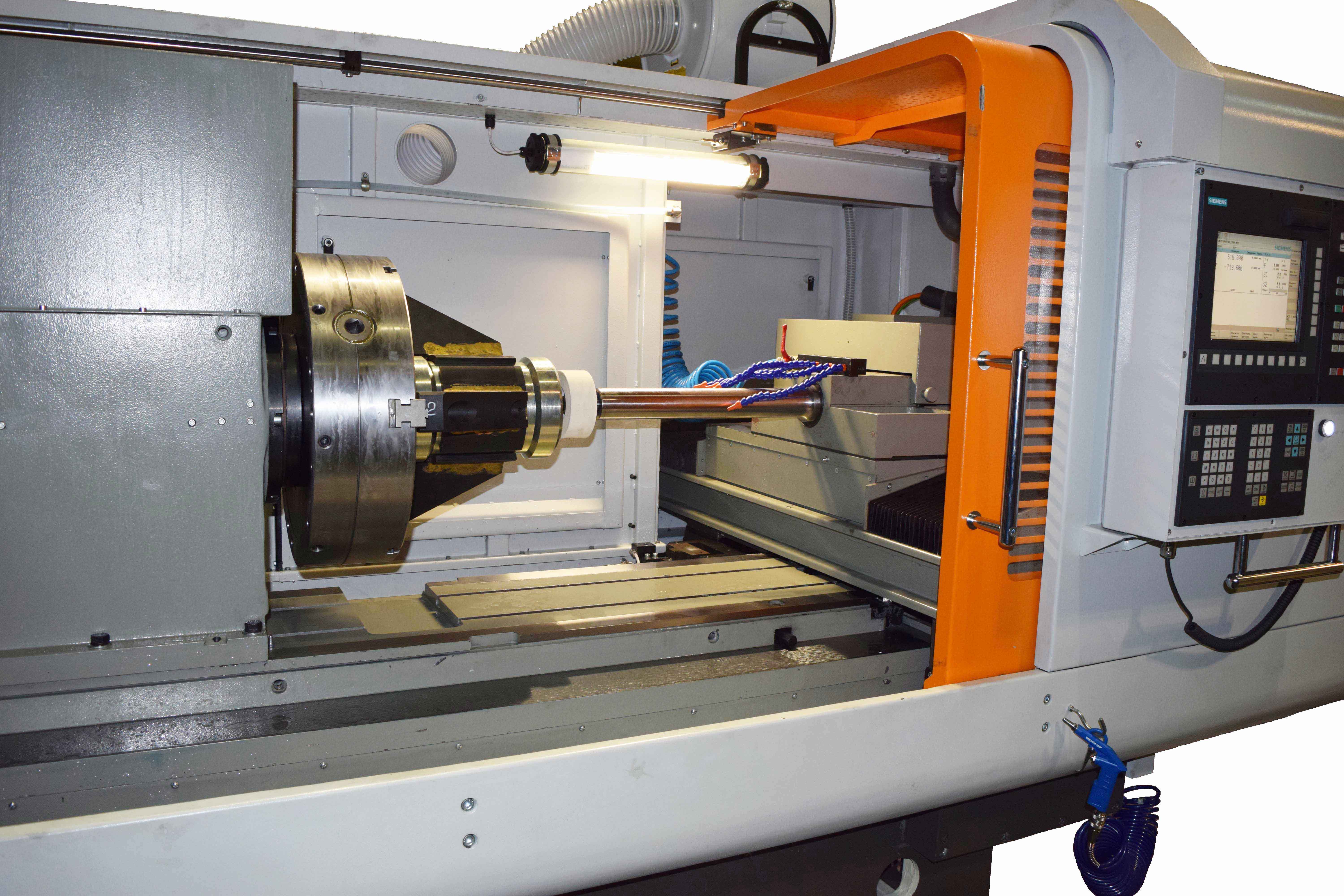

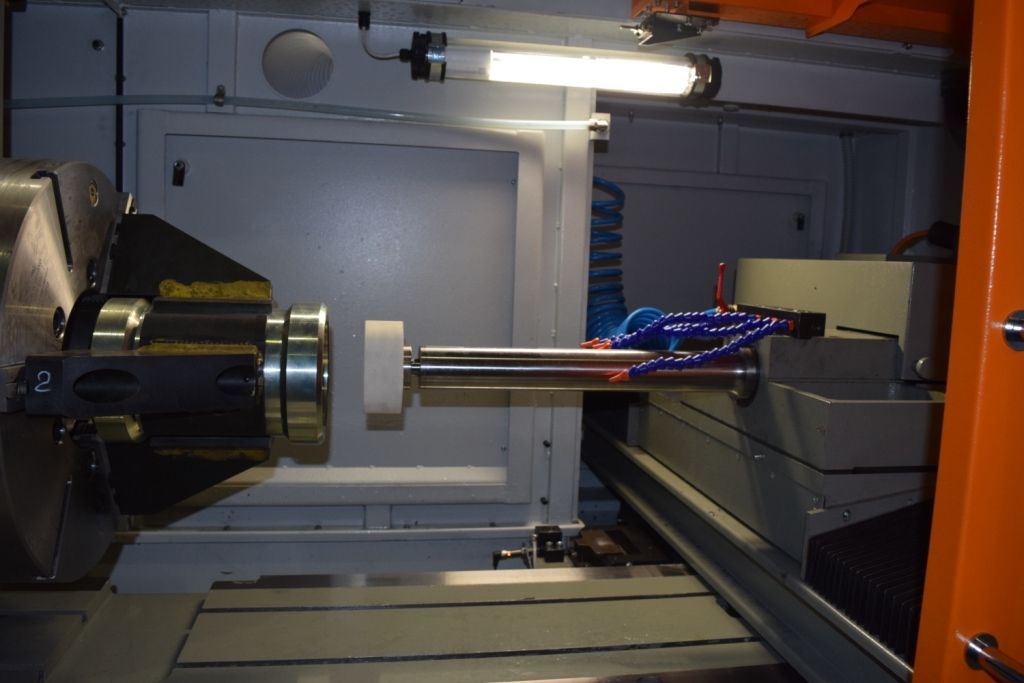

The machine has a layout with moving wheel head in the transverse direction, longitudinal movement of the workhead relative to the axis of the grinding wheel and the rotation of the workhead spindle. The processed part is installed in the work head cartridge. A support cradle can be installed on the machine table. The part is installed manually.

All working bodies are moved by means of ball-screw pairs. The base of the machine is the bed on which the main components and mechanisms are installed. A longitudinal table is installed on the rolling guides of the bed. There is a cross table on the cross - beam guides, and there also fixed:
- longitudinal and cross travels mechanisms;
- mechanism of longitudinal travels limitation;
- the mechanism of reference and limit of the transverse travels;
- fencing of the working area.
   The cross table provides a cross movement of the headstock of the grinding spindle installed on it. Movement is carried out on steel hardened linear rolling guides by means of a backlash-free high-precision ball-screw transmission.
   The grinding wheel periphery dressing is carried out with a dresser diamond dresser, the device for dressing is fixed on the longitudinal table.

 Surface treatment and dressing of the grinding wheel is performed automatically according to the control program, installation and removal of the part are carried out manually. The machine automatically compensates for the amount of removal of the profile of the grinding wheel during dressing.

On the rolling guides, a longitudinal table is moved, which performs an oscillatory movement with the possibility of stepless and precise supply. An upper turntable is installed on the longitudinal table. On the working surface of the longitudinal table, the work head and the supporting rest are installed. The upper table can be rotated horizontally at an angle of ±2°. The work head can be rotated at an angle of -7°...+8°.

A hydraulic three-cam self-centering chuck with replaceable cams can be used to install parts.

The hydraulic lubrication station and coolant tank are installed behind the machine.

   The working area of grinding is protected by cabinet-type protection, the front wall of the protection has a movable opening door with plexiglass.

In front, to the right of the machine, there is a CNC control panel. The Siemens Sinumerik 802Dsl CNC system must provide the following machine capabilities:

  - part processing by rotating the workpiece and moving the wheel head;

-       maintaining the set value of the cutting speed and the set speed of the workpiece.

For the convenience of the operator, a universal technological program is installed on the machine. In the dialog mode, using special "masks", the operator sets:
- the dimensions of the surface to be processed;
- removable allowance;
- finishing allowance;
- values of roughing and finishing feeds and speeds;
- number of sparkling sessions;
- parameters and number of the grinding wheel dressings during processing.


      - machine assembly;
      - coolant supply and cleaning system;
    - hydraulic station;
      - electric automation cabinet;
    - control panel with CNC system;
    - three-cam chuck;
      - set of spare parts, tools and accessories;
      - set of operational and technical documentation;

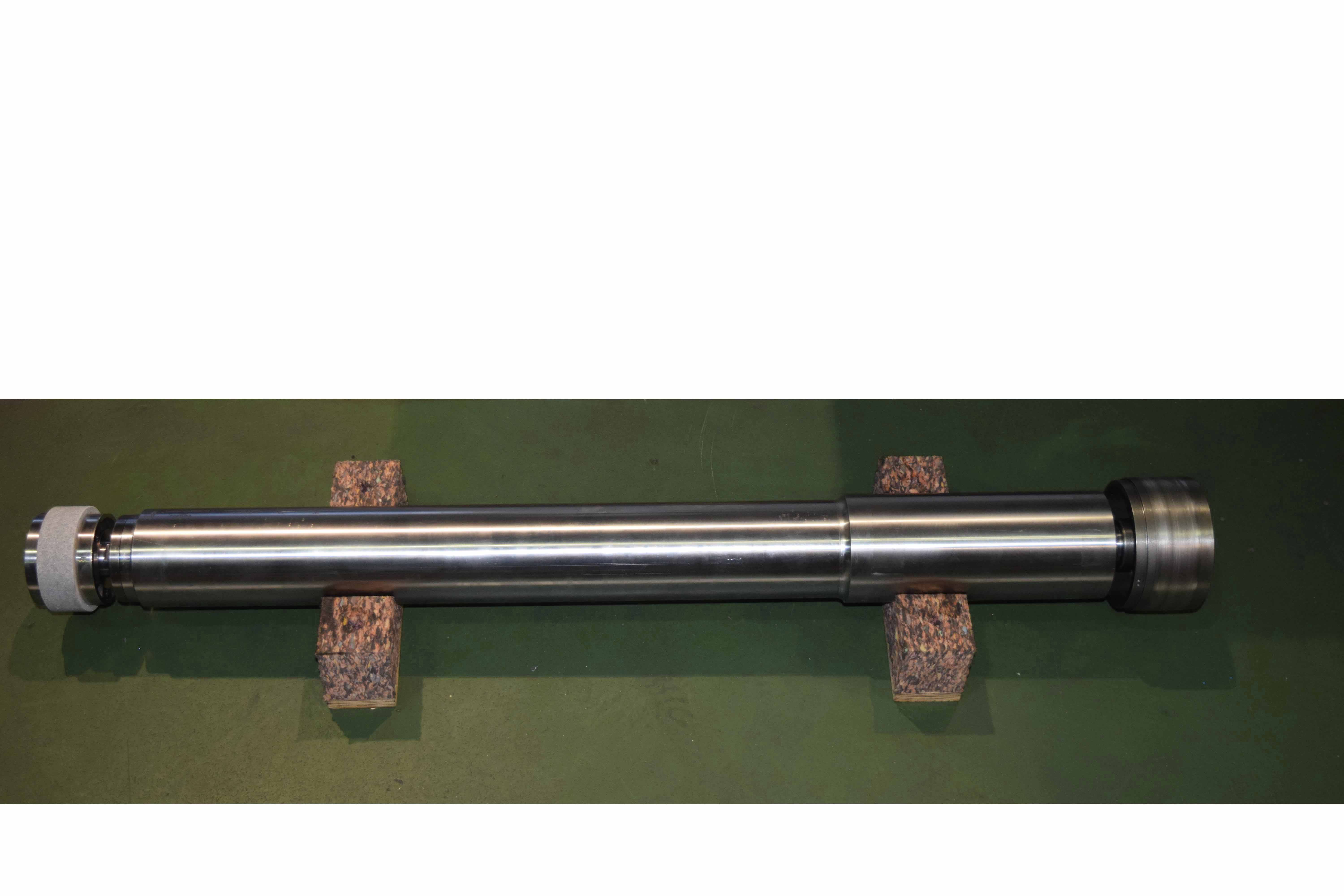

  • Special FAV42.80R630 belt-driven spindle with a speed of 15,000 min-1, made by FISCHER (FORTUNA) for processing deep holes D of hole≥50 mm. and the length L of hole <420mm


  • Lunette 40...100 mm.

  • Lunette 100...300 mm
  • Limits of spindle rotation frequencies

  • IT IS COMPLETED WITH REPLACEABLE FORTUNES
