GRINDING MACHINE WITH ROUND ROTARY TABLE AND VERTICAL SPINDLE

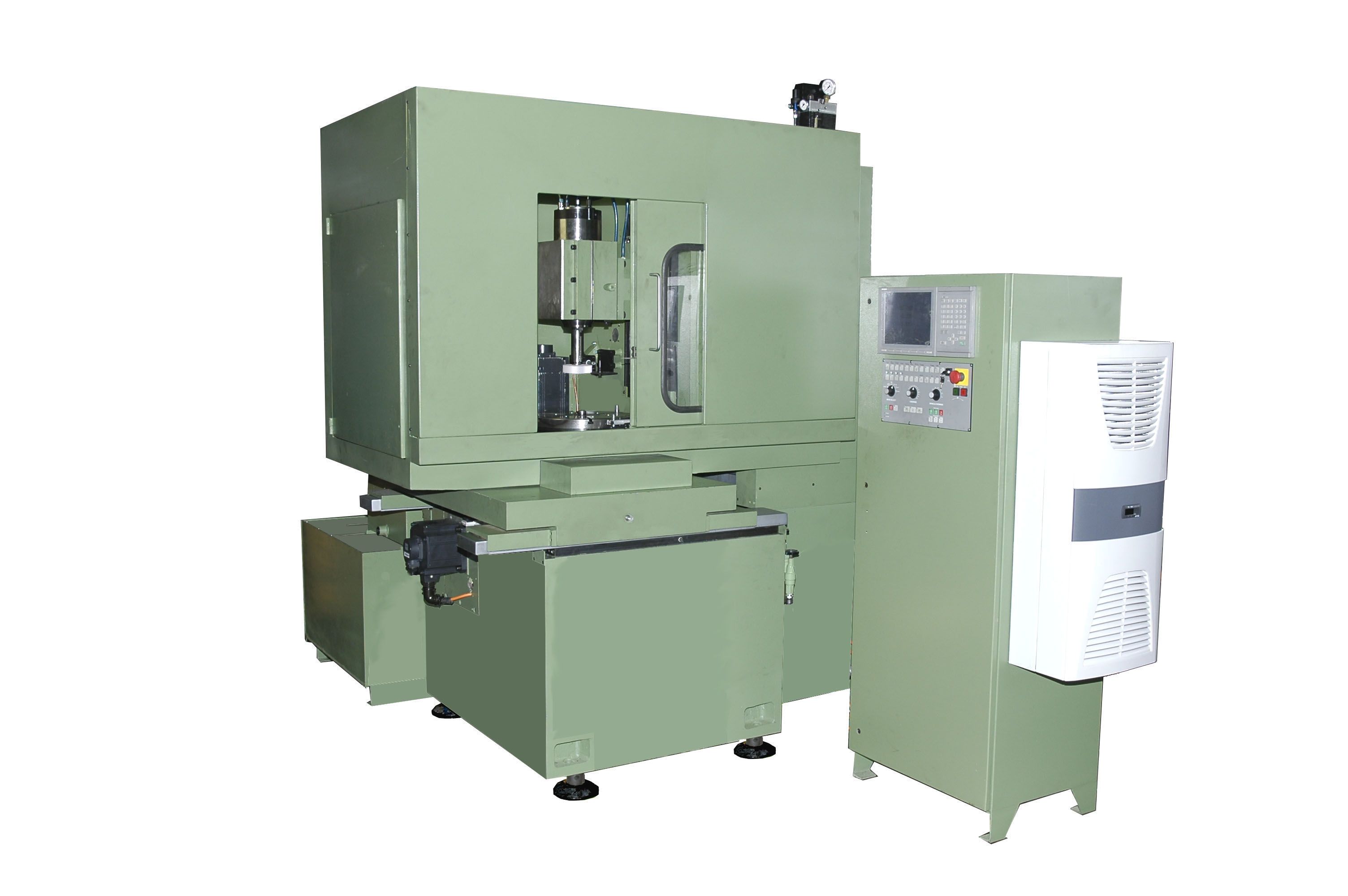

Semiautomatic internal grinding machine with round table and vertical spindle with CNC model OSH-623F3 is designed for grinding of internal and external cylindrical surfaces of parts type of bodies of revolution by abrasive or CBN grinding wheels.

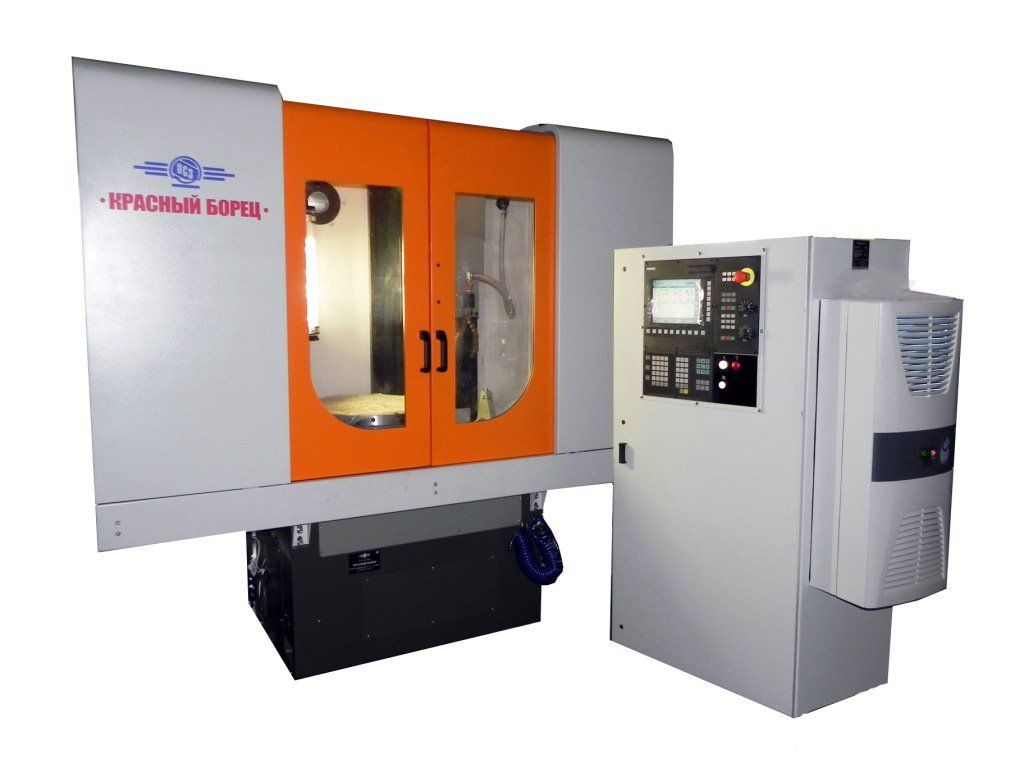

Special internal grinding semiautomatic machine with CNC with round table and vertical spindle model OSH-642 is designed for grinding internal holes, external diameters and adjacent faces of parts type of rings, cups, sleeves.

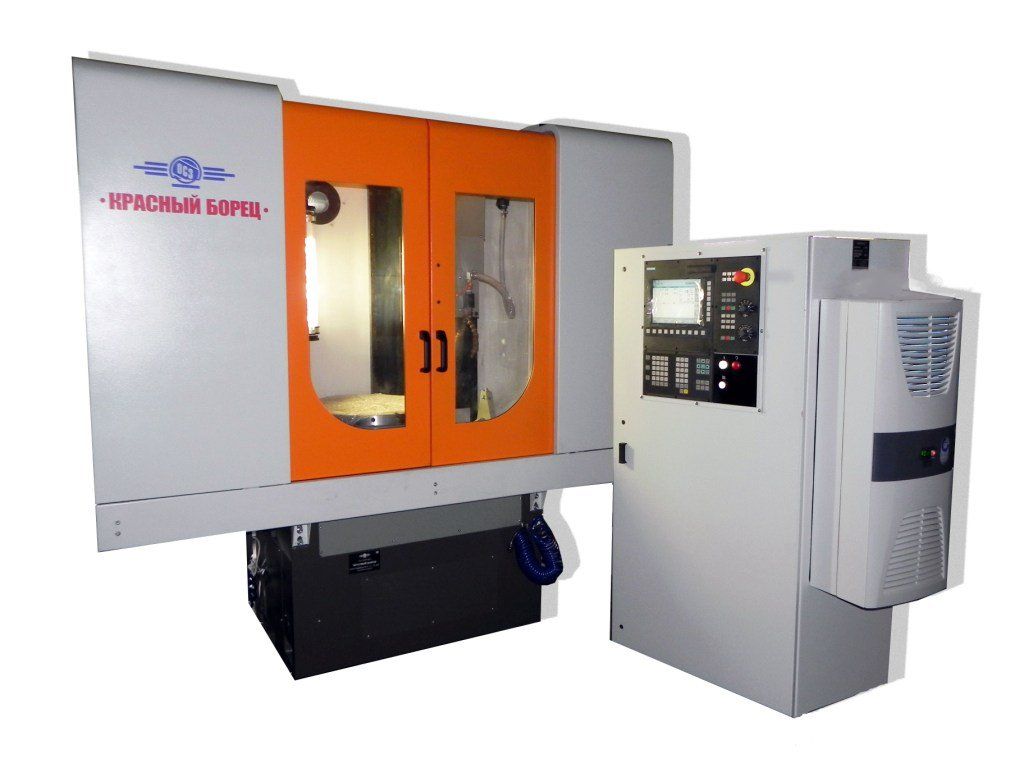

Special internal grinding semiautomatic machine with CNC with round table and vertical spindle model OSH-642 version 16 is designed for grinding internal holes, external diameters and adjacent faces of parts type of rings, cups, sleeves.

Special internal grinding semiautomatic machine with CNC with round table and vertical spindle model OSH-642 version 18 is designed for grinding internal holes, external diameters and adjacent faces of parts type of rings, cups, sleeves.

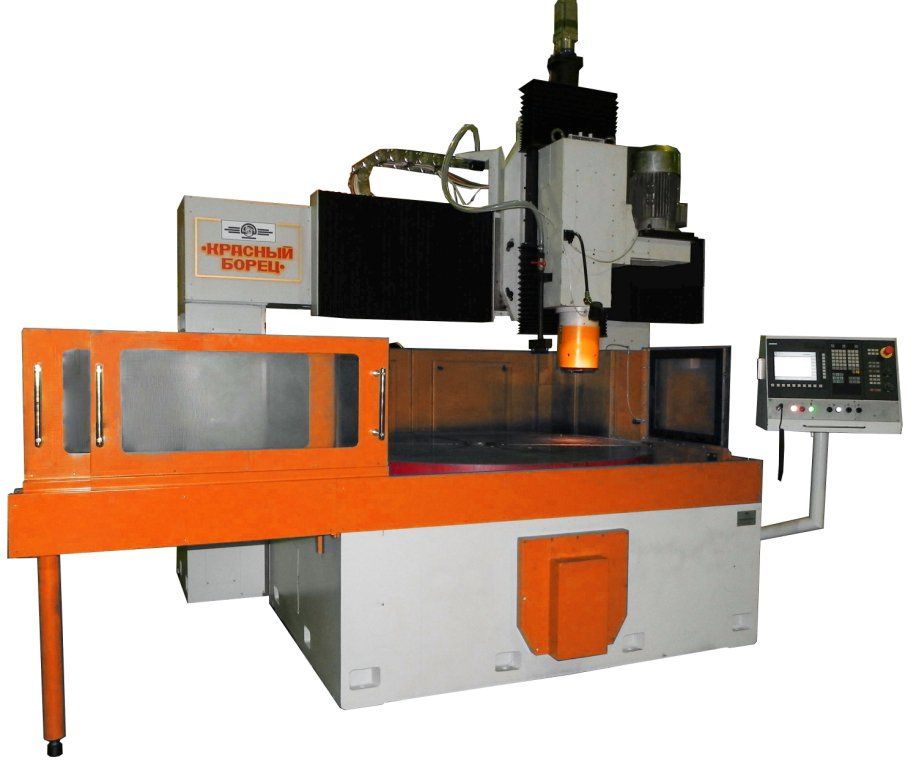

   The semiautomatic special grinding machine is designed for grinding external and internal surfaces and flat parts such as the bodies of rotation.
     Portal arrangement is used in the design of the semiautomatic machine with round table and traveling wheel head in longitudinal and vertical direction. Wheel head has a capacity of turn in vertical plane from controllable drive. Reversible rotation of table is foreseen. Grinding wheel dressing is realized by dressing mechanism diamond roller due to the grinding wheel travel over two coordinates.

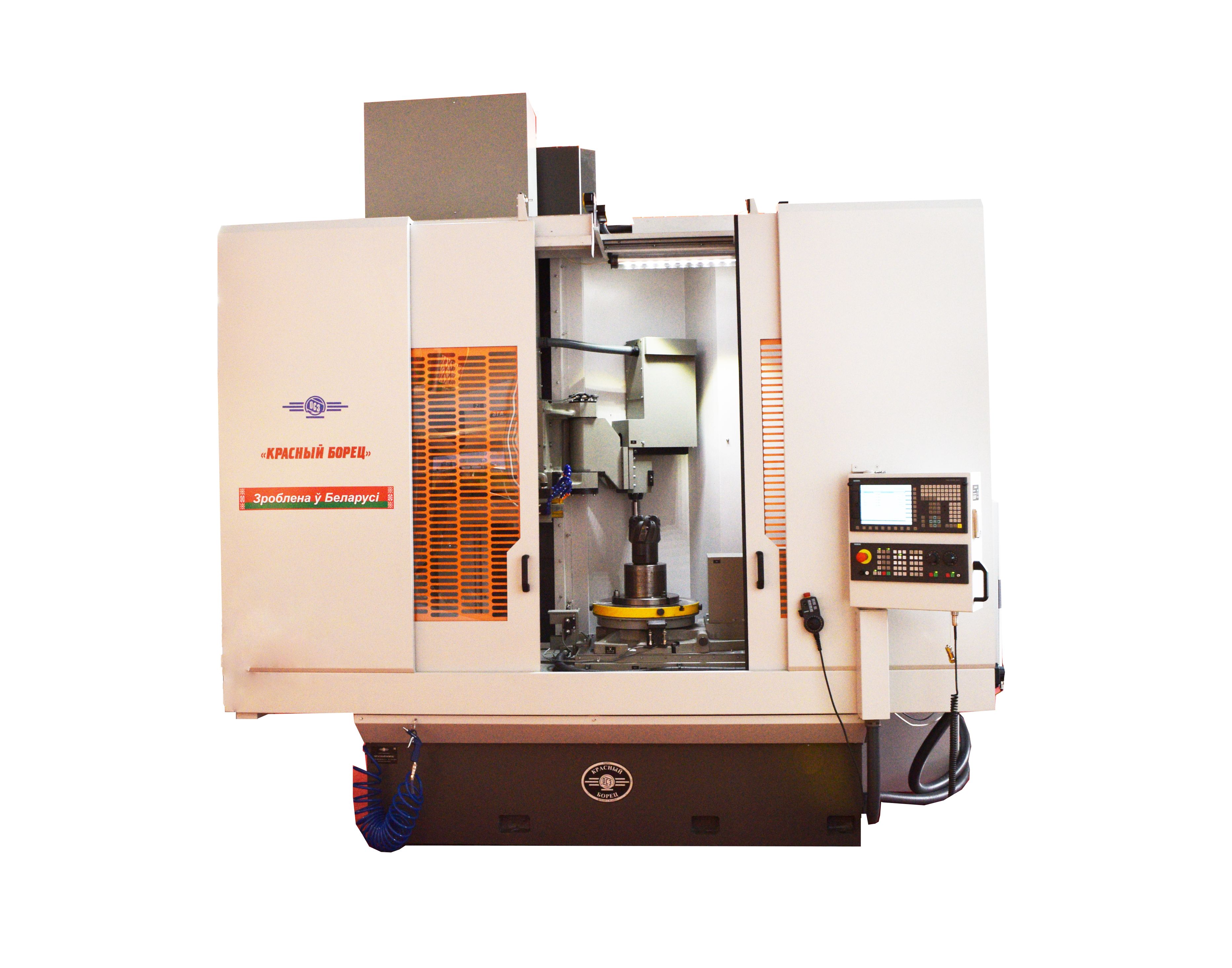

Semi-automatic rotary grinder with vertical spindle with CNC mod. OSH-642 version 11 is designed for grinding the outer diameter of parts type “chisel” from tungsten alloys.
