- GRINDING MACHINE WITH ROUND ROTARY TABLE AND VERTICAL SPINDLE
- SEMI-AUTOMATIC ROTARY GRINDER WITH VERTICAL SPINDLE WITH CNC MODEL OSH-642 VERSION 11
SEMI-AUTOMATIC ROTARY GRINDER WITH VERTICAL SPINDLE WITH CNC MODEL OSH-642 VERSION 11
DESCRIPTION

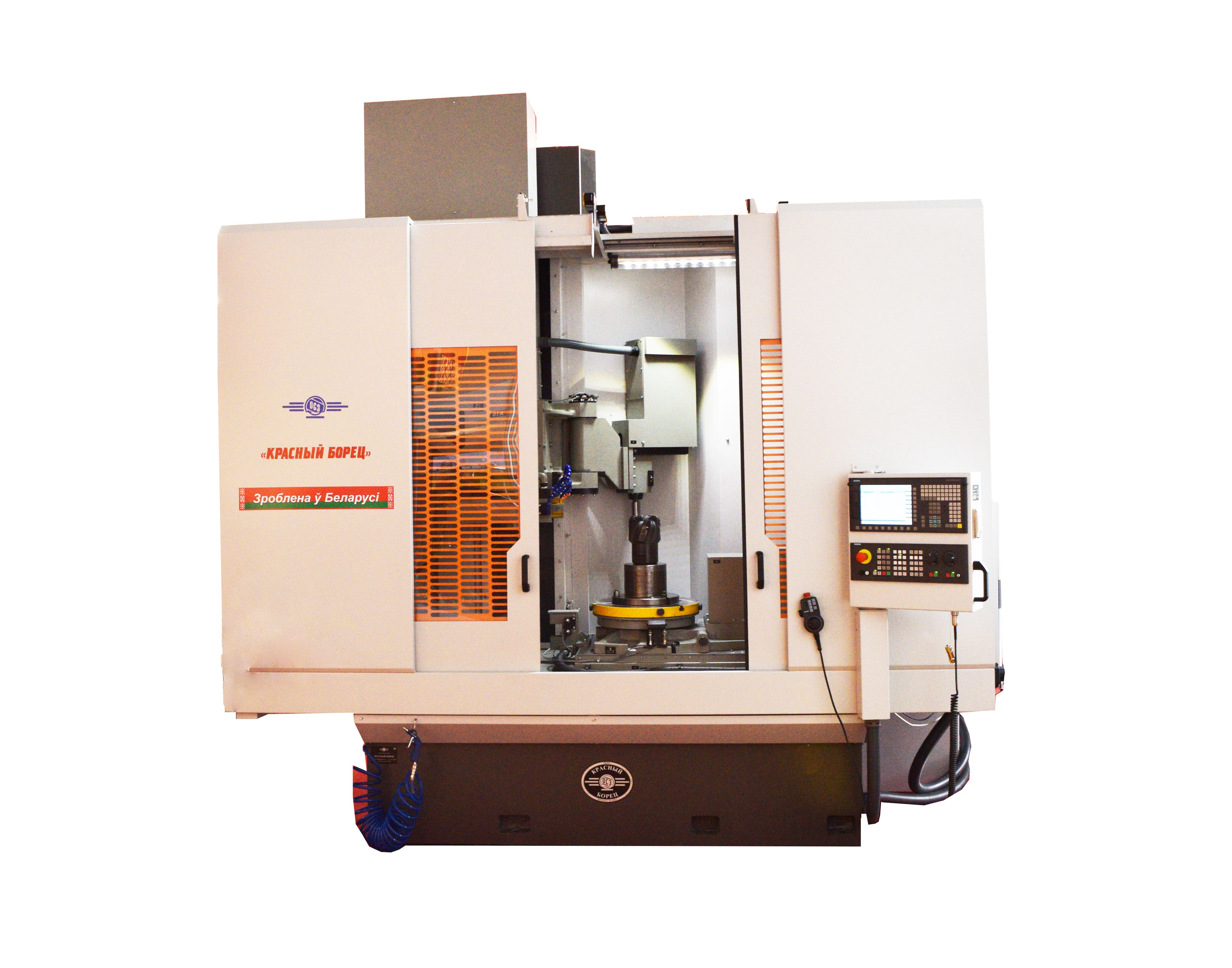

Semi-automatic rotary grinder with vertical spindle with CNC mod. OSH-642 version 11 is designed for grinding the outer diameter of parts type “chisel” from tungsten alloys.
The scope of the machine is small-scale and mass production.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-

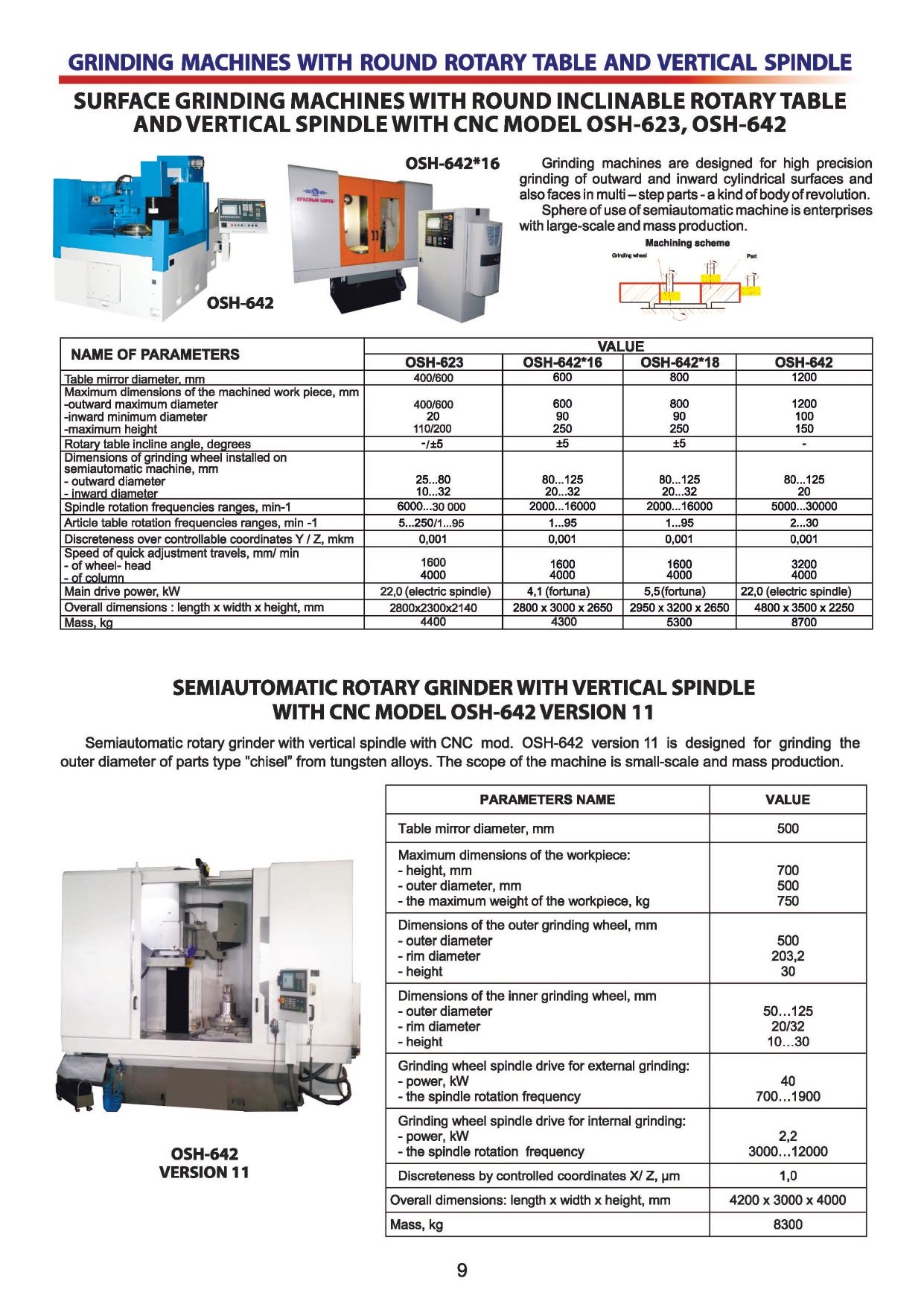

Table mirror diameter
500 mm
-
Maximum height of the workpiece
700 mm
-
Maximum outer diameter of the workpiece
500 mm
-
Maximum weight of the workpiece
750 kg
-
Outer diameter of the outer grinding wheel
500 mm
-
Rm diameter of the outer grinding wheel
203,2 mm
-
Height of the outer grinding wheel
30 mm
-
Outer diameter of the inner grinding wheel
50...125 mm
-
Rim diameter of the inner grinding wheel
20/32 mm
-
Height of the inner grinding wheel
10...30 mm
-
Power grinding wheel spindle drive for external grinding
40 kW
-
Spindle rotation frequency grinding wheel spindle drive for external grinding
700...1900 mm/min
-
Power grinding wheel spindle drive for internal grinding
2,2 kW
-
Spindle rotation frequency grinding wheel spindle drive for internal grinding
3000...12000 mm/min
-
Discreteness by controlled coordinates X/ Z
1.0 μm
-
Overall dimensions (length x width x height)
4200 x 3000 x 4000 mm
-
Mass
8300 kg
