SURFACE GRINDING MACHINE WITH ROUND TABLE AND HORIZONTAL SPINDLE

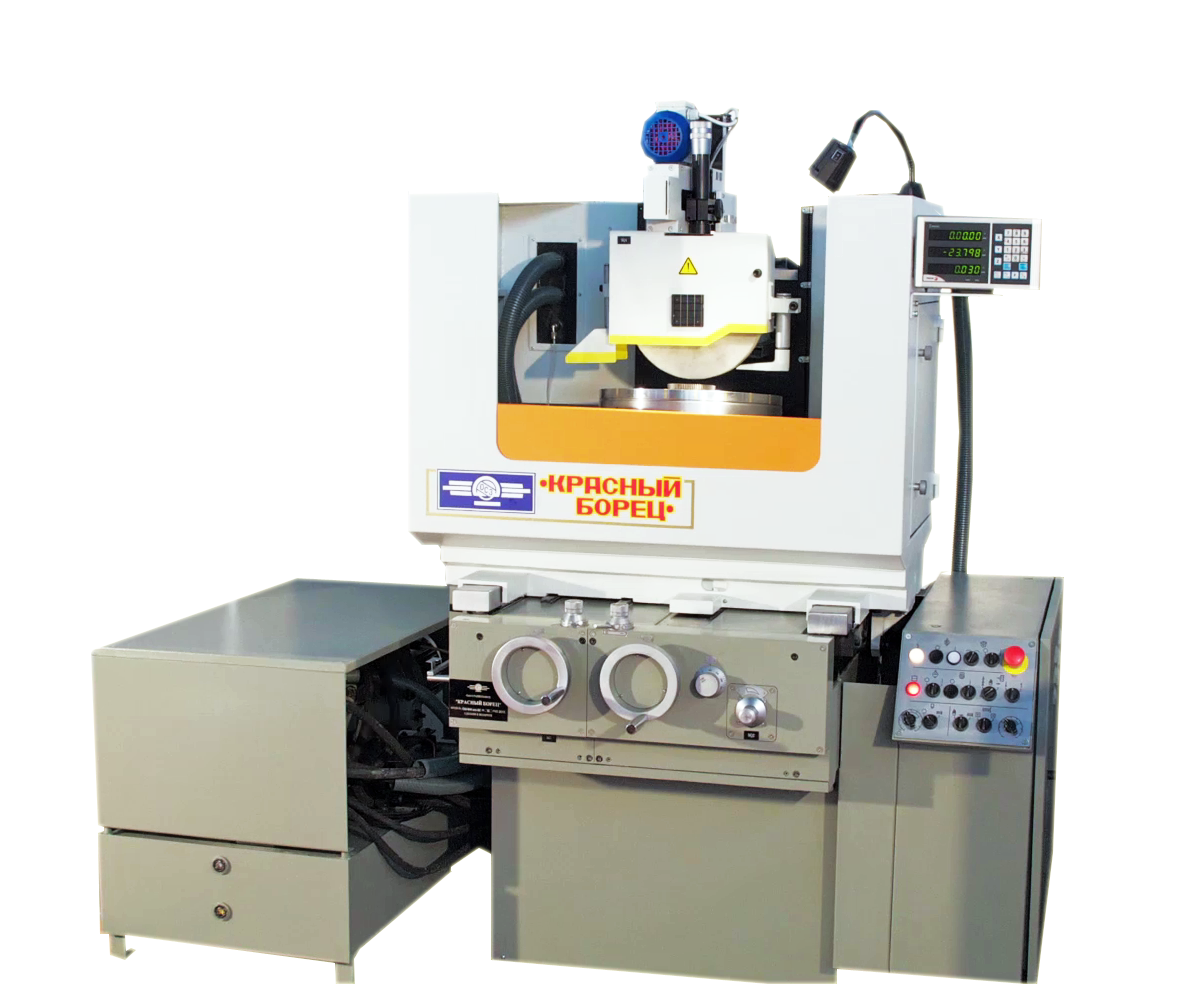

SURFACE GRINDING MACHINE WITH ROUND ROTARY INCLINABLE TABLE AND HORIZONTAL SPINDLE OSH-644

Surface grinding machine with round table and horizontal spindle model OSH-644 is designed for abrasive processing (grinding) of flat surfaces of parts fastened on the face of rotating face plate of round table (or on electromagnetic chuck fastened on the face of face plate) by grinding wheel periphery.

Diameter of working surface of round table - 400 mm
Main drive power - 4,0 kw

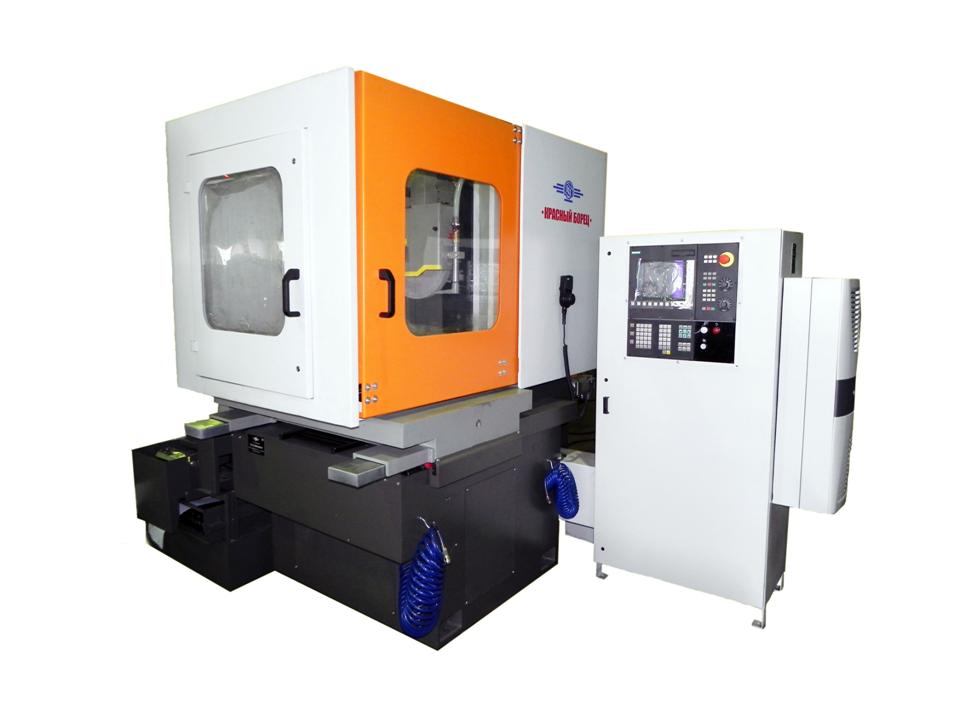

SURFACE GRINDING MACHINE WITH ROUND TABLE AND HORIZONTAL SPINDLE OSH-641 WITH CNC VERSION 18

Machine is designed for abrasive processing (grinding) of flat surfaces of parts as well as profiles being combinations of straight line sections, circle arcs and other precisely set curves in rectangular system of coordinates fastened on the electromagnetic chuck of rotary table or on the rotary table face plate.

Diameter of working surface of round table - 800 mm
Main drive power - 11 kw

SURFACE GRINDING MACHINE WITH ROUND TABLE AND HORIZONTAL SPINDLE OSH-641 WITH CNC VERSION 16

Machine is designed for abrasive processing (grinding) of flat surfaces of parts as well as profiles being combinations of straight line sections, circle arcs and other precisely set curves in rectangular system of coordinates fastened on the electromagnetic chuck of rotary table or on the rotary table face plate.

Diameter of working surface of round table - 600 mm
Main drive power - 7,5 kw

SURFACE GRINDING MACHINE WITH ROUND TABLE AND HORIZONTAL SPINDLE OSH-641 WITH CNC

Machine is designed for abrasive processing (grinding) of flat surfaces of parts as well as profiles being combinations of straight line sections, circle arcs and other precisely set curves in rectangular system of coordinates fastened on the electromagnetic chuck of rotary table or on the rotary table face plate.

Diameter of working surface of round table - 1200 mm
Main drive power - 11 kw
