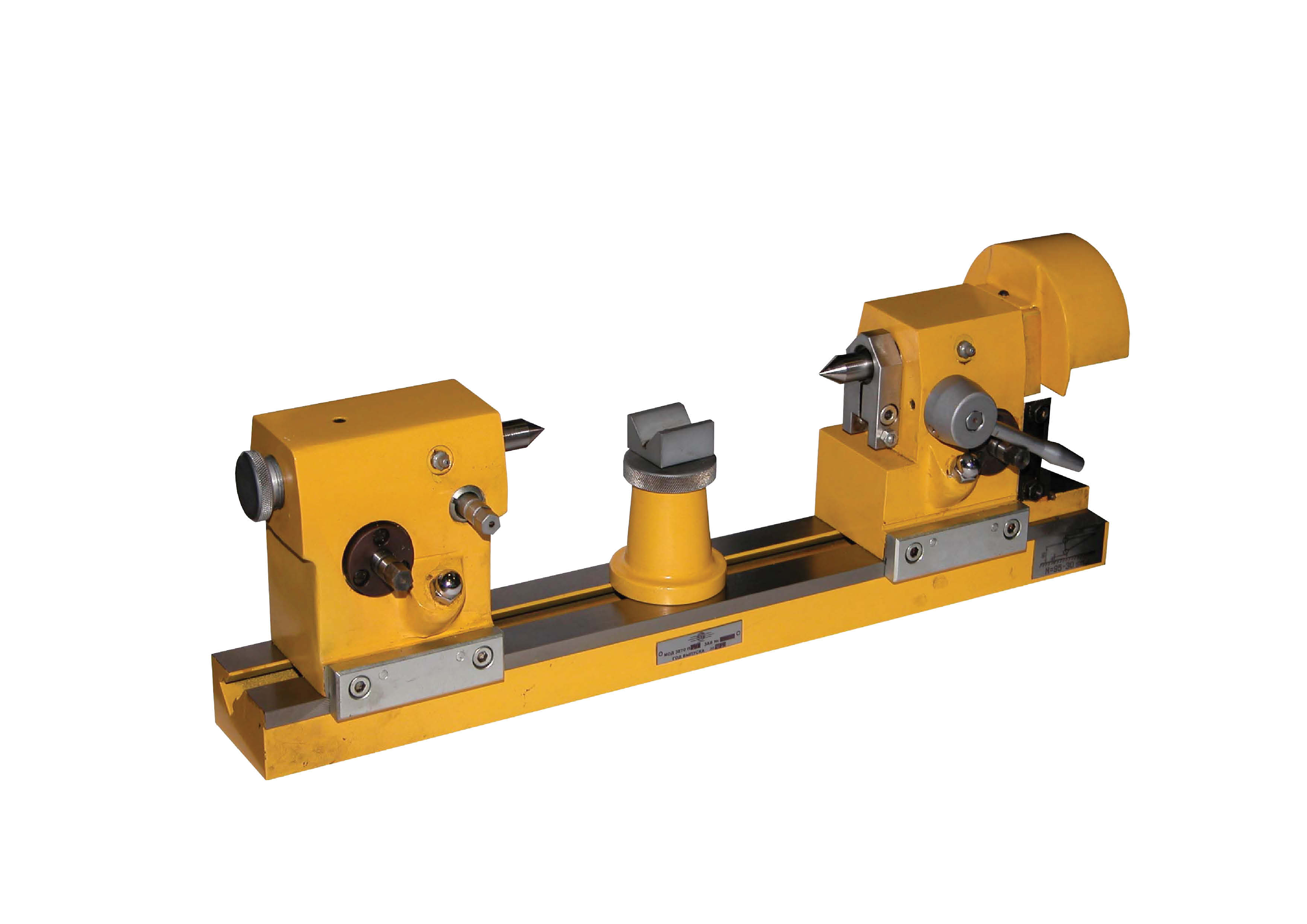

INDEXING DEVICE 3E70.P50

DESCRIPTION

Number of slots in index disk – 24
Maximum diameter of workpiece installed – 100 mm
Maximum length of installed part – 340 mm
Overall dimensions (length x width x height) – 630 x 225 x 140 mm
Centres height – 116 mm. Mass – 35 kg
