MACHINE ACCESSORIES

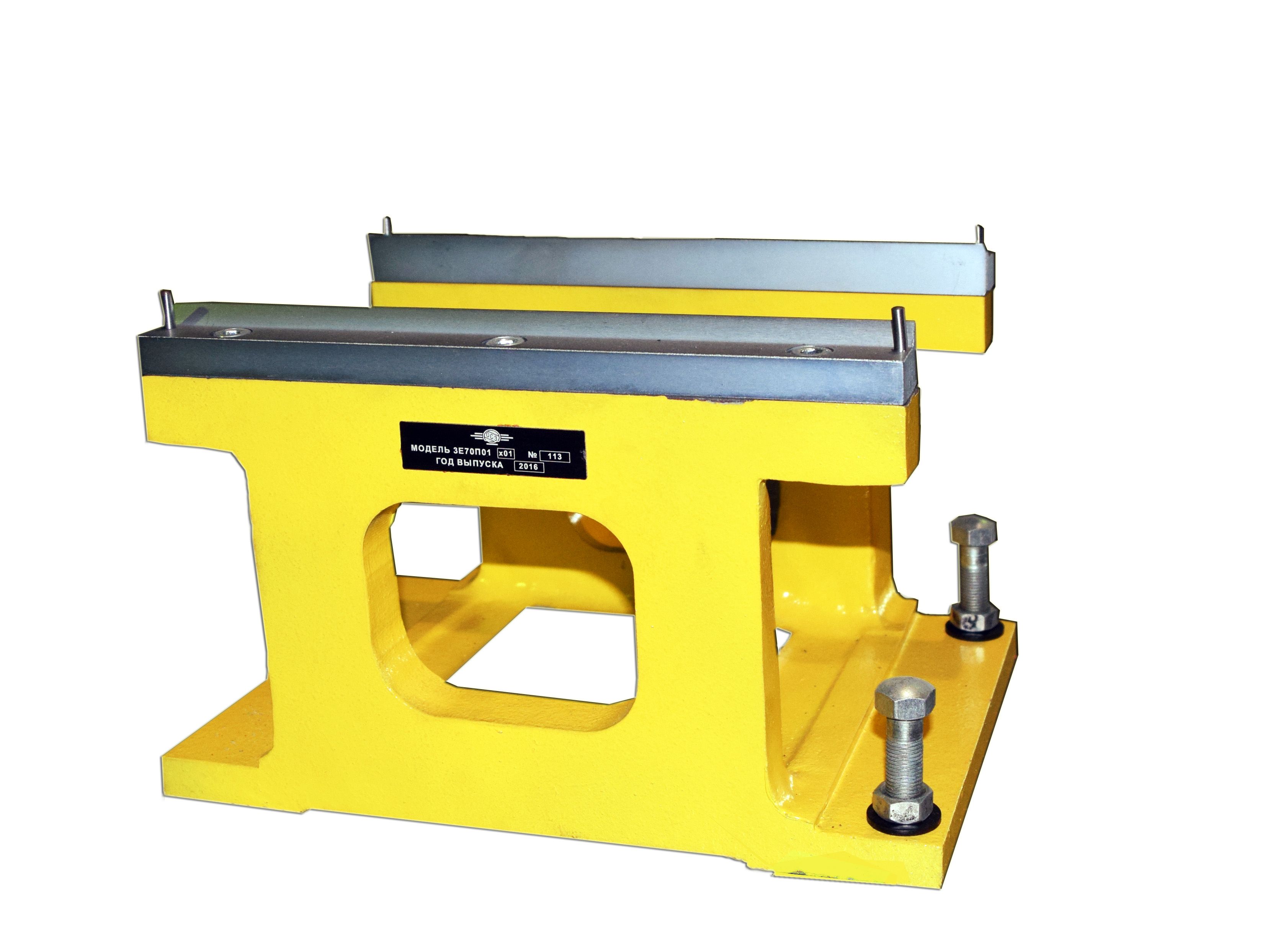

GRINDING WHEEL BALANCING ATTACHMENT 3E70.P01

3E70P01 – Maximum diameter of balanced wheel – 320 mm
3E70P01-04 - Maximum diameter of balanced wheel – 400 mm

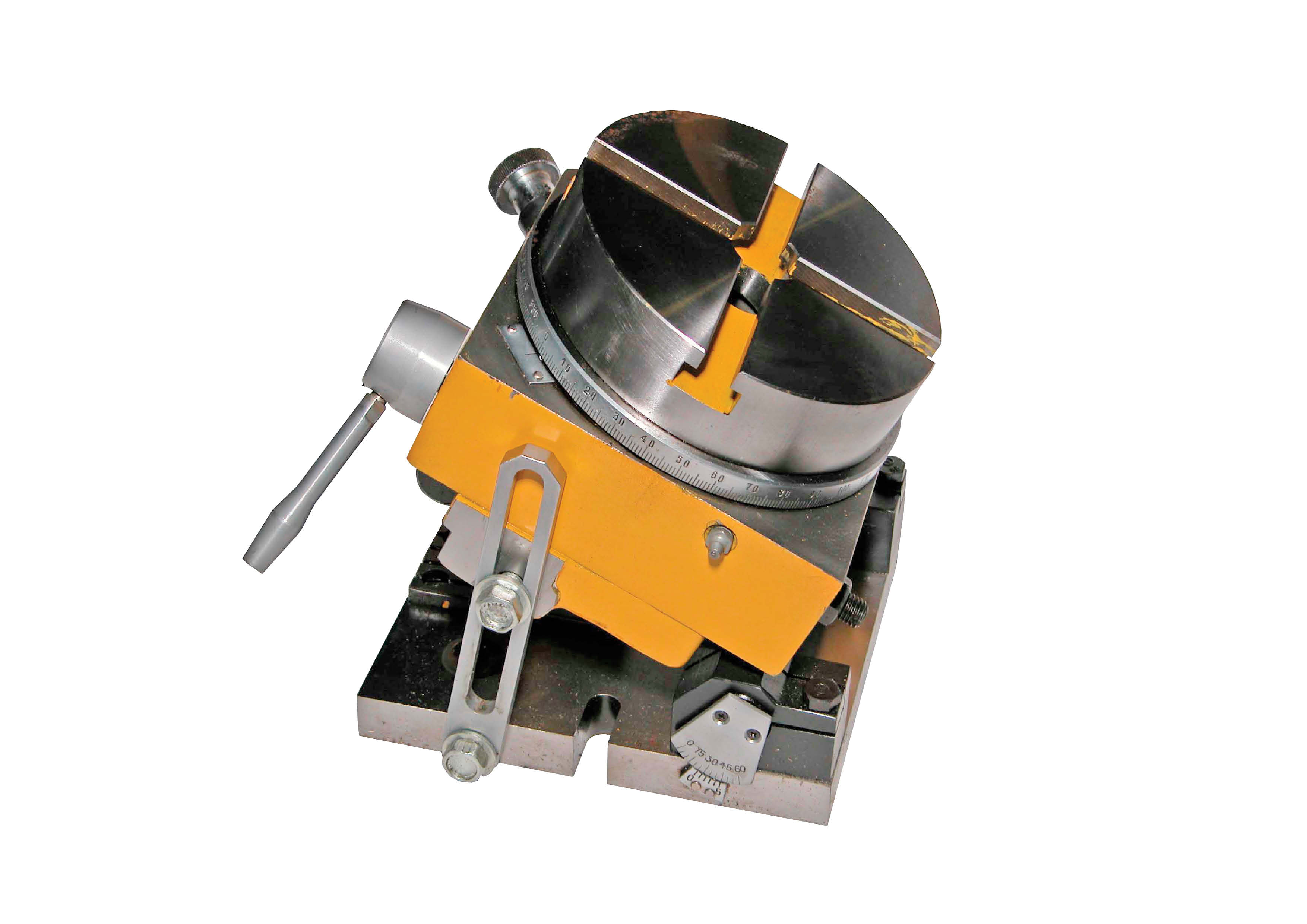

CIRCULAR INDEXING SINE TABLES 3E70.P11

Table diameter – 160 mm
Maximum angle of table tilting – 45 º
Variants of delivery – with magnetic, three cams chuck or without it.
Overall dimensions (LxBxH) – 240x224x240 mm.
Maximum mass of attachment – 32 kg.

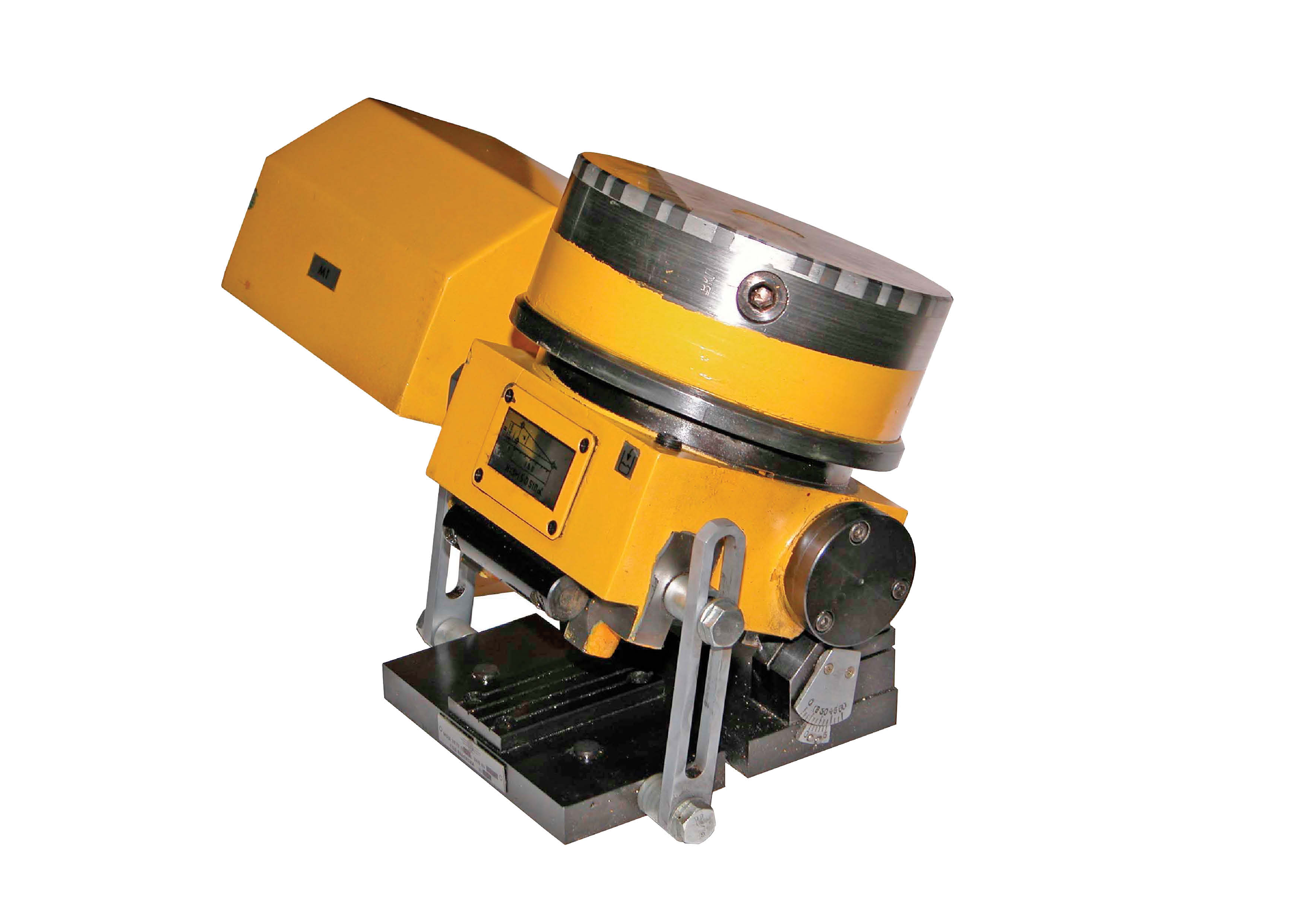

CIRCULAR ROTARY SINE TABLES 3E70.P13

Table (chuck) diameter – 160 mm
Maximum angle of table tilting – 45 º
Rotation frequency of table or magnetic chuck – 41 rpm
Variants of delivery – with magnetic, three cams chuck or without it.
Maximum mass of attachment – 56 kg.

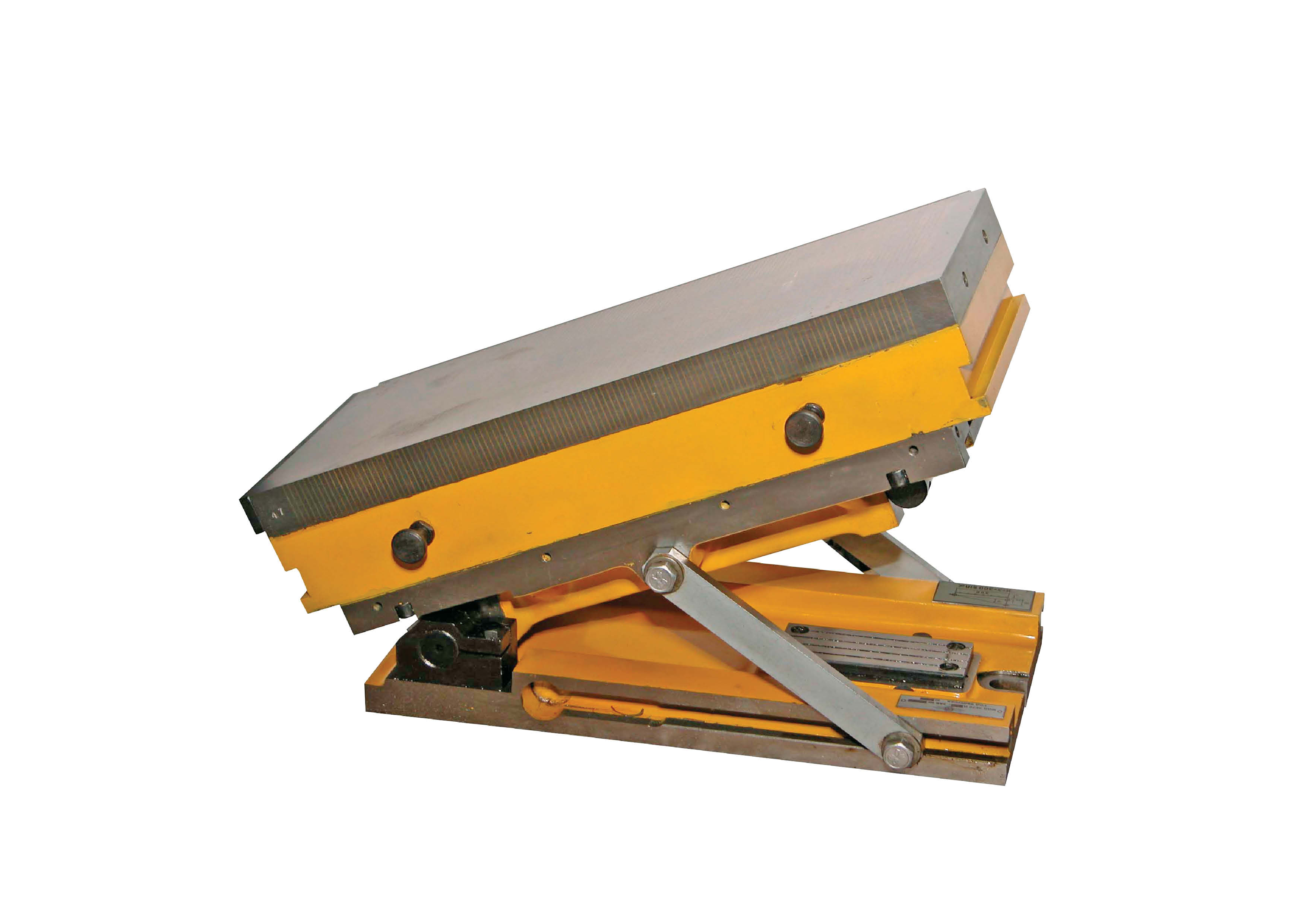

LONGITUDINAL SINE TABLES 3E70.P20

Dimensions of table surface (version without electromagnetic chuck) – 400 x 200 mm.
Dimensions of table surface (version with electromagnetic chuck) – 450 x 200 mm.
Maximum angle of table tilting – 45 º
Variants of delivery – with electromagnetic chuck or without it.
Maximum overall dimensions (LxBxH) – 450 x 242 x 184 mm.
Mass of attachment without chuck – 35 kg, with chuck – 85 kg.

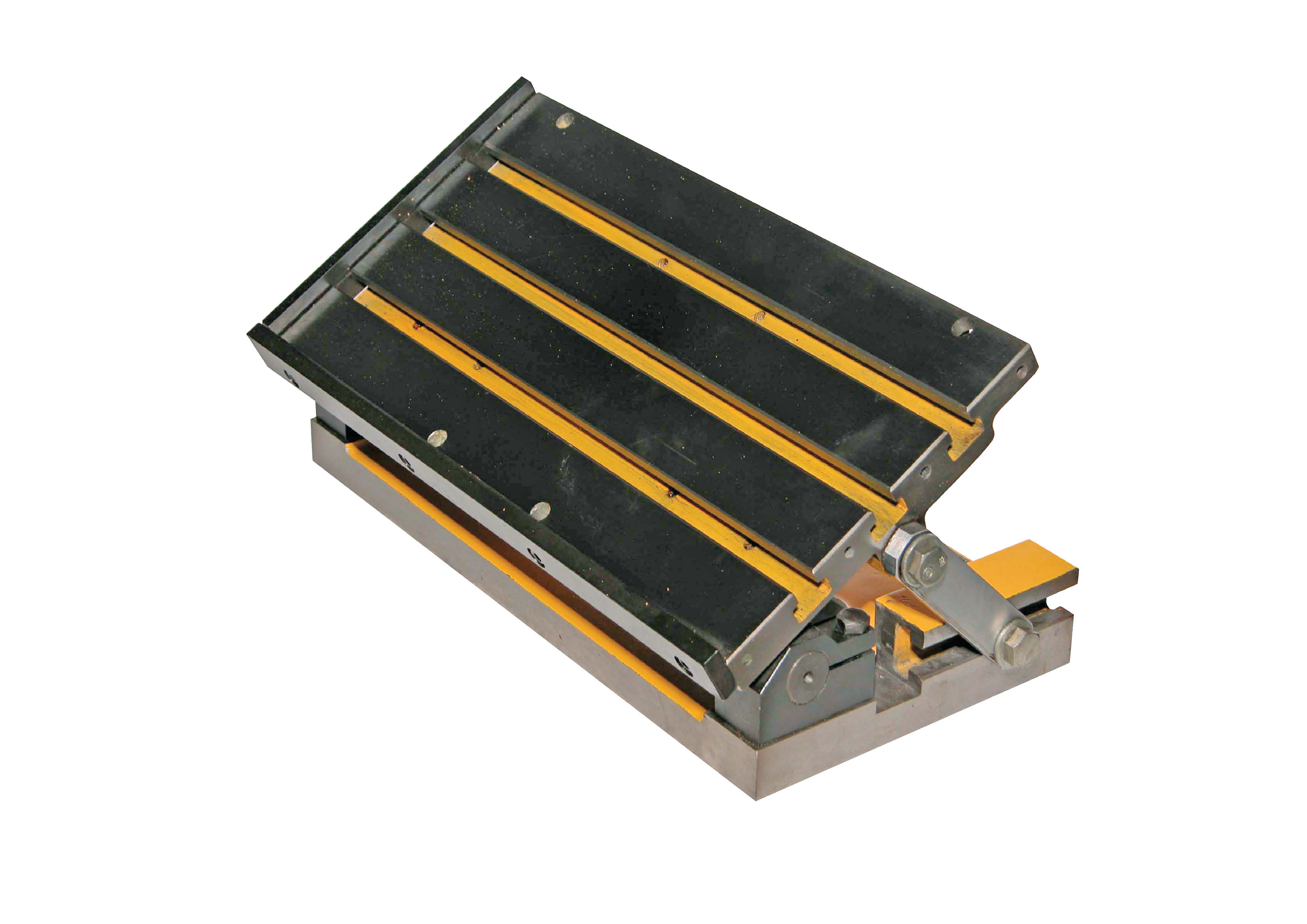

CROSS SINE TABLES 3E70.P21

Dimensions of table surface (version without electromagnetic chuck) – 400 x 200 mm.
Dimensions of table surface (version with electromagnetic chuck) – 450 x 200 mm.
Maximum angle of table tilting – 45 º
Variants of delivery – with electromagnetic chuck or without it.
Maximum overall dimensions (LxBxH) – 450 x 200 x 184 mm.
Mass of attachment without chuck – 35 kg, with chuck – 85 kg

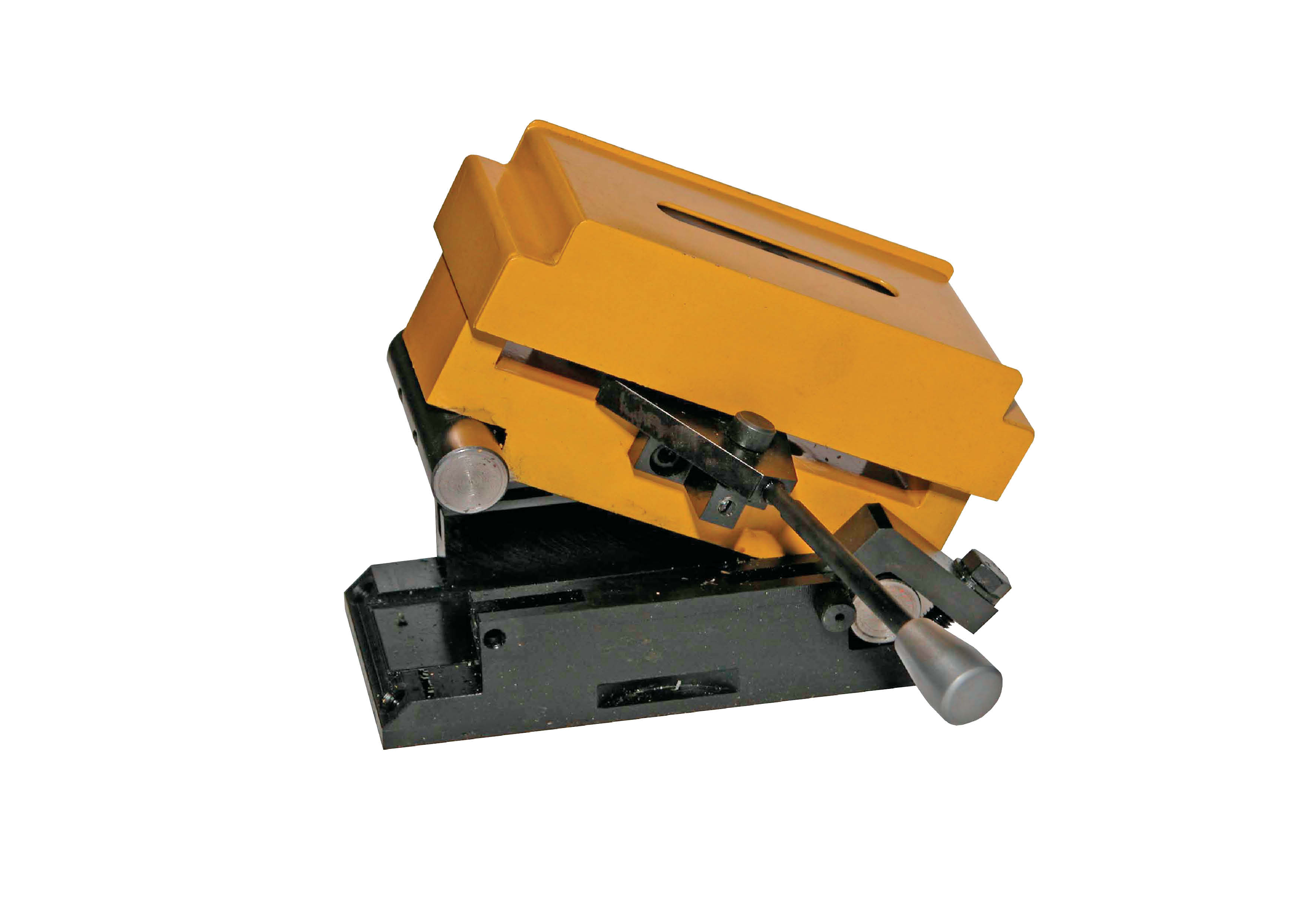

GRINDING WHEEL ANGULAR DRESSING ATTACHMENT 3E70.P32

Width of grinding wheel dressing – 75 mm.
Maximum angle of dressing - 60 º
Overall dimensions (length x width x height)  - 205 x 220 x 120 mm
Mass of attachment – 9,8 kg.

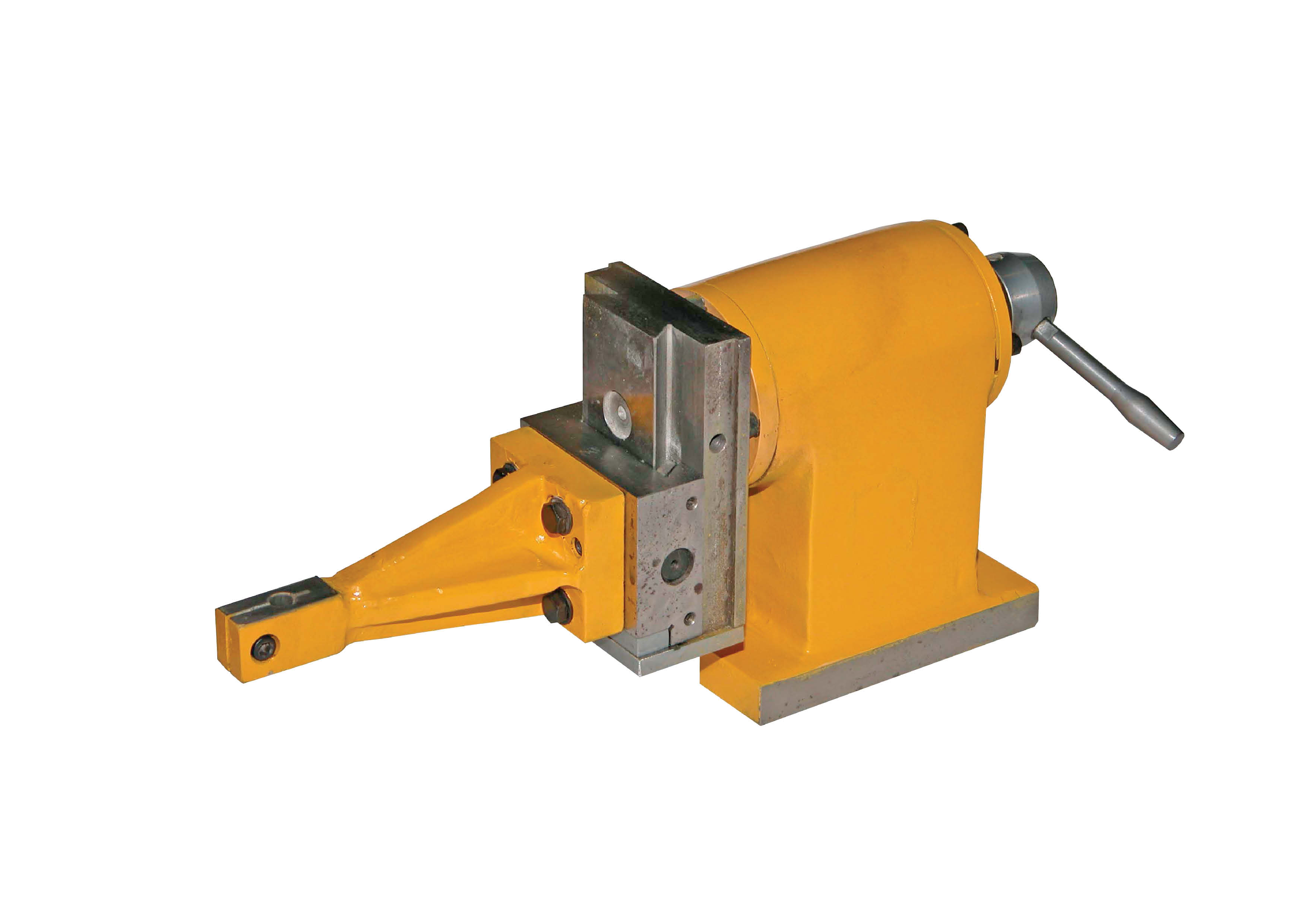

GRINDING WHEEL RADIUS DRESSING ATTACHMENT 3E70.P35

Maximum dressing radius (convex/concave) - 68/31 mm
Overall dimensions (length x width x height) - 396 x 160 x 240 mm
Mass of attachment - 16,5 kg

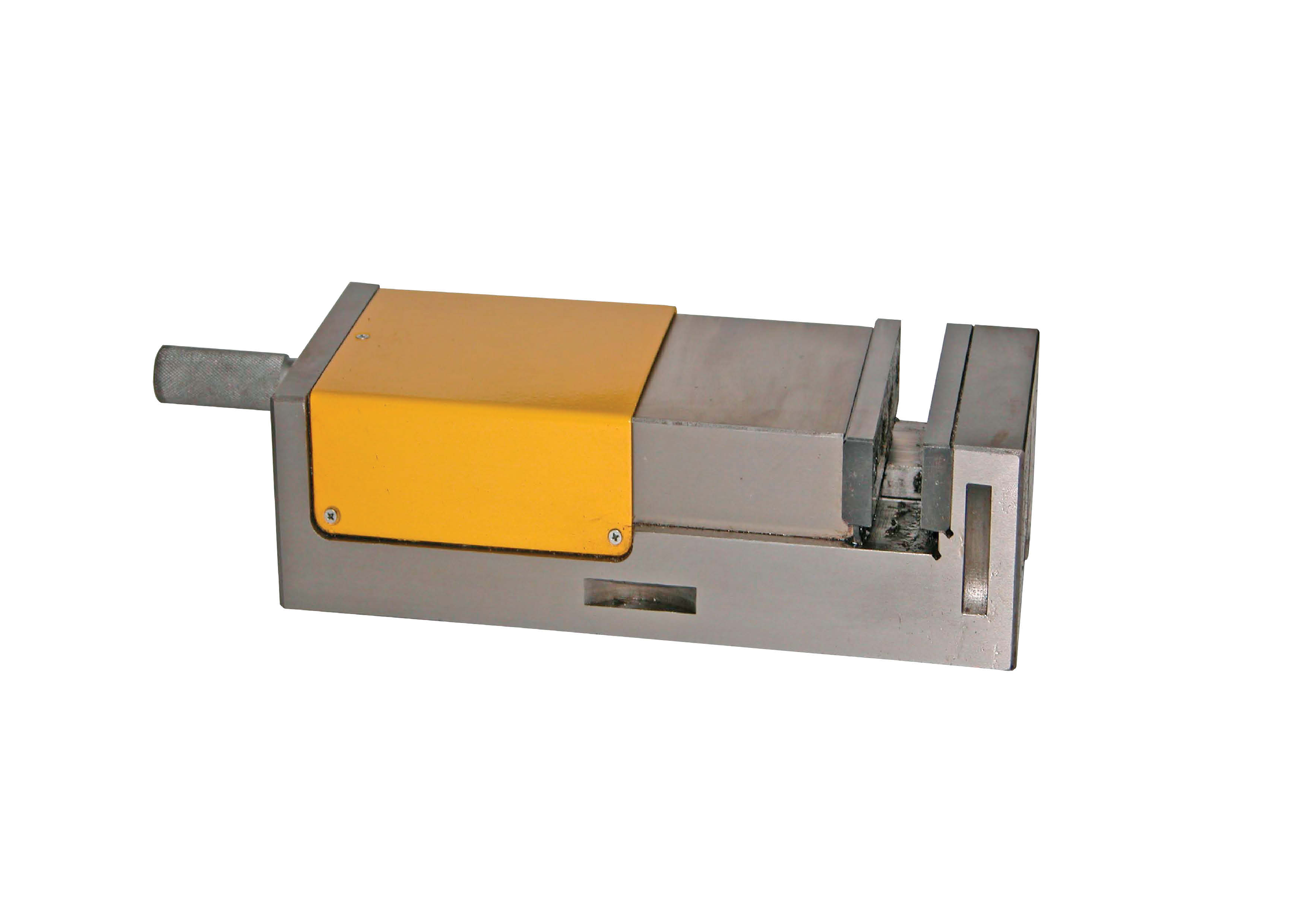

TEMPLET VICE 3E70.P40 / PRECISION VICE 3E70.P41

Thickness of workpiece gripped - 0,5 …70 mm / 0,5 …100 mm
Width of vice jaw - 69 mm / 119 mm
Overall dimensions (length x width x height) - 300 x 70 x 50 mm / 300 x 120 x 80 mm
Mass of attachment - 3,3 kg / 13,3 kg

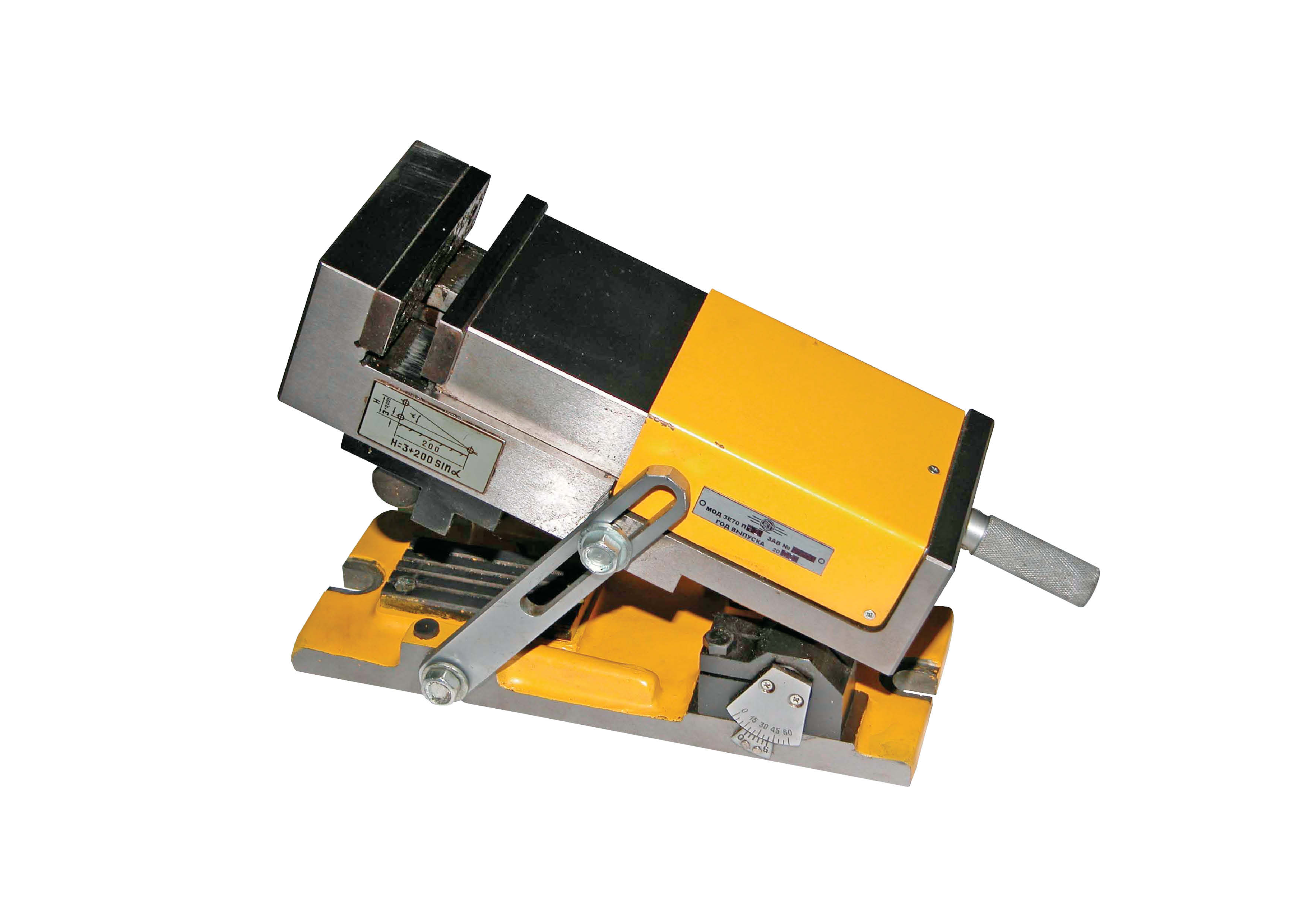

SINE VICE 3E70.P42

Thickness of workpiece gripped – 0,5…90 mm
Width of vice jaw – 119 mm
Maximum swiveling angle of vice – 45 º
Overall dimensions (length x width x height) – 390 x 160 x 144 mm
Mass of attachment – 24,5 kg

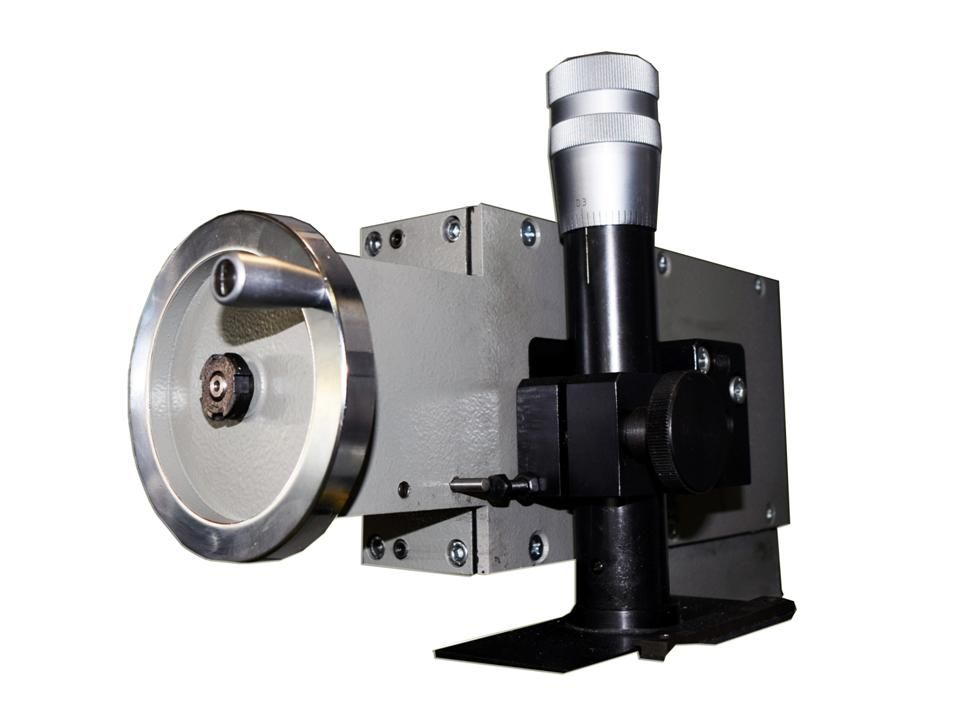

GRINDING WHEEL DRESSING ATTACHMENTS

3D70.P43 (mechanical), 3D70.P46 (hydraulic), 3D70.P47 (electric)
Maximum vertical stroke of poppet sleeve
without resetting / with resetting – 10/102 mm
Maximum horizontal stroke of poppet sleeve – 90 mm

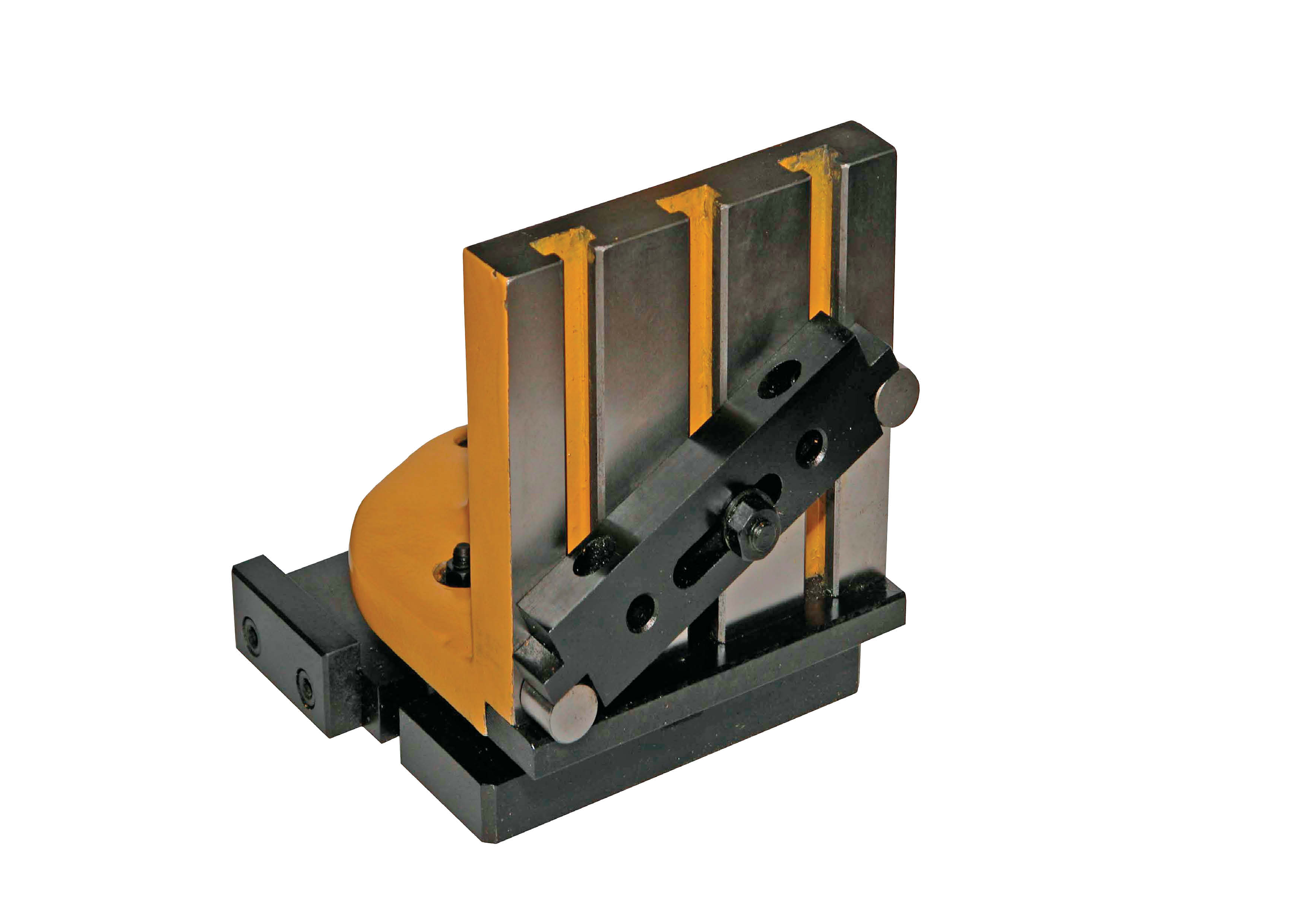

SWIVELING SINE SQUARE 3E70.P54

Maximum tilting angle of sine edge -  ± 60 º
Maximum swiveling angle of square - ± 60 º
Overall dimensions (length x width x height) - 195 x 200 x 200 mm
Mass - 9,5 kg

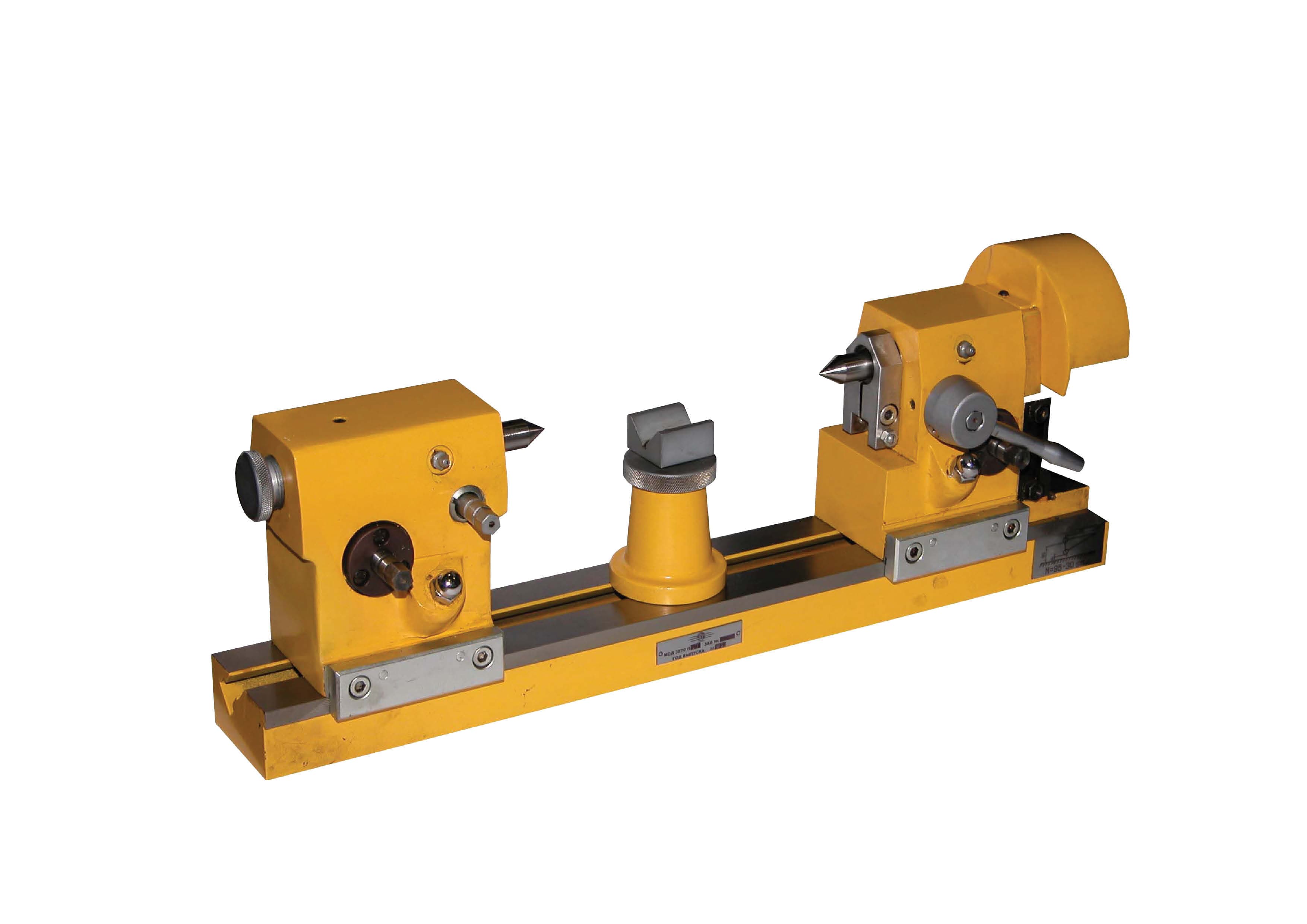

INDEXING DEVICE 3E70.P50

Number of slots in index disk – 24
Maximum diameter of workpiece installed – 100 mm
Maximum length of installed part – 340 mm
Overall dimensions (length x width x height) – 630 x 225 x 140 mm
Centres height – 116 mm.
Mass – 35 kg
