SPLINE GEAR-GRINDING MACHINES WITH CNC

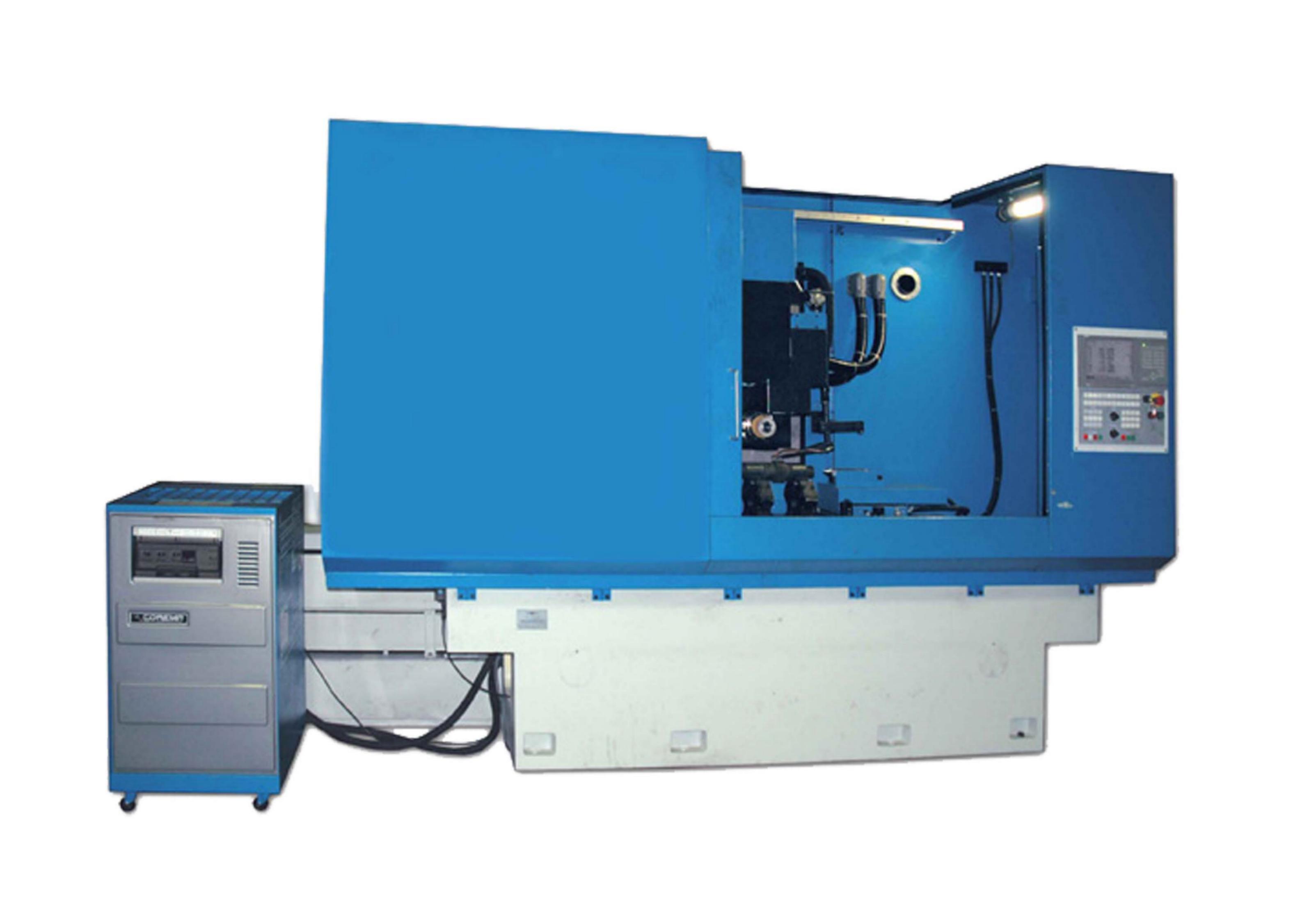

SPECIAL SEMIAUTOMATIC SPLINE GEAR-GRINDING MACHINE WITH CNC MODEL OSH-628F3

Special semiautomatic spline gear- grinding machine is designed for grinding the slots of straight or involute profiles, slots of arbitrary shape and straight-flute gears.

Table mirror width - 320 mm
Table mirror length - 1450 mm
Main drive power - 17 kW

SPECIAL SEMIAUTOMATIC SPLINE GEAR-GRINDING MACHINE WITH CNC MODEL OSH-628F3 version 04

Special semiautomatic spline gear- grinding machine is designed for grinding the slots of straight or involute profiles, slots of arbitrary shape and straight-flute gears.

Table mirror width - 320 mm
Table mirror length - 1750 mm
Main drive power - 17 kW

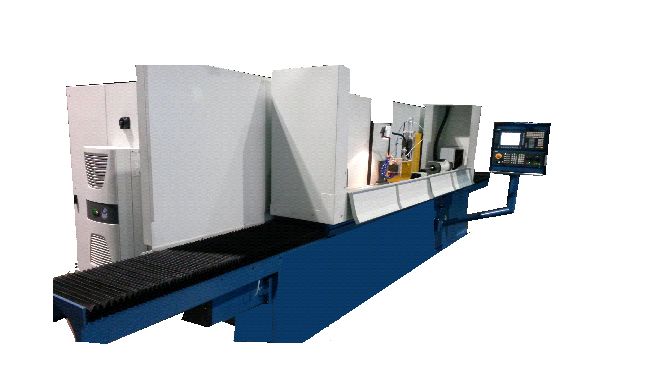

SPLINE GRINDING MACHINE WITH CNC OSH-628.1.F3 VERSION 00

Spline grinding machine with CNC model OSH-628.1.F3 is designed for grinding straight and involute slots, as well as special profiles on parts such as "Slotted shaft", "Broach" by abrasive or CBN tool by method of mortise grinding.

Length of the workpiece to be installed - 600 mm
Outer diameter of the workpiece to be installed - 180 mm
Main drive power - 4,0 kW

SPLINE GRINDING MACHINE WITH CNC OSH-628.1.F3 VERSION 01

Spline grinding machine with CNC model OSH-628.1.F3 is designed for grinding straight and involute slots, as well as special profiles on parts such as "Slotted shaft", "Broach" by abrasive or CBN tool by method of mortise grinding.

Length of the workpiece to be installed - 1000 mm
Outer diameter of the workpiece to be installed - 250 mm
Main drive power - 4,0 kW

SPLINE GRINDING MACHINE WITH CNC OSH-628.1.F3 VERSION 02

Spline grinding machine with CNC model OSH-628.1.F3 is designed for grinding straight and involute slots, as well as special profiles on parts such as "Slotted shaft", "Broach" by abrasive or CBN tool by method of mortise grinding.

Length of the workpiece to be installed - 1600 mm
Outer diameter of the workpiece to be installed - 250 mm
Main drive power - 4,0 kW
