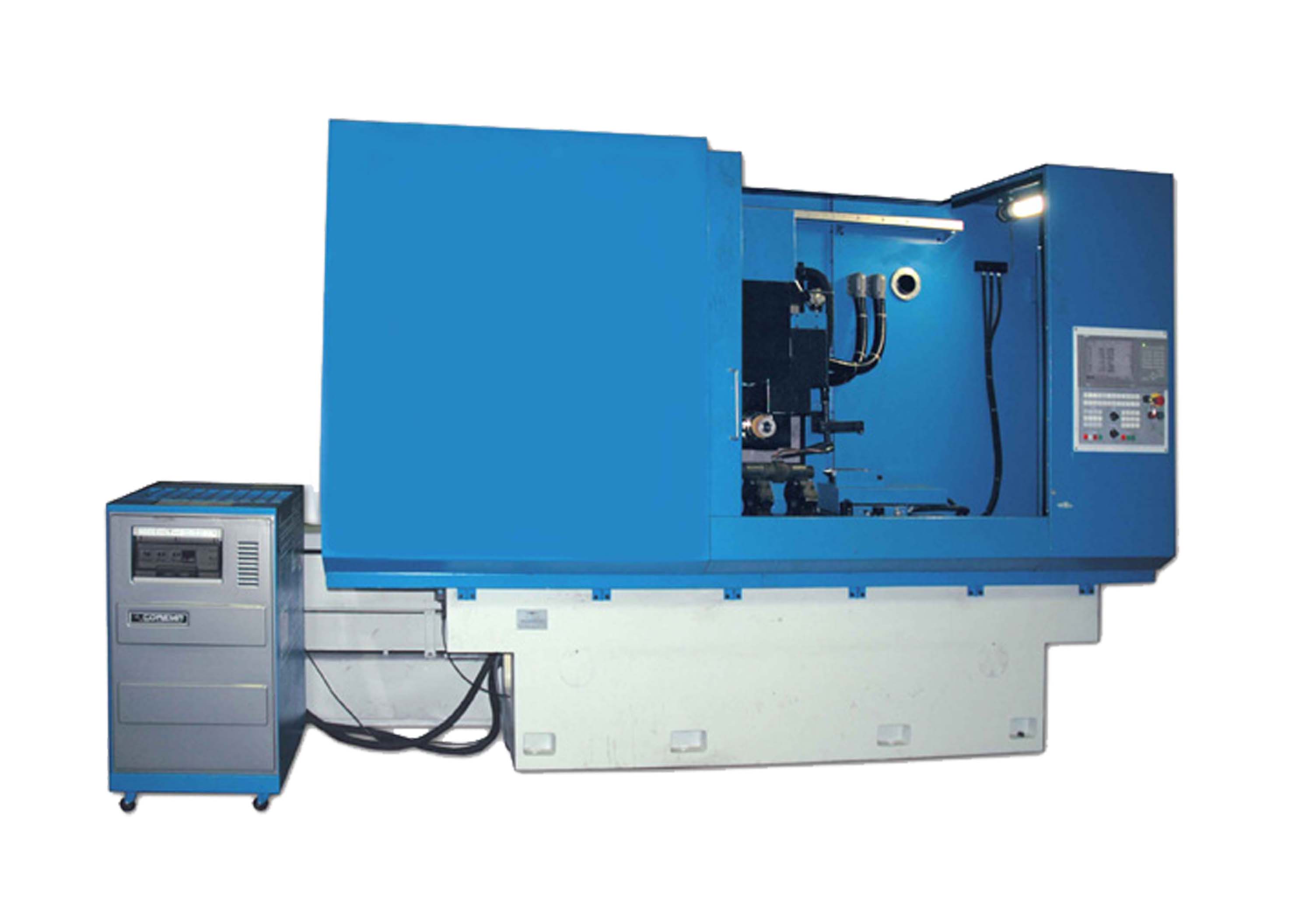

SPECIAL SEMIAUTOMATIC SPLINE GEAR-GRINDING MACHINE WITH CNC MODEL OSH-628F3

DESCRIPTION

Special semiautomatic spline gear- grinding machine is designed for grinding the slots of straight or involute profiles, slots of arbitrary shape and straight-flute gears.

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Table mirror width
    320 mm
  • Table mirror length
    1450 mm
  • Maximum distance between table mirror and spindle axis
    600 mm
  • Grinding wheel diameter
    100 mm
  • Grinding wheel height
    10...16 mm
  • Grinding wheel bore diameter
    20 mm
  • Main drive power
    17 kW
  • Grinding spindle rotation frequency
    5000...24000 mm/min
  • Machines splines possible number
    1...999 pcs
  • Distance between table mirror and centres axis
    200 mm
  • Discreteness of travel over all coordinates
    0,001 mm
  • Discreteness of headstock spindle turn
    0,001 degree
  • Overall dimensions (length x width x height)
    4200 x 2770 x 2460 mm
  • Mass
    10250 kg
