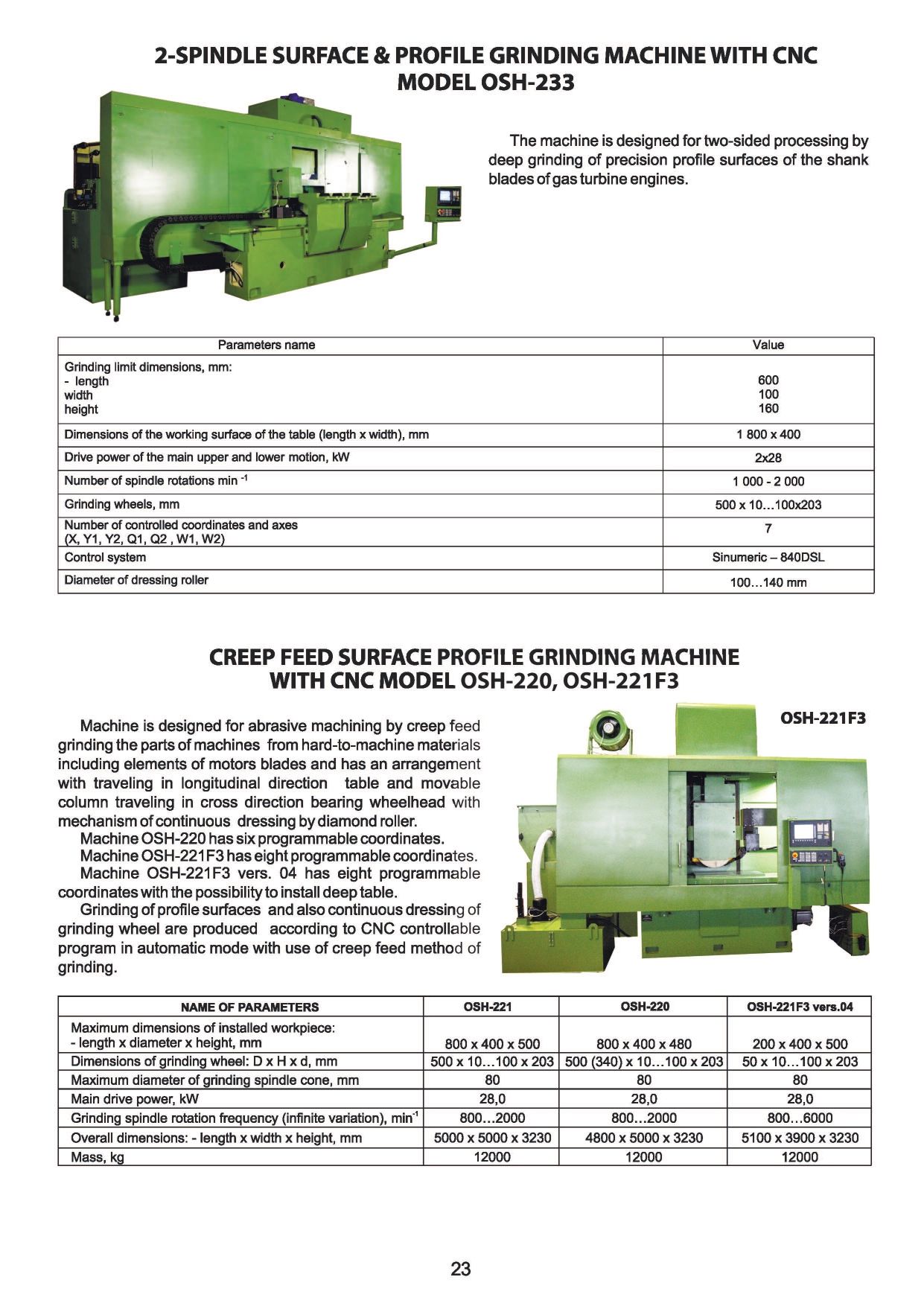

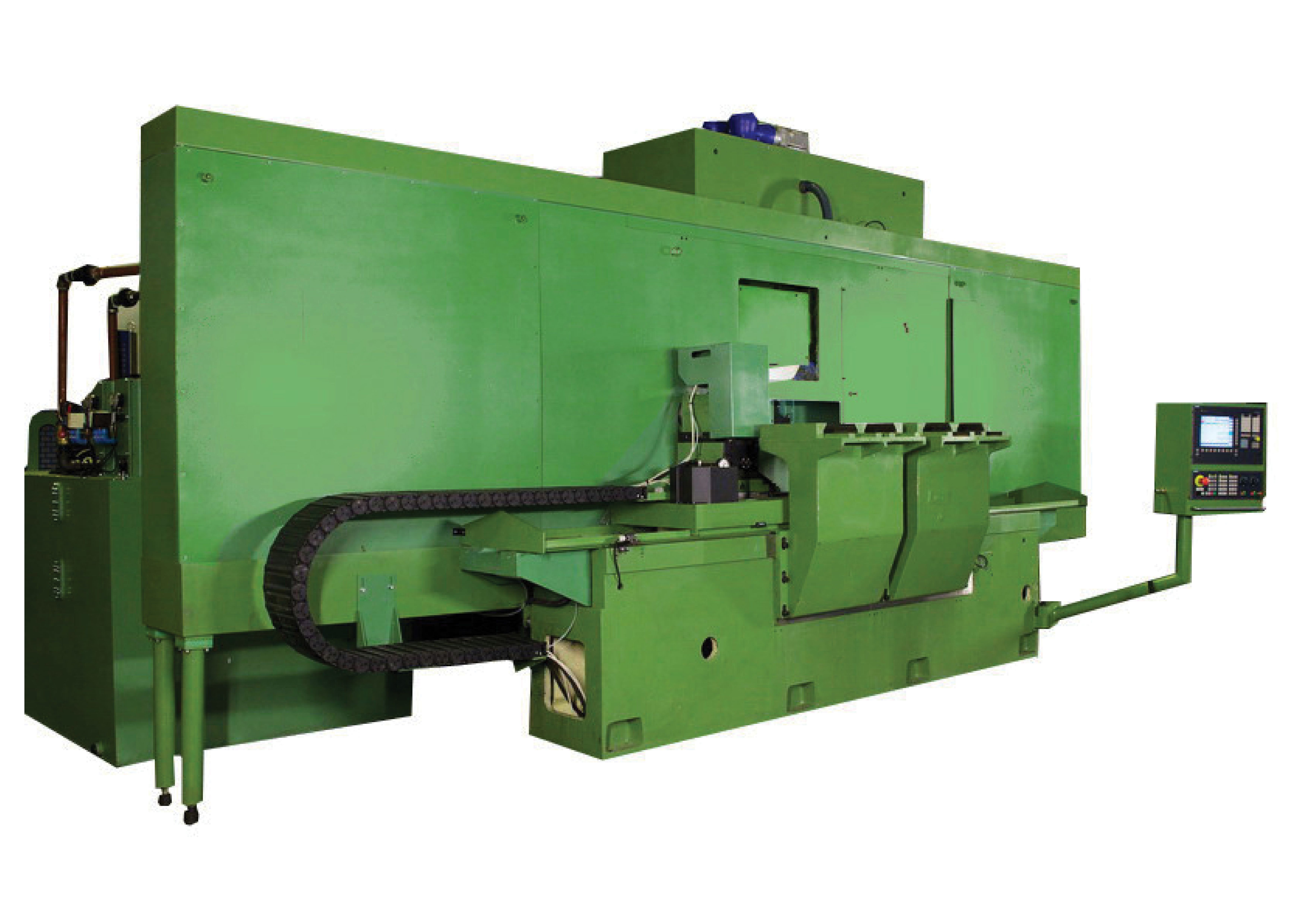

2-SPINDLE SURFACE & PROFILE GRINDING MACHINE WITH CNC OSH-233
DESCRIPTION
The machine is designed for two-sided processing by deep grinding of precision profile surfaces of the shank blades of gas turbine engines.
DESIGN ADVANTAGES
- Number of controlled coordinates and axes (X, Y1,Y2, Q1,Q2, W1, W2) - 7
- Control system Sinumeric – 840DSL
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Grinding limit dimensions (length х width x height)
800 x 100 x 160 mm
-
Table mirror width
395 mm
-
Table mirror length
1800 mm
-
Grinding wheel diameter
500 mm
-
Grinding wheel height
10...100 mm
-
Grinding wheel bore diameter
203 mm
-
Main drive power
upper & lower motion 2x28 kW
-
Grinding spindle rotation frequency
1000-2000 rpm
-
Diameter of dressing roller
100...140 mm
