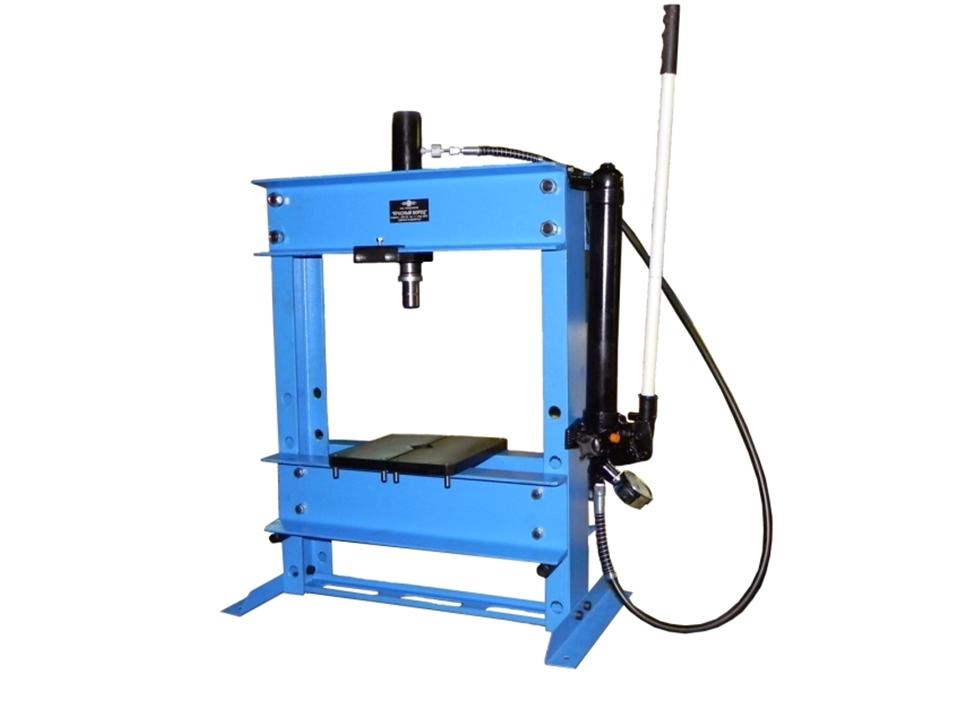

HYDRAULIC MANUAL PRESS PGR-10
DESCRIPTION
HYDRAULIC MANUAL PRESS PGR-10
Designed for fulfillment of any repair – assembly operations:
• piercing / pressing-out of bearings, bolts, bushings, etc.
• dressing of carriers, shafts, axes and profiles
• pressing and crushing
• check of weld seam reliability
• tools dressing
• materials strength control
DESIGN ADVANTAGES
- Rigid welded frame construction
- Pressurization by means of pump lever
- Return spring bringing the piston (plunger) into initial position
- Adjustment as per working zone height
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Pressing force
10 T
-
The maximum pressure
30 Mpa
-
Stroke of piston
135 mm
-
Stroke of leadscrew
70 mm
-
Overall dimensions (length x width x height)
470 x 200 x 860 mm
-
Mass
65 kg
