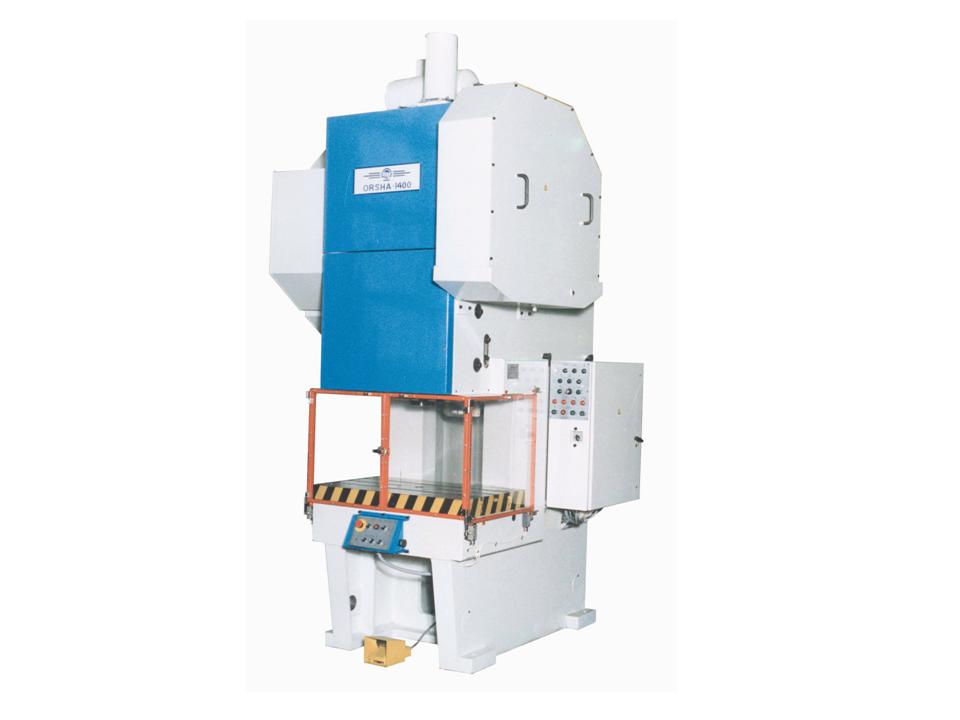

OPEN-SIDE CRANK PRESSES NON-INCLINABLE ORSHA-1400
DESCRIPTION
Open-side crank presses non-inclinable Orsha-1400. Press are designed for cold stamping operations in press forging and can function separately as well as a part of flexible technological system.
DESIGN ADVANTAGES
- Casted pig iron bed.
- Hardened steel attachment guide ways of bed.
- Use of brass straps on slider guide ways.
- Frontal eccentric shaft disposition.
- Mechanized slider disposition adjustment.
- Centralized lubricating system.
- Presence of safety washer or hydraulic safety device against overload.
- Electric equipment components of “Siemens” production.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Nominal force
1400 (140) kN(tf)
-
Main drive power
15,0; 18,5; 22,0 kW
-
Frequency of continuous strokes of the slider
80 rpm
-
Frequency of single strokes of the slider
30/38/45 rpm
-
Adjustable slider stroke
2...150 mm
-
Table dimensions from right-to-left
1000 mm
-
Table dimensions from front-to-back
650 mm
-
Maximum distance between table and slider in its lower position and with maximum stroke
480 mm
-
Adjustment value of distance between table and slider
100 mm
-
Slider dimensions from right-to-left
650 mm
-
Slider dimensions from front-to-back
425 mm
-
Incline angle of bed
0 degrees
-
Overall dimensions (length x width x height)
1930 x 1885 x 3405 mm
-
Mass
11000 kg
