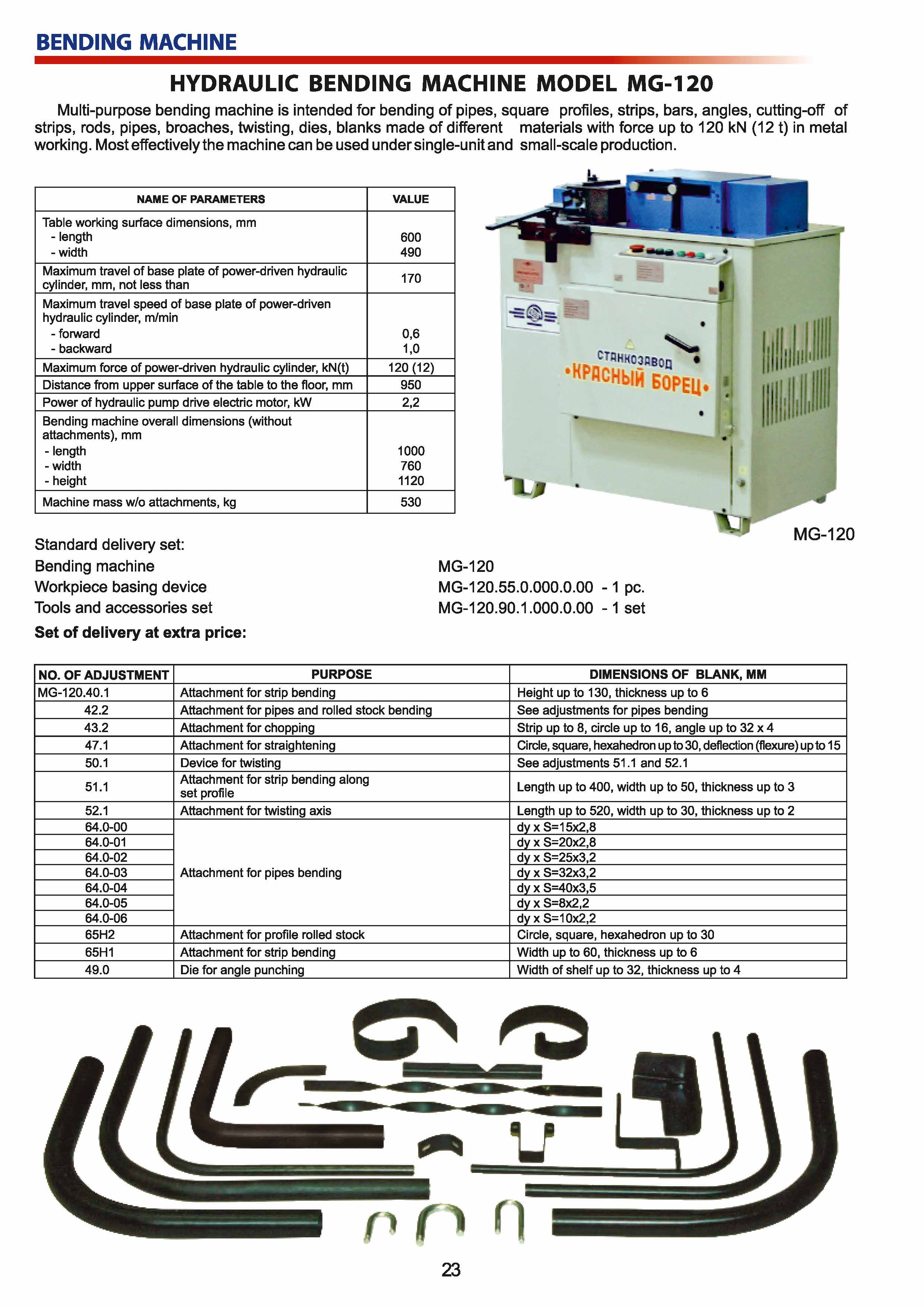

HYDRAULIC BENDING MACHINE MODEL MG-120
DESCRIPTION

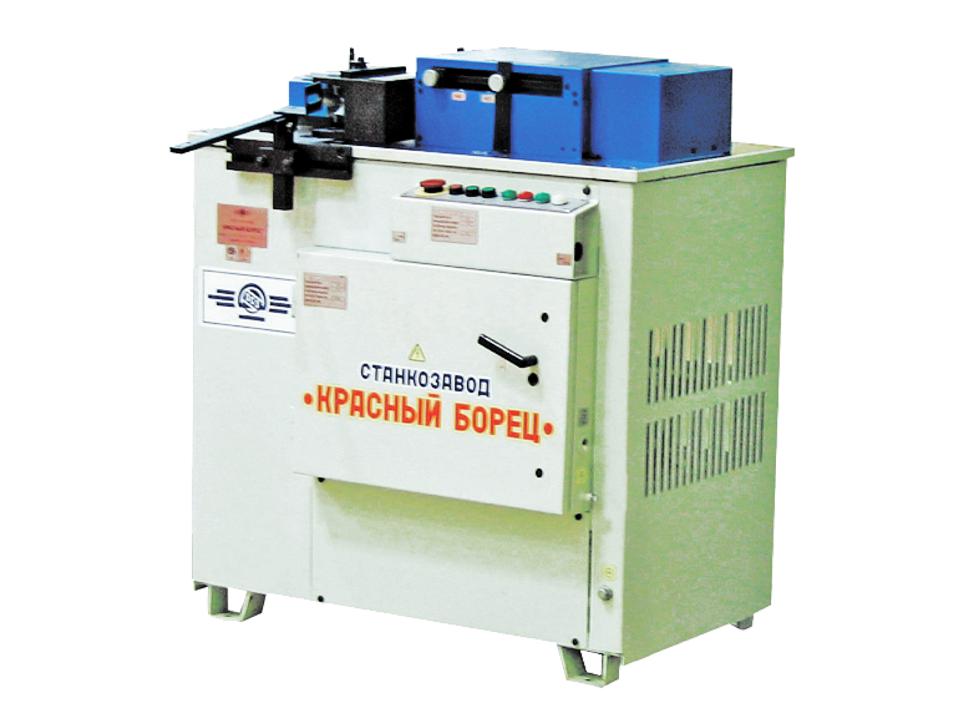

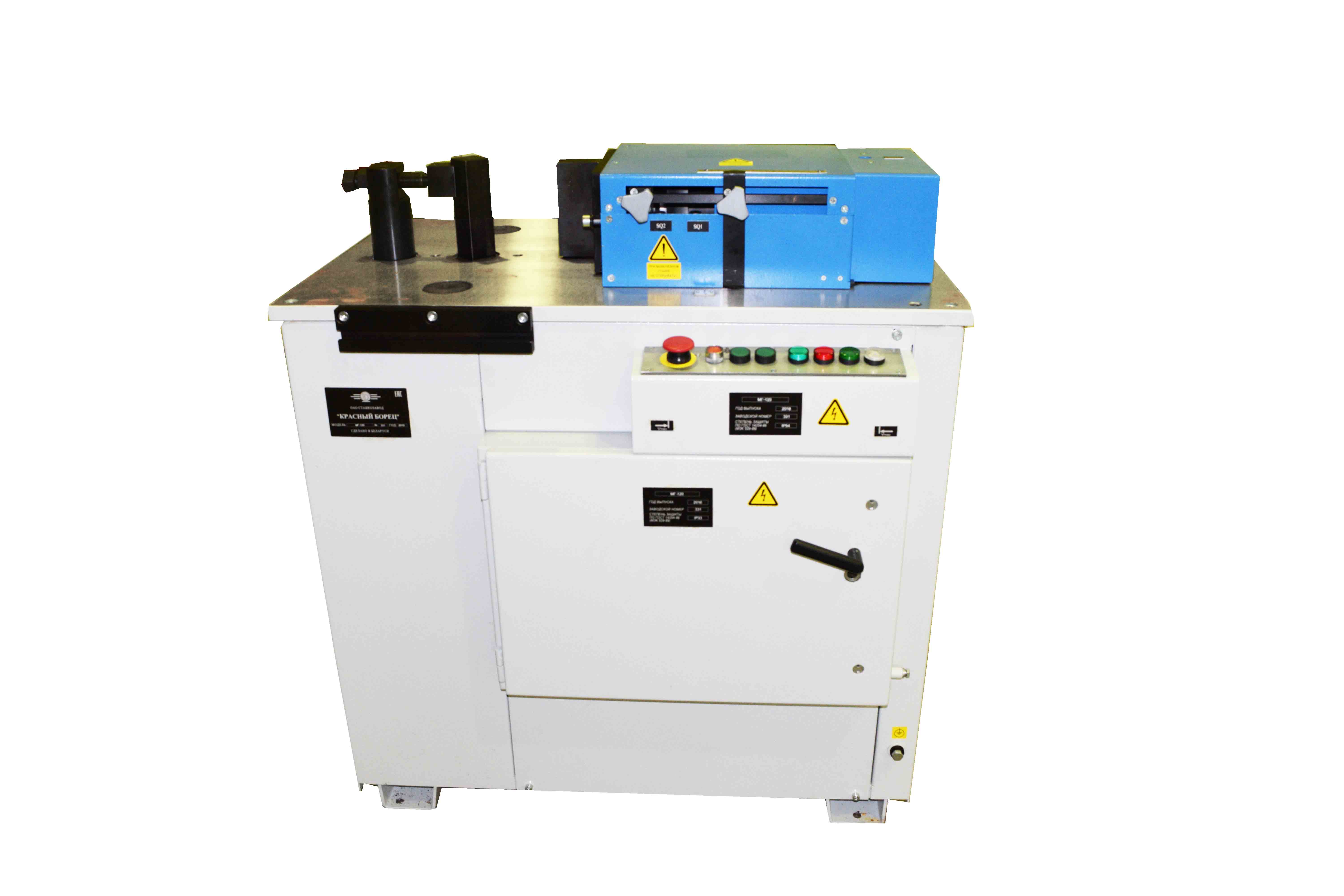

Hydraulic bending machine model MG-120.

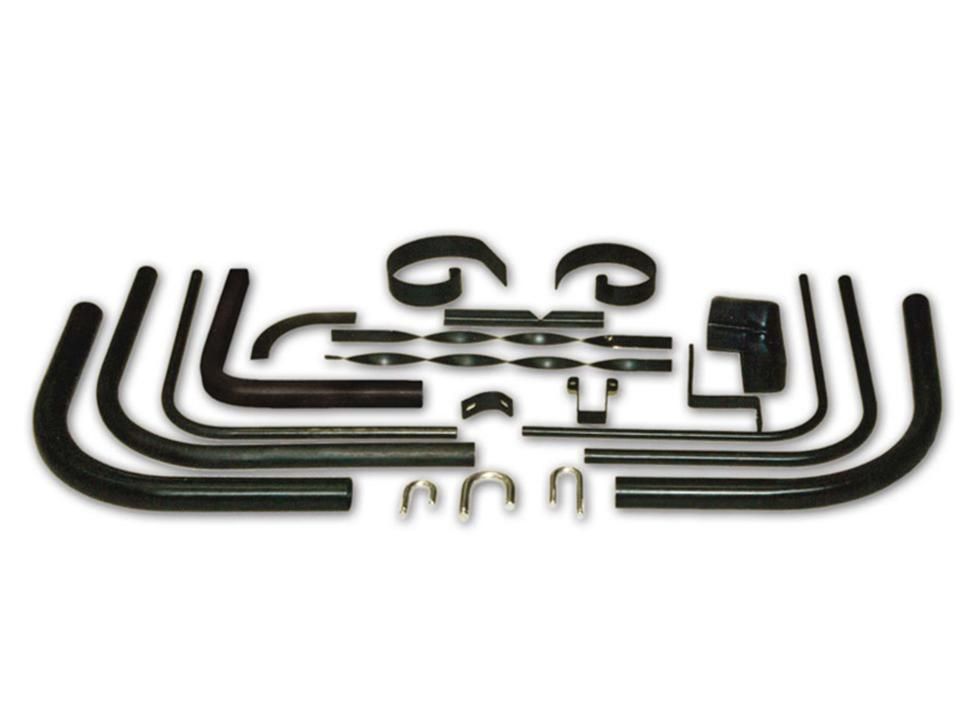

Multi-purpose bending machine is intended for bending of pipes, square, profiles, strips, bars, angles, cutting-off of strips, rods, pipes, broaches, twisting, dies, blanks made of different materials with force up to 120 kN (12 t) in metal working.
Most effectively the machine can be used under single-unit and small-scale production.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Length/ width of table working surface
600 x 490 mm
-
Maximum travel of base plate of power-driven hydraulic cylinder not less than
170 mm
-
Maximum forward travel speed of base plate of power-driven hydraulic cylinder
0,6 mm
-
Maximum backward travel speed of base plate of power-driven hydraulic cylinder
1,0 mm
-
Maximum force of power-driven hydraulic cylinder
120 (12) kN(T)
-
Distance from upper surface of the table to the floor
950 mm
-
Power of hydraulic pump drive electric motor
2,2 kW
-
Overall dimensions (length x width x height)
1000 x 760 x 1120 mm
-
Mass
530 kg
- Bending machine MG-120;
- Workpiece basing device MG-120.55.0.000.0.00 - 1 pc;
- Tools and accessories set MG-120.90.1.000.0.00 - 1 set.
