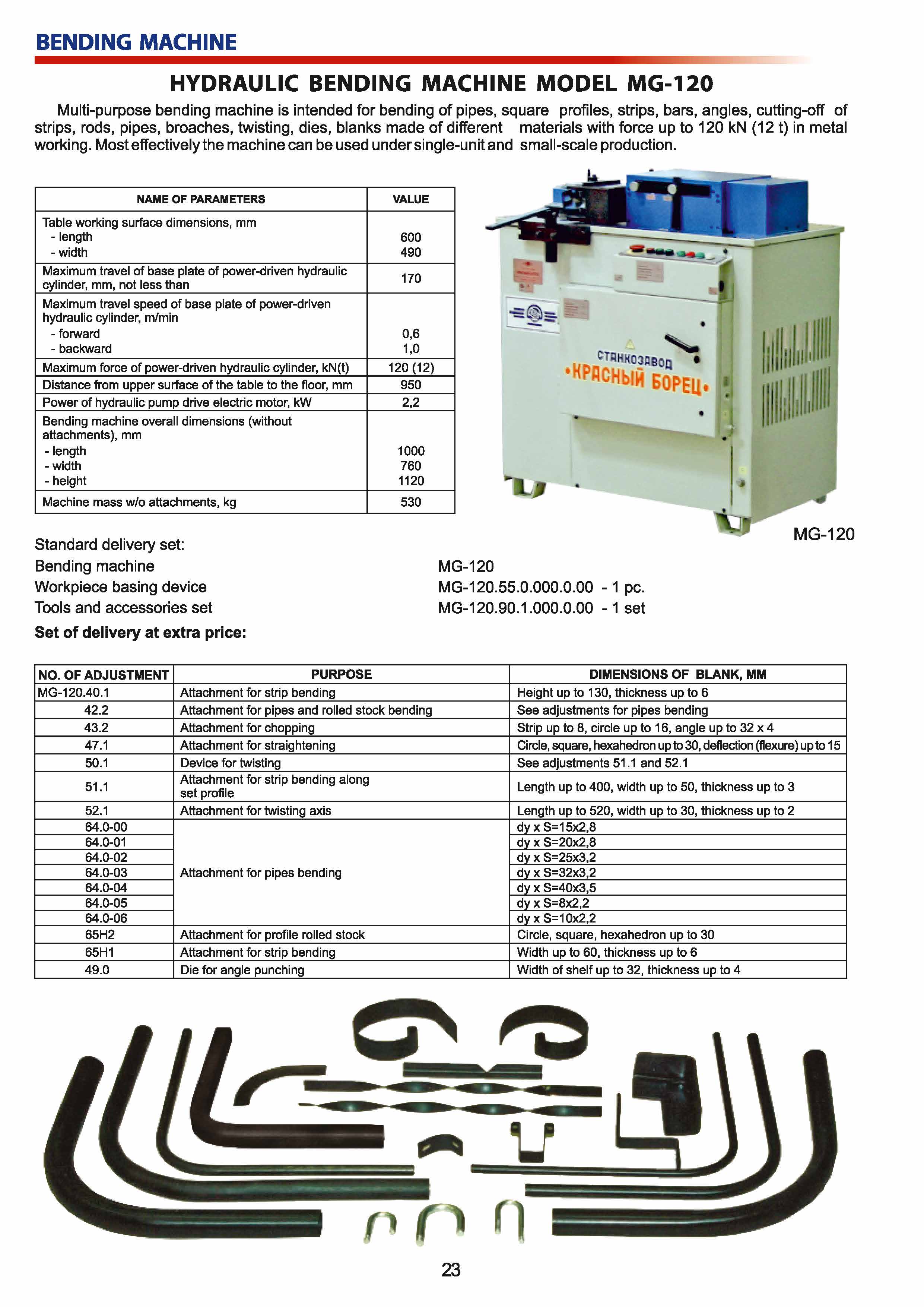

ATTACHMENTS FOR HYDRAULIC BENDING MACHINE MG-120
DESCRIPTION
Set of delivery at extra price
№ of adjustment |
Purpose |
Dimensions of blank, mm |
---|---|---|
MG-120.40.1 |
Attachment for strip bending |
Height up to 130, thickness up to 6 |
42.2 |
Attachment for pipes and rolled stock |
See adjustments for pipes bending |
43.2 |
Attachment for chopping |
Strip up to 8, circle up to 16, angle up to 32 x 4 |
47.1 |
Attachment for straightening |
Circle, square, hexahedron, up to 30, deflection (flexure) up to 15 |
50.1 |
Device for twisting |
See adjustments 51.1 and 52.1 |
51.1 |
Attachment for strip bending along set profile |
Length up to 400, width up to 50, thickness up to 3 |
52.1 |
Attachment for twisting axis |
Length up to 520, width up to 30, thickness up to 2 |
64.0-00 |
Attachment for pipes bending |
dy x S=15x2,8 |
64.0-01 |
Attachment for pipes bending |
dy x S=20x2,8 |
64.0-02 |
Attachment for pipes bending |
dy x S=25x3,2 |
64.0-03 |
Attachment for pipes bending |
dy x S=32x3,2 |
64.0-04 |
Attachment for pipes bending |
dy x S=40x3,5 |
64.0-05 |
Attachment for pipes bending |
dy x S=8x2,2 |
64.0-06 |
Attachment for pipes bending |
dy x S=10x2,2 |
65Н2 |
Attachment for profile rolled stock |
Circle, square, hexahedron up to 30 |
65Н1 | Attachment for strip bending |
Width up to 60, thickness up to 6 |
49.0 |
Die for angle punching |
Width of shelf up to 32, thickness up to 4 |
