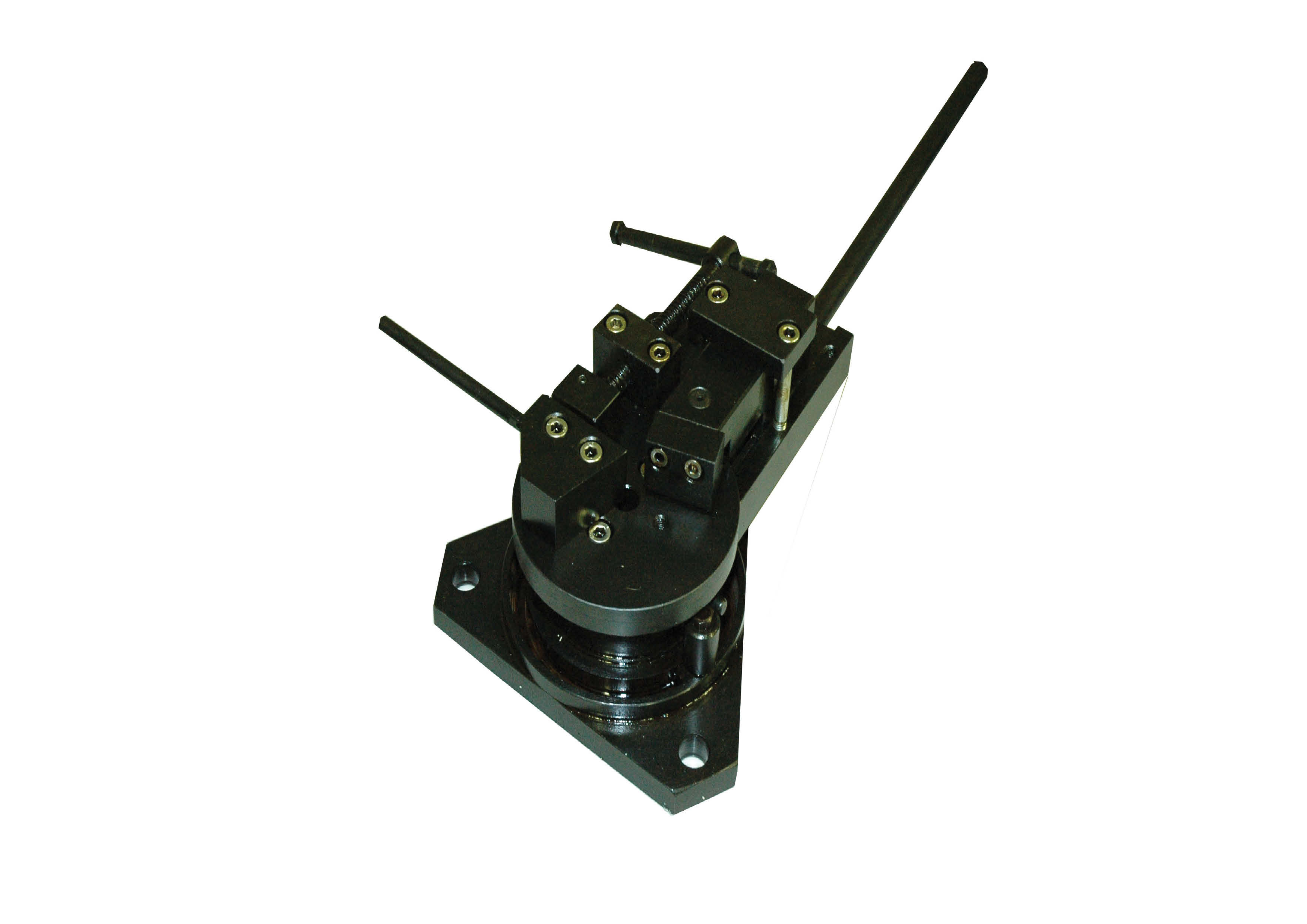

UNIVERSAL BENDING ATTACHMENT PUG-1
DESCRIPTION
Universal bending attachment allows to form curvilinear profiles from strip (band-pass), round and square rod material including angles, rings, spirals and hoops. The received configurations are the initial material designed for making window and garden grates, gates, wickets, other different tracery constructions from steel, brass, copper and aluminium.
The most effective use is in single - and small – series enterprises and also at home.
| Name of parameters | PUG-1 |
|
Maximum diameter of round rod for bending, mm |
10 |
|
Maximum width of square rod for bending, mm |
10 |
|
Maximum dimensions of sheet strip for bending, mm |
30x80 |
|
Overall dimensions: length x width x height, mm |
390x695x145 |
|
Attachment mass, kg |
26 |
