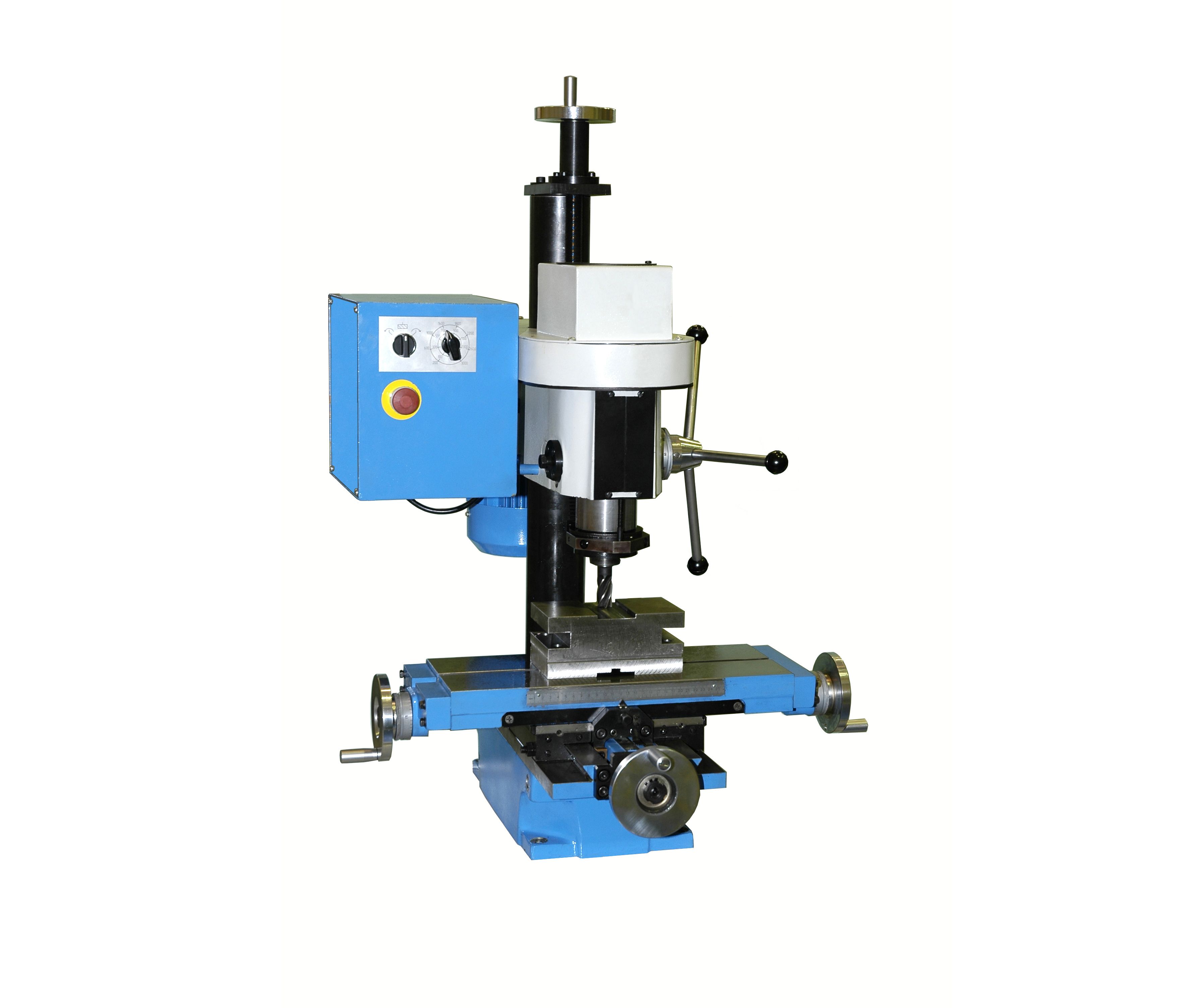

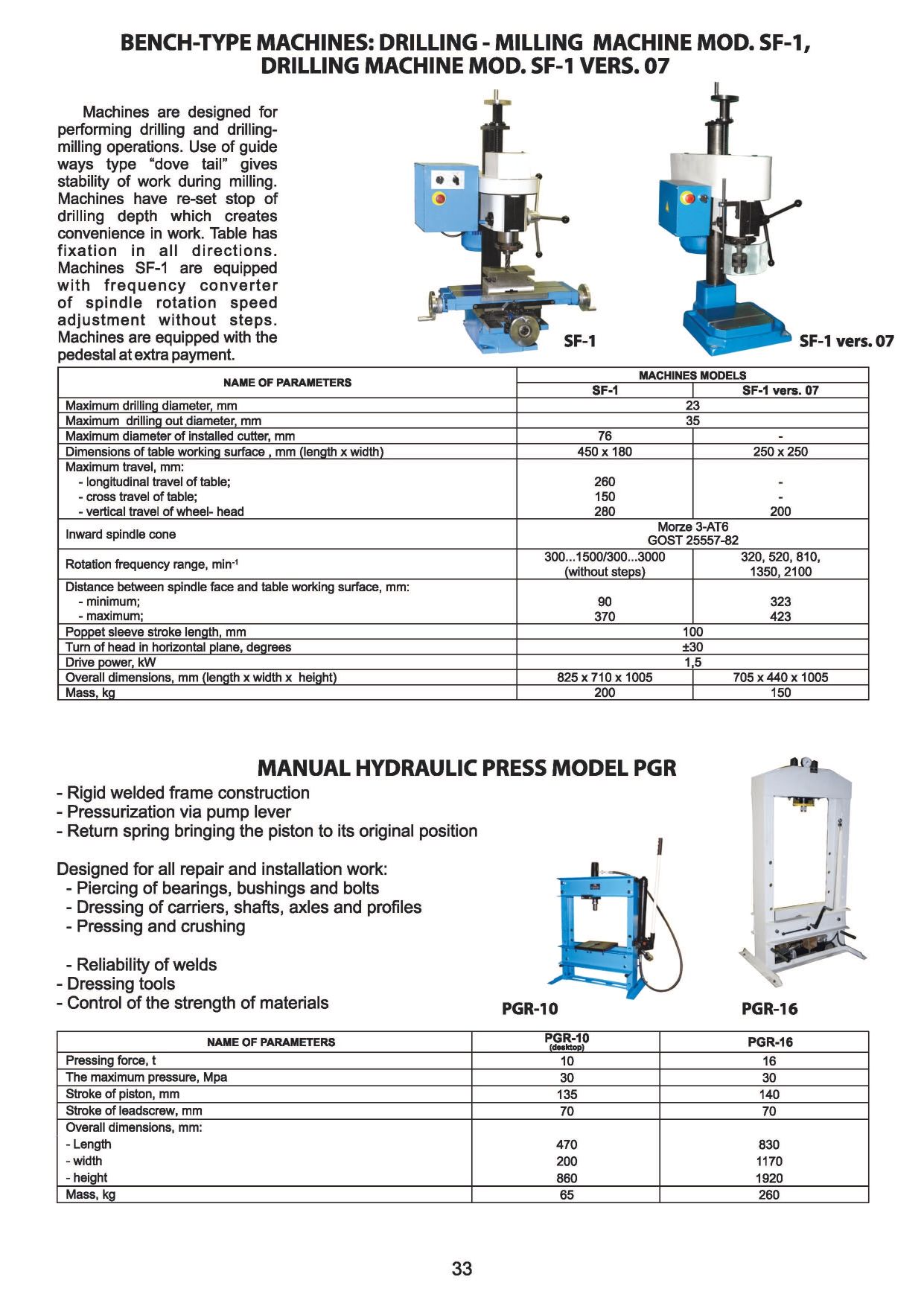

DRILLING - MILLING MACHINE SF-1

DESCRIPTION

Machine is designed for performing  drilling-milling operations. Use of guide ways type “dove tail” gives stability of work during milling. Machines have re-set stop of drilling depth which creates convenience in work. Table has fixation in all directions. Machines SF-1 are equipped with frequency converter of spindle rotation speed adjustment without steps. Machines are equipped with the pedestal at extra payment.

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Table mirror width
    180 мм
  • Table mirror length
    450 мм
  • Main drive power
    1,5 kW
  • Maximum drilling diameter
    23 мм
  • Maximum drilling out diameter
    35 мм
  • Maximum diameter of installed cutter
    76 мм
  • Longitudinal travel of table
    260 мм
  • Cross travel of table
    150 мм
  • Vertical travel of wheel- head
    280 мм
  • Inward spindle cone
    Morze 3-АТ6 GOST 25557-82
  • Rotation frequency range
    300...1500/300...3000 (without steps) min-1
  • Minimum distance between spindle face and table working surface
    90 мм
  • Maximum distance between spindle face and table working surface
    370 мм
  • Poppet sleeve stroke length
    100 мм
  • Turn of head in horizontal plane
    +-30degrees
  • Overall dimensions (length x width x height)
    825 х 710 х 1005 мм
  • Mass
    200 kg
