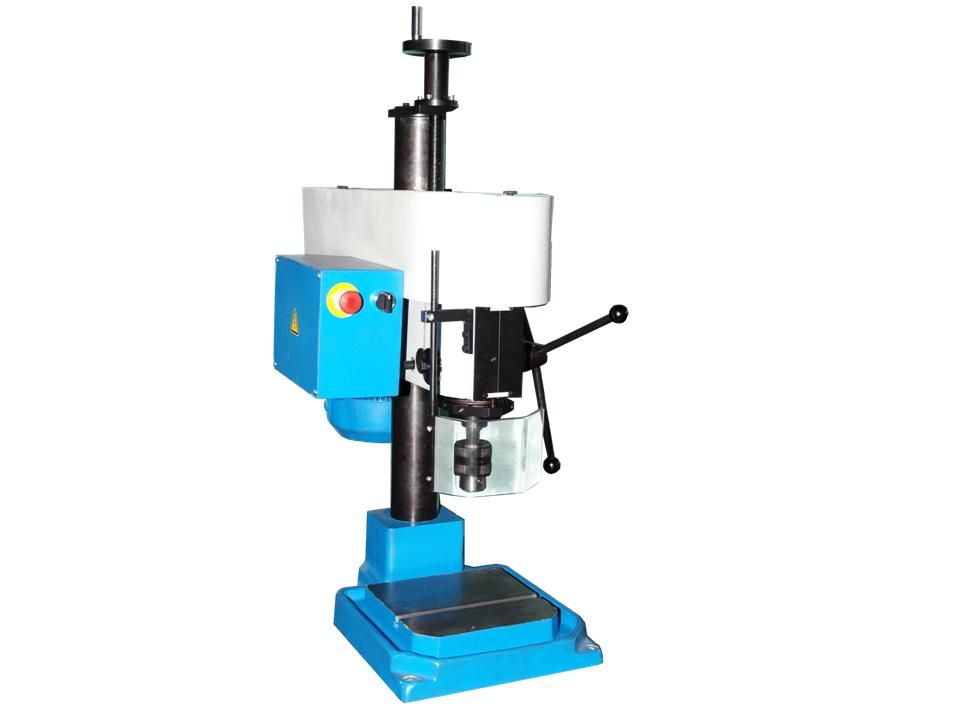

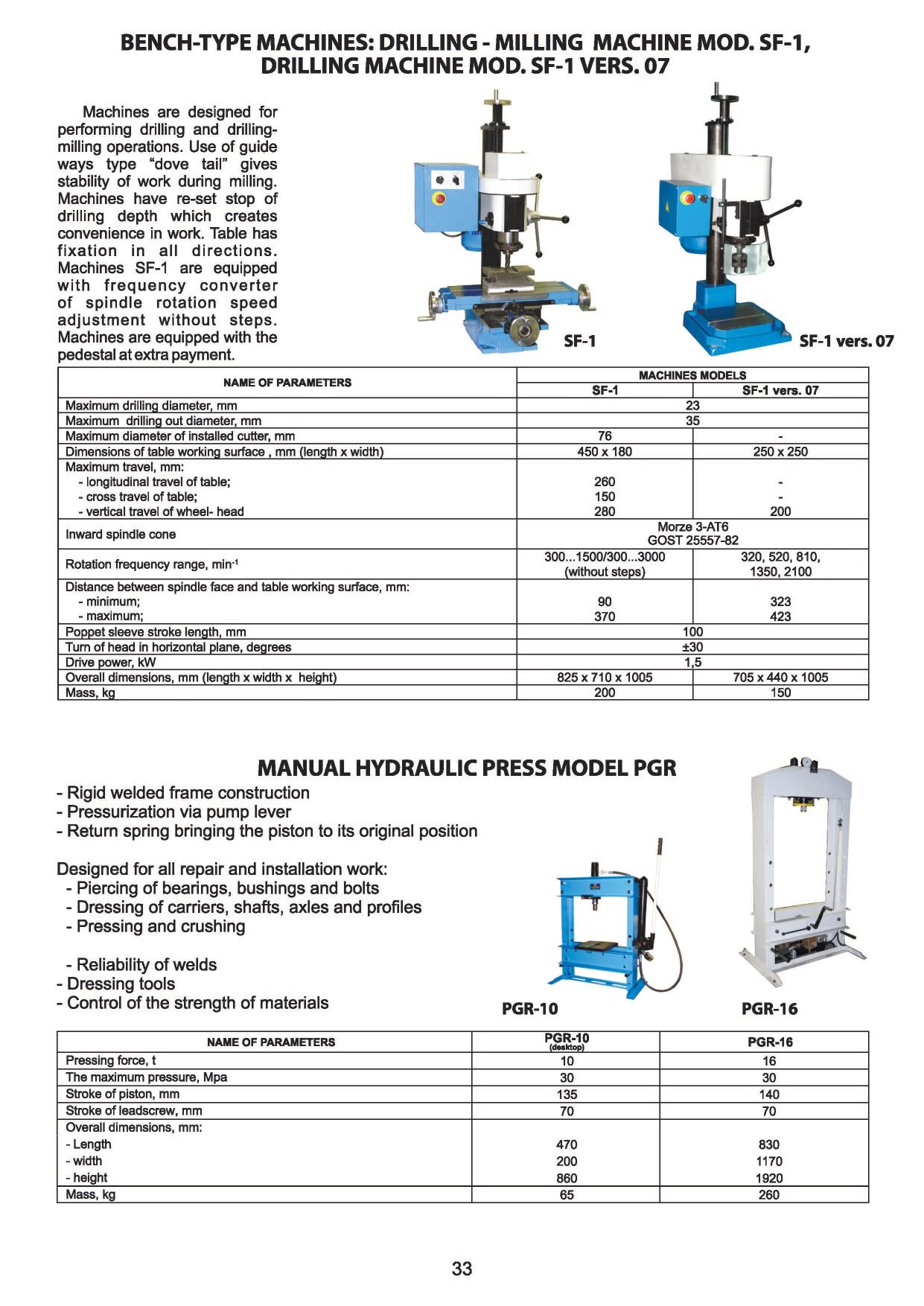

DRILLING MACHINE SF-1 VERSION 07

DESCRIPTION

Machine is designed for performing  drillingoperations. Use of guide ways type “dove tail” gives stability of work during milling. Machine have re-set stop of drilling depth which creates convenience in work. Table has fixation in all directions. Machine is equipped with the pedestal at extra payment.

Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Table mirror width
    250 мм
  • Table mirror length
    250 мм
  • Main drive power
    1,5 kW
  • Maximum drilling diameter
    23 мм
  • Maximum drilling out diameter
    35 мм
  • Maximum diameter of installed cutter
    -
  • Longitudinal travel of table
    -
  • Cross travel of table
    -
  • Vertical travel of wheel- head
    200 мм
  • Inward spindle cone
    Morze 3-АТ6 GOST 25557-82
  • Rotation frequency range
    320, 520,810,1350, 2100 min-1
  • Minimum distance between spindle face and table working surface
    323 мм
  • Maximum distance between spindle face and table working surface
    423 мм
  • Poppet sleeve stroke length
    100 мм
  • Turn of head in horizontal plane
    +-30degrees
  • Overall dimensions (length x width x height)
    705 х 440 х 1005 мм
  • Mass
    150 kg
