- SPLINE GEAR-GRINDING MACHINES WITH CNC

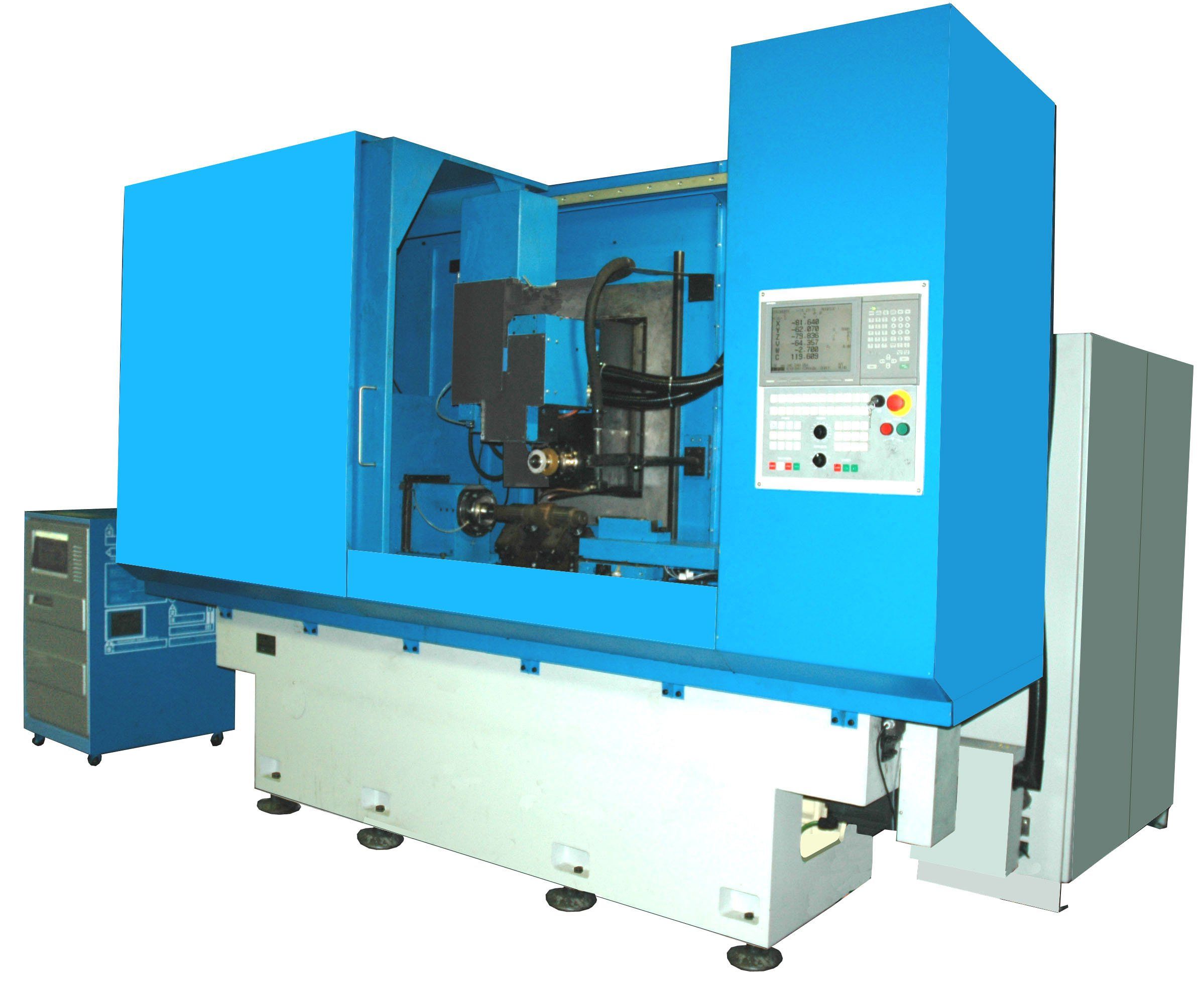

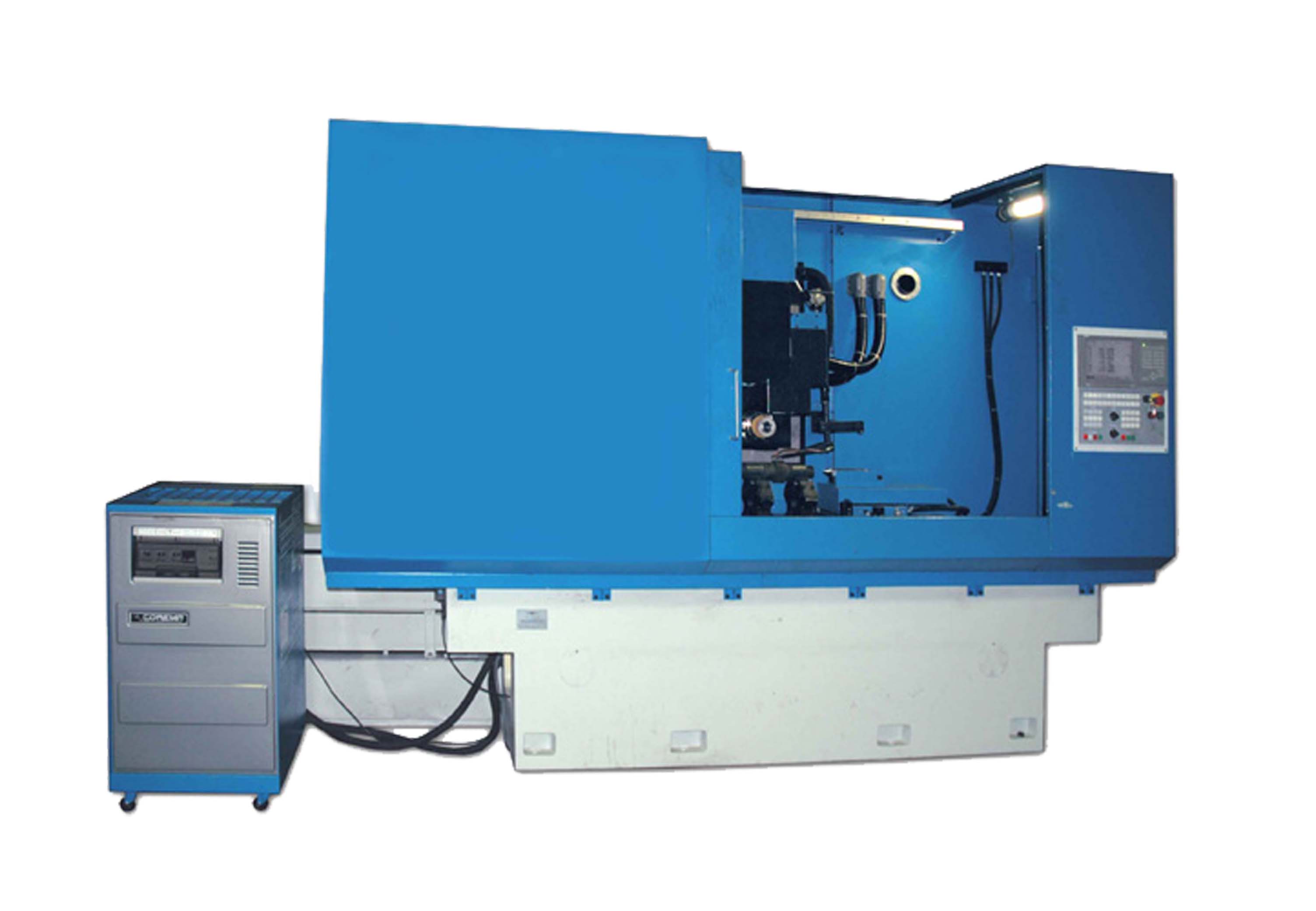

- SPECIAL SEMIAUTOMATIC SPLINE GEAR-GRINDING MACHINE WITH CNC MODEL OSH-628F3 version 04

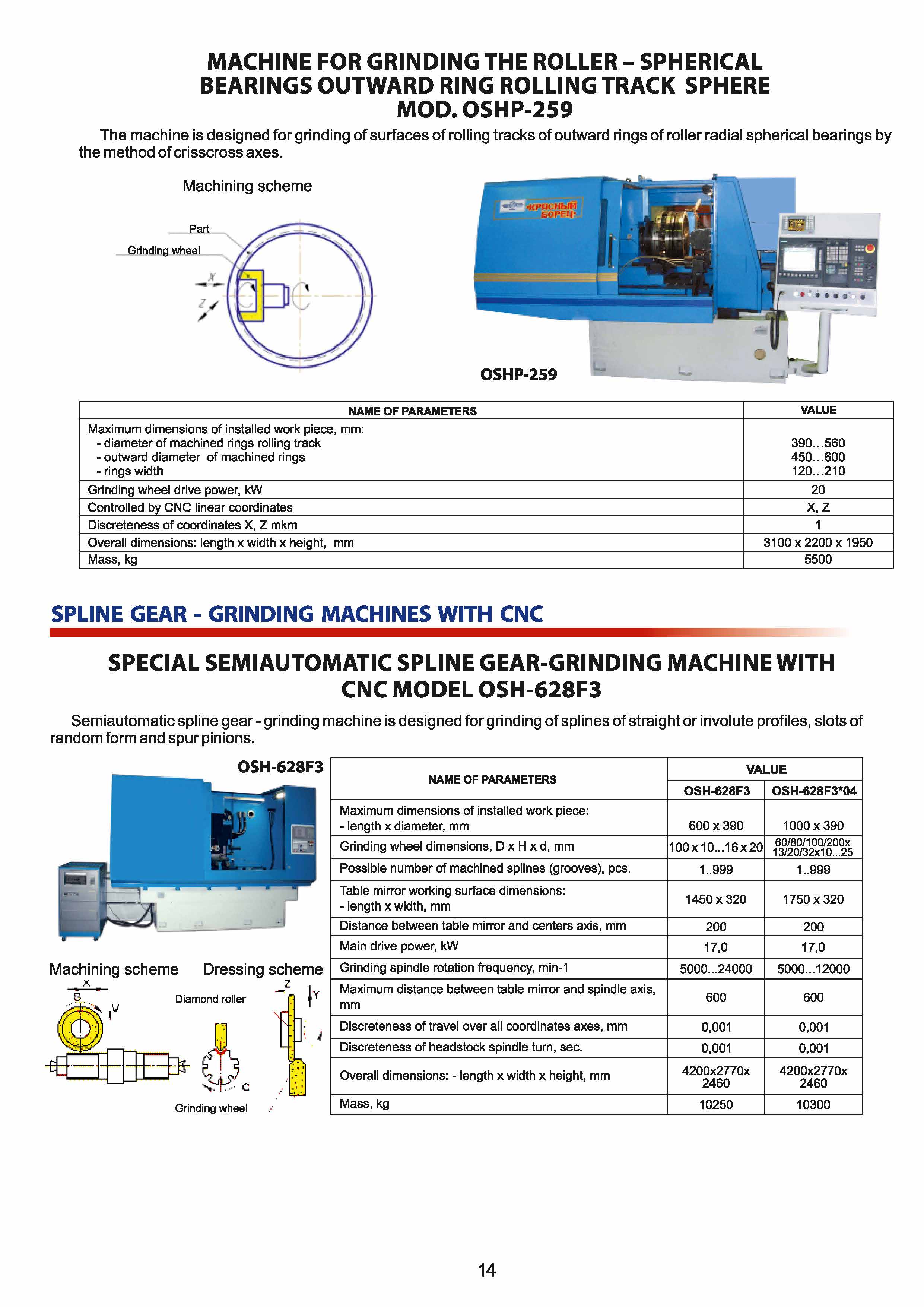

SPECIAL SEMIAUTOMATIC SPLINE GEAR-GRINDING MACHINE WITH CNC MODEL OSH-628F3 version 04

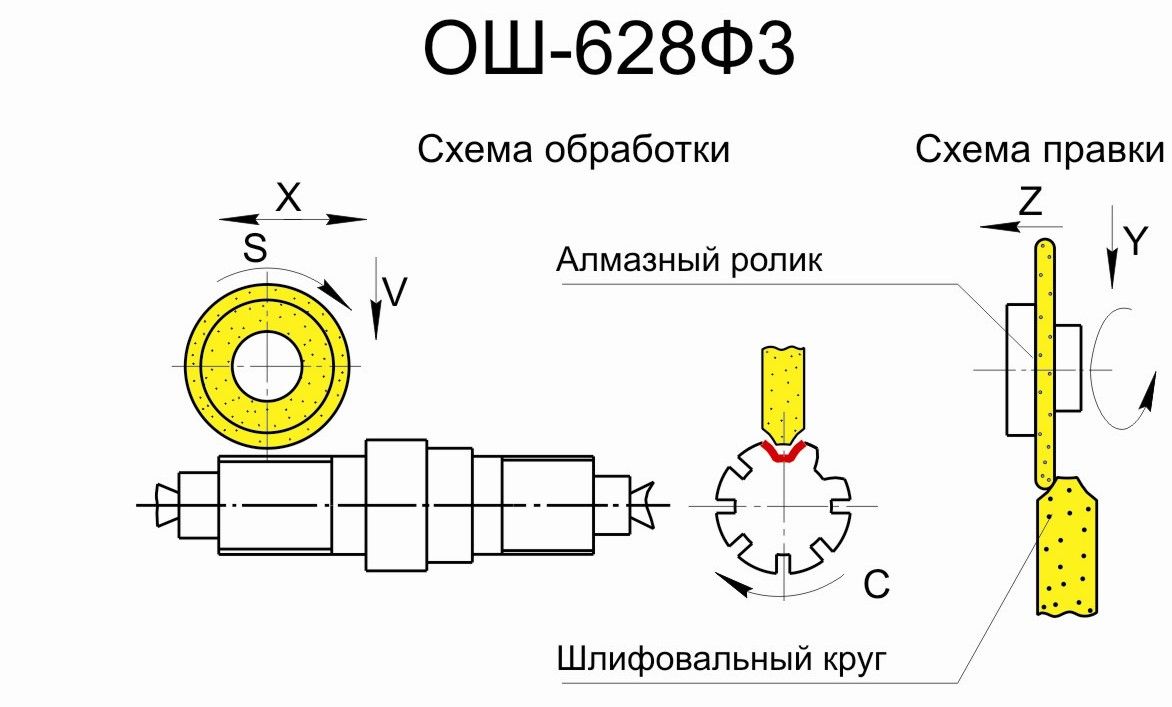

DESCRIPTION
Special semiautomatic spline gear- grinding machine is designed for grinding the slots of straight or involute profiles, slots of arbitrary shape and straight-flute gears.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Table mirror width
320 mm
-
Table mirror length
1750 mm
-
Maximum distance between table mirror and spindle axis
600 mm
-
Grinding wheel diameter
60/80/100/200 mm
-
Grinding wheel height
13/20/32 mm
-
Grinding wheel bore diameter
10...25 mm
-
Main drive power
17 kW
-
Grinding spindle rotation frequency
5000...12000 mm/min
-
Machines splines possible number
1...999 pcs
-
Distance between table mirror and centres axis
200 mm
-
Discreteness of travel over all coordinates
0,001 mm
-
Discreteness of headstock spindle turn
0,001 degree
-
Overall dimensions (length x width x height)
4200 x 2770 x 2460 mm
-
Mass
10300 kg
