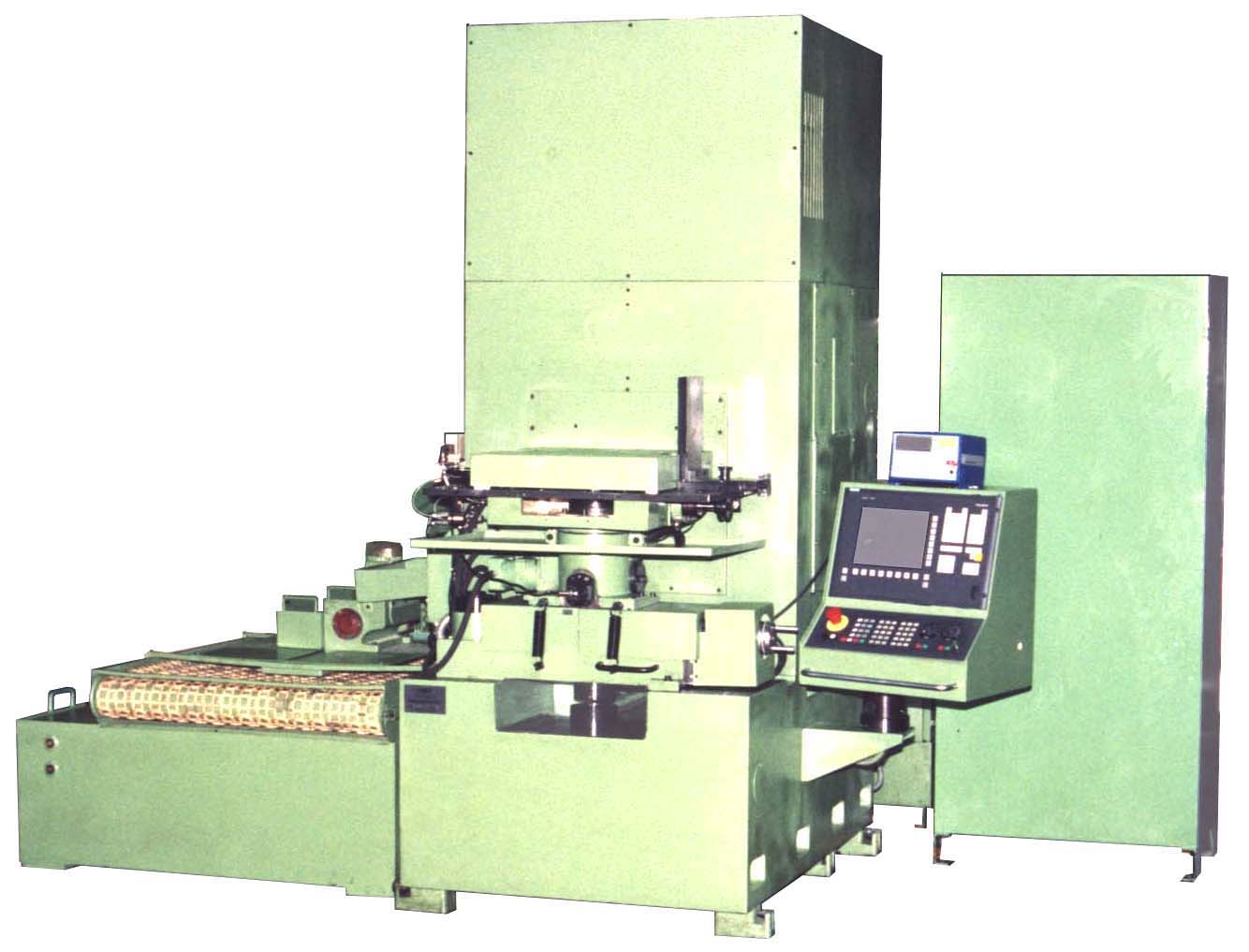

SPECIAL SURFACE GRINDING AUTOMATIC MACHINE WITH CNC MODEL OSH-622F3
DESCRIPTION

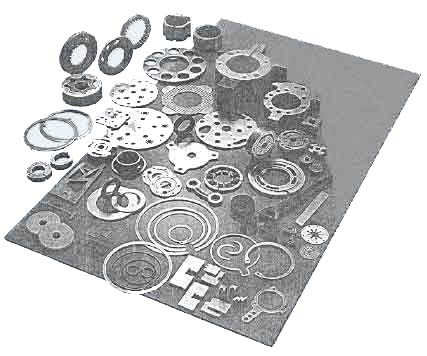

SPECIAL SURFACE GRINDING AUTOMATIC MACHINE WITH CNC MODEL OSH-622F3 is designed for double-sided grinding of surfaces of parts made from steel, hard alloy and ceramics.

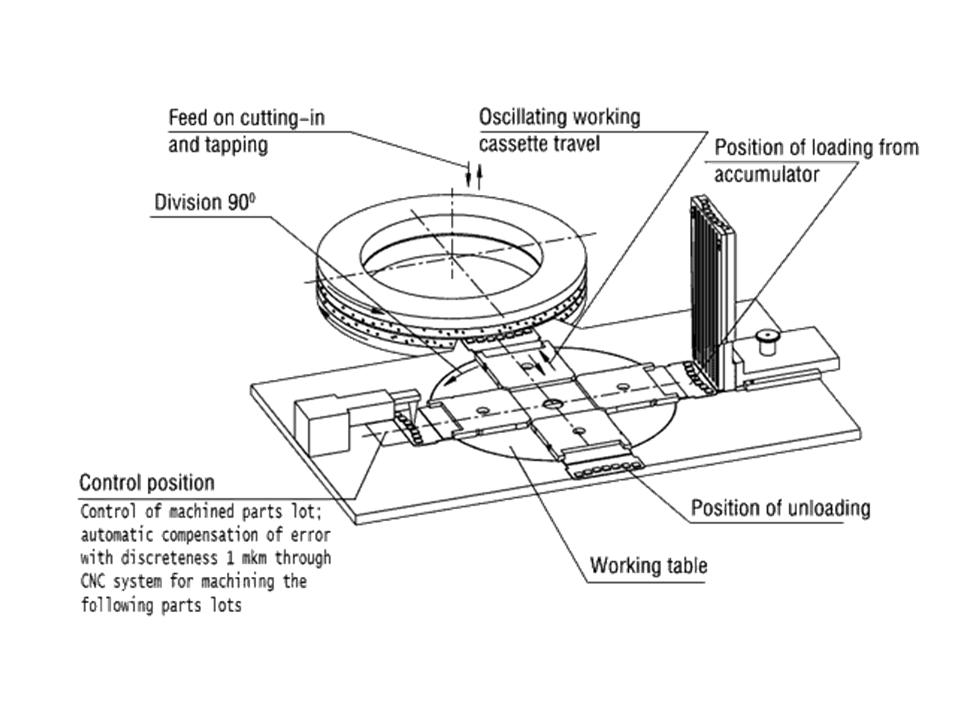

Machining of two surfaces of parts situated in cassette cells simultaneously is realized with feed on cutting-in of upper grinding wheel head with oscillating cassette travel.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Dimensions of el`bor borazon material or diamond grinding wheels : (D x H x d)
400 x 45 x 120 mm
-
Dimensions of dressing abrasive wheel and diamond roller: (D x H x d)
125 x 16 x 32 mm
-
Working feeds limits of upper spindle
1...200 mm/min
-
Working feeds limits of dressing roller
1...200 mm/min
-
Wheel heads spindles drive power
7,5; 11,0; 15,0 kW
-
Overall dimensions (length x width x height)
2000 х 3100 х 2500 mm
-
Mass
6000 kg
