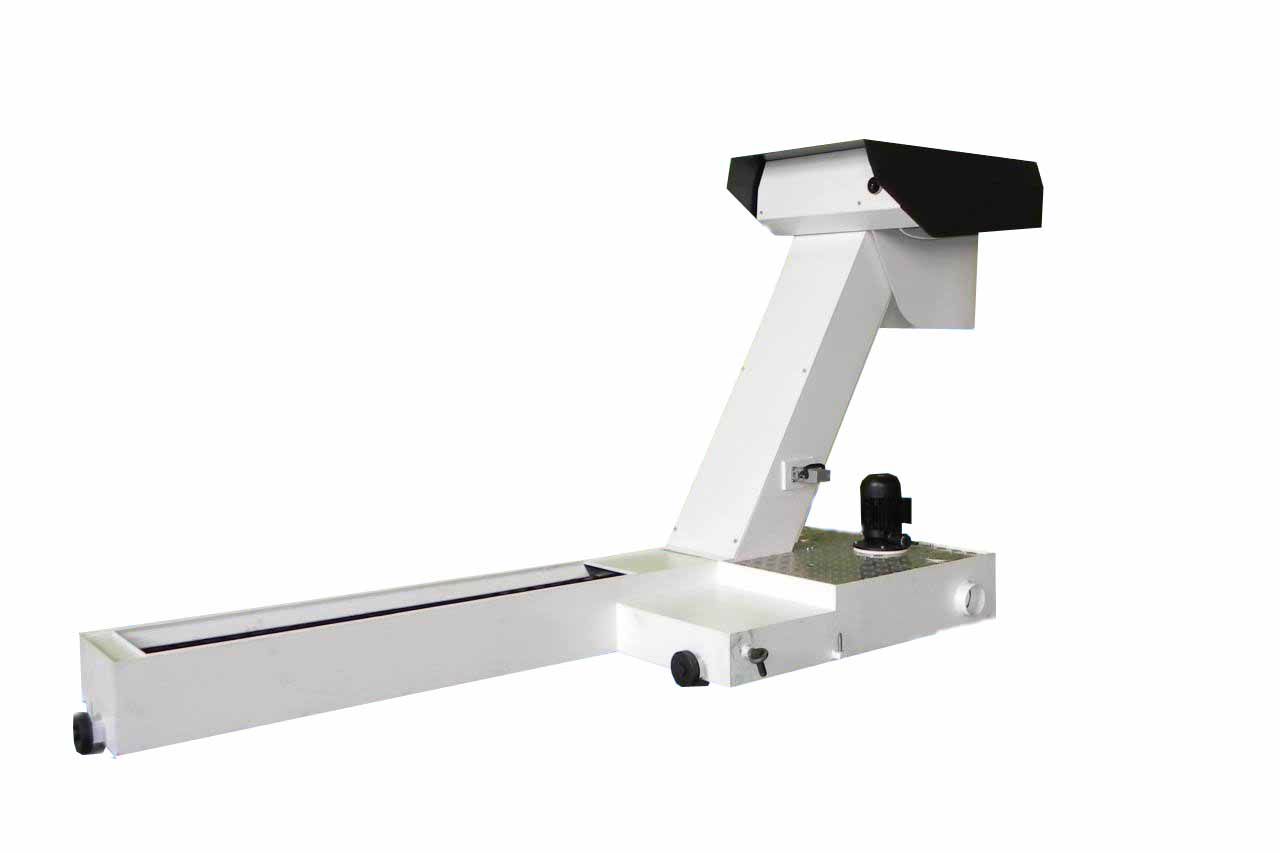

SWARF CONVEYOR MODEL OFC-4
DESCRIPTION
Swarf conveyor is designed for collecting and removal of metal chip (swarf) from the processing zone of milling machining centre. Conveyor is equipped with the pump of lubricant - coolant feed into the part machining zone
Name of parameters | Value |
Width of supporting scrapers, mm |
232 |
Pitch of drive chain, mm |
63 |
Gear-motor drive with electric motor: - electric motor power, kW - electric motor rotation frequency, min-1 - output shaft rotation frequency, min-1 - reduction rate of gear –motor drive |
0,25 1300 6,5 201 |
Electric motor of lubricant-coolant feed pump: - electric motor power, kW - electric motor rotation frequency, min-1 - nominal feed, m³/ |
0,75 2790 3,2 |
Overall dimensions, mm |
3240 х 1015 х 1580 |
Mass, kg |
395 |
