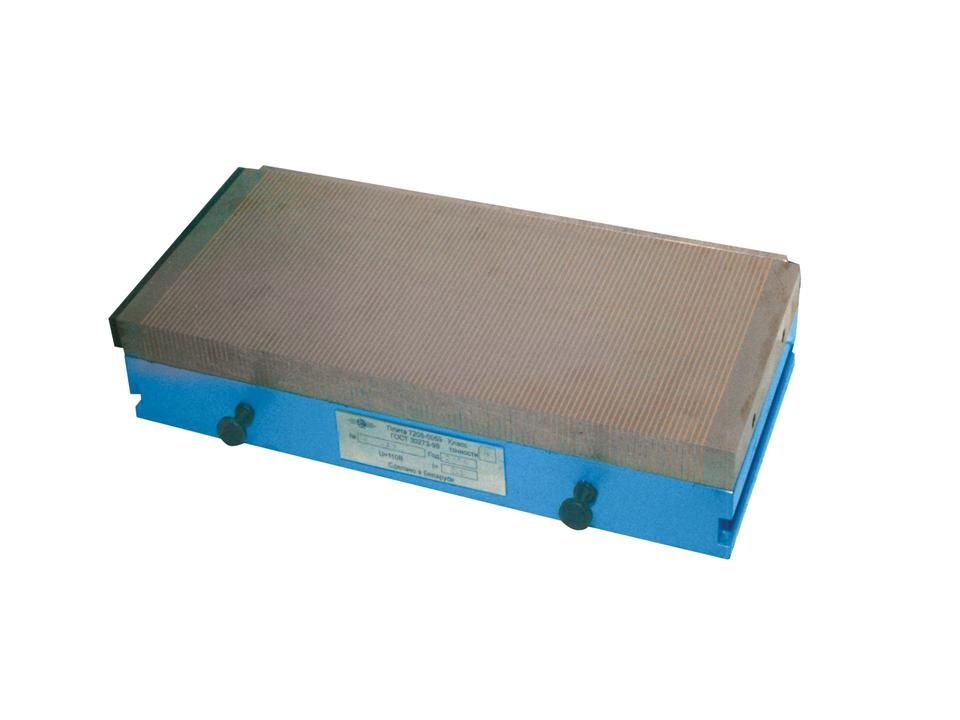

RECTANGULAR ELECTROMAGNETIC CHUCKS WITH CROSS ARRANGEMENT OF POLES 7208-0066-05
DESCRIPTION
Chucks are designed for fixing of the blanks from ferromagnetic materials being machined on surface grinding machines.
Design features and advantages :

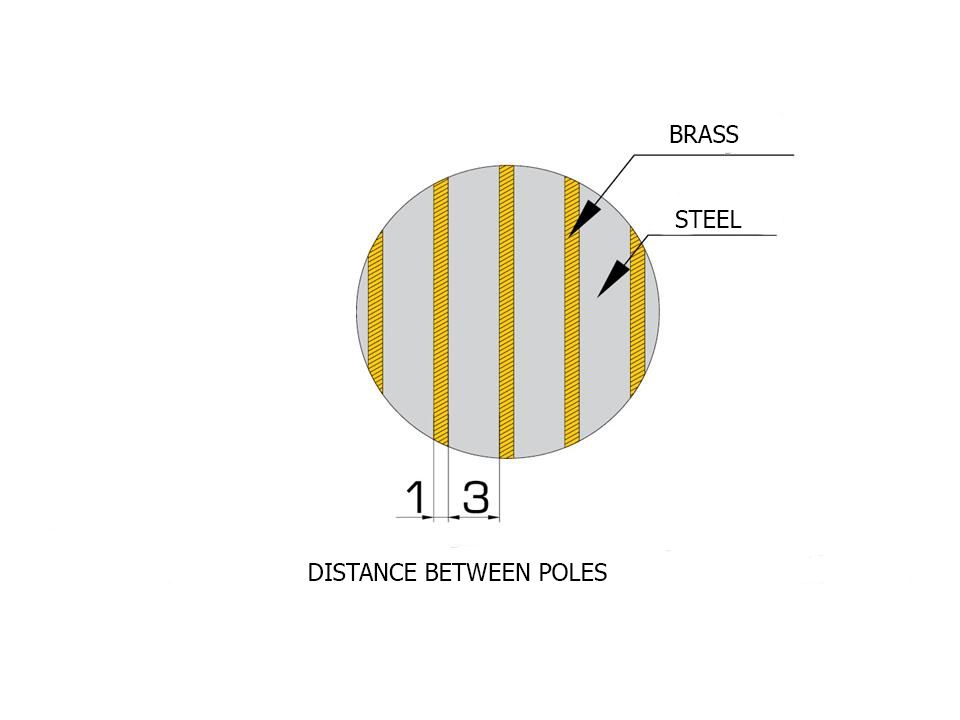

- Possibility of use for fixing parts of small dimensions which is ensured by small distance between poles and cross arrangement of poles;
- Complete hermetic sealing of chucks for ensuring their utilization using coolant;
- High rigidity and accuracy.
| Name of parameters | VALUE |
|---|---|
|
Chuck accuracy class as per GOST 30273-98 |
Heightened precision |
|
Chuck mirror dimensions (BxL), mm |
320 х 1250 |
|
Rated mains supply voltage , V |
110 V direct current D.C.) |
|
Chuck current (when direct current voltage is 110 V), A |
0,98 |
|
Specific force of attraction, N/cm² |
25 |
|
Mass, kg |
250 |
