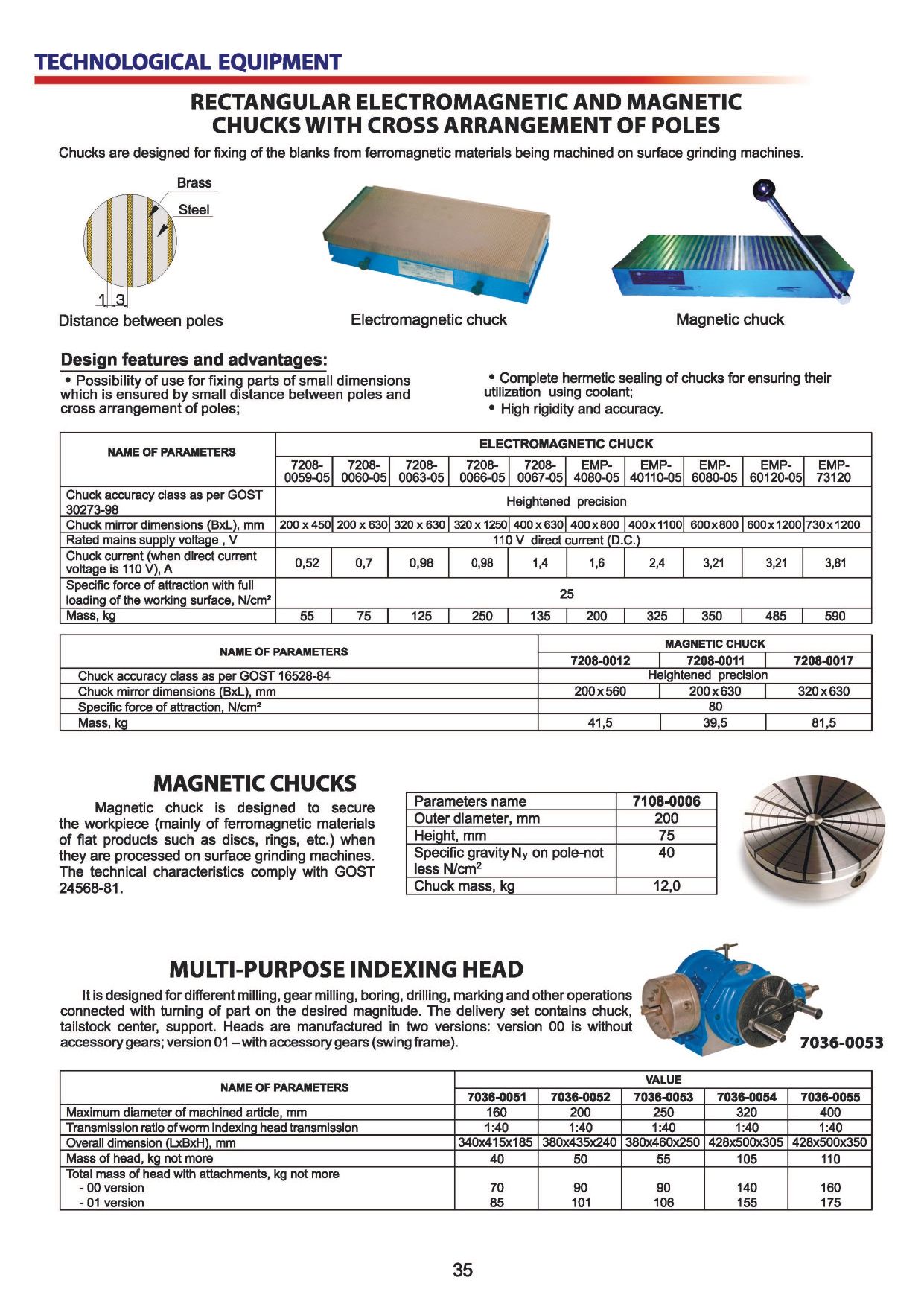

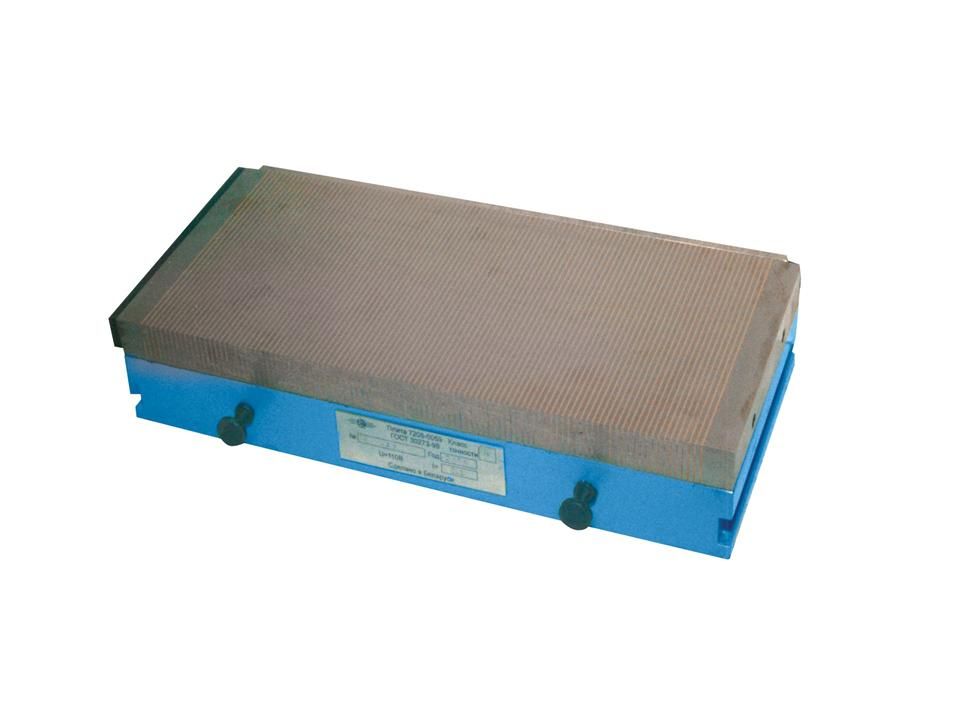

RECTANGULAR ELECTROMAGNETIC CHUCKS WITH CROSS ARRANGEMENT OF POLES 7208-0059-05

DESCRIPTION

Chucks are designed for fixing of the blanks from ferromagnetic materials being machined on surface grinding machines.
Design features and advantages :

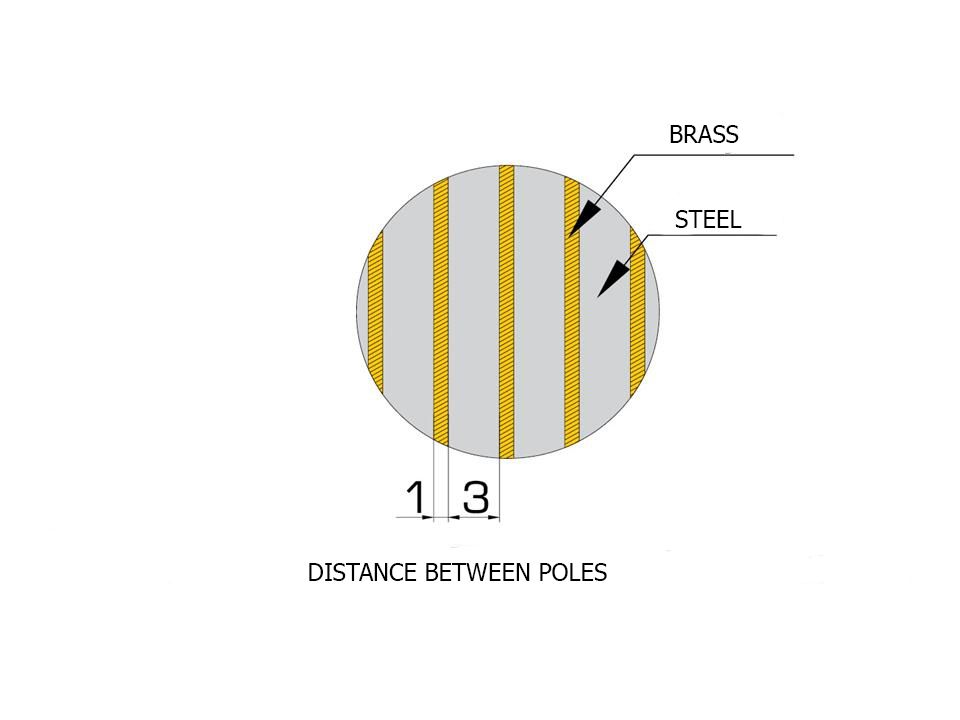

- Possibility of use for fixing parts of small dimensions which is ensured by small distance between poles and cross arrangement of poles;
- Complete hermetic sealing of chucks for ensuring their utilization using coolant;
- High rigidity and accuracy.


Name of parameters VALUE
Chuck accuracy class as per GOST 30273-98
Heightened  precision
Chuck mirror dimensions (BxL), mm
200 х 450
Rated mains supply voltage , V
110 V  direct current D.C.)
Chuck current (when direct current voltage is 110 V), A
0,52
Specific force of attraction, N/cm²
25
Mass, kg
55
