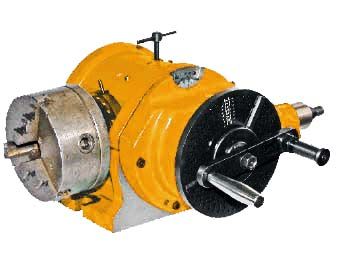

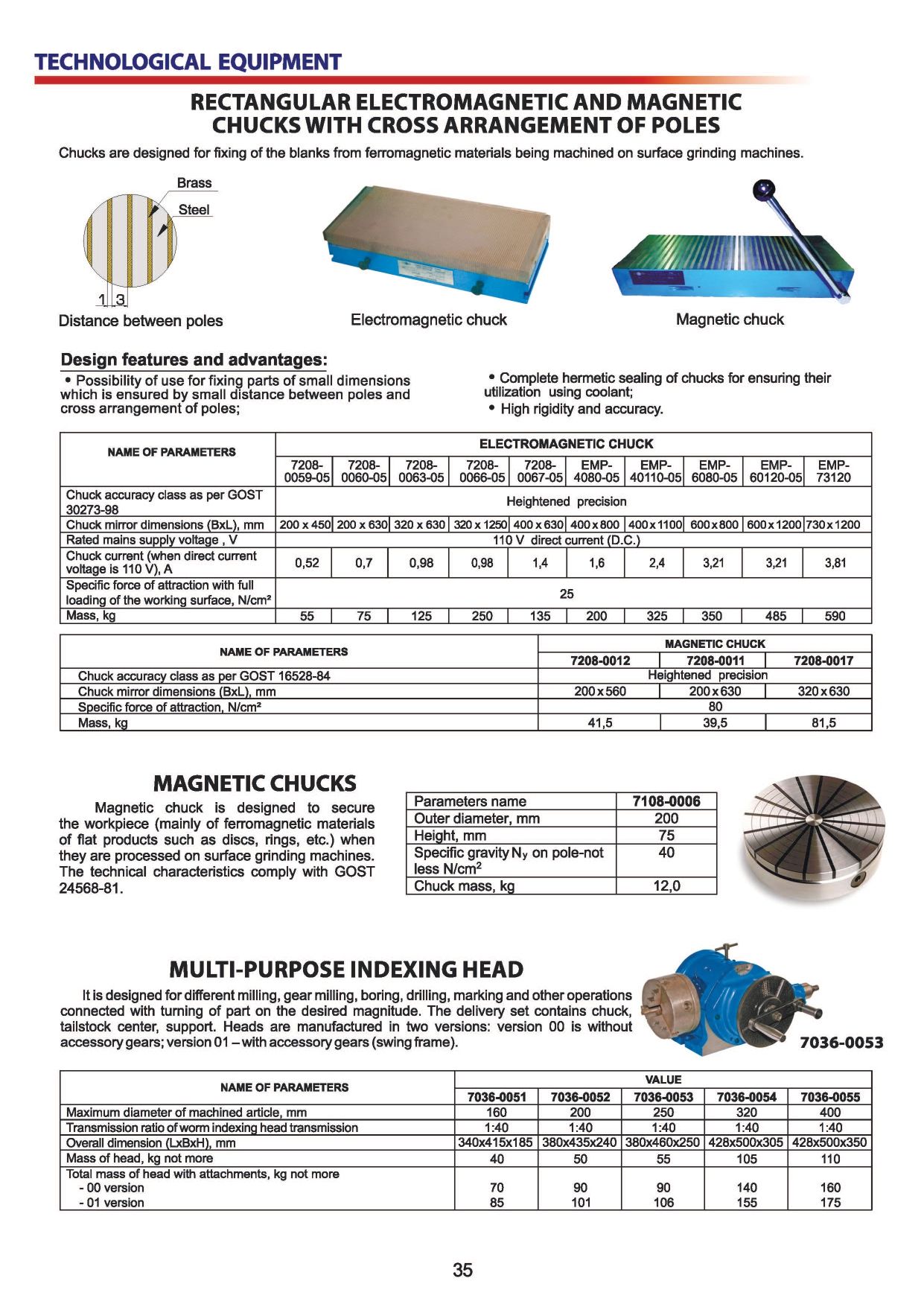

MULTI-PURPOSE INDEXING HEAD 7036-0055
DESCRIPTION
It is designed for different milling, gear milling, boring, drilling, marking and other operations connected with turning of part on the desired magnitude. The delivery set contains chuck, tailstock center, support. Heads are manufactured in two versions: version 00 is without accessory gears; version 01 – with accessory gears (swing frame).
|
Name of parameters |
Value |
|---|---|
|
Maximum diameter of machined article, mm |
400 |
|
Transmission ratio of worm indexing head transmission |
1:40 |
|
Overall dimension (LxBxH), mm |
428 х 500 х 350 |
|
Mass of head, kg not more
|
110 |
|
Total mass of head with attachments, kg not more - 00 version - 01 version |
160 175 |
