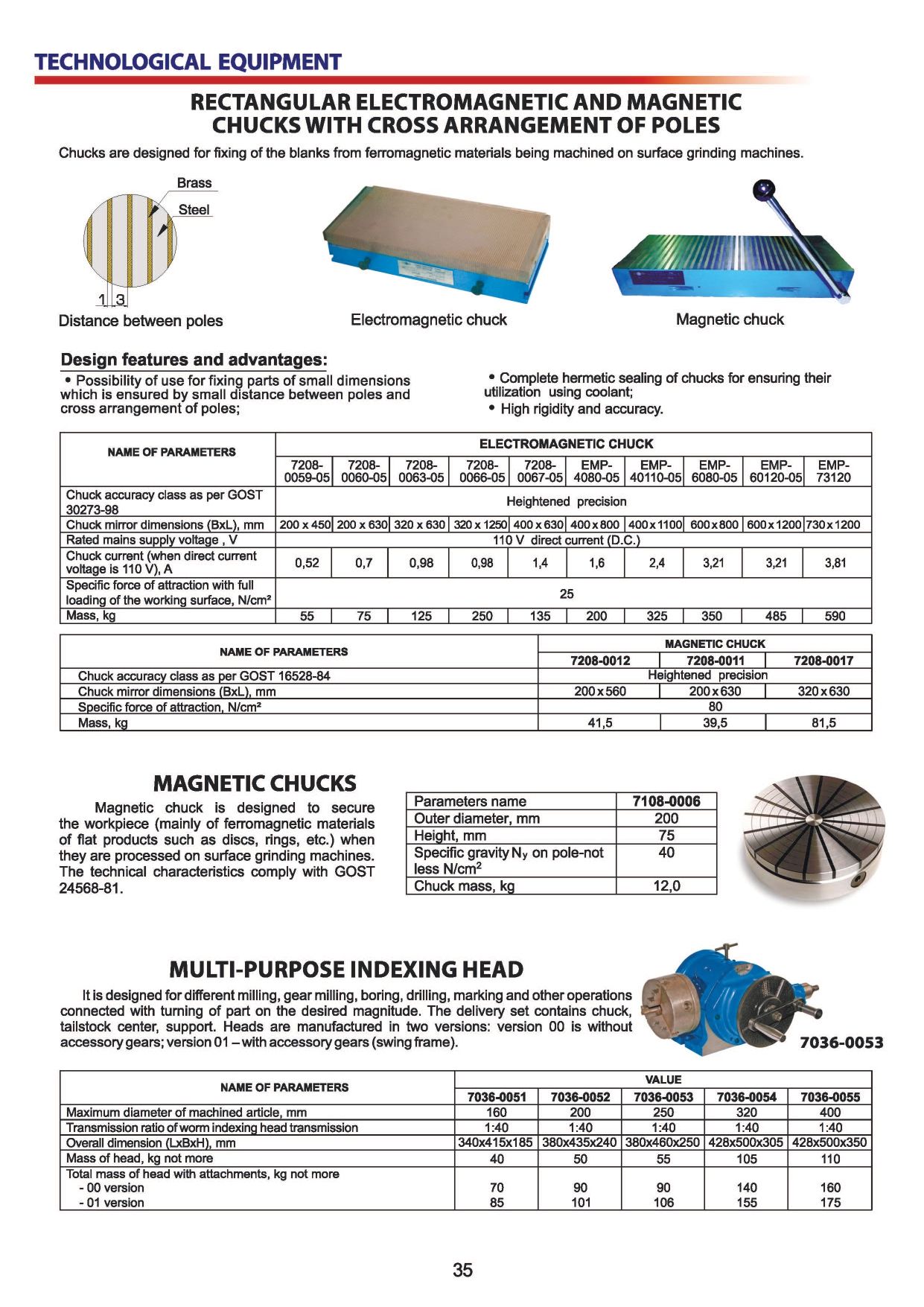

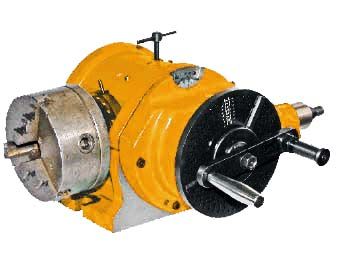

MULTI-PURPOSE INDEXING HEAD 7036-0053

DESCRIPTION

It is designed for different milling, gear milling, boring, drilling, marking and other operations connected with turning of part on the desired magnitude. The delivery set contains chuck, tailstock center, support. Heads are manufactured in two versions: version 00 is without accessory gears; version 01 – with accessory gears (swing frame).

Name of parameters
Value
Maximum diameter of machined article, mm
250
Transmission ratio of worm indexing head  transmission
1:40
Overall dimension (LxBxH), mm
380 х 435 х 240
Mass of head, kg not more
50

Total mass of head with attachments, kg not more
-  00 version
- 01 version

90
101
