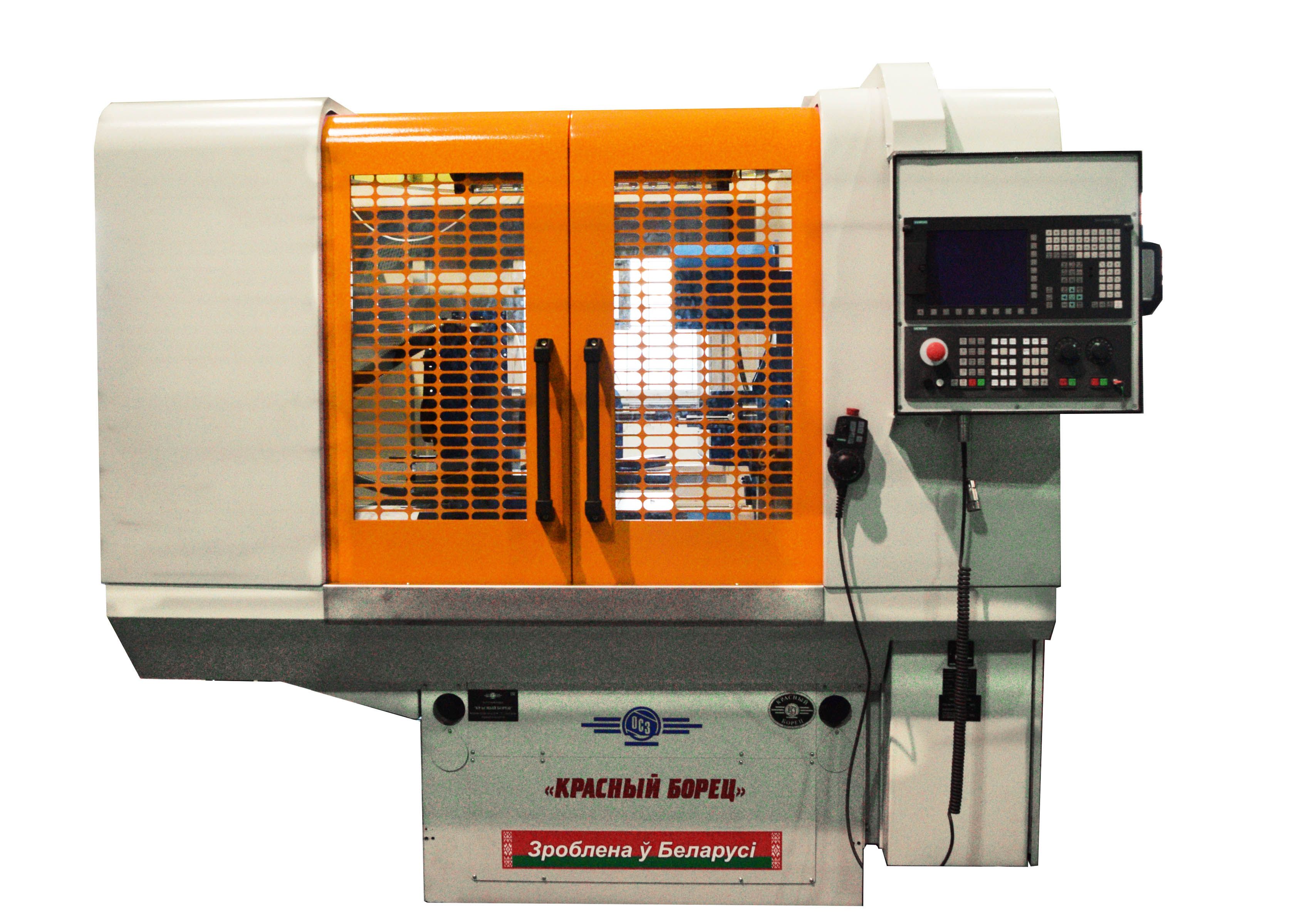

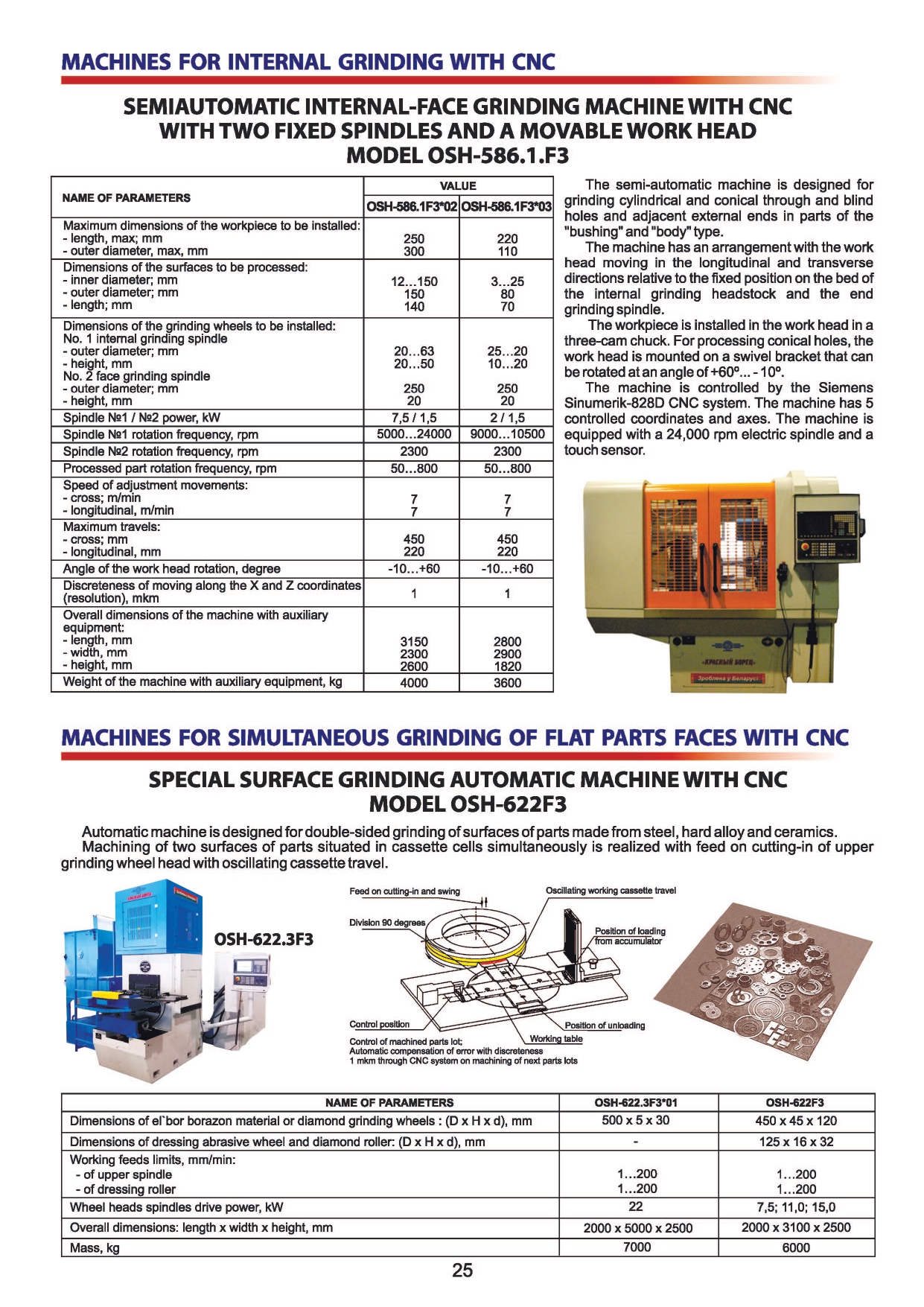

SEMI-AUTOMATIC INTERNAL GRINDING MACHINE WITH CNC WITH TWO FIXED SPINDLES AND A MOVABLE WORK HEAD MODEL OSH-586.1.F3 version 03

DESCRIPTION

The semi-automatic machine is designed for grinding cylindrical and conical through and blind holes and adjacent external ends in parts of the "bushing" and "body" type.

Send a request Download

DESIGN ADVANTAGES

  • The machine has an arrangement with the work head moving in the longitudinal and transverse directions relative to the fixed position on the bed of the internal grinding headstock and the end grinding spindle.
  • The workpiece is installed in the work head in a three-cam chuck. For processing conical holes, the work head is mounted on a swivel bracket that can be rotated at an angle of +60º... - 10º.
  • The machine is controlled by the Siemens Sinumerik-828D CNC system.
  • The machine has 5 controlled coordinates and axes.
  • The machine is equipped with a 24,000 rpm electric spindle and a touch sensor.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Length of the workpiece to be installed
    220 mm
  • Outer diameter of the workpiece to be installed
    110 mm
  • Inner diameter of the surfaces to be processed
    3...25mm
  • Outer diameter of the surfaces to be processed
    80 mm
  • Length of the surfaces to be processed
    70 mm
  • Outer diameter No. 1 internal grinding spindle
    2,5...20mm
  • Height No. 1 internal grinding spindle
    10...20mm
  • Outer diameter No. 2 face grinding spindle
    250mm
  • Height No. 2 face grinding spindle
    20 mm
  • Spindle №1 / №2 power
    2/1,5kW
  • Spindle №1 rotation frequency
    9000...105000rpm
  • Spindle №2 rotation frequency
    2300rpm
  • Processed part rotation frequency
    50...800rpm
  • Speed of adjustment cross movements
    7m/min
  • Speed of adjustment longitudinal movements
    7m/min
  • Maximum cross travels
    450 mm
  • Maximum longitudinal travels
    220 mm
  • Angle of the work head rotation
    -10...+60 degree
  • Discreteness of moving along the X and Z coordinates (resolution)
    1 mkm
  • Overall dimensions of the machine with auxiliary equipment(length x width x height)
    2800 x 2900 x 1820 mm
  • Weight of the machine with auxiliary equipment
    3600 kg
