KNEE-TYPE MILLING MACHINES WIDE MULTI-PURPOSE ORSHA-F32SH

DESCRIPTION

    Machines are designed for milling of the flat and contour surfaces by all kinds of mills.

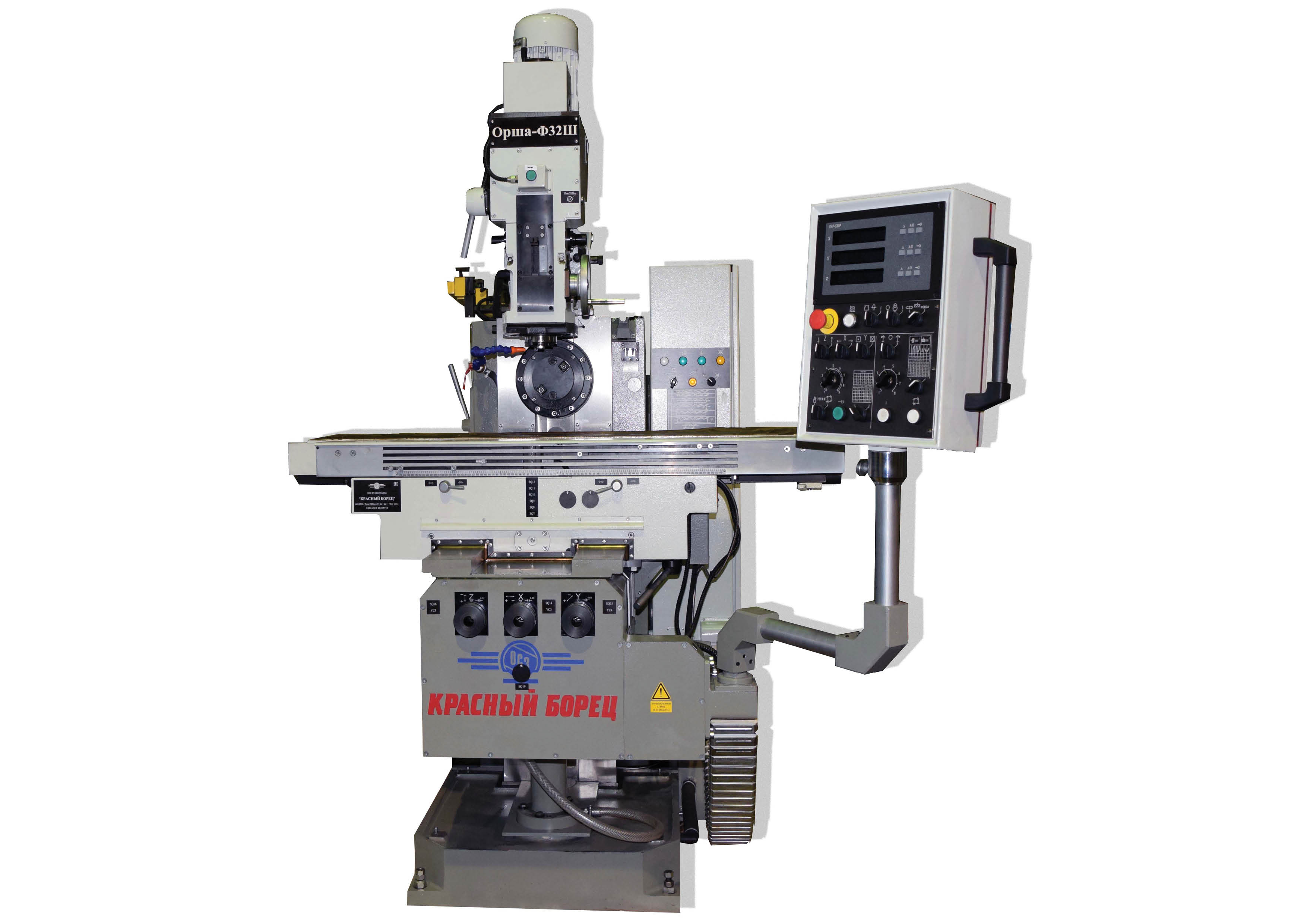

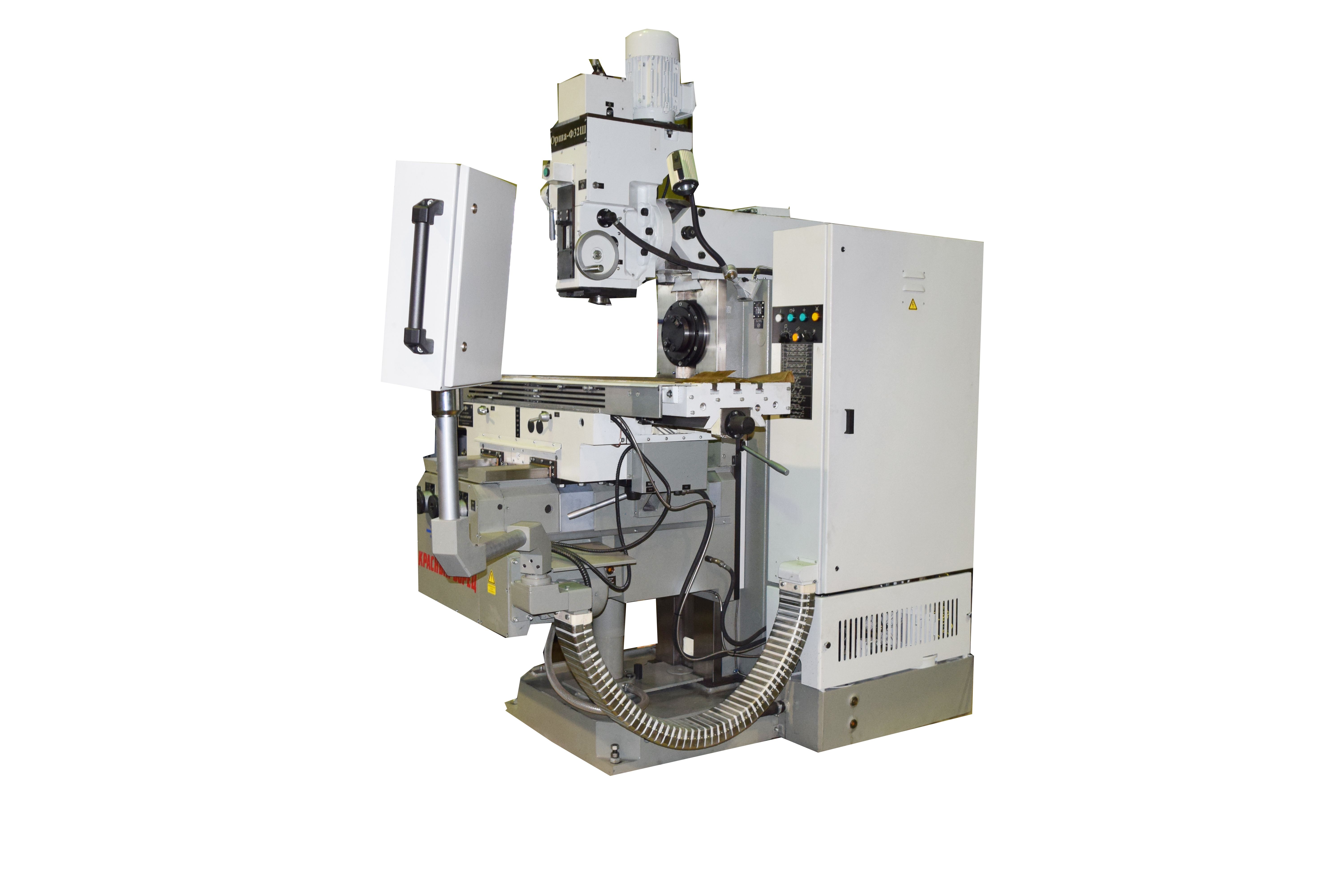

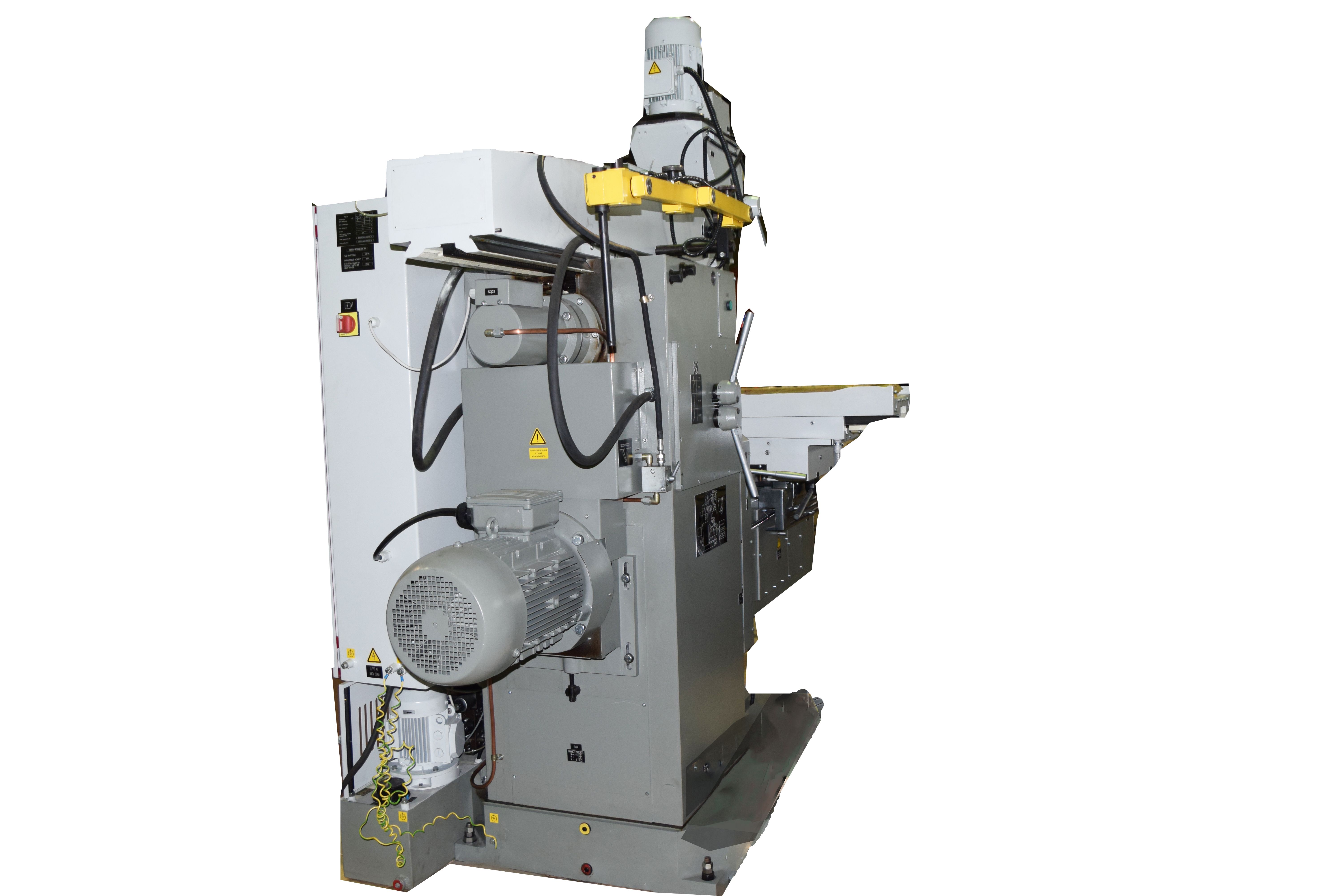

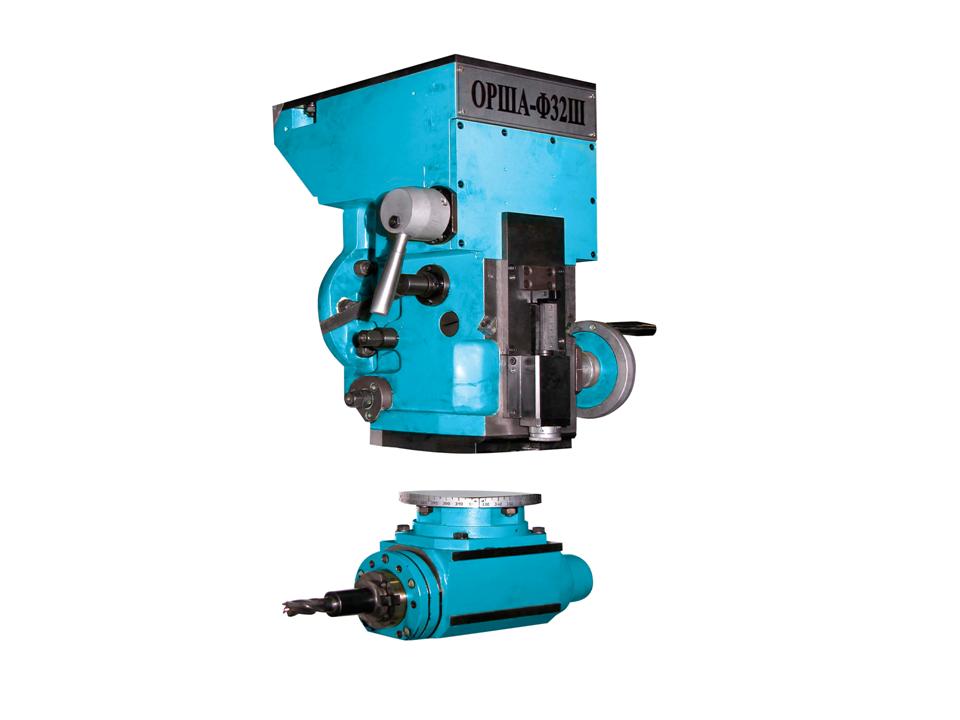

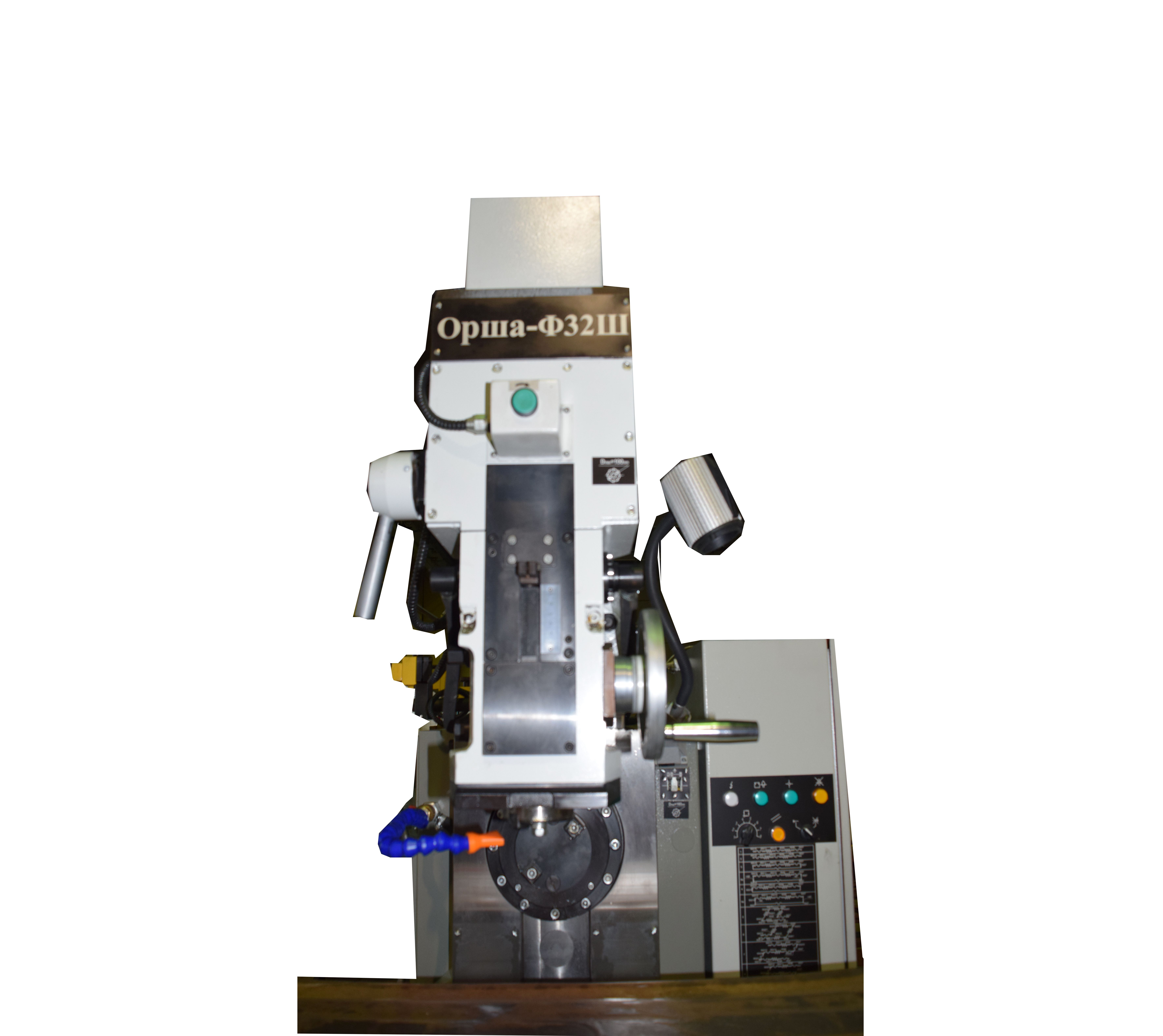

   Rotary in two planes vertical milling head with spindle ISO-40 is used on wide multi-purpose machine. The head is installed on the slider and has an autonomous drive.


Send a request Download

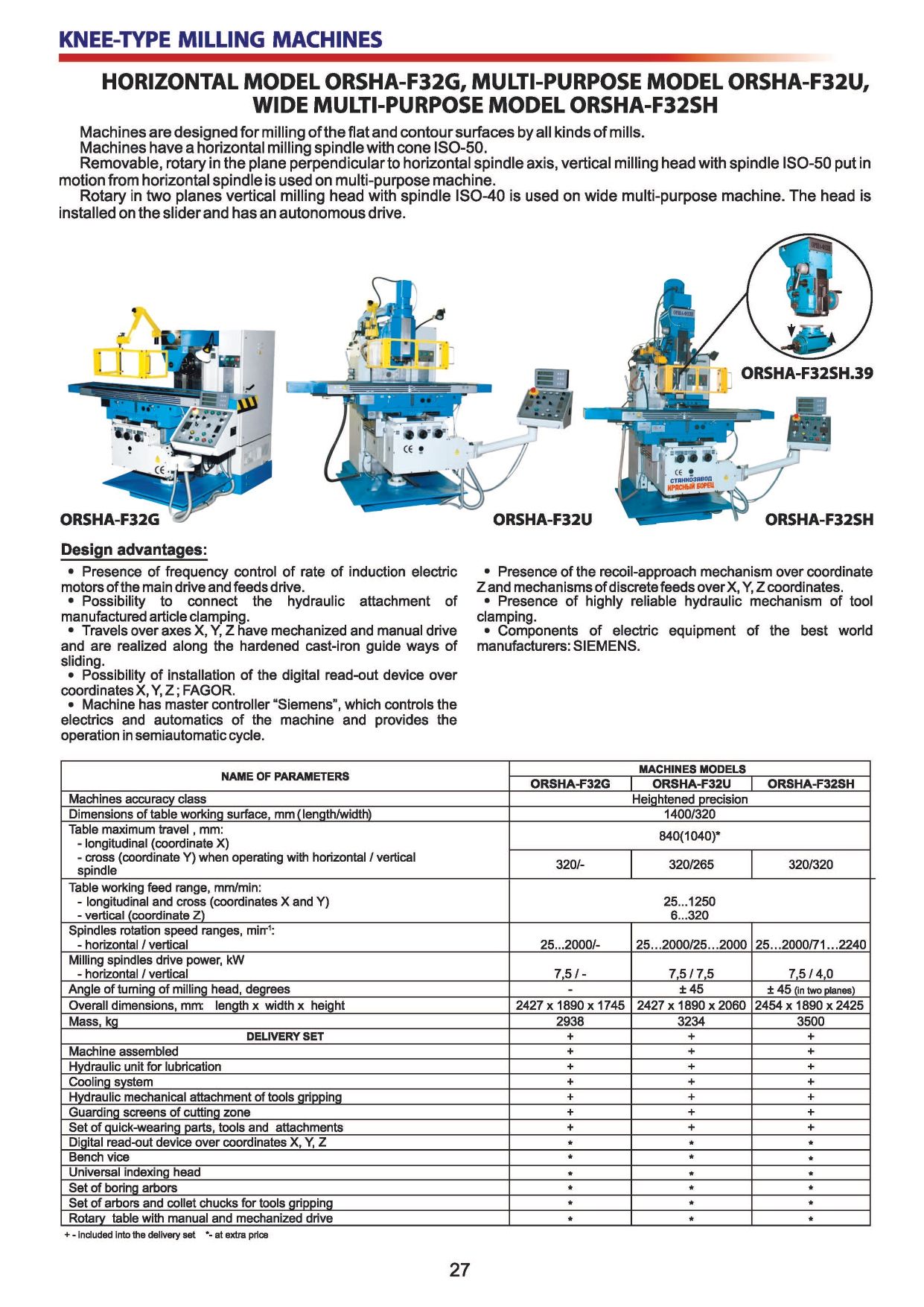

DESIGN ADVANTAGES

  • Presence of frequency control of rate of induction electric motors of the main drive and feeds drive.
  • Possibility to connect the hydraulic attachment of manufactured article clamping.
  • Travels over axes X, Y, Z have mechanized and manual drive and are realized along the hardened cast-iron guide ways of sliding.
  • Possibility of installation of the digital read-out device over coordinates X, Y, Z ; FAGOR
  • Machine has master controller “Siemens”, which controls the electrics and automatics of the machine and provides the operation in semiautomatic cycle.
  • Presence of the recoil-approach mechanism over coordinate Z and mechanisms of discrete feeds over X, Y, Z coordinates.
  • Presence of highly reliable hydraulic mechanism of tool clamping.
  • Components of electric equipment of the best world manufacturers: SIEMENS.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Machine accuracy class
    Heightened precision
  • Length/ width of table working surface
    1400/320 mm
  • Milling horizontal/vertical spindles drive power
    7,5/4,0 kW
  • Table longitudinal (coordinate X) maximum travel
    840(1040) mm
  • Table cross (coordinate Y) when operating with horizontal / vertical spindle maximum travel
    320/320 mm
  • Maximum mass of installed work piece (together with mass of fixing elements)
    300 kg
  • Table longitudinal and cross (coordinates X and Y) working feed range
    25...1250 mm/min
  • Table vertical (coordinate Z) working feed range
    6...320 mm/min
  • Spindles rotation speed horizontal / vertical ranges
    25...2000/71...2240 rpm

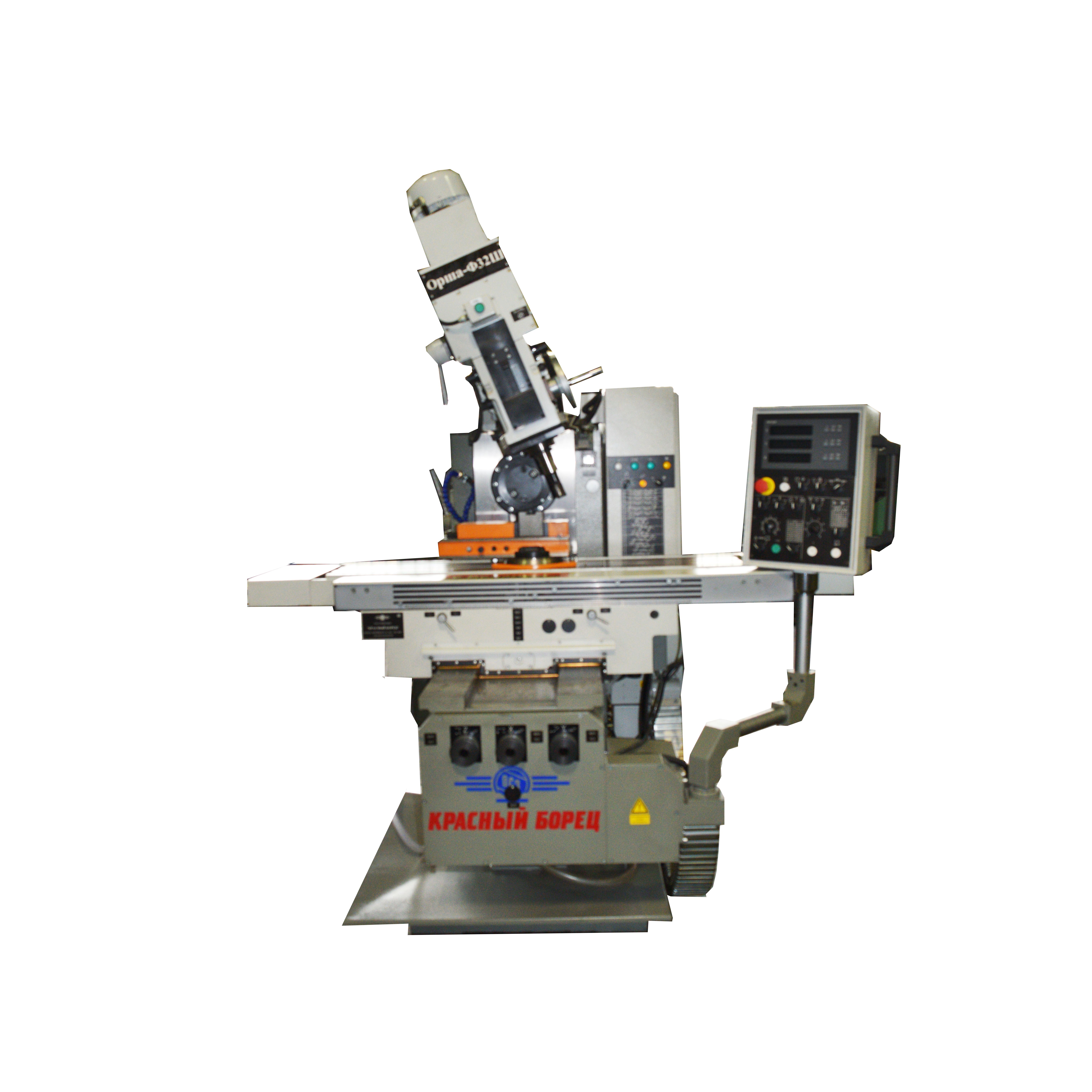

  • Angle of turning of milling head
    +-45 degrees
  • The shortest distance from the end of the vertical spindle to the working surface of the table
    130 mm
  • The greatest distance from the end of the vertical spindle to the working surface of the table
    540 mm
  • Overall dimensions (length x width x height)
    2454 x 1890x 2425 mm
  • Mass
    3500 kg

- machine assembled;
- hydraulic unit for lubrication;
- сooling system;
- hydraulic mechanical attachment of tools gripping;
- guarding screens of cutting zone;
- set of quick-wearing parts, tools and attachments


  • Bench vice
  • Universal indexing head
  • Set of boring arbors
  • Set of arbors and collet chucks for tools gripping
  • Rotary table with manual and mechanized driv
  • Digital read-out device over coordinates X, Y, Z
