- HORIZONTAL KNEE-TYPE MILLING MACHINE ORSHA-F32GF3
HORIZONTAL KNEE-TYPE MILLING MACHINE ORSHA-F32GF3
DESCRIPTION

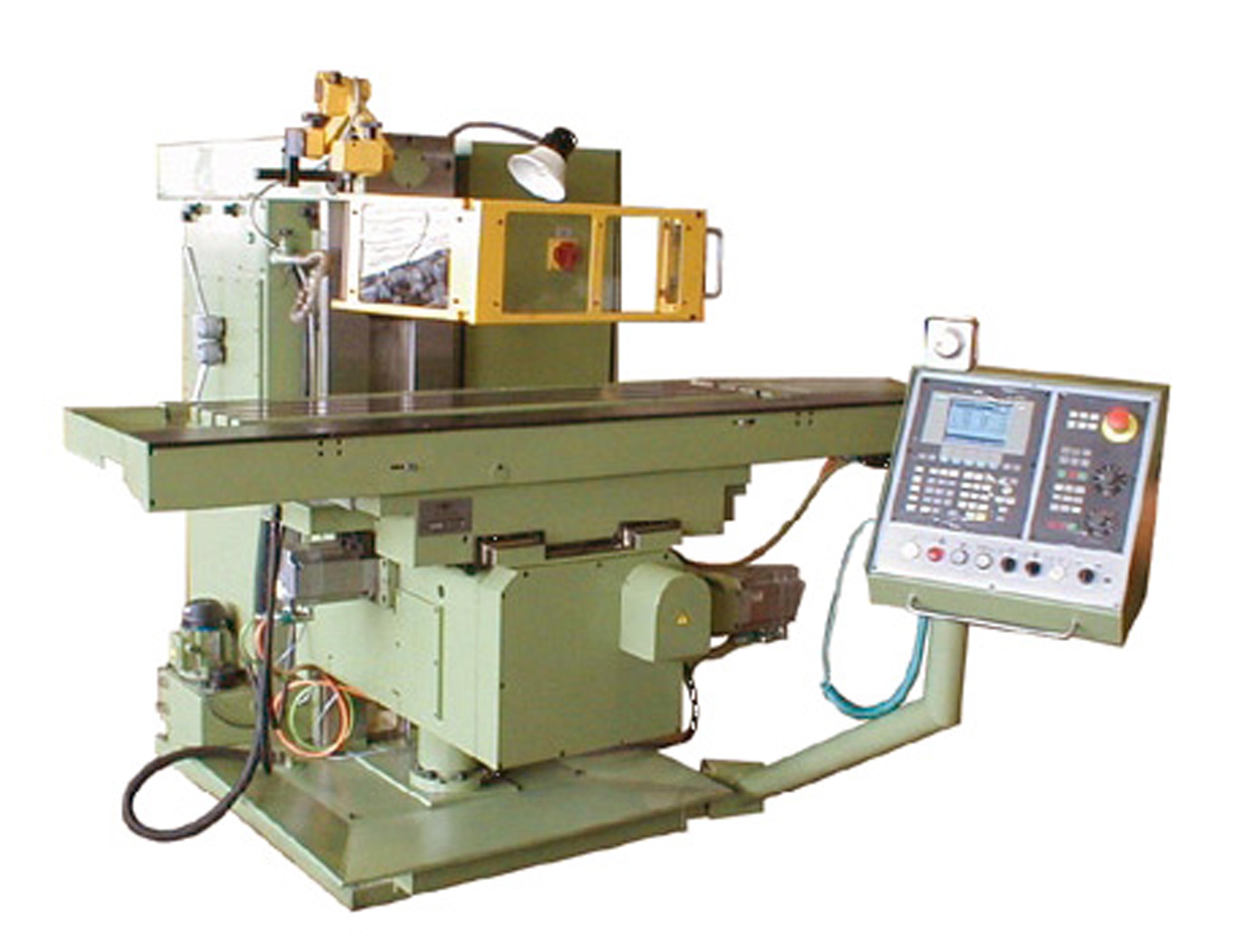

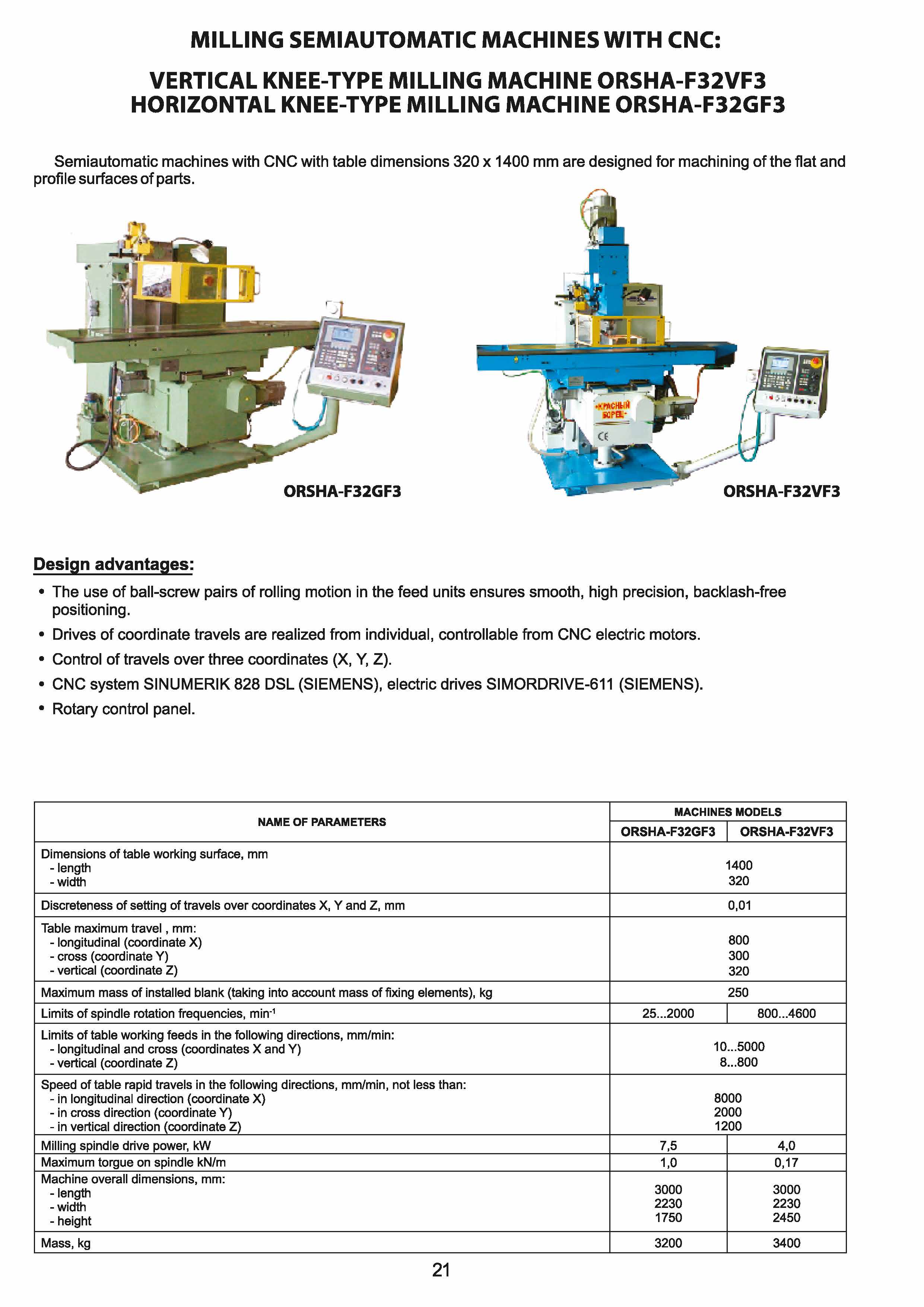

Horizontal knee-type milling machine ORSHA-F32GF3. Semiautomatic machine with CNC with table dimensions 320 x 1400 mm are designed for machining of the flat and profile surfaces of parts.
DESIGN ADVANTAGES
- The use of ball-screw pairs of rolling motion in the feed units ensures smooth, high precision, backlash-free positioning.
- Drives of coordinate travels are realized from individual, controllable from CNC electric motors.
- Control of travels over three coordinates (X, Y, Z).
- CNC system SINUMERIK 828 DSL (SIEMENS), electric drives SIMODRIVE-611 (SIEMENS).
- Rotary control panel.
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Length/ width of table working surface
1400 x 320 mm
-
Maximum mass of installed work piece (together with mass of fixing elements)
250 kg
-
Table longitudinal and cross (coordinates X and Y) working feed range
10...5000 mm/min
-
Table vertical (coordinate Z) working feed range
8...800 mm/min
-
Discreteness of setting of travels over coordinates X, Y and Z
0,01 mm
-
Table maximum longitudinal travel (coordinate X)
800 mm
-
Table maximum cross travel (coordinate Y)
300 mm
-
Table maximum vertical travel (coordinate Z)
320 mm
-
Limits of spindle rotation frequencies
25...2000 rpm
-
Speed of table rapid travels in longitudinal direction (coordinate X)
8000 mm/min
-
Speed of table rapid travels in cross direction ( coordinate Y)
2000 mm/min
-
Speed of table rapid travels in vertical direction (coordinate Z)
1200 mm/min
-
Milling spindle drive power
7,5 kW
-
Maximum torgue on spindle
1,0 kN/m
-
Overall dimensions (length x width x height)
3000 x 2230 x 1750 mm
-
Mass
3200 kg
