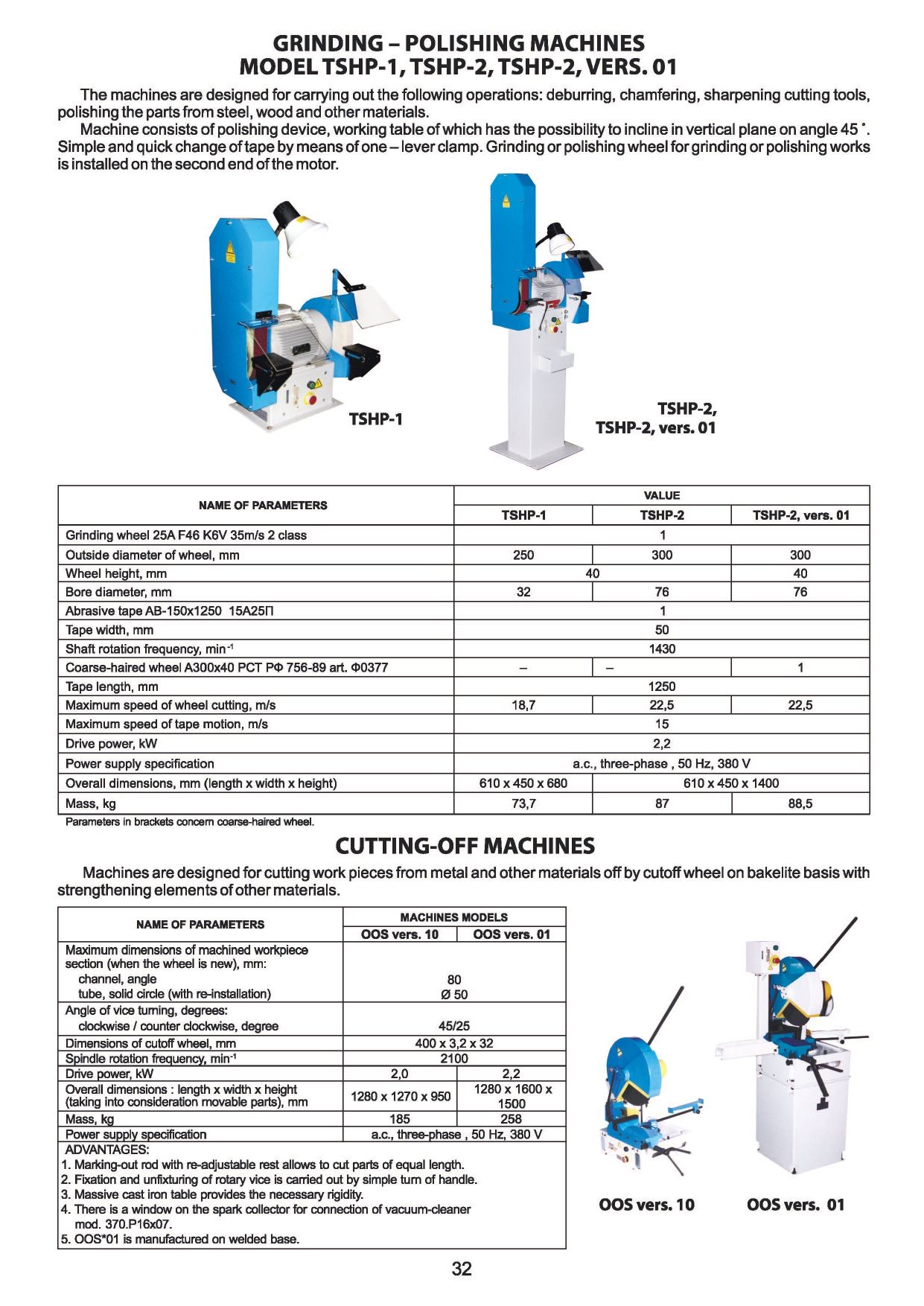

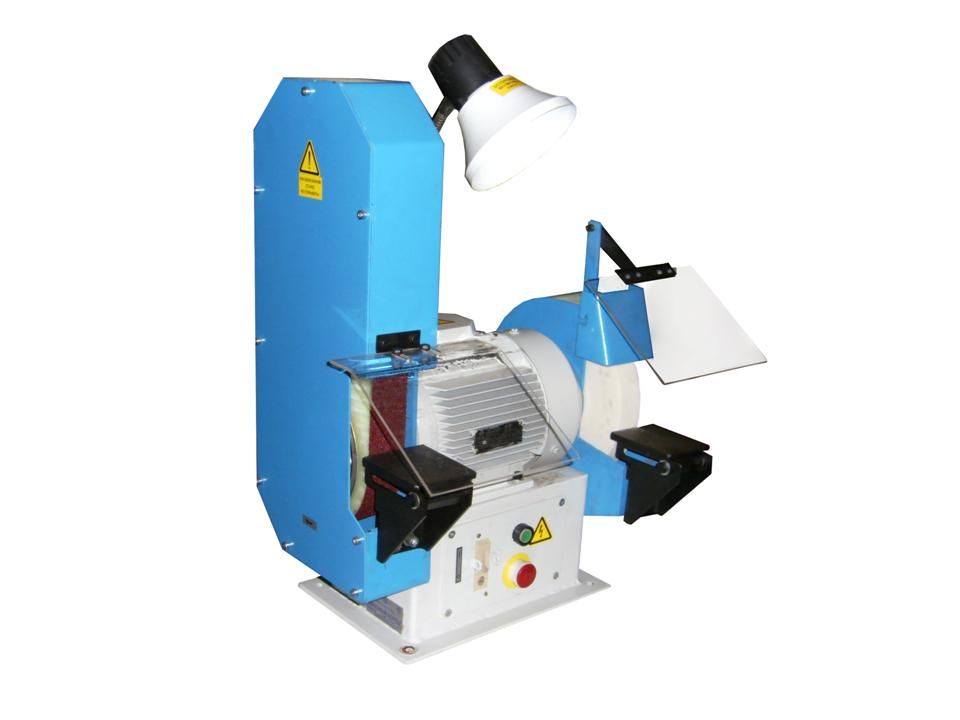

GRINDING - POLISHING MACHINES TSHP-1

DESCRIPTION

The machines are designed for carrying out the following operations: deburring, chamfering, sharpening cutting tools, polishing the parts from steel, wood and other materials.

Machine consists of polishing device, working table of which has the possibility to incline in vertical plane on angle 45 ˚. Simple and quick change of tape by means of one – lever clamp. Grinding or polishing wheel for grinding or polishing works is installed on the second end of the motor.


Send a request Download
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Main drive power
    2.2 kW
  • Outside diameter
    250 мм
  • Diameter of circle fitting hole
    32 мм
  • Circle height
    40 мм
  • Power supply specification
    a.c., three-phase , 50 Hz, 380 V
  • Grinding wheel 25A F46 K6V 35m/s 2 class
    1
  • Abrasive tape AB-150x1250 15A25P
    1
  • Tape width
    50 мм
  • Shaft rotation frequency
    1430 мin-1
  • Coarse-haired wheel A300x40 RST RF 756-89 art. F0377
    -
  • Tape length
    1250 мм
  • Maximum speed of wheel cutting
    18,7 м/s
  • Maximum speed of tape motion
    15 м/s
  • Overall dimensions (length x width x height)
    610 х 450 х 680 мм
  • Mass
    73,7 kg
  • Vacuum cleaner 370.P16
