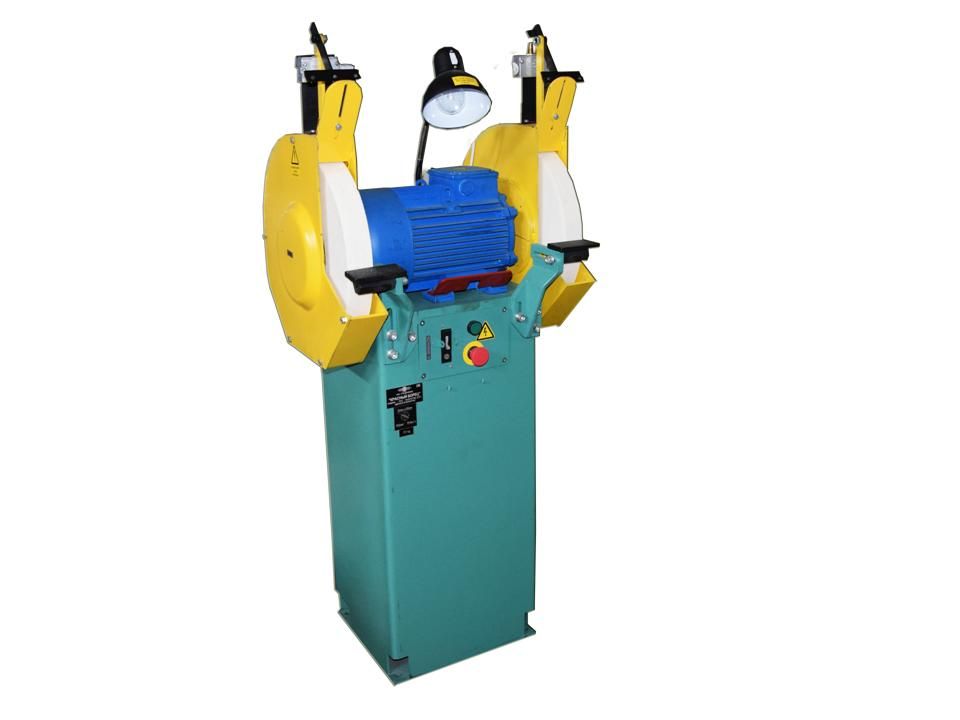

SHARPENER TSH-3
DESCRIPTION
Sharpeners are designed for fitting works (deburring, chamfering etc.). Use of corresponding fixtures allows to carry out grinding and polishing of parts.
The sharpeners have limit switches on housings for limitation of guard boards turning angle and socket for connecting vacuum cleaner 370.P16.
Sharpeners mod. TSH-3 are manufactured on welded bed.
Parameters of cutting tool on ceramic bundle (as per GOST 2424-83).
- Technical specifications
- Design description
- Delivery set
- Options
- Video
- Reference-list
- Reviews
-
Main drive power
3.0 kW
-
Outside diameter
400 mm
-
Diameter of circle fitting hole
127 mm
-
Circle height
50 mm
-
Grinding wheels rotation frequency
1410 min-1
-
Power supply specification
a.c., three-phase , 50 Hz, 380 V
-
Overall dimensions (length x width x height)
559 х 580 х 1300 мм
-
Mass
152 kg
Sharpeners are designed for fitting works (deburring, chamfering etc.). Use of corresponding fixtures allows to carry out grinding and polishing of parts.
The sharpeners have limit switches on housings for limitation of guard boards turning angle and socket for connecting vacuum cleaner 370.P16.

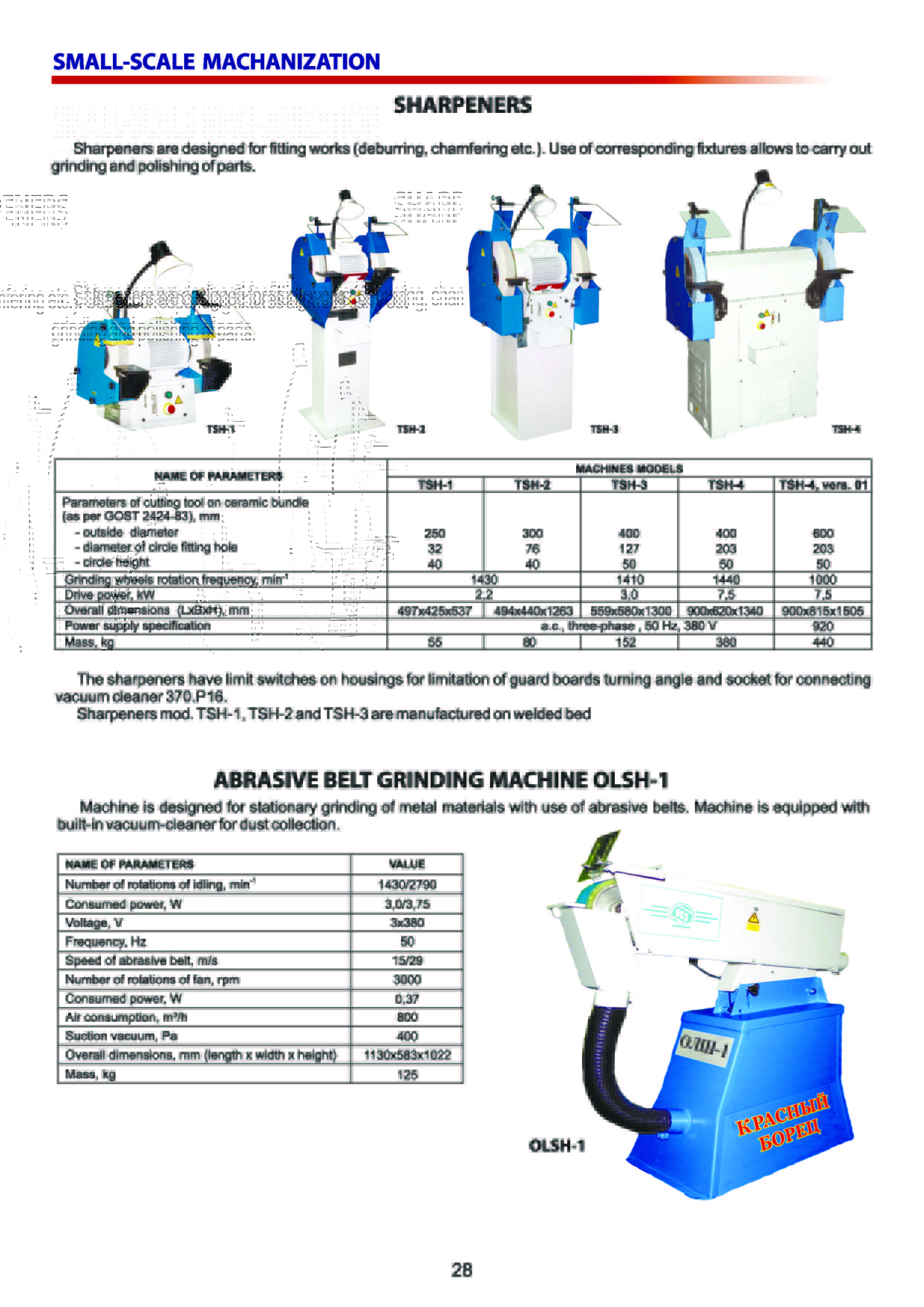

Sharpeners mod. TSH-1, TSH-2 and TSH-3 are manufactured on welded bed.
The machine is assembled;
Screen - 2 pcs;
Key 7812-0342 I90-2 - 1 piece;
Manual.
- Vacuum cleaner 370.P16
