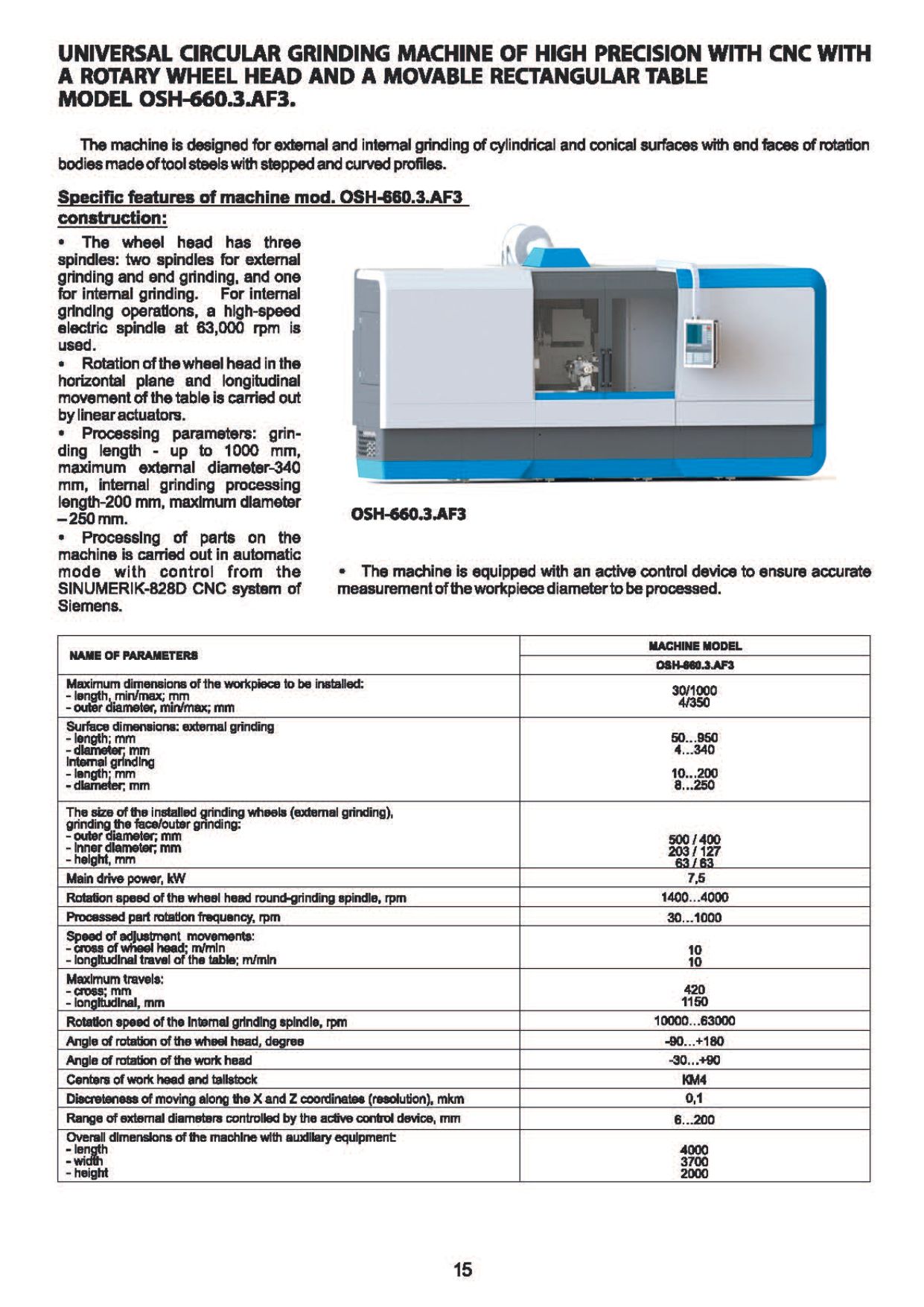

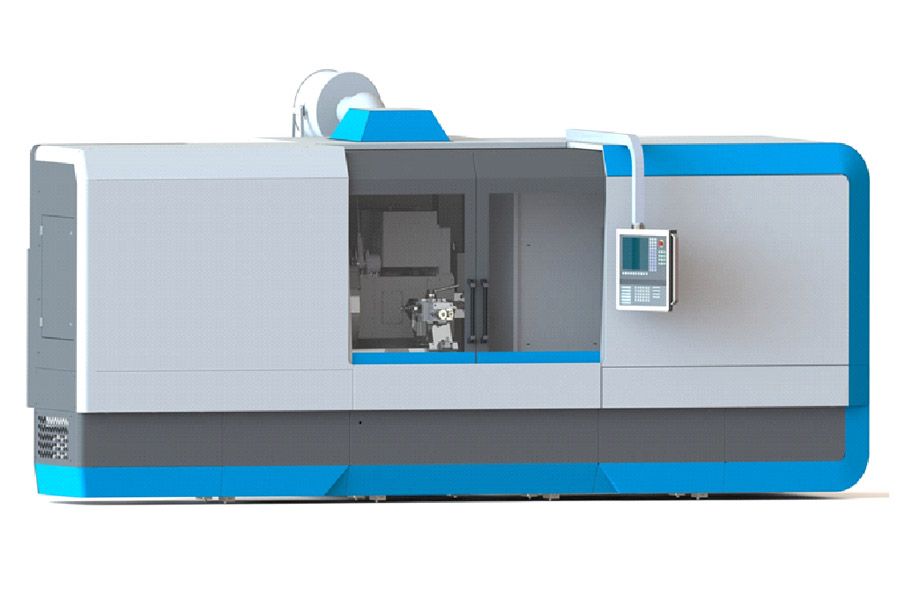

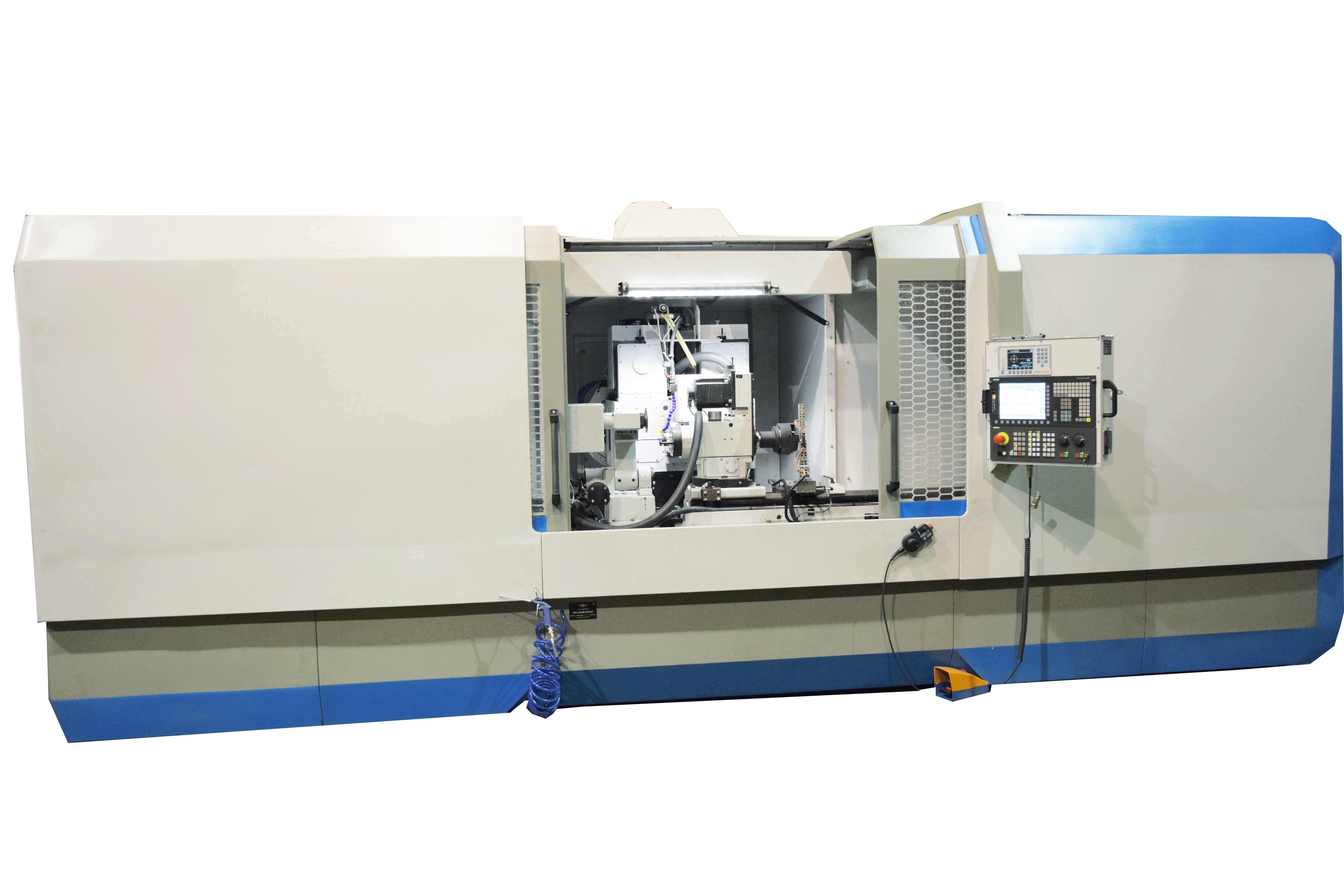

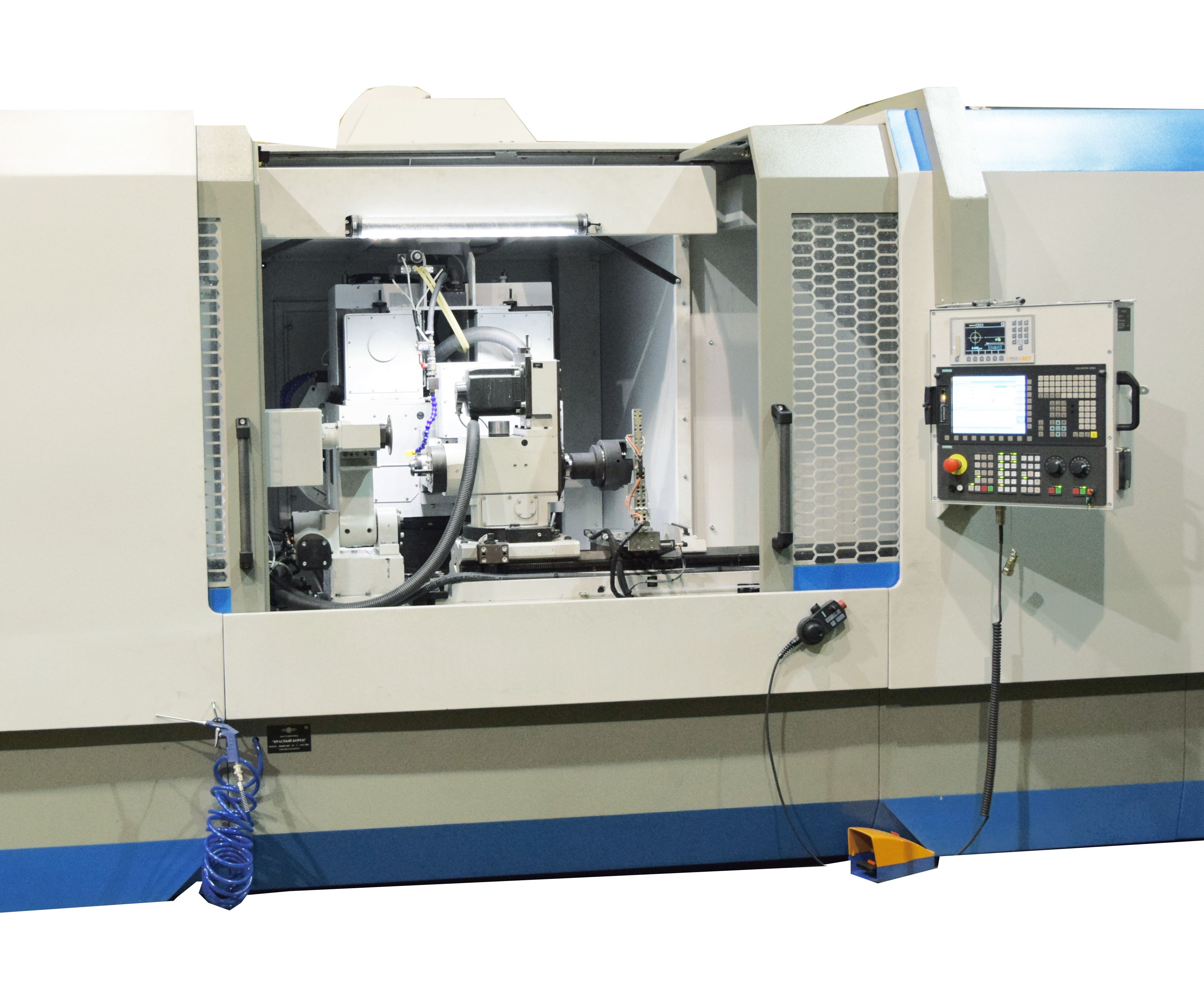

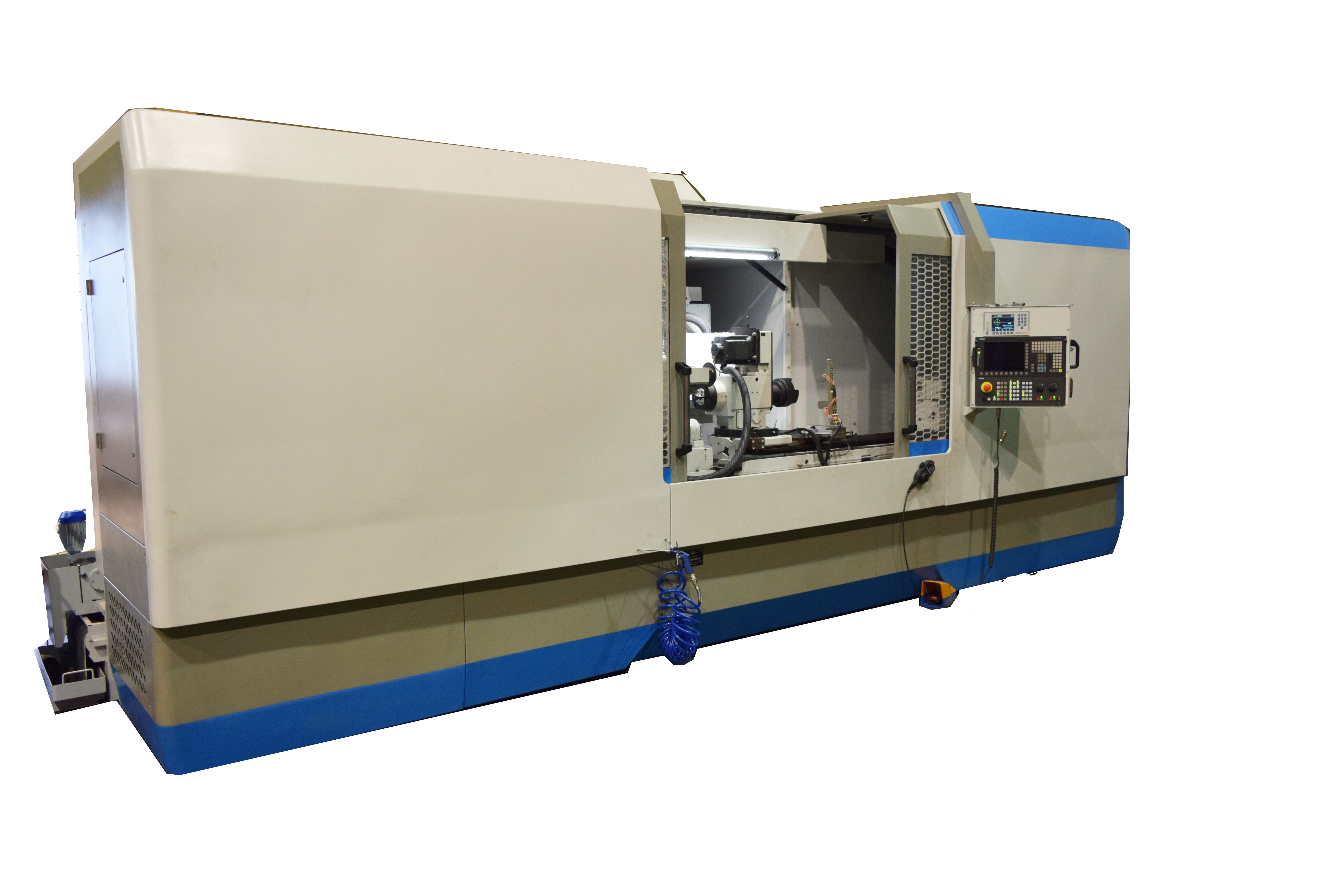

UNIVERSAL CIRCULAR GRINDING MACHINE OF HIGH PRECISION WITH CNC WITH A ROTARY WHEEL HEAD AND A MOVABLE RECTANGULAR TABLE OSH-660.3.AF3

DESCRIPTION

The machine is designed for external and internal grinding of cylindrical and conical surfaces with end faces of rotation bodies made of tool steels with stepped and curved profiles.

Send a request Download

DESIGN ADVANTAGES

  • The wheel head has three spindles: two spindles for external grinding and end grinding, and one for internal grinding. For internal grinding operations, a high-speed electric spindle at 63,000 rpm is used.
  • Rotation of the wheel head in the horizontal plane and longitudinal movement of the table is carried out by linear actuators.
  • Processing parameters: grinding length - up to 1000 mm, maximum external diameter-340 mm, internal grinding processing length-200 mm, maximum diameter – 250 mm.
  • Processing of parts on the machine is carried out in automatic mode with control from the SINUMERIK-828D CNC system of Siemens.
  • The machine is equipped with an active control device to ensure accurate measurement of the workpiece diameter to be processed.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Length, min/max of the workpiece to be installed
    30/1000 mm
  • Outer diameter, min/max of the workpiece to be installed
    4/350 mm
  • Surface dimensions length external grinding
    50...950 mm
  • Surface dimensions diameter external grinding
    4...340 mm
  • Surface dimensions length internal grinding
    10...200 mm
  • Surface dimensions diameter internal grinding
    8...250 mm
  • Outer diameter of the installed grinding wheels (external grinding), grinding the face/outer grinding
    500/400 mm
  • Inner diameter of the installed grinding wheels (external grinding), grinding the face/outer grinding
    203/127 mm
  • Height diameter of the installed grinding wheels (external grinding), grinding the face/outer grinding
    63/63 mm
  • Main drive power
    7,5 kW
  • Rotation speed of the wheel head round-grinding spindle
    1400...4000 rpm
  • Processed part rotation frequency
    30...1000 rpm
  • Speed of adjustment movements cross of wheel head
    10 m/min
  • Speed of adjustment movements longitudinal travel of the table
    10 m/min
  • Maximum cross travel
    420 mm
  • Rotation speed of the internal grinding spindle
    1150 mm
  • Angle of rotation of the wheel head
    -90...+180 degree
  • Angle of rotation of the work head
    -30...+90 degree
  • Centers of work head and tailstock
    KM4
  • Discreteness of moving along the X and Z coordinates (resolution)
    0,1 mkm
  • Range of external diameters controlled by the active control device
    6...200mm
  • Overall dimensions of the machine with auxiliary equipment (length x width x height)
    4000 x 3700 x 2000 mm
