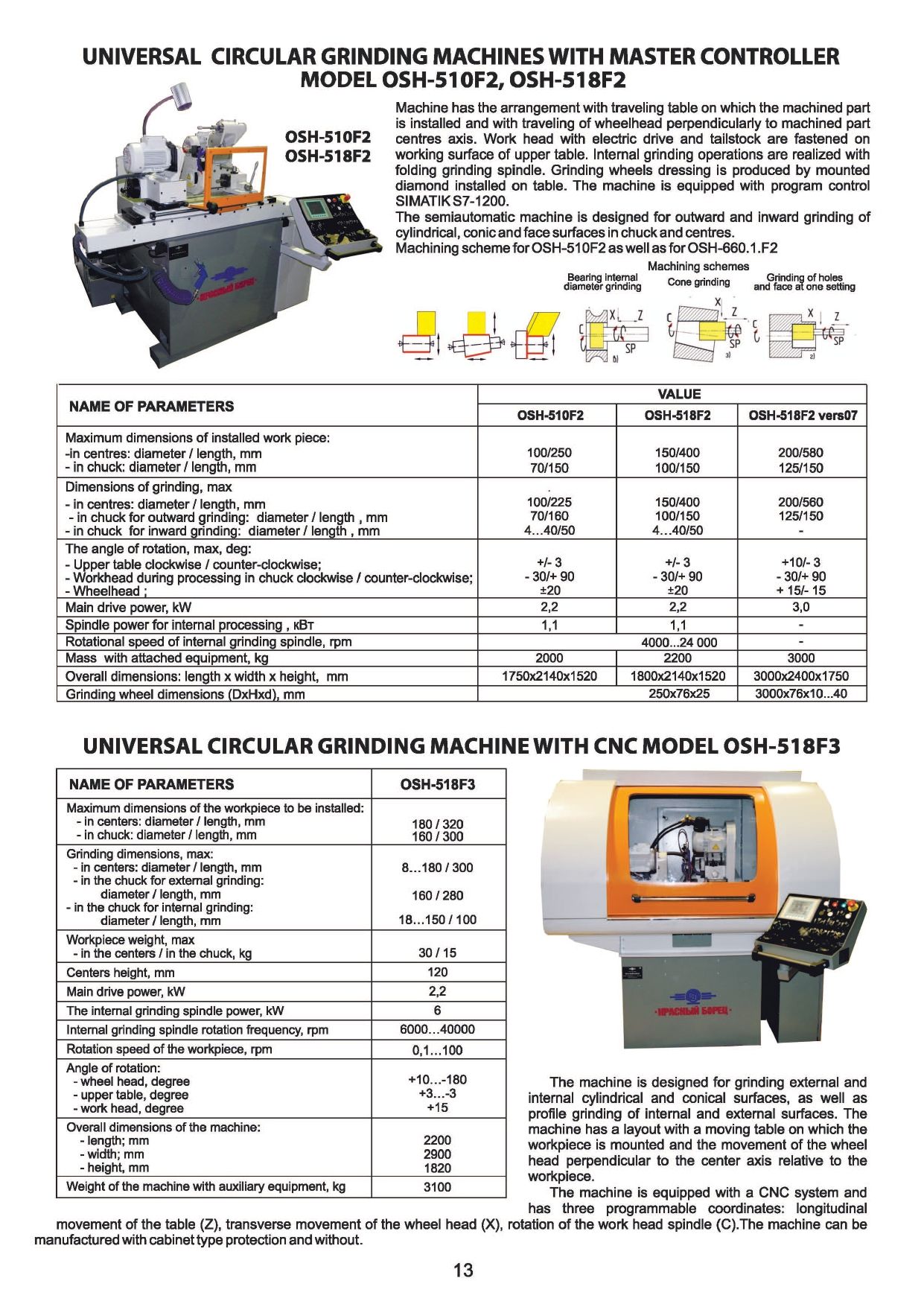

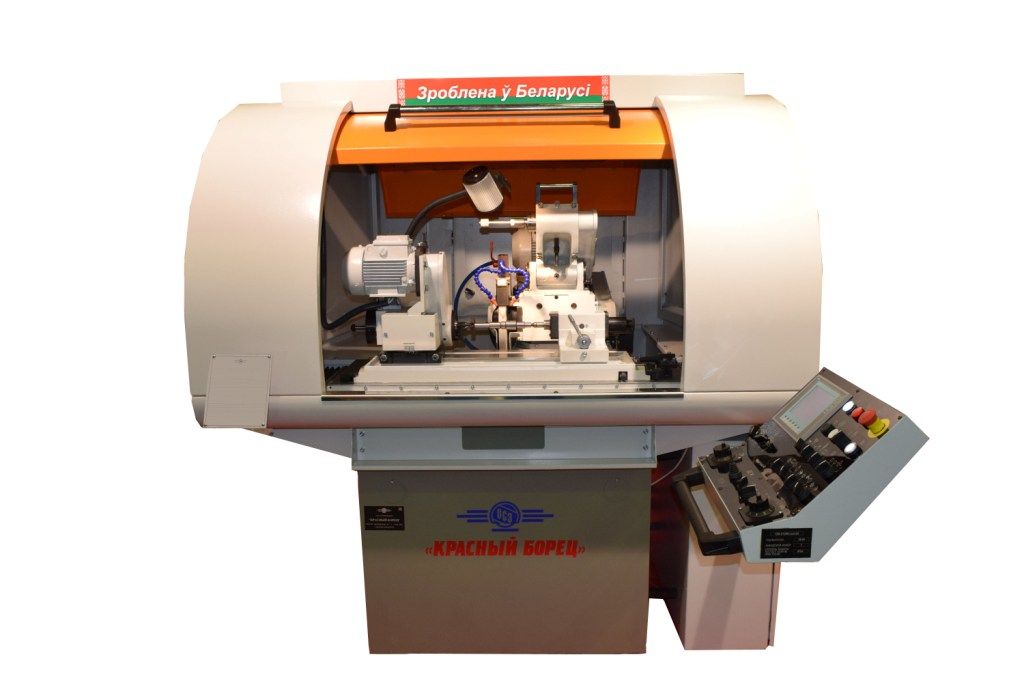

UNIVERSAL CIRCULAR GRINDING MACHINE WITH CNC OSH-518F3

DESCRIPTION

 The machine is designed for grinding external and internal cylindrical and conical surfaces, as well as profile grinding of Internal and external surfaces. The machine has a layout with a moving table on which the workpiece is mounted and the movement of the wheel head perpendicular to the center axis relative to the workpiece.
The machine is equipped with a CNC system and has three programmable coordinates: longitudinal rotation of the work head spindle (C).The machine can be movement of the table (Z), transverse movement of the wheel head (X), manufactured with cabinettype protection and without.

Send a request Download

DESIGN ADVANTAGES

  • The machine is equipped with a CNC system and has three programmable coordinates: longitudinal rotation of the work head spindle (C).The machine can be movement of the table (Z), transverse movement of the wheel head (X)
  • The machine has a layout with a moving table on which the workpiece is mounted and the movement of the wheel head perpendicular to the center axis relative to the workpiece.
  • Low-voltage equipment manufactured by Siemens.
  • Fagor linear displacement converters as feedback.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Diameter of the workpiece to be installed in the centers
    180 mm
  • Length of the workpiece to be installed in the centers
    320 mm
  • Diameter of the workpiece to be installed in the chuck
    160 mm
  • Length of the workpiece to be installed in the chuck
    300 mm
  • Main drive power
    2.2 kW
  • Diameter of grinding in the centers
    8...180 mm
  • Length of grinding in the centers
    300 mm
  • Diameter of grinding in the chuck when external grinding
    160mm
  • Length of grinding in the chuck when external grinding
    280 mm
  • Diameter of grinding in the chuck when internal grinding
    18...150mm
  • Length of grinding in the chuck when internal grinding
    100mm
  • Mass of workpiece in the centers
    30kg
  • Mass of workpiece in the chuck
    15kg
  • Height of centers
    120mm
  • Outer diameter of the grinding wheel for external grinding
    250 mm
  • Inner diameter of the grinding wheel for external grinding
    76 mm
  • Height of the grinding wheel for external grinding
    25 mm
  • Angle of rotation of the upper table clockwise/counterclockwise
    +3/-3 degree
  • The angle of rotation of the work head in clockwise/counterclockwise direction
    +10/-180 degree
  • Angle of the wheel head rotation
    +-15 degree
  • Spindle power for internal processing
    -
  • Speed of the internal grinding spindle
    -
  • Accuracy processing parameters
    GOST 11654-90 OF MACHINES OF HIGH ACCURACY CLASS
  • Deviation from the constancy of the diameter at a length of 225 mm in the longitudinal section when processing in centers
    0,4 mkm
  • Roundness tolerance in the processing centers
    1,0 mkm
  • Roundness tolerance when processing in the chuck
    1,6 mkm
  • Roughness of the cylindrical outer surface
    0,32 RA
  • Roughness of the cylindrical inner surface
    0,32 RA
  • Roughness of the flat end face
    0,16 RA
  • Overall dimensions (length x width x height)
    2200х2900х1820 mm
  • Mass
    3100 kg

The machine has a layout with a moving table on which the workpiece is mounted and the movement of the wheel head perpendicular to the center axis relative to the workpiece.
The machine is equipped with a CNC system and has three programmable coordinates: longitudinal rotation of the work head spindle (C).The machine can be movement of the table (Z), transverse movement of the wheel head (X), manufactured with cabinettype protection and without.

Standard delivery set:
   - machine assembled ( with wheel head, headstock and tailstock);
   - coolant supply and cleaning system (complete with magnetic separator and filter conveyor);
- lubrication hydraulic station;
   - electric automation cabinet;
   - luminaire;
   - control panel with operator panel and programmable logic controller (S7-1200 by “Siemens”);
- arbour for internal grinding wheel;
   - grinding wheels GOST R 52781-2007:
- 1-250 x 25 x 76 (mm) – 1 pc.
- 32 x 25 x 10 (mm) – 10 pcs.
- dresser diamond 3908-0247 – 3 pcs. (installed on the machine);
   - three-cam chuck with a diameter of 80 mm/100 mm – 1 pc.;
   - grinding wheel flanges – 2 sets (1 set is installed on the machine);
   - open type guard of the working zone;
   - gun for air blowing;
   - set of spare parts and accessories, quick wearing parts for 1 year of operation;
   - spare parts kit;
- locksmith tools for machine maintenance;
- installation shoes-4 pcs.;
- set of operational documentation: (operating manual for the machine; operating manual for electrical equipment; spare parts catalog; management instructions – 1 copy).


  • Mandrel for the grinding wheel static balancing,

  • Device for the grinding wheel static balancing,

  • Centrifugal coolant cleaning station-centrifuge.

  • Exhaust device "UV-1200.00.0.000.0.00". The device is designed to extract coolant mist with inclusions of solid dust and small metal shavings.

  •  Cabinet protection.

  •  Reverse centers.

  •  Set of clamps.

  • Device for dressing the wheel at an angle.

  • Device for dressing the wheel on radius
