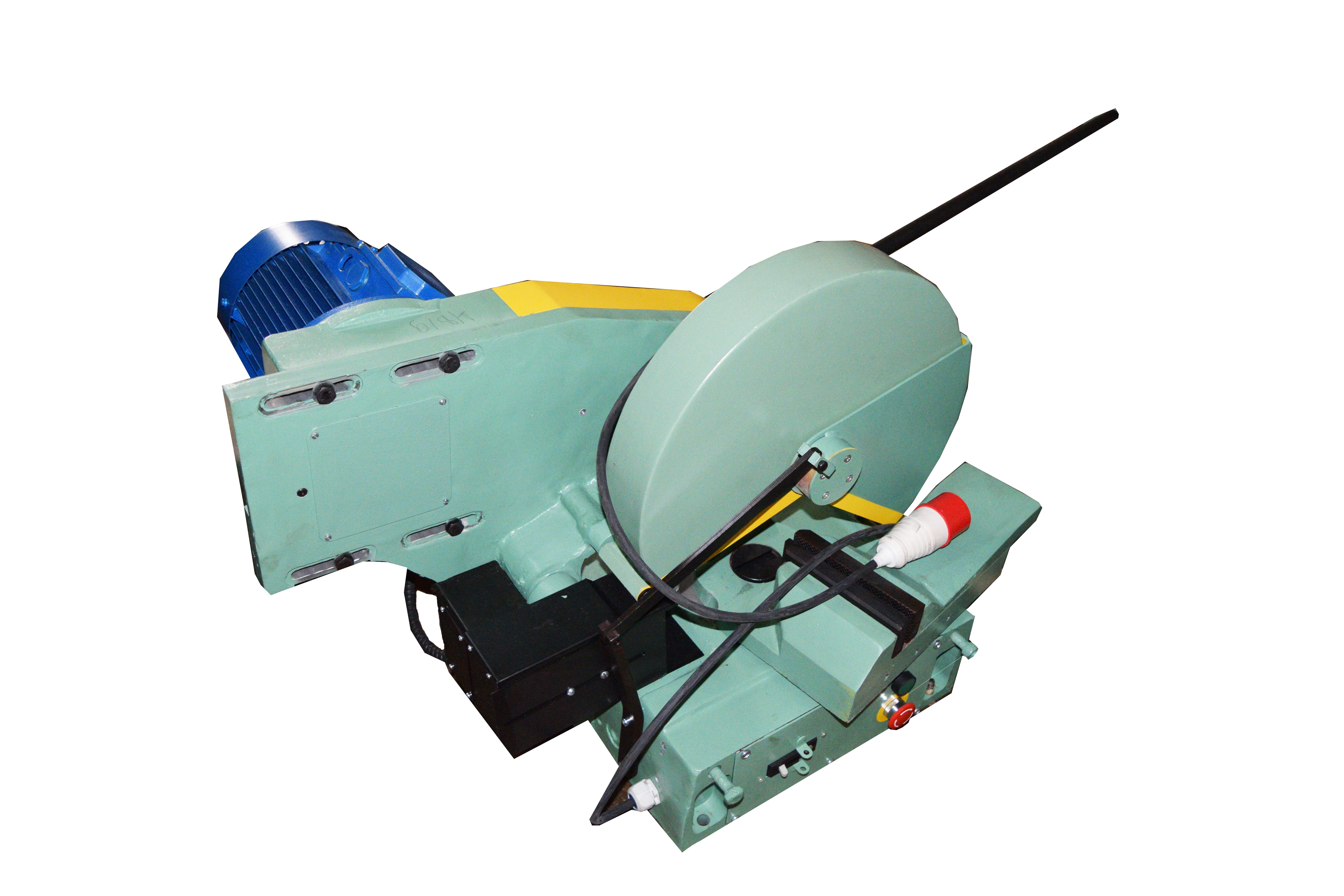

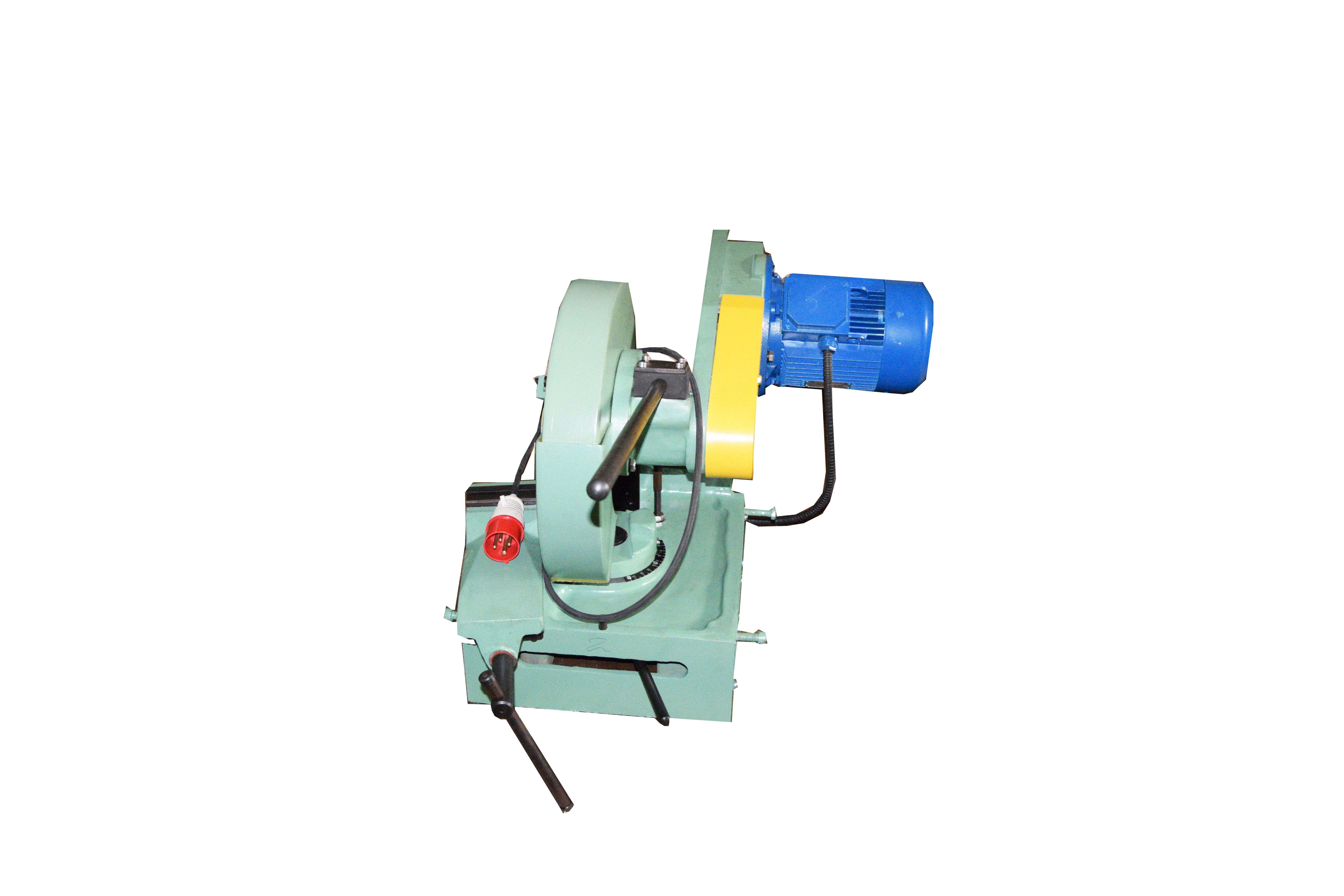

CUTTING-OFF MACHINES OOS VERSION 10

DESCRIPTION

Machines are designed for cutting work pieces from metal and other materials off by cutoff wheel on bakelite basis with strengthening elements of other materials.

Send a request Download

DESIGN ADVANTAGES

  • Marking-out rod with re-adjustable rest allows to cut parts of equal length.
  • Fixation and unfixturing of rotary vice is carried out by simple turn of handle.
  • Massive cast iron bed provides the necessary rigidity
  • There is a window on the spark collector for connection of vacuum-cleaner mod. 370P16x07.

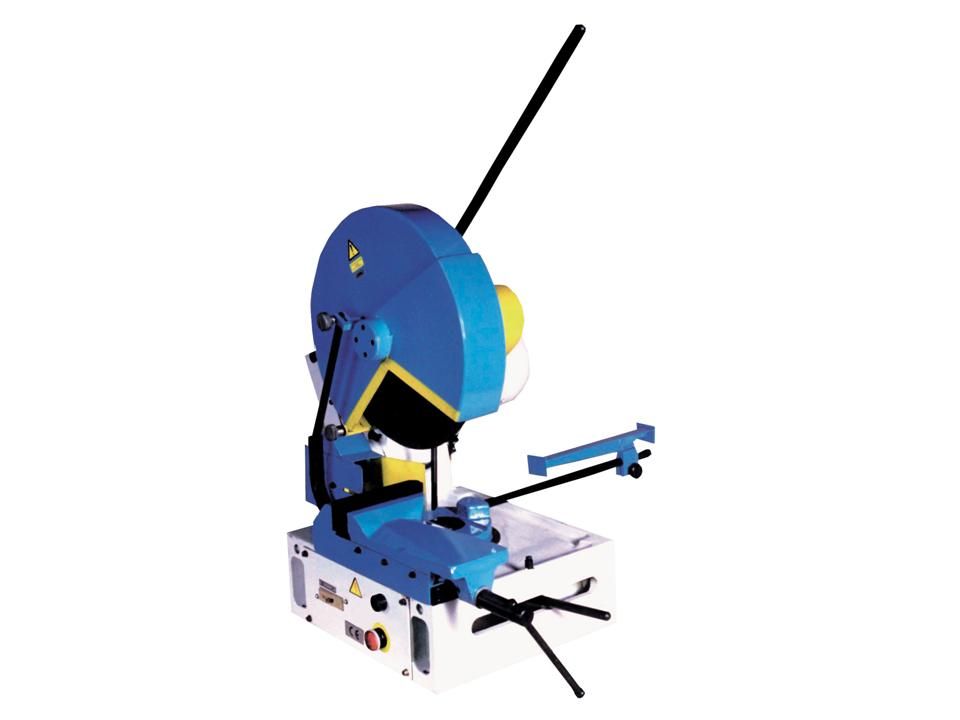

  • OOS*01 is manufactured on welded base.
  • Technical specifications
  • Design description
  • Delivery set
  • Options
  • Video
  • Reference-list
  • Reviews
  • Channel, angle maximum dimensions of machined workpiece section (when the wheel is new
    80 мм
  • Tube, solid circle (with re-installation)maximum dimensions of machined workpiece section (when the wheel is new)
    50 мм
  • Angle of vice turning, degrees : clockwise / counter
    45/25 degree
  • Dimensions of cutoff wheel
    400 x 3,2 x 32 мм
  • Spindle rotation frequency
    2100 мin-1
  • Drive power
    2,0kW
  • Power supply specification
    a.c., three-phase , 50 Hz, 380 V
  • Overall dimensions (length x width x height)
    1280 х 1270 х 950 мм
  • Mass
    185 kg
